J Walter, Inc.    Hartford, CT 06114

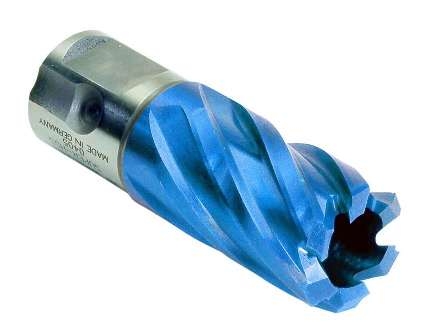

Apr 11, 2005 SST ICECUT(TM) Cutters utilize HSS-XE tool steel, fully ground to proprietary geometry before entering step hardening process that provides hardness of 12% cobalt tool steel without brittleness. After step hardening process, cutters go through surface coating process, which lays down 15 layers of coating material that is harder than carbide. Cutters have universal shank allowing them to be used in all makes of magnetic drills and milling machines.

Autodrill Co.    Millington, NJ 07946

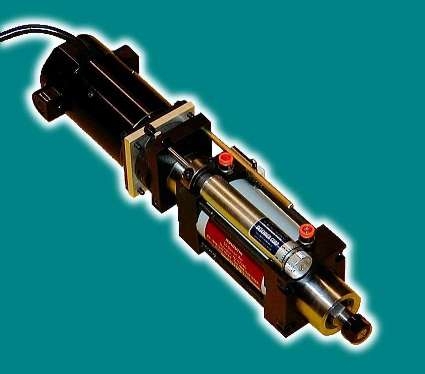

Apr 08, 2005 Series 1000 features adjustable, high-speed dc motors capable of up to 11,500 rpm, making units suited for drilling small holes without noise and wasted energy of air motors. Measuring approximately 4 x 4 x 14 in., drills are rated for use on woods, plastics, and metals. They can be used in combinations for complex patterns or production drilling operations where multiple spindle drilling heads are not appropriate.

CS Unitec, Inc.    Norwalk, CT 06850

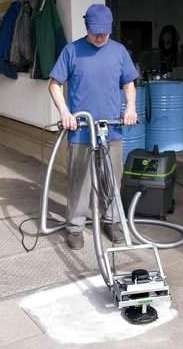

Apr 07, 2005 Equipped with diamond grinding wheel, EBS 125 walk-behind, 5 in. concrete grinder removes epoxy, paint, and other coatings. It performs concrete finishing and surface preparation with 14 A motor. Walk-behind cart eliminates need to bend over and work on hands and knees. Power outlet on cart accommodates grinder plug, letting user activate grinder via on/off switch on cart handle. Grinder can also be used hand-held without cart.

Metabo Corp.    West Chester, PA 19380 4243

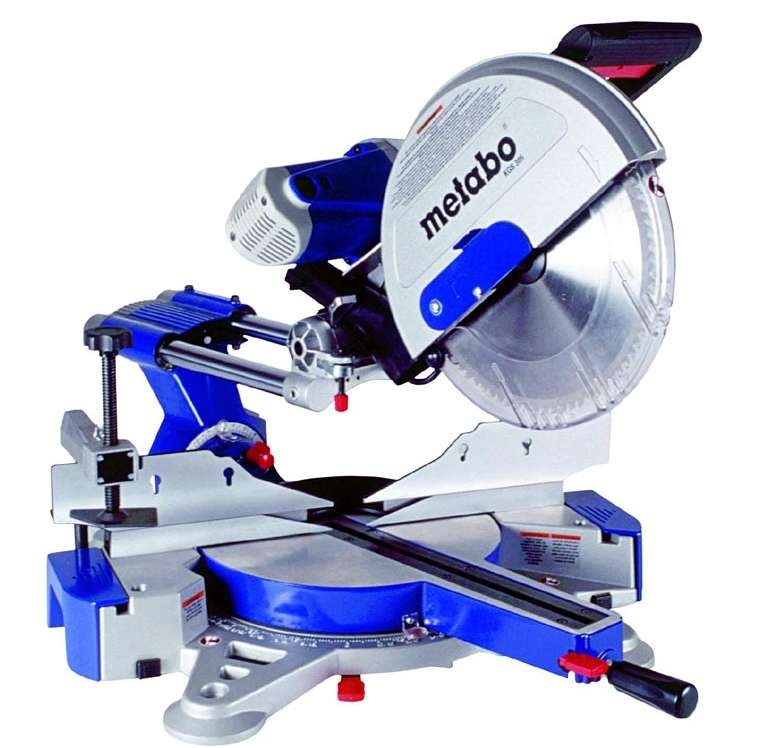

Apr 07, 2005 KGS 305 12 in. Dual Bevel Sliding Compound Miter Saw features cutting depths of 4¾ in. at 90° and 3¼ in. at 45°, and cutting widths of 12½ in. at 90° and 9¼ in. at 45°. No-load speed of 3,800 rpm is provided by 15 A, 2,000 W motor, and saw has dust collection system that removes dust through base of saw. Roof pitch angles are indicated on scale for quick, precise cuts, and users can set their own miter detent for repetitive cuts where there is no existing stop.

Hardinge Workholding Division    Elmira, NY 14902
Apr 07, 2005 With heavily ribbed cast iron construction used throughout, VMC760XP3 incorporates guideways with minimal overhang, dual-ball linear guides, and 45 mm ballscrews. It features 30 x 24 x 24 work envelope with rapid traverse rates of 1,690 ipm on X and Y axes and 1,410 ipm on Z axis. In addition to SKF 40-taper, 12,000 rpm spindle that offers face and taper contact, VMC offers thermal compensation, through-spindle coolant, chip wash down, and chip conveyor.

NTC America Corp. Laser Group    Farmington Hills, MI 84335

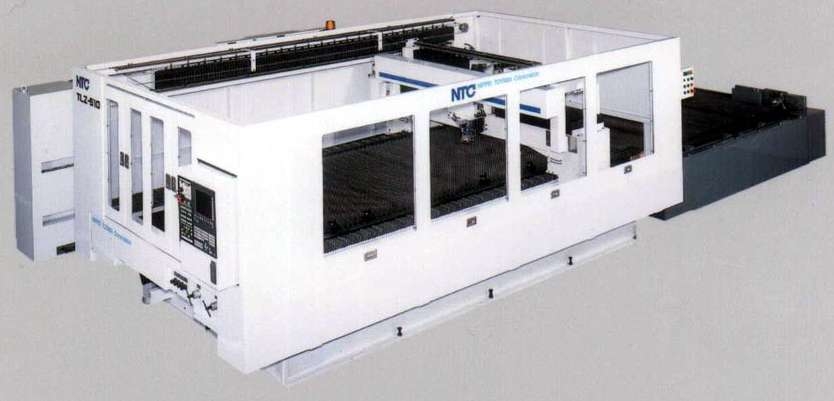

Apr 05, 2005 Featuring bridge-type construction and flexibility of dual pallet changer, TLZ Series includes TLZ-408 with 98 x 49 in. cutting stroke and TLZ-510 with 122 x 61 in. axis movements. Traverse speeds of 3,937 ipm for X and Y axes and 2,362 ipm for Z axis are kept in check with ac servo drive motors, ball screw, and linear ball guide mechanism for precise, controlled movements. Laser power options include 2.5, 3.3, 4.5, and 6.0 kW.

duMONT Co., LLC., The    Greenfield, MA 01302
Apr 05, 2005 Designed to cut ISO standard metric keyways in commonly encountered, metric size bores, Minute Man No. 80 Keyway Broach Set contains 3 broaches and 12 bushings that can be used interchangeably to cut 10, 12, or 14 mm keyways in 12 bore sizes from 32–52 mm. Steel, push-type broaches can be used with any hand-operated arbor press or hydraulic press with adequate throat depth. Product is suited for machine maintenance, erection, or parts production work.

Times Microwave Systems    Wallingford, CT 06492 5039
Apr 05, 2005 Designed for use with LMR-240 low loss cable, ST-240EZ tool prepares cable to exact dimensions in one step, while DBT-02 tool removes burrs from exposed center conductor. EZ non-solder connectors, which include QMA male, QMA male RA, SMA male, SMA male RA, and N male types, are supplied with adhesive-lined ATUM boot. Optimized to facilitate termination, all connectors are suited for use in True Position E911 installations.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

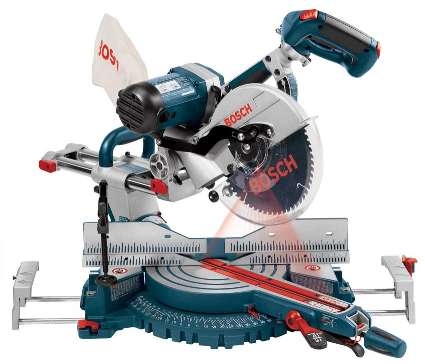

Mar 31, 2005 Laser Tracking System is available on 10 in. Model 4410L and 12 in. Model 5412L Dual Bevel Sliding Compound Miter Saws, as well as 12 in. Model 4212L Dual Bevel Compound Miter Saw. Projecting thin red line along blade's kerf, arbor-mounted laser is visible throughout cut and follows exact contours of workpiece. Laser eliminates additional switches and conserves battery power by actuating with trigger and shutting off when blade stops.

Datron Dynamics, Inc.    Milford, NH 03055
Mar 31, 2005 With working envelope of 40 x 27.5 x 9.5 in., EcoRaptorâ„¢ includes 600 W, 60,000 rpm spindle with ¼ in. collet, 10-tool Automatic Tool Management Systemâ„¢, micro-mist coolant system, protective enclosure with door safety interlock, and chip disposal tray. Controller is equipped with 850 MHz Pentium® PC, 15 in. CRT monitor, 250 MB RAM, 40 GB part/program storage, and Microsoft Windows® software. It offers Ethernet networking and remote monitoring and control.

Tap Magic, A Div. Of The Steco Corporation    Little Rock, AR 72202
Mar 30, 2005 Usable as stand-alone or booster fluid, Tap Magic Xtra-Foamy is suited for use on all metals up to 45 Rockwell hardness. Foamy consistency provides visibility so that users can gauge application rate and fluid presence. Offered in 17 oz aerosol can, product contains EP-X3 proprietary additive and eliminates metal hardening during cutting operation. Single application stays with tool and workpiece for cuts of long duration.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788

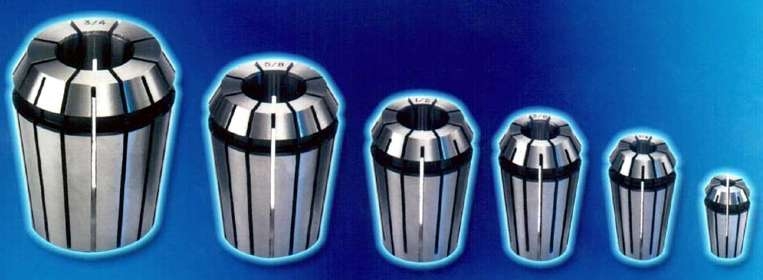

Mar 30, 2005 Available individually and in sets, Royal ER collets are manufactured from alloy steel and hardened for strength. Products, accurate to 0.0002 in. TIR, are ground to exact inch sizes in 1/32 in. increments for precise cutting tool contact.

Roll Grinding Solutions, Inc.    Worcester, MA 01610

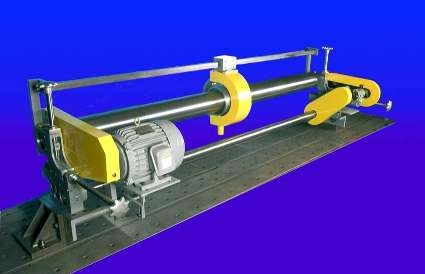

Mar 30, 2005 Portable Roll Grinder mounts directly onto framework of calender equipment to let users grind rolls in their own bearings without hand or block grinding. Eliminating need to remove rolls, self-reversing, traversing grinder can redress calender rolls in-place up to 240 in. long. Grinder can achieve tolerances to 0.0005 in. on diameter, concentricity, and straightness, with finishes as fine as 12 RMS, depending on grit of grinding medium.

Niro Inc.    Columbia, MD 21045 1943
Mar 30, 2005 Courtoy MODULâ„¢ Tablet Press contains all powder within Exchangeable Compression Module (ECM) for product changeover in as little as 30 min. Wash Off Line cleans ECM after it is removed from tablet press, while MODUL remains in operation, producing another product during cleaning cycle. Self-contained ECM is removed from press onto trolley, and trolley is rolled to wash skid, where 3 spray nozzles are attached while still maintaining complete containment.

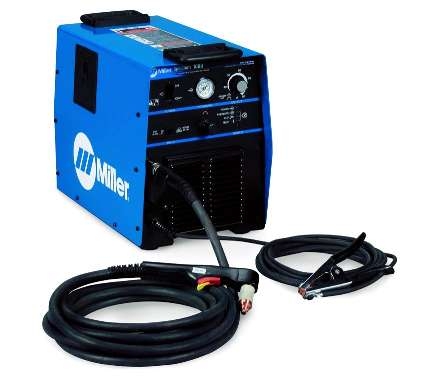

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 29, 2005 Spectrum® 1000 includes Auto-Lineâ„¢ primary power management technology, which allows automatic connection to any primary input voltage from 208–575 V, single- or 3-phase, 50–60 Hz. Ultra-Quick Connectâ„¢ torch facilitates plasma torch connection and removal, while Auto-Refireâ„¢ Technology automatically controls pilot arc when cutting expanded metal or multiple pieces of metal. Unit offers maximum quality cutting capacity of 1¼ in. and sever cut capacity of 1½ in.

Sunnen Products Co.    St. Louis, MO 63143
Mar 29, 2005 Utilizing 7.5 hp spindle motor, Model SV-1000 provides precision .120–2.56 in. honing for medium- to high-volume applications. Stroker design delivers consistent crosshatch pattern throughout entire bore length, and allows machine to dwell in any part of bore to selectively remove stock. Windows®-based control system is displayed on PC color touch screen. Machine features cast iron column casting, cast polymer base, and stainless steel enclosure.

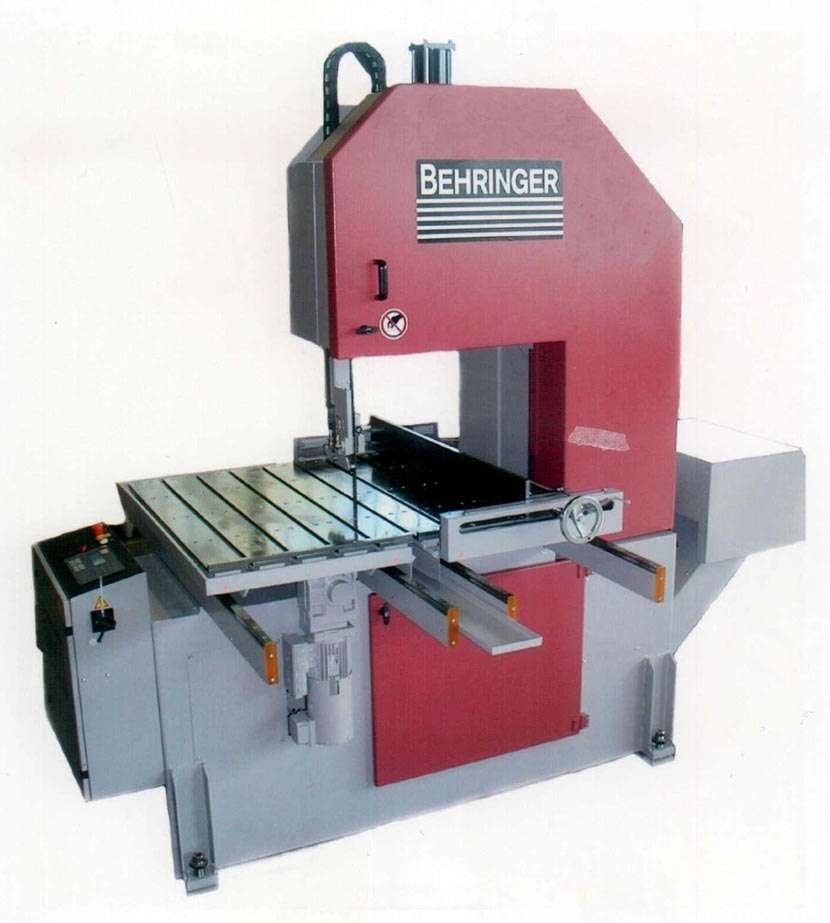

Behringer Saws, Inc.    Morgantown, PA 19543
Mar 29, 2005 Suited for cutting small parts or small sections of material, Model LPS40T is configured with movable table to allow for positioning plates, slabs, or blocks. Table is hydraulically controlled and is mounted on machine bed with linear guides. Controlled by PLC, machine offers cutting height of 15.7 in., table width of 55 in., cutting length of 40 in., and cutting speed of 56–394 fpm. It utilizes bi-metal or carbide bandsaw blades and requires minimal operator intervention.

Mettler Toledo, Inc.    Columbus, OH 43240
Mar 29, 2005 FlexiWeigh 1000 and 2000 offer capabilities for powder and solvent dispensing, inerting of target containers, and capping/uncapping in addition to labeling, sample tracking, and weighing. Floor-standing, fully enclosed cabinets are equipped with XYZ robot with rotating arm and WISC module, which can combine multiple operations at one vial position. Optimally suited for powders in 1–20 mg range, product allows for dispense targets up to 200 mg.

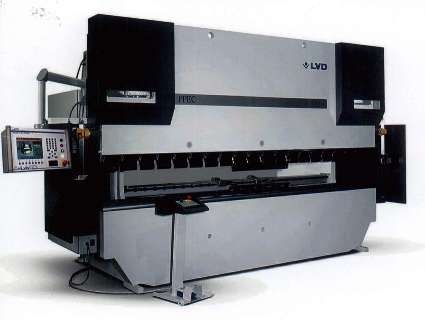

Strippit Inc.    Akron, NY 14001-1321
Mar 29, 2005 With working lengths from 78-168 in., Series PPEC is offered in 4- and 5-axis configurations. Five-axis design is equipped with CNC-controlled crowning system, which ensures ram and table are parallel during bending. Standard backgauge fingers allow gauging to 39.4 in. and serve as material supports. Windows® NT-based CADMAN® Express control provides automatic calculation of bend allowance and automatic selection of tools based on material thickness.

SICK, Inc.    Minneapolis, MN 55438
Mar 28, 2005 Utilizing vision-based technology, Model V 4000 offers point-of-operation safeguarding on press brake machines in metalworking and automotive applications. System mounts on upper beam of press brake and provides safeguarding during fast downward movement of punch. It creates safety volume below die that is constantly monitored for intrusion. Output Signal Switching Device provides signal to switch off machine as soon as intruding object is detected.
