Rex-Cut Products, Inc.    Fall River, MA 02720
Jun 15, 2005 Non-loading Rex-Cut® Quick Change Discs are constructed with multiple layers of non-woven cotton fiber impregnated with aluminum oxide or silicon carbide grains. For use on flat or contoured surfaces, construction ensures products constantly reveal fresh abrasives as they grind. Discs, offered in 1, 1½, 2, and 3 in. sizes, are rigid enough to get into corners and are available with various grits and bonds.

AddisonMckee    Preston, Lancashire PR5 8AJ  United Kingdom
Jun 14, 2005 Powerbend machines employ hydraulically-powered mandrel tube benders capable of handling carbon steel tube from 50–125 mm dia. With respective maximum bend angles and CLR of 180° and 250 mm, units feature externally mounted hydraulic valves and filter; plug-in electrical connections to valves with position indicators; and hydraulically powered, direct acting reaction arm. Allen-Bradley alphanumeric keypad offers 1,000 program storage with 16 bends max per program.

Esco Tool    Medfield, MA 02052
Jun 14, 2005 Prepzilla MILLHOG® pipe milling end prep tool features one mandrel and 8 sets of interchangeable clamps to cover 1½ in. ID to 8 5/8 in. OD operating range. Designed for materials such as stainless steel and P-91, tool has 2¾ hp pneumatic motor, generates 1,500 lb-ft of torque at cutter blade, and pulls thick chip without cutting fluids. It uses EscoLockâ„¢ blade lock system and TiN coated cutter blades and is capable of beveling and facing or boring in one operation.

Stafford Mfg. Corp.    Wilmington, MA 01887
Jun 14, 2005 Stafford Shaft Collars are available with threaded-, square-, smooth-, hex-, and keyed-bores to match positive drive shafts. Available in 1-piece, 2-piece, and hinged-collar styles, products are machined from steel, 303 stainless steel, and aluminum. Collars, offered in standard inch/metric sizes from 1/8–10 in. ID and 3.175–254 mm, may also be constructed from 316 stainless steel, brass, bronze, and exotic alloys.

Mazak Corp.    Florence, KY 41042 3092
Jun 14, 2005 Integrex 100-IIIST features 6,000 rpm max turning spindle speed with 6 in. chuck and milling spindle with 12,000 rpm max speed. Second spindle eliminates work-in-process; parts are completed in one setup on one machine. Linear guides are provided on X, Y, and Z axes, with rapid traverse speeds of 1,181, 1,024, and 1,299 ipm, respectively. Machine includes automatic tool changer with 20-tool magazine and Mazatrol Fusion 640 MT Pro CNC control with 64-bit RISC processor.

Pulse Research Lab    Torrance, CA 90502-1200

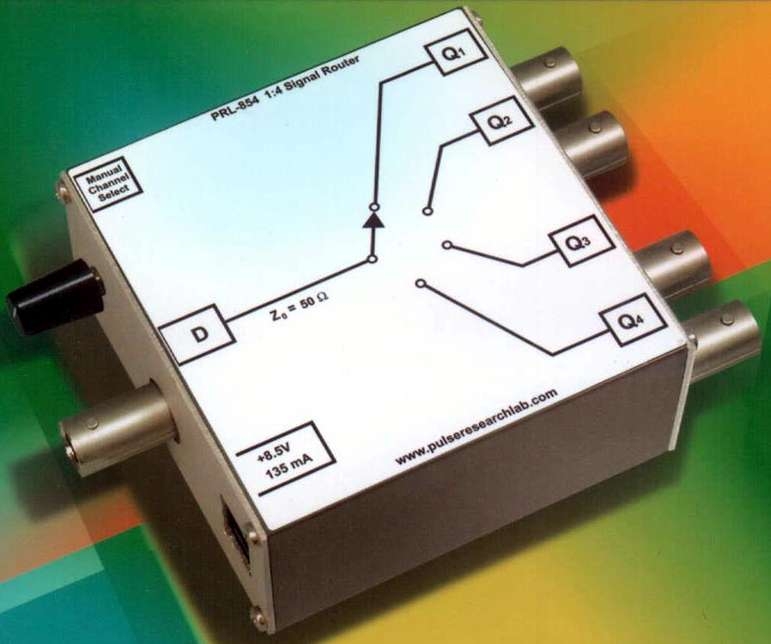

Jun 13, 2005 Measuring 1.3 x 2.9 x 2.9 in., self-contained PRL-854 switches one 50 ohm input to any of four 50 ohm outputs under manual or remote control. It has 3 dB bandwidth of 1.75 GHz typ and works for microwave and high-speed digital signals from dc to 2.5 GHz. Unit can also be used as reflective scanner, switching 4 inputs to one output. Manual models have rotary switch for channel selection, and remote-control models feature TTL/CMOS-compatible control pins.er

Brown Machine LLC    Beaverton, MI 48612-0434

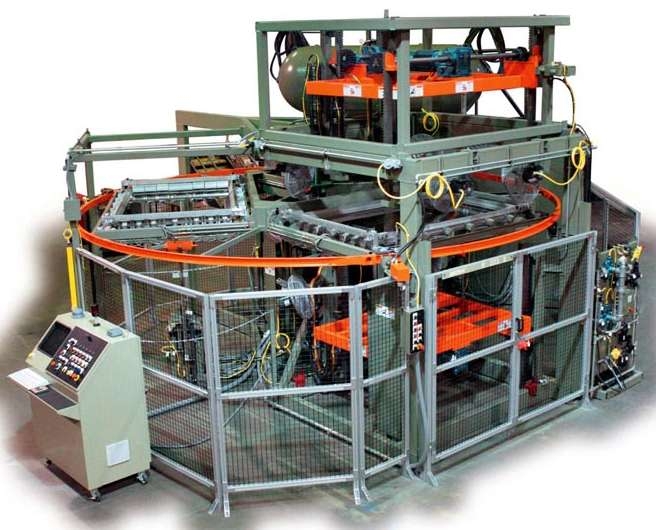

Jun 09, 2005 Ovation Rotary Series® is comprised of models R-46, R-58, and R-610, which feature respective max mold sizes of 48 x 72, 60 x 96, and 72 x 120 in. Rotary cut sheet line of thermoformers features Allen-Bradley processor and Panelmate touch screen with unlimited forming routines. Along with internal modem, products offer programmable positioning of platens and programmable oven zones with ceramic elements and perimeter shielding.

Makita U.S.A., Inc.    La Mirada, CA 90638

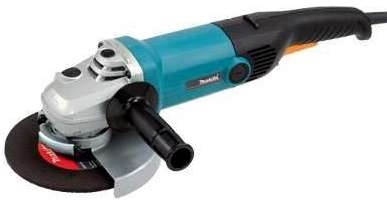

Jun 09, 2005 Suited for continuous use, GA7001L employs 15 A motor capable of no-load speeds to 6,000 rpm. Unit weighs 7.5 lb and offers all-metal, tool-less, rotating gear housing that can be positioned at 90° intervals. Along with electronic speed control, unit features soft start capabilities and ac/dc switch that lets users operate grinder with alternate power sources. Zig-zag varnish and labyrinth construction seals motor and bearings from contamination.

Makita U.S.A., Inc.    La Mirada, CA 90638

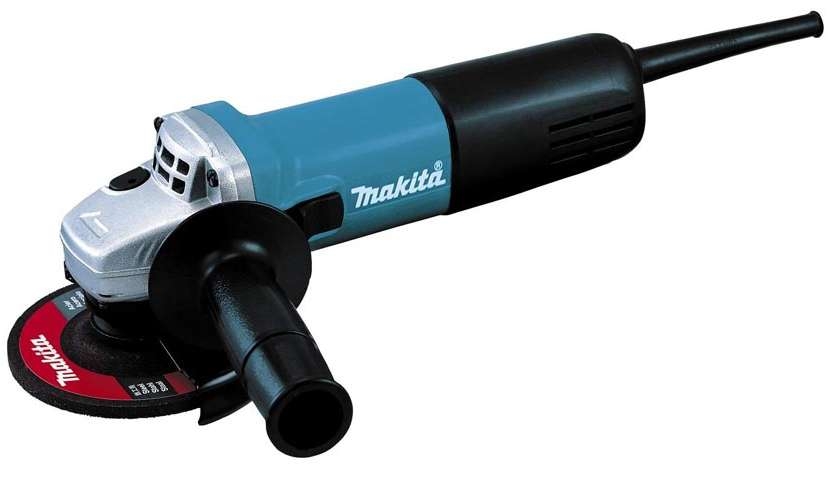

Jun 09, 2005 Grinder series includes 4 in. 9553NB, 4 in. 9553NBK kit, 4½ in. 9554NB, 4½ in. 9557NB, 5 in. 9558NB, 4½ in. 9557PB with paddle switch, and 5 in. 9558PB with paddle switch. All units use 2 ball bearings allow for smooth power transfer and feature all-metal gear housing that can be rotated 90° left and right. Labyrinth construction seals motor and bearings from contamination. Select models are available with ac/dc switch and are rated at 6.0 or 7.5 A.

Mikron    Lincolnshire, IL 60060-4224

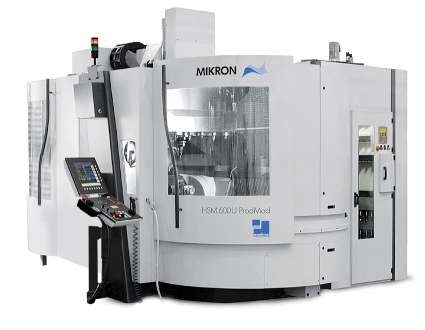

Jun 09, 2005 ProdMod HSM 600U and HSM 800 use storage tower for compact positioning of scalable tools. Tower is constructed with circular suspended shelf offering 120, 170, and 220 tool positions. With double tool handling, changeover times are less than 2 sec and chip-to-chip time is 5 sec. HSM 800 machines heavy workpieces up to 2,200 lb and offers unmanned operation, while HSM 600U provides simultaneous 5-axis machining of large pieces in high-speed mode.

Neopost    Hayward, CA 94544

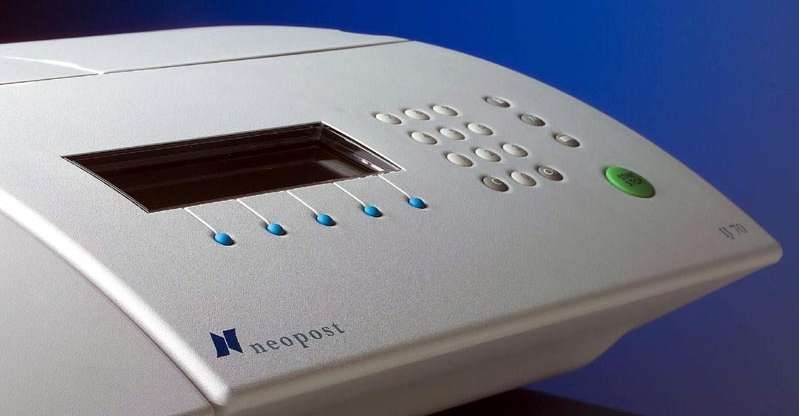

Jun 08, 2005 To help eliminate errors in mailroom and office environments, IJ 70 calibrates length, width, and thickness up to 5/8 in. to ensure proper amount of postage is applied to each piece of mail. It uses digital ink jet technology to print USPS mandated IBIP 2D barcodes and automatically advances date on meter. System stores up to 10 preset job functions and lets up to 200 departments charge back their own postage using pin codes to ensure security.

Hover-Davis, Inc.    Rochester, NY 14624
Jun 08, 2005 Able to feed variety of bare die and flip chips, DDf Ultra can be mounted on most placement machines. It is capable of feeding die down to 0.5 x 0.5 mm, with throughput exceeding 6,000 die/hr. By combining DDf Ultra with SMT chip shooter, users can create die shooter or flip chip shooter for complete die assembly solution.

TRUMPF Power Tools    Farmington, CT 06032
Jun 07, 2005 Available on TC L 3050, TC L 4050, and TC L 6050 machines, Automatic Nozzle Changer eliminates need for operator intervention during job setup and provides flexibility in unmanned multi-shift operations. Programmable unit periodically replaces dirty or damaged nozzles or exchanges nozzle whenever changing material type or thickness.

New Wave Research    Fremont, CA 94539
Jun 06, 2005 Suited for failure analysis and LCD repair, QuikLaze 50ST2 features user-selectable repetition rates from single shot to 50 Hz continuous. Multiple wavelength coverage provides ability to cut variety of materials and selectively remove certain materials while leaving others unaffected. Standard, motorized X-Y aperture or high-resolution X-Y aperture enable accurate cutting control. System can be controlled by microprocessor-based remote control panel or RS-232 interface.

Mate Precision Tooling    Anoka, MN 55303

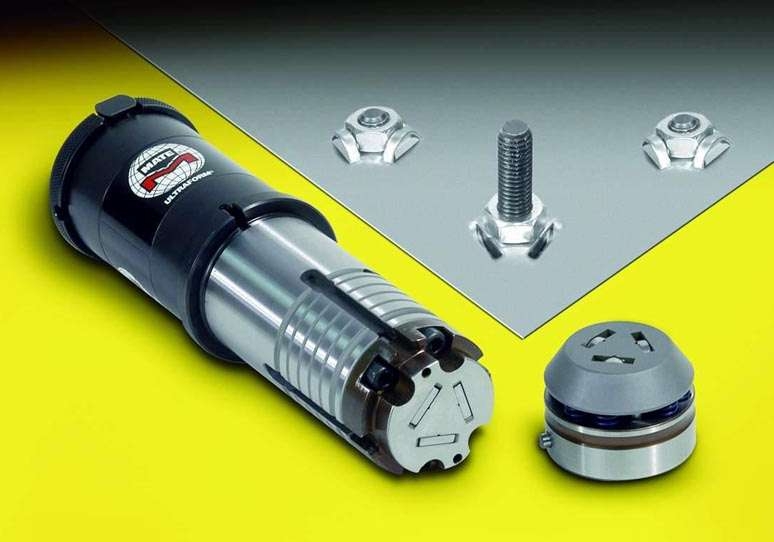

Jun 06, 2005 Consisting of inverted, spring-loaded triple lance and form tool system, HexLock(TM) Tooling fabricates forms that align with and hold hexagon head bolts. When formed, HexLock accepts hexagon nut or head of hexagon bolt. Fastener is gripped securely between punched forms to prevent nut rotation as assembly is torqued together. Tooling is suited for DIN933 metric hexagon head bolts and nuts in M5, M6, and M8 thread sizes. Inch thread sizes are also available.

New Wave Research    Fremont, CA 94539
Jun 06, 2005 Based on Nd:YAG resonator, air-cooled EzLaze 3 mounts on most industrial microscopes, delivering laser energy to 2.5 mJ at 1,064 and 532 nm, or up to 0.6 mJ at 355 and 266 nm. Variable spot size and optical attenuator enable precise control of energy, while high-resolution shutter facilitates precise control of cut. Internal spot marker replaces external incandescent spot marker with blue-LED system. Motorized polarizer allows beam to be tailored for interfacing equipment.

Lexair, Inc.    Lexington, KY 40511 1018
Jun 06, 2005 Featuring universal flat back design, Wrench-Operated Collet Chucks can be operated manually with standard chuck key and are suited for workholding on lathes, mills, and grinders. Units are available in types 5C, 16C, 3J, and 22J, with respective workpiece capacities of 1 1/16, 1 5/8, 1¾, and 2¼ in. Concentricity is adjustable for optimum accuracy.

Pioneer Eclipse Corp.    Sparta, NC 28675
Jun 03, 2005 Measuring 40 in., HammerHead Burnisher utilizes 19 hp Kawasaki 585 cc, air-cooled engine to power 2 offset, 21 in. padholders that operate at 1,875 rpm. Machine includes active vacuum, battery start, electronic clutch, and RokBak pad change. Applications include shopping centers and malls, supermarkets, retail, discount and warehouse stores, airports, and manufacturing facilities.

Thermal Dynamics Corp.    Chesterfield, MO 63017
Jun 03, 2005 Rated at 100 A, inverter-based CUTMASTER(TM) 151 operates on single-phase or 3-phase input power. It includes ATC(TM) quick disconnect, automatic Tip Saver(TM) circuitry, and 1Torch(TM) plasma torch, which eliminates high frequency starting and provides dross-free cuts. Arc remains constant, even on expanded metal or grating and is strong enough to cut directly through paint and rust. Wraparound roll bar provides protection. System is IP-23C, CSA/NTRL/C, CE, and CCC certified.

Hover-Davis, Inc.    Rochester, NY 14624
Jun 03, 2005 Tape feeders, available in 12/16, 24/32, 44, and 56 mm sizes, employ reversible index drive that facilitates component changeovers. Along with high-visibility status indicators, products feature modular design and software diagnostic feature set with pick point calibration. Pre-printed label feeder, LPS, and print-on-demand label feeder, POD600, are also compatible with Siplace placement machine family.
