Parlec, Inc.    Fairport, NY 14450 0059
Aug 01, 2006 ParleVision PSC(TM) tool presetting system applies micro-imaging technology to tool measuring and inspection applications. Utilizing Micron Technology DigitalClarity(TM) megapixel sensor, embedded imaging control system utilizes standard LCD monitor and mouse or optional touchscreen monitor to provide one-touch execution of all measuring and inspection functions. Dynamic crosshairs find and track cutting tool edge, while tool geometry is instantly displayed on screen for review.

Parlec, Inc.    Fairport, NY 14450 0059
Aug 01, 2006 Combining aged ductile iron with Symmetry design methodology, Parsetter TMM Series 1500 is suited for presetting, measuring, and inspecting tools. Thermally stable, bench-top machine features NSK guide system, user-trammable column, Heidenhain sub-micron encoders, and match-ground roller bearing spindle. Offering mechanical positioning and repeatability of one micron or better, product has measuring envelop that can handle tools up to 600 mm in length and 420 mm in dia.

Finishing Associates, Inc.    Huntingdon Valley, PA 19006
Aug 01, 2006 Able to achieve isotropic surface patterns, VC and VC8 Series produce consistent finishes. Deburring or finishing is made possible by 4 barrels spaced evenly on heavy-duty turret. All manual and automatic models in VC series, available in standard or figure 8 design, can be customized with variable speed, separation, removable hot pour linings, and compartmentalized barrels. VCA series only offers automation capabilities.

Modular Tooling Systems    Royal Oak, MI 48073

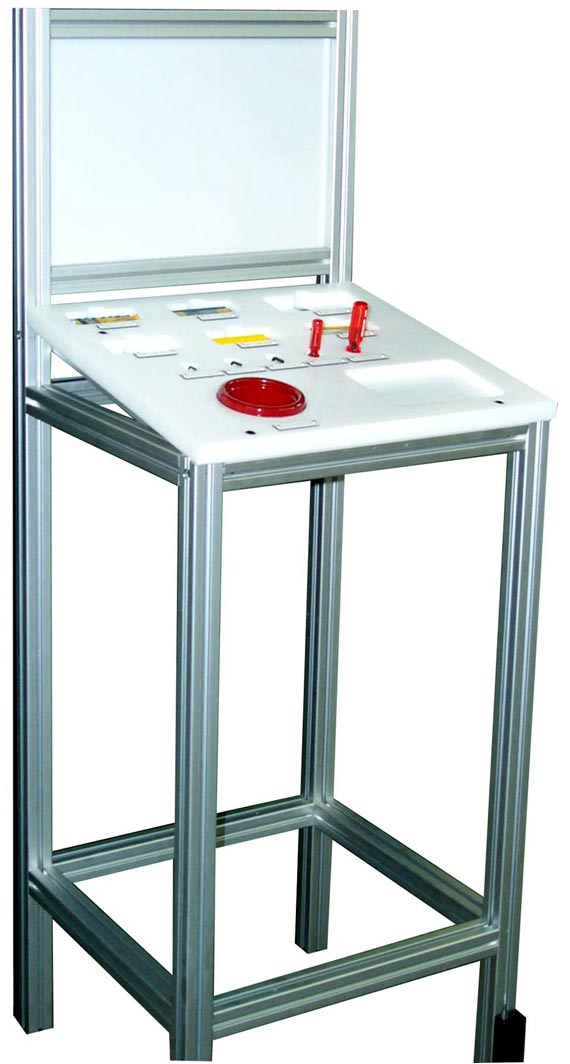

Jul 31, 2006 Designed to promote neater work area and quick tool changes by providing means to keep track of inserts and tools, tool-changing bench features molded compartments for 6 sizes of inserts, Allen wrenches, and torque keys. It also includes bin for dull inserts. Each table measures 24 x 24 in. and can be bolted to floor next to each machine. Vertical panel holds printed instruction sheets for matching tooling inserts to proper machining operation.

Metabo Corp.    West Chester, PA 19380 4243
Jul 28, 2006 Equipped with Tacho-Constamatic speed stabilization, 6 in. WEP14-150 Quick operates at nearly 100% of no-load speed of 9,000 rpm up to full rated amp load of 12 A. Non-locking paddle switch automatically turns grinder off when dropped, while Quick wheel change system allows tool-less wheel changes, and safety clutch allows operator to maintain control of tool in event of jam. Providing max torque of 31 lb-in., tool includes anti-vibration handle and overload protection.

J Walter, Inc.    Hartford, CT 06114

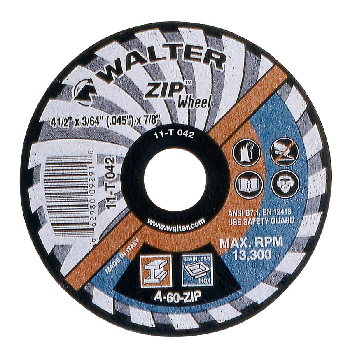

Jul 28, 2006 Manufactured with process that imparts high-low rib design into each wheel, Type 1 ZIP(TM) Cutting Wheels produce minimal friction and provide straight, cool cutting in mild steel, stainless steel, aluminum, and titanium. With rib design, there is virtually no heat discoloration when cutting thin stainless sheet. Reusable, round plastic containers replace standard corrugated boxes to provide protection and safe storage.

Eagle Thread Verifier    Sterling Heights, MI 48313

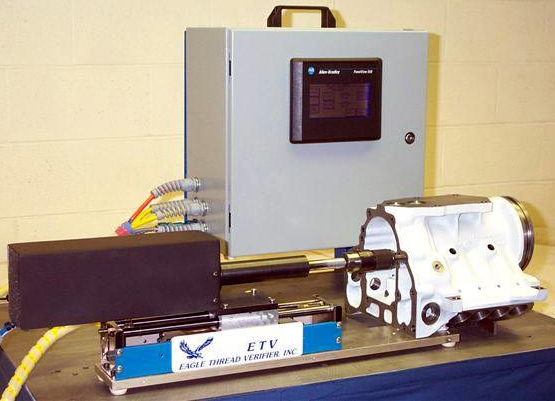

Jul 28, 2006 Featuring spindle with 24 lb-in. of torque, model HT-100 enables use of flexible chuck designed to check threaded holes not perpendicular to surface. With software within controller that operates spindle, system precisely checks depth of chamfer or counterbore. Capable of stopping production in seconds if anomaly is detected, it also checks thread for pitch diameter, proper depth, missing holes, broken tap, proper depth of pipe tapped holes, and external threads.

Cooper Power Tools    Lexington, SC 29071

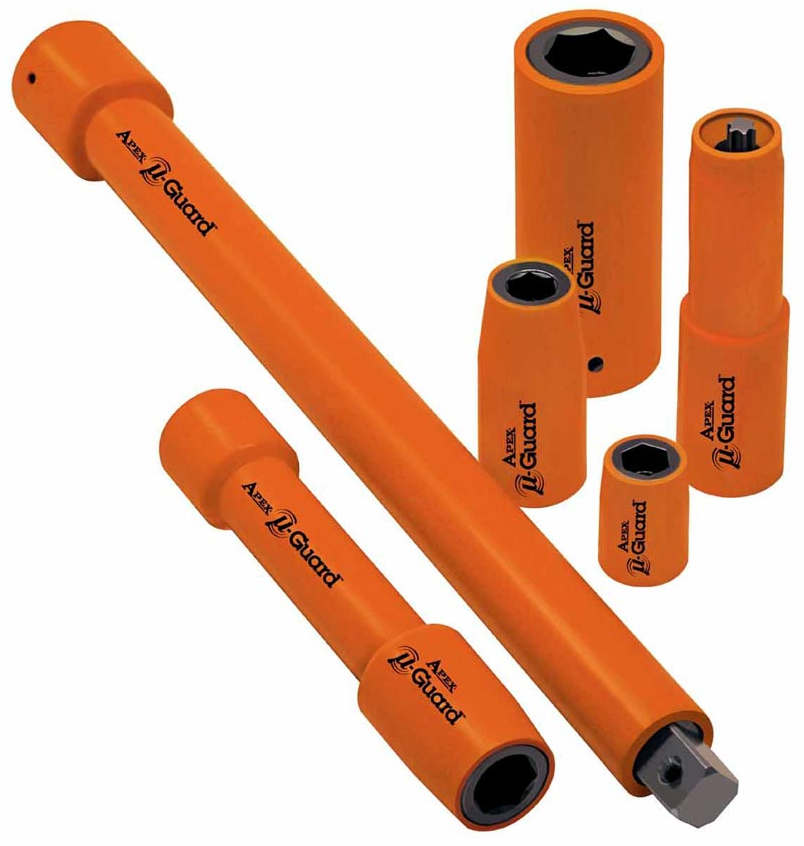

Jul 28, 2006 Offered in 165 part types, Apex® u-Guard(TM) power tool sockets, extensions, and bit holders are encased in protective skin that prevents in-system damage such as chips, scratches, dents, and dings dealt to products during assembly. Each tool features free-spinning design that lets molded skin rotate independently of socket, bit, or extension spinning inside. This lets workers grip skin and avoid potentially harmful contact with contained tool.

NeoScale Systems, Inc    Milpitas, CA 95035-7415
Jul 28, 2006 To enhance usability and serviceability for LTO-3 and other tape technologies, CryptoStor Tape® appliance comes with tape encryption suite and ensures persistent binding of drives to applications. It ensures tape drives maintain consistent presence to backup server and offers seamless integration with backup management solutions. Along with diagnostic capabilities, appliance provides hardware-based encryption and compression; policy management; and global key management support.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Jul 27, 2006 Featuring 39 pieces, CAT-40 Tooling Package includes end mill holders, ER collet chucks, and ultra-precision ER collets. Shanks are ground to AT-3 tolerance, collet chucks are dynamically balanced to G2.5 at 18,000 rpm, and central thru-coolant passages are provided on all tool holders. Accuracy of all components ensures cutting tools stay on centerline, distributing chip load evenly.

Waytek Inc.    Chanhassen, MN 55317

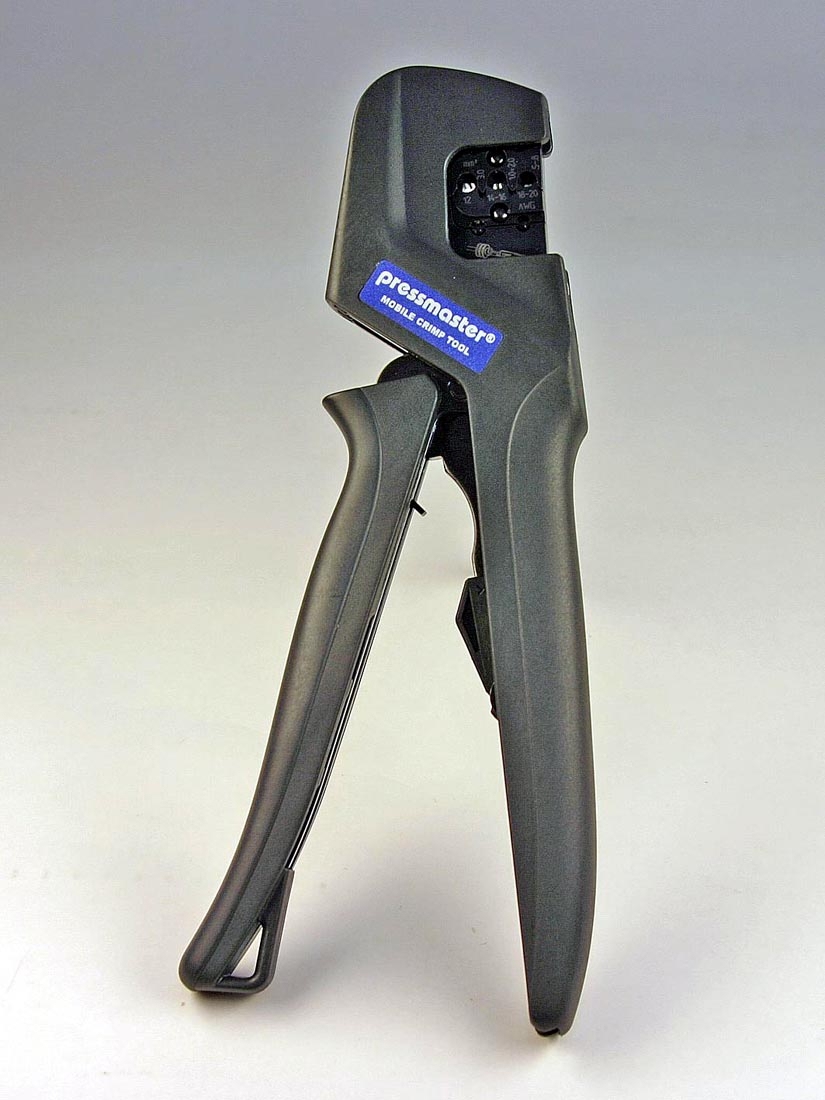

Jul 27, 2006 Weather-pack die set, usable with Mobile Crimp Tool Frame, crimps full range of wire sizes 12-20 gauge. Snap-in device can handle insulator and conductor crimps at the same time without need for separate tools.

RotoZip by Bosch    Mount Prospect, IL 60056

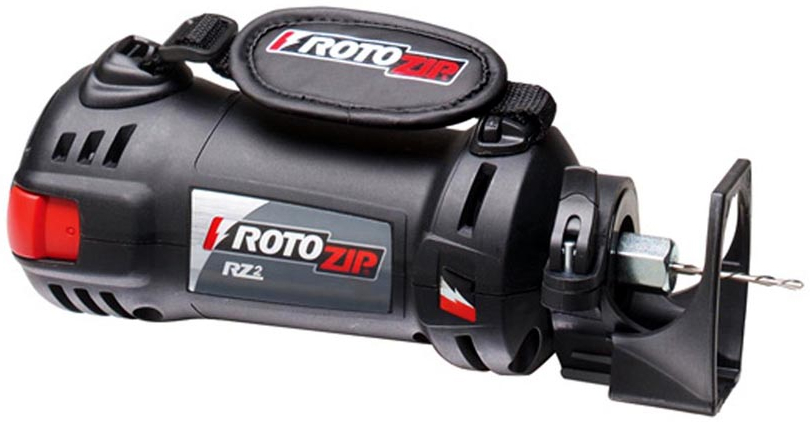

Jul 26, 2006 Built around 5.0 A, 120 V motor with 30,000 rpm max speed, RotoZip® RZ02 is suited for cutting drywall, wood, countertops, wall tile, metal, and plastics. Internal ribbing provides structural support, while shaft lock design facilitates bit changes. In addition to cord guard and dust-sealed switch, saw features 5/32 in. collet system for compatibility with RotoZip XBITS® accessories. Adjustable foot enables cutting of material up to 1 in. thick.

Rush Machinery, Inc.    Rushville, NY 14544

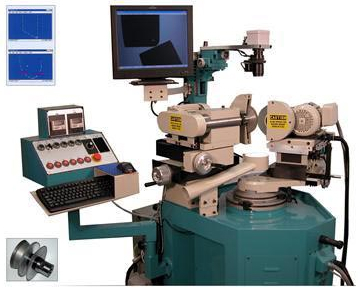

Jul 26, 2006 Model FC-250W is designed for truing and dressing of flats, angles, and radii on diamond and CBN single wheels as well as multiple wheel packs. Featuring heavy-duty, one-piece, cast-iron that base minimizes vibration, product aids in profiling, modifying profiles, and truing wheels properly offline from production grinding machinery. Its ExVision computer-driven vision system comes with software, automatic power zoom, and 2-axis DRO for measurement.

TMP, Technical Machine Products    Cleveland, OH 44102 4431

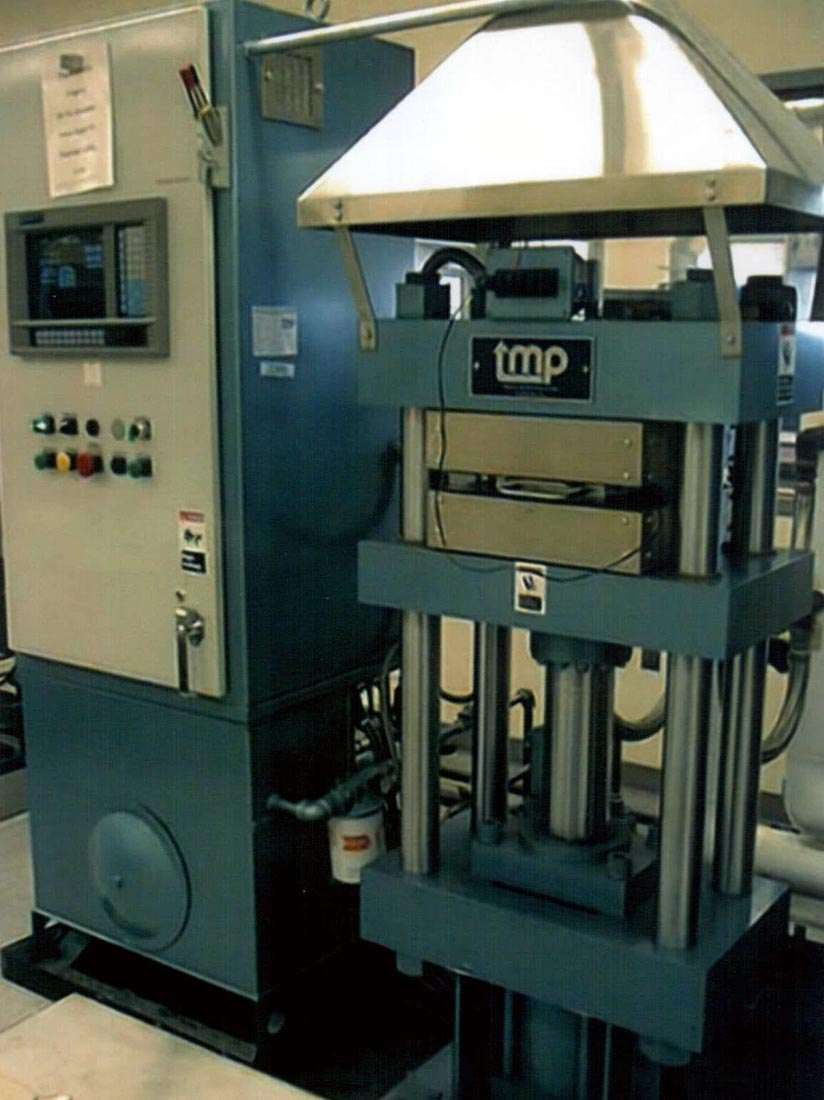

Jul 25, 2006 Suited for molding rubber, silicone, and composite products, Techni-Mold(TM) hydraulic compression laboratory presses are available as TMLV (Vacuum) Series with CPS advanced controls or TML (Non-Vacuum) Series with BPS basic controls. Both series contain 10 standard models, rated from 12-100 tons, with platen sizes from 6-16 in.². Custom models are also available, as are options ranging from water-cooled platens to variety of shuttle designs.

AIM Joraco, Division of Automated Industrial Machine, Inc.    Smithfield, RI 02917
Jul 24, 2006 Featuring straight pneumatic cylinder, Direct Air Press offers 6 in. stroke, providing 500-5,000 lb constant force in both C- and H-frame configurations manufactured from steel plate. Ram styles include internal- or external-threaded 1 in. models and version with hole for shank mount. Press is suited for manual and semi-automatic assembly of bushings, posts, inserts, and fasteners.

ITWRansburg Electrostatic Systems    Toledo, OH 43612

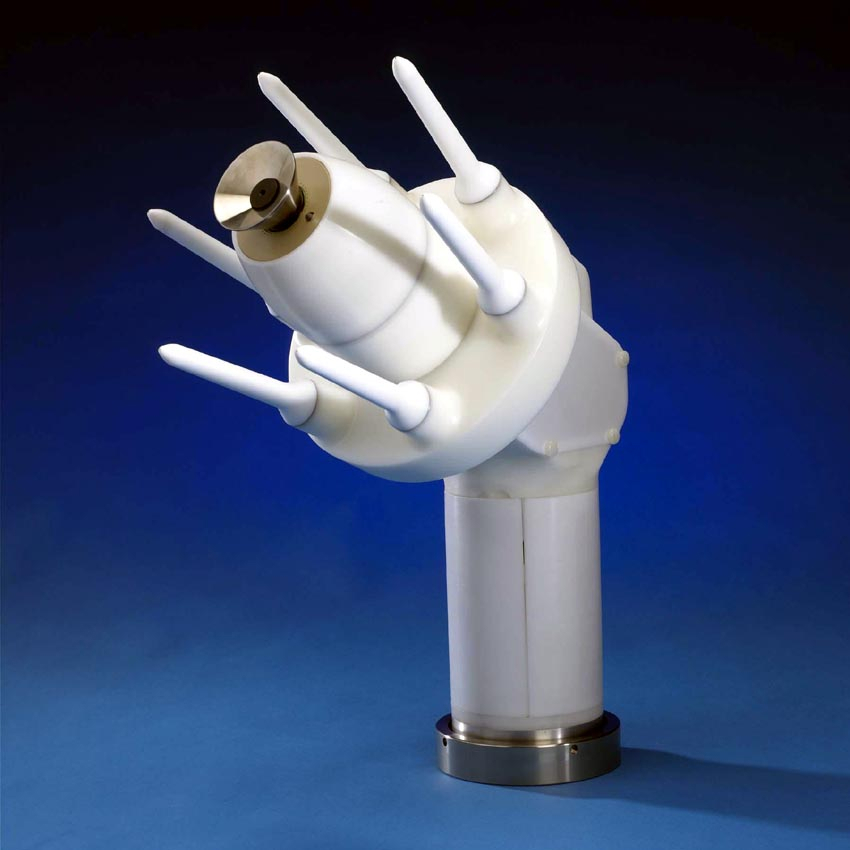

Jul 24, 2006 Automotive Finishing RMA-303 Indirect robot-mounted atomizer features titanium bell cup with up to 70,000 rpm rotation speed, and is suited for large volume coating operations. Color-coded tubing bundle allows for change-outs and operational efficiency. High voltage ring can be removed without disrupting the applicator for machinery maintenance.

Siemens AG    Munich D-80333  Germany

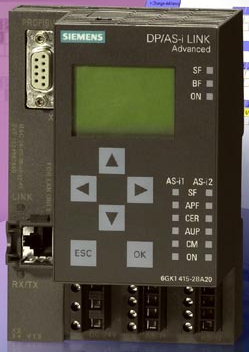

Jul 21, 2006 In accordance with AS-i Spec. 3.0, DP/AS-i Link Advanced organizes data traffic on AS-interface line and makes signals of sensors and actuators available on one interface. Included pixel-graphics operator display facilitates startup of connected AS-i line, provides detailed diagnostic information, and lets users carry out complete I/O test of all slaves. Due to integral Web server, functions can also be used remotely via browser. Products are available as single or double masters.

CML USA, Inc.    Davenport, IA 52804

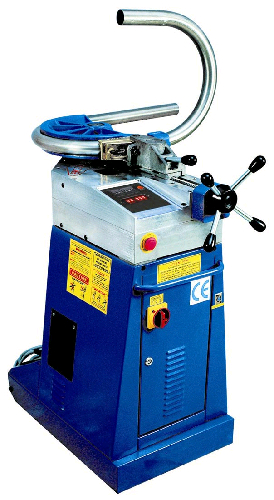

Jul 21, 2006 Suited for pipe, tube, squares, rectangles, solids, and other profiles, Ercolina® 050KD TopBender bends ferrous and non-ferrous materials from ¼-2½ in., and accepts 2-axis A40/P positioning table for multiple and sequential bends. Heavy-duty gear case accommodates centerline radius up to 11 in. Swing away counter bending die vise facilitates loading and unloading of work piece, while standard motor brake insures bend angle accuracy. Remote foot pedal is optional.

Multenet Technologies (Pty) Ltd    Stellenbosch   South Africa
Jul 20, 2006 Featuring two RS232 serial interfaces and one 10/100 Ethernet interface, PocketPAD Router connects remote devices or networks to local network over GSM/GPRS and PSTN connections. Unit provides web-based user interface designed to configure dial-in or dial-out PPP RAS connections using almost any external modem. With port forwarding feature, product is suited for setting up remote Ethernet networks for connectivity of equipment that supports Ethernet communication.

Blastrac    Oklahoma City, OK 73114
Jul 20, 2006 Featuring 7/8 in. shaft, Blastrac® BS-50 can remove coatings, adhesives, and mastics, as well as roofing materials, ceramic tile, wood, VCT, carpet, and sheet vinyl. Rear wheels are adjustable, enabling user to find optimal blade angle. Handle detaches for transport, allowing machine to fit in smaller vehicles. Model BS-50 is suited for small to medium sized residential and light commercial jobs.
