Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Aug 13, 2008 Suited for deburring, polishing, and other finishing operations requiring gentle vibrating action of rotating media, Model KVF3 is constructed of steel and measures 36 x 27 x 36 in. Design enables quiet operation and includes 3.3 ft³ capacity steel tub with cast urethane lining; ¾ hp, single-phase, 110 Vac motor for vibratory action; and casters for portability. Total capacity is rated at 500 lb.

SPEX SamplePrep LLC    Metuchen, NJ 08840
Aug 12, 2008 Featuring programmable LCD touchscreen display with adjustable parameters, 3630 X-Press® performs repetitive pressing of sample pellets for XRF, IR, and other analytical methods. Variables can be saved in system memory and recalled for future cycles, promoting consistency and throughput. Fully automated, hydraulic laboratory pellet press has 11 in. wide footprint suited for bench-top use, and interlock prevents opening of safety shield during operation for safety.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Aug 12, 2008 Compatible with insert geometries and grades, CoroMill 490 Family of milling tools are suited for contouring, edging and slot, as well as shoulder and face milling. They come with true 90° square shoulder, and can produce finished piece with single pass. Flexible units can replace multiple cutting tools.

Tornado® Industries, Inc.    West Chicago, IL 60185
Aug 12, 2008 Upsweep 32 Manual Sweeper comes equipped with twin brushes for edge cleaning and twin main roller brushes to pick up dirt, dust, and soil. Upsweep motion ensures all contaminants go in dustpan. Product can sweep up fine dust particulates as well as soda cans.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460
Aug 12, 2008 Delivering complete structured wiring system, netSELECT® 6-Port Combination Module facilitates residential phone, CATV, and Cat5e data distribution. This 3-in-1 module fits into any netSELECT enclosure and features 6-port, 110 style telephone panel; 6-port, 1 Ghz CATV splitter; and 6-port, Cat5e component. Two-service module for delivering telephone and CATV is also available, incorporating expansion bay for 6-port netSELECT Cat5e data kit.

EF Johnson Technologies, Inc.    Irving, TX 75038-2401
Aug 12, 2008 Operating in licensed spectrum dedicated to police, fire, ambulance, and municipal use, 525 Series provides priority traffic for data, video, and voice communications to ensure vital information reaches first responders in emergency situations. Solution supports 2 independently configured 2.4 GHz, 4.9 GHz, and 5.8 GHz radios packaged in IP66, weatherproof enclosure and provides secure mesh network, gateway, and bridge/repeater capabilities.

Makino Inc.    Auburn Hills, MI 48326
Aug 12, 2008 DUO Series includes dual wire guide options as well as dual spark generator technology. Dual high-pressure (290 psi) flush pumps and dual anchored ball screws are also included. Respectively, DUO43 and DUO64 feature X/Y/Z axis travels of 17.7 x 12.0 x 12.6 in. and 25.6 x 15.7 x 16.5 in. While DUO43 accommodates max workpiece size of 27.9 x 22.0 x 11.8 in. and payloads to 1,764 lb, DUO64 holds up to 35.8 x 26.0 x 15.7 in., 2,200 lb workpieces.

TNA Australia Pty Ltd    NSW 2127  Australia
Aug 12, 2008 With ability to emulate box-motion with all features of high speed rotary system, robag® 3 suits specialty, flexible bag formats such as quattro and block bottom and long bag applications such as cereals and frozen food. It provides continuous, regular film speed for all types of films. Kanga jaw, powered by linear motor, adds up and down motion to its rotating jaws, and this additional movement of up to 120 mm allows jaw path control so jaws approach each other on horizontal line.

ANDRITZ KMPT, Inc.    Florence, KY 41042
Aug 12, 2008 Used as small production dryer or for test trials for scale-up to production size batch mixer/dryers, Pilot HD 40 Helical Dryer is provided with PLC based control panel including wireless data logging for operation in hazardous material areas. Features include heatable shaft/mixing assembly, bottom discharge, one mechanical seal, full cleanablility with CIP spray devices, and compact dimensions to fit into kilo labs and pilot plants.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Aug 08, 2008 Featuring wear resistant properties, Polycrystalline Diamond Grade DA1000 excels in machining of non-ferrous materials, especially aluminum. It comes standard with NF style tip and is available in geometries for turning and milling applications.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Aug 08, 2008 Combining tough substrate with Super FF coating structure for optimal wear resistance, AC830P is available in various geometries coupled with chipbreakers capable of machining light to heavy depths of cuts. Product, along with precision-engineered EGE chipbreaker, suits applications where tough edge is needed. EGE allows up to 0.024 IPR while maintaining chip control.

Brush Research Manufacturing Co., Inc.    Los Angeles, CA 90022

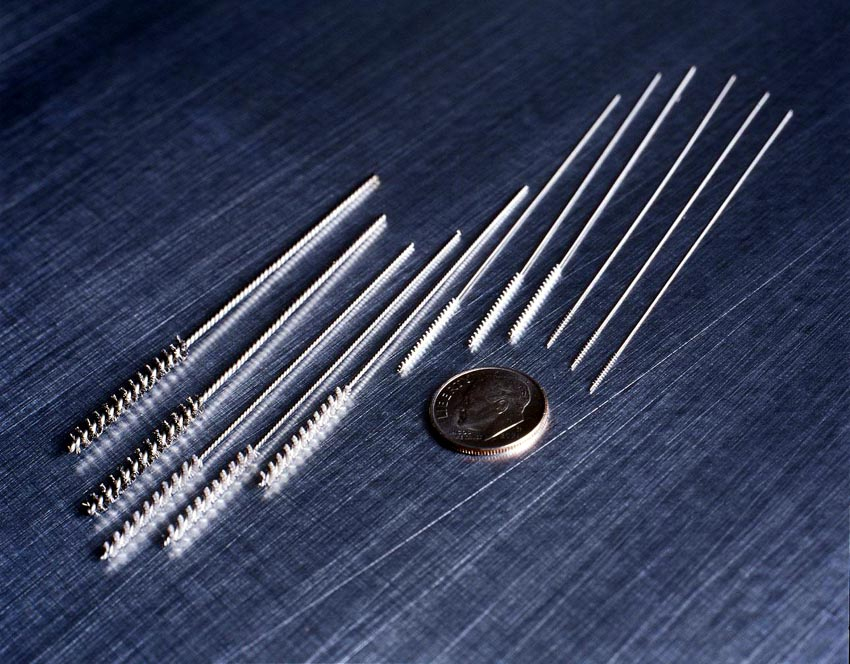

Aug 08, 2008 Available in Diamond Abrasive filled nylon filament, Miniature Deburring Brushes are suited for finishing ceramic, glass, aerospace alloys, and tool steel. Brushes for thru holes (81 Series) and bottom end applications are available for holes as small as .024 and 1/8 in., respectively. Twisted-in-wire deburring brushes can be used by hand or rotated under power, and are suited for wide range of applications such as electrical/electronic, medical tubing, and aerospace.

Thiele Technologies, Inc.    Minneapolis, MN 55418
Aug 08, 2008 With servo-driven linear actuator, Bag Top Registration system optimizes vertical position of empty bags prior to filling, and also incorporates side squaring mechanism for accurate presentation of bags into filling and sealing systems. Bag Deflation System utilizes lift mechanism within internal poly bag sealing station to squeeze excess air out of filled bag prior to sealing, and can be fine-tuned according to specific bulk density of any given filled product.

E.H. Wachs    Lincolnshire, IL 60069
Aug 07, 2008 Capable of drilling, boring, and tapping pipes of any diameter, Multi-Axial PowerDrill features 5 in. tool diameter and 5 axes of adjustment. Modular design facilitates setup, and optional mounting saddles allow unit to be used on pipes or flat surfaces. Field tool can utilize standard and reversible air motors in 1½ and 2½ hp sizes and works with range of standard tooling and tool adapters. Optional equipment includes 2-speed gearbox, pivot mount, digital level, and laser pointer.

Hilti Inc.    Tulsa, OK 74121
Aug 07, 2008 Offering speed of 360 rpm, Hilti TE 80 ATC-AVR enables hammer drilling from ¾-6 in. dia in concrete, masonry, and natural stone, drilling through-holes with up to 6 in. dia in concrete and masonry, heavy chiseling work, and drilling with high torque in wood and steel. Vibration reduction is provided by mass damper system suspended on springs inside casing, as well as decoupled grip. Device also includes active torque control and built-in theft protection system.

ProSoft Technology Inc.    Bakersfield, CA 93311
Aug 07, 2008 Model RLX-IFH9S 900 MHz and RLX-IFH24S 2.4 GHz Industrial Frequency Hopping serial radios utilize signal that hops from channel-to-channel, allowing wireless network to avoid interference or existing networks. They can communicate with Modbus, DF1, ASCII, or any other serial devices and support RF data rates up to 230 Kbps. Featuring 128-bit AES encryption and 1 W transmit power, scalable radios are protected by rugged industrial-grade Class I Div 2 enclosure.

Gerber Technology, Inc.    Tolland, CT 06084
Aug 07, 2008 Supplied with CutWorks® software for full automation, single-ply GERBERcutter® Models DCS3600/3600L include TargetVision digital camera technology for capturing detailed images of materials placed on cutting table. AutoMat System, which addresses requirements of specialized mat industry, uses scanner technology that recognizes where mat's carpet and rubber border meet. With longer cut window, Model DCS3600L enables manufacturers to cut pieces up to 10 ft in length between bites.

Sugino Corp.    Itasca, IL 60143
Aug 05, 2008 Varimec(TM) SSV2 1/8 hp quill-fed drill unit is capable of drilling, counterboring, and burnishing and supports end-milling and facing operations. Servo-controlled Selfeeder features 3.15 in. stroke length, 7.87 ips approach and return speed, and 0.65 ips max cutting speed. Unit is programmed via RS232C port and controller stores up to 99 programs. It measures 12 x 4 x 9 in., and low speed/high-torque and high-speed/low-torque versions are offered.

Emuge Corp.    West Boylston, MA 01583-2121
Aug 04, 2008 Intended for high-volume machining, Alu-Jet-Cut End Mills are capable of cutting speeds in excess of 3,000 sfpm. Wear-resistant carbide substrate helps resist vibrations that could otherwise lead to premature chipping of cutting edges. Chip conveyor provides control over chip shape and directional flow to maximize chip evacuation capacity. Made with through-coolant capability, roughing cutters feature 3 flutes while finishing cutters have 3 or 4 flutes.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Aug 04, 2008 Comprised of toolholder and collet, powRgrip® PG 32 uses mechanical properties of holder material to generate gripping force with run-out below 0.0001 in. Available in metric and inch diameters up to 25 mm and 1 in., respectively, system is suited for high speed machining applications, and offers range of taper selection, including CAT, BT, HSK and TC versions. It takes less than 10 sec to press in any tool or remove it from holder.
