SGS Tool Co.    Munroe Falls, OH 44262

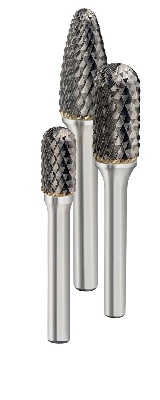

Oct 21, 2008 Featuring deep flute configuration, Omega Burs provide rapid stock removal in hard materials with minimal chatter. Configuration also optimizes tool life, even when working in challenging applications such as mild steel, stainless steel, cast iron, and other ferrous metals. Targeted industries include marine and shipbuilding, offshore MRO, foundries, automotive, and metal fabrication.

Methods Machine Tools, Inc.    Sudbury, MA 01776

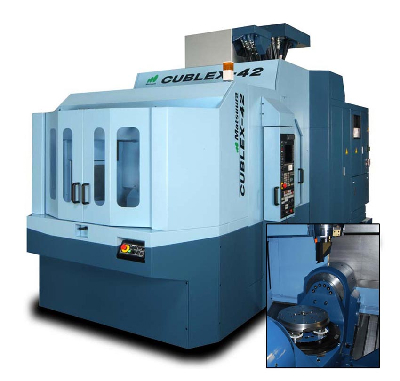

Oct 21, 2008 With CUBLEX technology, Matsuura 5-Axis VMCs integrate turning and grinding functions into 5-axis milling platform. CUBLEX 25 PC 40 features 11.8 in. dia x 9.8 in. H max work size, 5.2 in. pallets, and 40-pallet changer, while CUBLEX 42 PC24 has work envelope of 16.8 in. dia x 14 in. H and 24-pallet changer with 12.8 in. round pallets. Standard spindle speed is 15,000 rpm for CUBLEX 25 and 12,000 rpm for CUBLEX 42.

DoAll Company    Des Plaines, IL 60016

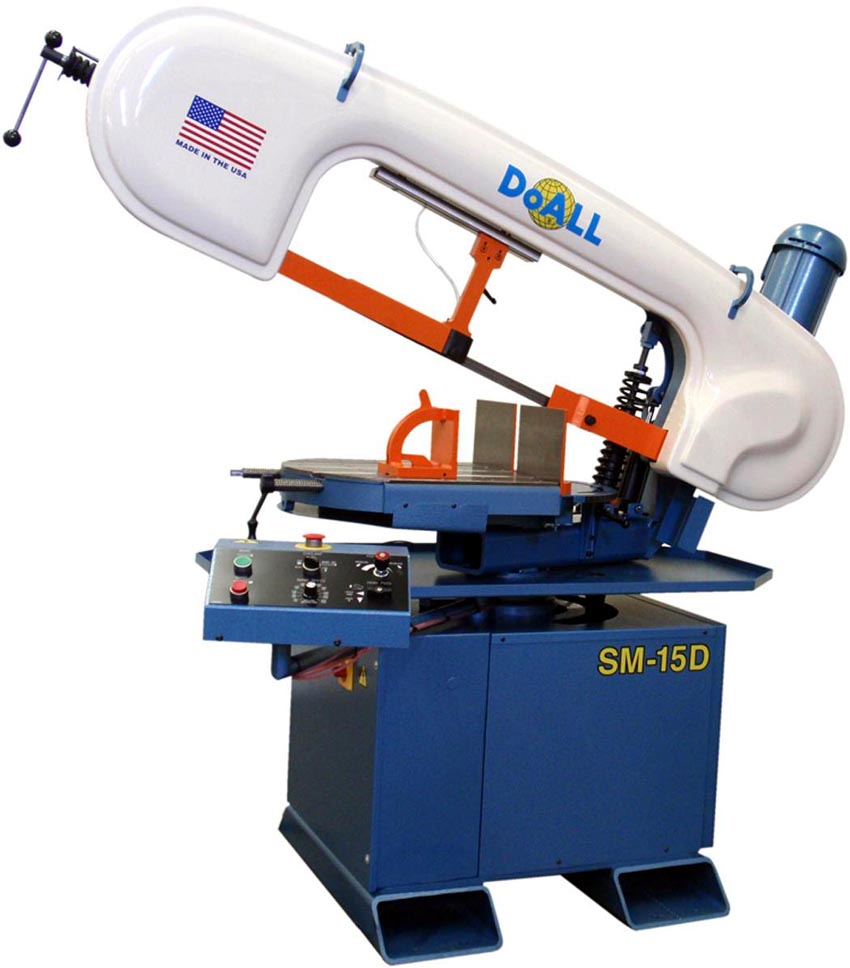

Oct 21, 2008 In addition to 2-piece cast iron saw head that can swivel 60° right and left, Model SM-15D features 3 hp band drive motor with infinitely adjustable VFD band speed control (50-400 fpm). Band wheel, mounted directly to output shaft of heavy-duty worm gearbox, provides torque necessary to cut tough materials, and console mounted on articulating arm lets operator control band speed, feed rate, and other functions. Saw can cut 11 in. rounds and 15 x 10 in. rectangles at 90°.

NCMT Ltd    Surrey KT7 0QJ  United Kingdom

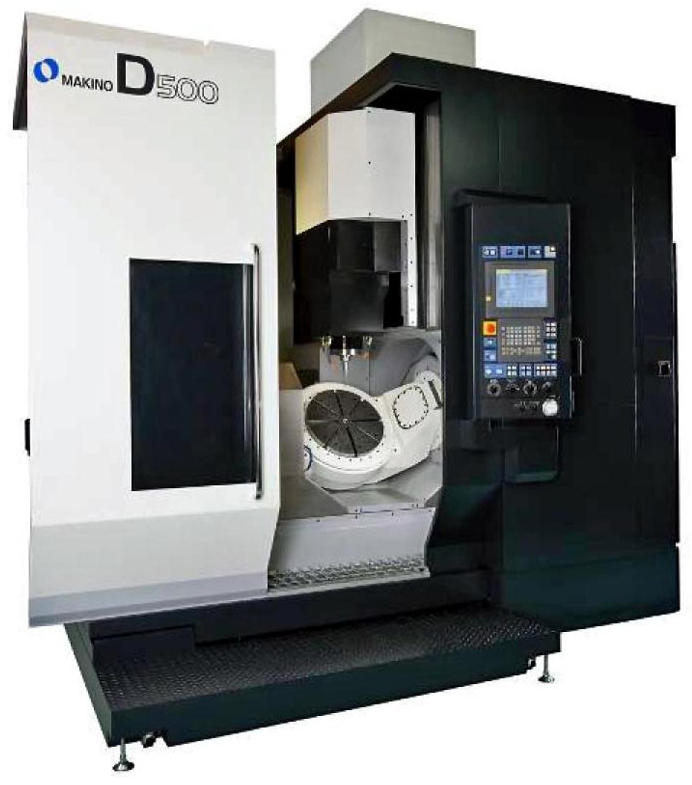

Oct 20, 2008 Offered standard with 40-taper spindle rated 25 kW/14,000 rpm, D500 minimizes cumulative inaccuracy inherent upon increase of simultaneously interpolated axes. Rapid traverses of 48 m/min in X and 50 m/min in Y and Z axes can be achieved when supporting workpieces up to 350 kg on table or 300 kg on pallet of APC configurations, as can 50 rpm positioning of 360° C-axis table and +30°/-120° A-axis trunnion. Acceleration/deceleration during cutting is optimized via 3 direct-drive motors.

Joraco, Inc., Toggle-Aire Div.    Smithfield, RI 02917
Oct 20, 2008 Delivering full force over entire stroke, Joraco Direct Air Press is suited for range of manual and semi-automatic assembly operations. Press is offered with standard 6 in. stroke, providing from 500-5,000 lb constant force, in both C and H-frame configurations manufactured from steel plate. It is available with 3 RAM styles, internal- or external threaded 1 in. RAM, and one with hole for shank mount. Options include pneumatic counters, dwell timers, and custom platens and tooling.

Joraco, Inc., Toggle-Aire Div.    Smithfield, RI 02917
Oct 20, 2008 Toggle-Aire® presses are available with tubular eyelet rivet machines. Model 1030-R can handle tubular rivets and eyelets up to 3/8 in. dia in soft steel, brass, or aluminum, while model 1530-R is suited for heavier applications, such as stainless steel. Fully pneumatic rivet machines feature automatic hopper feeders, integrated AC powered cam-belt drive motor, and non-binding jam-free feeding tracks.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Oct 17, 2008 In addition to bearings with minimum radial run-out, H80R.MNCM incorporates AC variable speed motor and Heidenhain encoder for direct measurement positioning of ±5 arc sec. Programmable variable speed AC control (H1625.AC3) allows adjustment of continuous high-speed rotation and indexing, which can be used for automatic operation via M-Code. Spindle can also be integrated directly to certain machine controls, allowing high-speed rotation, indexing, and turn while burn applications.

VSM Abrasives Corporation    O'Fallon, MO 63366
Oct 17, 2008 Designed to work with heat-sensitive materials such as stainless steel, titanium alloys, and superalloys, CRIMSON red SK855X features aggressive grain orientation and cool cut feature to optimize cut rate. Self-sharpening ceramic grain promotes service life, and available grits range from 24-120. Suited for medium- to high-pressure backstand and power assist applications, solution can satisfy various grinding applications in belt and disc form.

Strippit Inc.    Akron, NY 14001-1321
Oct 16, 2008 Incorporating linear drive technology, Axel 4020 features high-pressure cutting head that can hold 5, 7.5, or 10 in. cutting lens, and includes safety system that protects it from collision with workpiece. Machine is capable of processing thin material at speeds up to 1,574 in./min and thick material up to 1 in. mild steel. Providing accurate reproduction of programmed contours, integrated 32-bit control includes mathematical capabilities as well as extensive material library.

Master Chemical Corporation    Perrysburg, OH 43552
Oct 16, 2008 Effective in range of operations from surface and centerless grinding to broaching, gear hobbing, surface, pocket, and thread milling, TRIM® E906 emulsion has balance of cooling and lubrication that extends tool life and surface finishes. Tight emulsion reduces carryoff and gets fluid to point of cut. E906 does not contain phenol, is removed with water, working solution, or TRIM® CLEAN aqueous cleaners, and can be recycled or disposed of with conventional techniques and equipment.

Modern Process Equipment, Inc.    Chicago, IL 60623

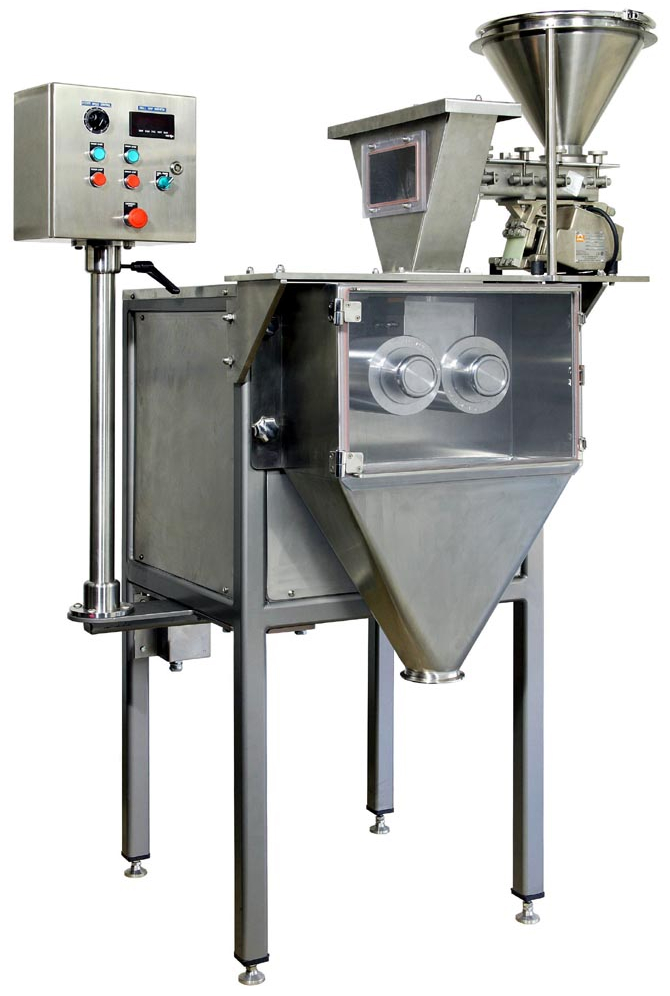

Oct 15, 2008 LPP 6.5 roller-style Gran-U-Lizer(TM) grinds material to narrow particle size distribution, with few unwanted fines, while minimizing impact and heat generation during process. Suitable for achieving results on lab and pilot plant scale, precision particle reduction solution offers independent control over roll gap, with accuracy to 0.0005 in.; roll shear ratio, with independent drive control for each roll; and roll corrugations, with sizes and shapes tailored for application.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002

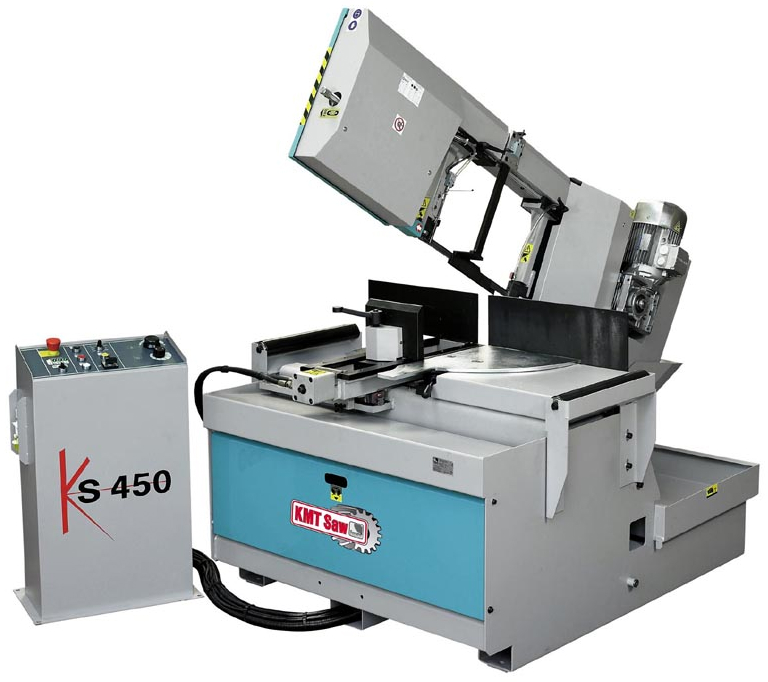

Oct 15, 2008 Featuring single-button operation, Model KS450 is designed for production work requiring sawing of solids and structural shapes up to 14 in. at 90° in full cycle, semi-automatic operation as well as double mitering (60° to left/right) with variable-speed blade from 60-360 fpm. Saw frame is canted 5° to facilitate cut through bottom of structural section without vibration or slowdown. Other features include fully hydraulic operation and free-standing operator console.

Metso Minerals    North Bay, ON P1B8K4
Oct 15, 2008 Rated to 3,000 hp, high-capacity Vertimill reduces number of mills required in secondary grinding applications for mining industry. Design employs minimal moving parts to reduce maintenance concerns but also minimizes energy as well as grinding media consumption. Product is typically used in concentrate regrind applications with fine feed and product size.

Harris Corp.    Rochester, NY 14610
Oct 15, 2008 Designed to military standards (MIL-STD-810F) for operations in harsh environments, RF-7800B Broadband Global Area Network tactical satellite terminals extend capability of transmission/reception of TOP SECRET global wideband data communications. They provide end-to-end Type-1 HAIPE-certified security when linked to Falcon III manpack radios or SecNet 54® encryption modules and can also be utilized as stand-alone terminals in other configurations to extend voice and data connectivity.

Mitchell, Inc.    Elkhart, IN 46515
Oct 14, 2008 Model 618 Automatic Cutter offers cylindrical, standard square, and thin square cuts in widths from 0.010-18 in, suiting tube cutting applications for seals, rings, and gaskets. Featuring digital touch screen controls and digital operating components, it also has mandrel with adjustable length from 18-1 in. and stock from 6 in. OD to minimum extrudable size that will fit mandrel and Rheostat-controlled mandrel speed from 0-2,700 rpm.

T.C. Service    Willoughby, OH 44094
Oct 14, 2008 Targeting stainless steel fabricators as well as those working with aluminum, 330 RAD series geared grinders feature small head, in both diameter and height, allowing use in tight, space restricted surface areas. Available with .4 or .7 hp motor, right angle grinders are suitable for precision surface condition and finishing. Various speeds are available to meet surface and abrasive requirements.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Oct 13, 2008 Accommodating various machining needs, BA24 has compact head design that promotes nozzle accessibility to stepped workpieces and clamping fixtures. Flat plate type power feed terminal design simplifies replacement/indexing, while Power Master 4 control enables full automation from rough to finish machining. Unit offers X/Y/Z travel dimensions of 23.6 x 15.7 x 12.2 in. with 4-sided work table. It comes with .004-.012 in. wire capable automatic threading and all-axis absolute control.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Oct 13, 2008 Available in 4, 6, and 16 in. lengths, DareDevil(TM) Spade Bit features contoured paddle to speed chip removal. Spur and reamer design not only scores wood for clean entry hole, but also has angled cutting edges that ream hole to minimize breakout. Standard 6 in. models range from ¼-1½ in., while 4 in. Stubby sizes range from 3/8-1½ in., and 16 in. extended size models range from 3/8-1 in. Both 6 and 12 in. extension shafts are available.

Bausch Advanced Technologies, Inc.    Clinton, CT 06413
Oct 10, 2008 Offered in models capable of handling 300-600 vials/min, servo-driven machines feature balcony design compliant with cGMP guidelines as well as complete separation of drive from filling area to optimize laminar airflow throughout stations. Type 550 achieves aseptic filling and stoppering of vials, while Type 551 crimping machine can be used directly inline with Type 550 or as stand-alone unit. Also, Type 550 offers choice of 4 dosing systems as well as in-process checkweighing.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Oct 10, 2008 Along with 15 A motor, RS35 heavy-duty reciprocating saw features adjustable aggressive orbital action, variable speed control, and Constant Response(TM) circuitry that maintains consistent, controlled power. Anti-Vibration system, with shock absorbing handle and counterbalance mechanism, is custom-engineered to isolate user from tool vibration while also promoting all-day comfort and control. Also included, LockJaw(TM) blade holder enables one-handed blade changes.
