Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550

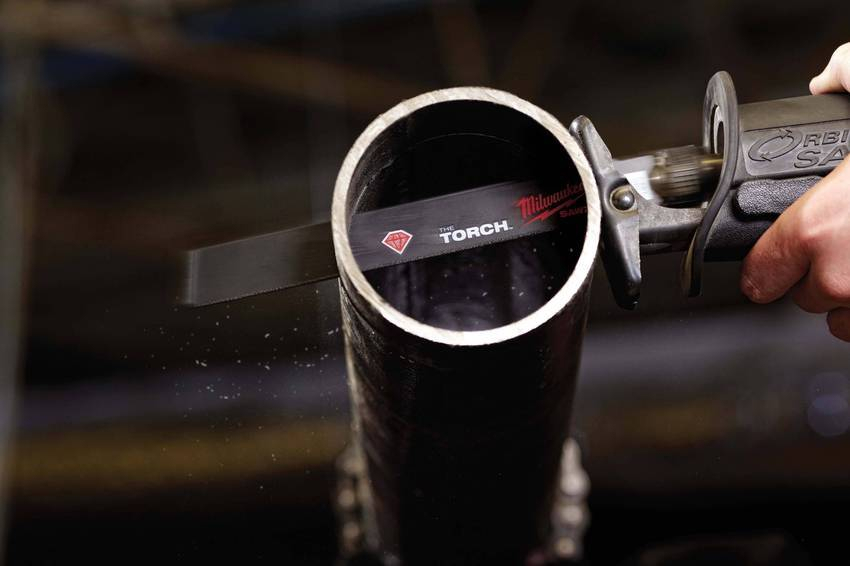

May 29, 2009 Available in 9 in. for larger dia cutting and 6 in. for more control on smaller dia cutting, DIAMOND GRIT THE TORCH(TM) SAWZALL® BLADES cuts in abrasive materials like cast iron. Featuring diamond grit technology, unit can also cut fiberglass, grade five porcelain tile, brick, ceramics, masonry, and plaster.

American-Newlong, Inc.    Indianapolis, IN 46217

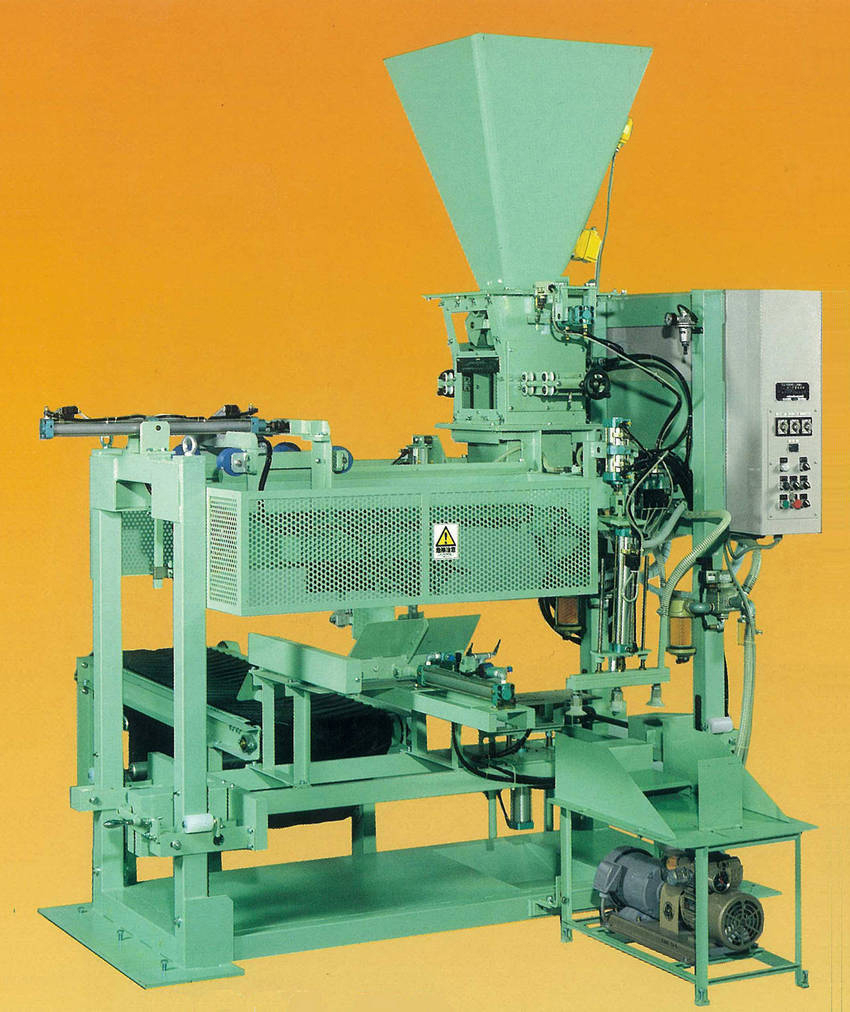

May 29, 2009 Series 3CM-5 baggers place empty bag on spout, fill it (typically 20-50 lb), and close bag top by heat sealing or sewing, all within confines of bagger. Sstem maintains bag top control throughout process to deliver consistent results and optimized throughput. Series includes 3CM-52, 3CM-55, and 3CM-5U machine models with bagging capacities ranging from maximum of 350-600 bags/hr.

Strasbaugh    San Luis Obispo, CA 93401
May 29, 2009 Designed for IPEC 372 and 472 Chemical Mechanical Polishing systems, nVision II Optical Endpoint Detection Upgrade monitors optical, motor current, and pad temperature signals to determine precise endpoint for both metal and thin film CMP applications in semiconductor, data storage, and MEMS manufacturing markets. System includes intuitive software with full color GUI, endpoint recipe creation and implementation, and signal filtering flexibility.

Wheelabrator Group    Burlington, ON L7L5V5  Canada
May 29, 2009 Incorporating standard and customized components to meet unique customer requirements, Structural Steel Shot Blast Cleaning systems are designed for descaling and cleaning structural shapes before or after fabrication. Model 2436 uses Autoblast® wheels and has 24 in. wide x 36 in. high cleaning envelope and variable-speed roll conveyor. All systems use recyclable steel abrasive and feature wear-resistant blast chamber with high manganese welded construction.

Haas Automation, Inc.    Oxnard, CA 93030

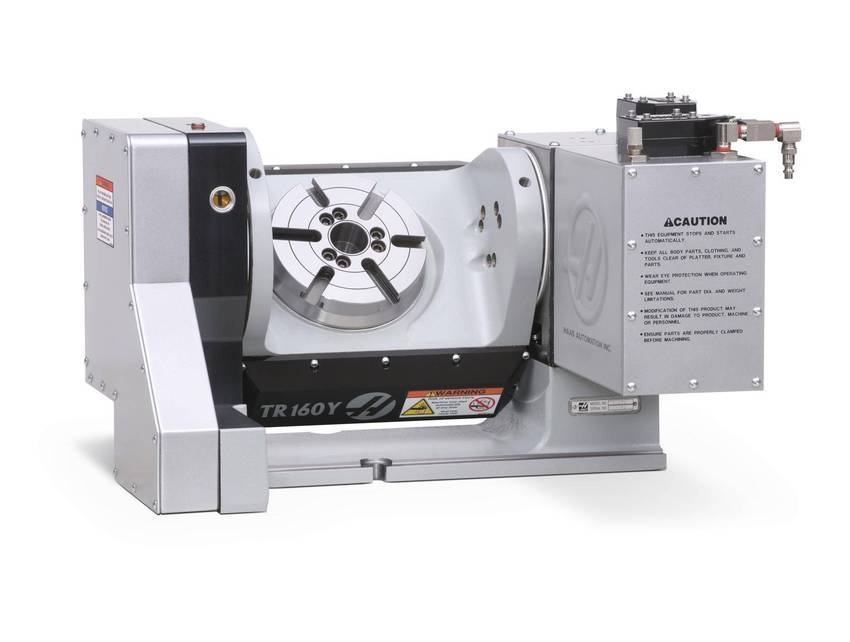

May 28, 2009 Designed to mount in Y direction of mid-size VMC, TR160Y dual-axis trunnion rotary table measures less than 25 in. wide and 20 in. deep, and fits on one end of machine's table. It has 160 mm T-slot platter, and will swing parts up to 7.5 in. dia. Trunnion provides ±120° of tilt and 360° of rotation for full simultaneous 5-axis motion, or to position parts to any angle. Powerful brushless servomotors on both axes of TR160Y provide 150 ft-lb of torque on A axis and 100 ft-lb of torque on B axis.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
May 28, 2009 Designed to smooth die and mold surface finishes, polymer lapping product line consists of 8 tools and 2 abrasive compounds. Eight polymer tools are made in varying shapes and sizes and are used on air grinding tools, and abrasive compounds are available in 400 and 600 grits and must be used in conjunction with polymer tools. Technology aids efficiency of hand-applied micro-finishing process.

J. W. Winco, Inc.    New Berlin, WI 53151
May 28, 2009 Desaigned for clearing debris from T-slots on milling machines or rotary T-slot tables, Series 6485 scrapers are offered in 2 sizes to fit either 14-20 mm slots or 22-32 mm slots. They feature blade made of hardened chrome-vanadium steel, with handle of same material for smaller version, and black and red cadmium-free plastic handle for larger version.

Gainco Co.    Gainesville, GA 30507
May 28, 2009 Designed for in-motion sizing and distribution of poultry items, 9 in. AccuSizer(TM) Portion Classifiers handle breast filets, wings, drums, thighs, whole legs, and other smaller food portions weighing less than 2 lb and shorter than 10 in. Units incorporate tubeless frame, IP69K-rated touchscreen interface with graphical displays, and quick-release hopper and chute designs. Operators can size up to 180 portions/min, with tolerance of +1.0 g at one standard deviation.

Digi International    Minnetonka, MN 55343
May 28, 2009 Offering secure primary and backup connectivity to remote devices in severe environments, Digi Connect WAN 3G IA supports both GSM and CDMA connections as well as Modbus TCP for connectivity to PLCs, RTUs, and other industrial devices. Router includes Ethernet and serial ports, terminal block for 9-30 Vdc power, DIN rail kit for mounting, and Class 1 Div 2 industrial certification. Temperature rating is -13 to 167°F for GSM models and -22 to 167°F for CDMA models.

Wheelabrator Group    Burlington, ON L7L5V5  Canada
May 28, 2009 Using multiple-axis nozzle manipulation and part movement, Wheelabrator® Automated Airblast Systems allow for repeatability when peening ID and OD of rock drill bits. Systems feature steel blast cabinet and door-mounted rotary table that permits drill to be in shank-down position while peening face and button hole. Additional features include touchscreen interface, closed-loop feedback and process controls, and detailed diagnostics for troubleshooting.

Dynabrade, Inc.    Clarence, NY 14031
May 28, 2009 Offered in 4 models, Dynascaler surface preparation tools power Roto Peen Bonded Flap Assemblies for removing rust, oxide, scale, old paint, and coatings. Straight Line and Right Angle models let operators work close to work surface and have 4-position top handle, while Floor model features 20-slot hub for Roto Peen Bonded Flaps and suits scaling operations along extended areas. Over-Under model mechanically fractures scale and coatings with negligible removal of base metal.

CS Unitec, Inc.    Norwalk, CT 06850
May 27, 2009 Model CS 536163-2 pneumatic concrete chain saw features AirFORCE F4(TM) Diamond Chain that cuts up to 15 in. deep in concrete and includes chain-based water distribution system for lubrication between bar and chain. Air saw plunge cuts mechanical openings, irregular shapes, and square corners up to 14" in. with no overcuts. Featuring 6.5 hp motor with no load speed of 5,700 rpm, unit operates at 124 cfm air volume at 90 psi, with noise level of 88 dB at 3 ft.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
May 27, 2009 Economy Tooling Line is designed to reduce replacement tool costs while novice CNC router users are gaining knowledge on how to cut properly. Made of solid carbide, hand-picked tools include various Flat and Ball End Mills that are available in both standard and long lengths. Heat-resistant products, offered with 9 cutting edge length options from 3/32-3 in., maintain sharp cutting edge and can be used on plastic, wood, solid surfaces, foam, and acrylic.

Metabo Corp.    West Chester, PA 19380 4243
May 27, 2009 Weighing 6 lb and measuring only 13 in., WB 11-125 features disk brake that stops tool in less than 3 sec when used with grinding discs, and in less than 1.5 sec with thin cutting discs. Unit is constructed of low-profile aluminum die-cast gear housing and features 9.6 A motor with 1,100 W of power, 26.9 in-lb. of torque, and no-load speed of 10,000 rpm. Safety features include tool-less guard adjustment, spindle lock, S-Automatic safety slip clutch, and anti-vibration side handle.

GYRDIS    Cergy Pontoise Cedex   France
May 27, 2009 With GXL, cooks can make crepes with varying thickness and doneness, using all kinds of mixes including wheat and buckwheat flours, and flours free of preservatives, artificial colors and GMOs. User can select from 14 in. dia, one crepe at a time, or 8 in. dia, 2 crepes at a time options. GXL features digital heat control, electronic timer, 4 L batter container, cast-iron rotor to reproduce traditional crepe-cooking method, and can stack 35 to 40 crepes without any handling.

Greenlee Textron, Inc.    Rockford, IL 61109
May 27, 2009 Capable of cutting up to 7/8 in. thick plywood, wood, acoustical tile, and ceiling tile materials, 5-3/8 in. recessed light saw is available with steel and carbide grit cutting teeth. Carbide grit blade can even cut stucco and plaster up to 7/8 in. thickness. Designed for use with ½ in. electric power drill, saw features replaceable blades and has strong back plate that provides rigidity for cutting clean holes. Slug removal slots in back plate facilitate fast clean up.

Union Process, Inc.    Akron, OH 44313
May 27, 2009 By changing shaft/arm assembly and bottom discharge, S-50 Batch-type Attritor offers flexibility of grinding either wet or dry. Unit can grind variety of products from ceramics and carbides to inks and chocolate, when operated as wet grinding mill. When operated as dry grinding mill, SD-50 can be used in applications ranging from metal powders to mechanical alloying, pigments, glass frits, and minerals. Mill features larger motor to accommodate dry grinding.

Graco Inc.    Minneapolis, MN 55440
May 27, 2009 Available in configurations that include EasyKey display and Smart Fluid Panel, ProMix® 2KS offers integrated color change capabilities for both automatic and manual applications. Two-component proportioner features simple control modules for programming; advanced Web interfaces for system management and reporting; and electronic feedback system to give operator critical process control. Self-flushing component in unit shortens clean-up and color-change time.

Skil Power Tools    Mt. Prospect, IL 60056
May 27, 2009 Featuring 51° bevel capacity, 15 Amp HD5687 Skilsaw is suited for making angled rough cuts while framing roof or creating clean corner joint on baseboard. Saw includes 20 A AC-DC switch, anti-snag lower guard, and rear view depth adjustment, as well as stamped steel foot plate, spindle lock, and 8 ft cord. It is supplied with 24-tooth carbide tipped construction blade.

Process Control Corp.    Atlanta, GA 30340
May 27, 2009 Designed for powder feeders in 4- or 6-element configuration, XU Series continuous, loss-in-weight powder blender allows gravimetric blending of nonfree-flowing powder materials with free-flowing powder/pellet materials. Units allow individual rates from 0.2-3,000 pph and utilize DSP technology to filter out noise and vibration. They include removable hopper with dust-tight band clamp; bottom trough design to provide maximum material exposure to auger; and PWM-controlled drive system.
