Mate Precision Tooling    Anoka, MN 55303
Apr 06, 2010 Ultra® IMT(TM) fully indexable multitool is available in 3-station version, which can punch up to 6 mm material at up to 142 kN, and 8-station model that can punch 6 mm material at up to 62 kN. Both assemble/disassemble without tools and include zero mark to indicate start/home position and station ID window to view active station. Ergonomic systems are ported for lubrication, and feature spiral grooves in OD of holder to reduce friction between machine and holder.

Franklin Wireless Corp.    San Diego, CA 92121
Apr 06, 2010 Intended for US, Latin American, and Caribbean markets, R536 WiMax Wave II embedded Wi-Fi hotspot router supports Windows, Macintosh, and Linux OSs and does not require any special software to access network connections. This portable, 2.5 GHz band device features 802.11 b/g Wi-Fi, weighs 2.46 oz, and is powered by replaceable and rechargeable lithium-ion battery. Web-based UI facilitates setup and network configuration.

Rush Machinery, Inc.    Rushville, NY 14544
Apr 02, 2010 Designed to integrate with most grinding, lapping, and honing machines, FC-300 provides continuous filtration, automatic back flush, and clean fluid on demand to machines. Oil can be filtered to particle size of 1 micron and water to 5 micron (nominal), promoting surface finish quality as well as grinding wheel and fluid life. On multi-vessel systems, vessels are automatically back-flushed individually to provide constant supply of clean fluid during regeneration cycle.

Legrand Electric Limited    Birmingham B19 2LF  United Kingdom
Apr 02, 2010 Suited for use in corrosive environments, UL-Classified EDRNIN 316L helps installers accelerate splicing of wire mesh tray. Design utilizes stable grip edge that snaps in place between upper wires of Cablofil tray, forming secure splice. For tray widths of 8 in. and less, 2 EDRNs are required for each splice. For larger tray widths, one or two additional splices are required on bottom of tray. Included assembly tool facilitates installation.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Apr 02, 2010 Designed to grip OD of 9 in. diameter helical gears, MG Mini-Gear Pitch Line Chuck features pins mounted in loose fitting housing so that they can float. Pins pick up pitch diameter, and jaws grip OD of pins. At 10 in. dia, Northfield model 1000 air chuck features 2 pin cages: one for left hand helix, and one for right hand helix. Pin cages are changed out by removing 3 mounting screws.

Industrial Conveying (Aust) Pty Ltd    Victoria 3552  Australia
Apr 01, 2010 Consisting of trommel and associated conveyor systems, custom Waste Handling System almost completely eliminates manual intervention. Used for primary sortation of co-mingled products, 2-stage trommel sorts beverage containers such as plastic, glass, and ferrous items. Stage 1 uses small diameter holes in screens to take fines out of system, while Stage 2 has larger diameter holes to separate containers and paper. Any paper/cardboard product in mix is conveyed away to secondary sorting system.

RPS Automation LLC    Spokane Valley, WA 99216

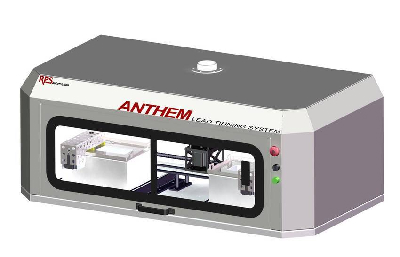

Apr 01, 2010 Suited for low- to mid-volume in-house re-tinning of electronic components and leads, Anthem Lead Tinning System(TM) is fully ANSI, MIL, IEC, and GEIA compliant. System features 2 dynamic solder pots, pre-heat station, and flux station, as well as precision ball screw drives for quiet motion control. Programming control includes solder temperature; dynamic solder flow; emersion depth acceleration, decleration, and feed rate; dwell time; X and Z axes and optional rotary motion.

SIXNET    Clifton Park, NY 12065 0767
Apr 01, 2010 Used as primary WAN connection or as backup to landline connections, IndustrialPro(TM) Wireless Gateway and Router provide secure wireless connectivity to remote locations and assets. IndustrialPro Wireless Gateway offers one Ethernet port and one serial port, while IndustrialPro Wireless Router features one or 5 Ethernet ports, one serial port, as well as full firewall and routing functionality. Both products offer 3G or 2G cellular connectivity and support AC or DC power.

MAG Powertrain    Sterling Heights, MI 48313

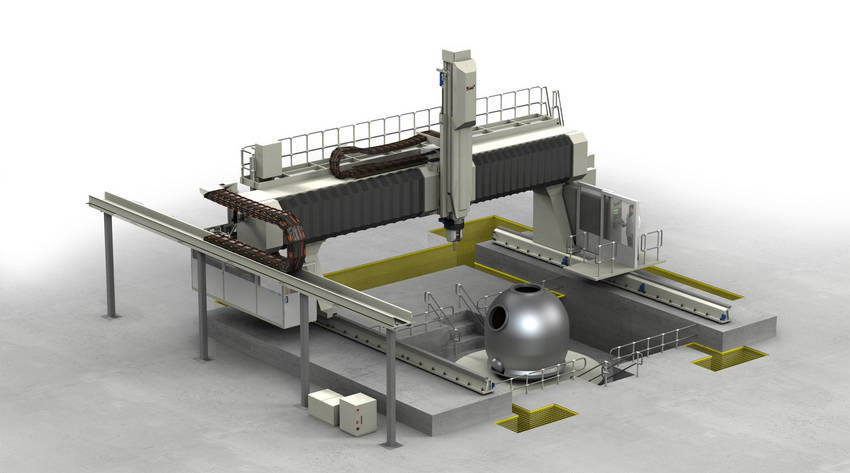

Mar 31, 2010 Model U5-3000 system features Y-axis travel of over 20 ft, unlimited X-axis travel, and Z-axis ram with 20 in. cross section. Its 15,000 rpm contouring spindle delivers up to 42 lb-ft torque, while rigid box-way roller-bearing rail system and dual-motor rack-and-pinion X-axis drive offer precision and high thrust levels on long-travel cuts. System has feed rates up to 787 ipm, with continuous C-axis to keep spindle in-cut without running out of C-axis travel or waiting for axis to unwind.

IBAG North America    North Haven, CT 06473
Mar 31, 2010 Suited for compact tool zones in most Swiss Type machines, Model HT 25 S 60 delivers ultra precision with less than 2 microns run-out to enhance surface quality and machining accuracy. Compact unit measures 22 mm dia and 63.3 mm in length. Incorporating synchronous, DC motor technology, unit features high rigidity and suits machining applications including micro-milling, drilling tools, engraving, and fine milling.

Krones AG    Franklin, WI 53132

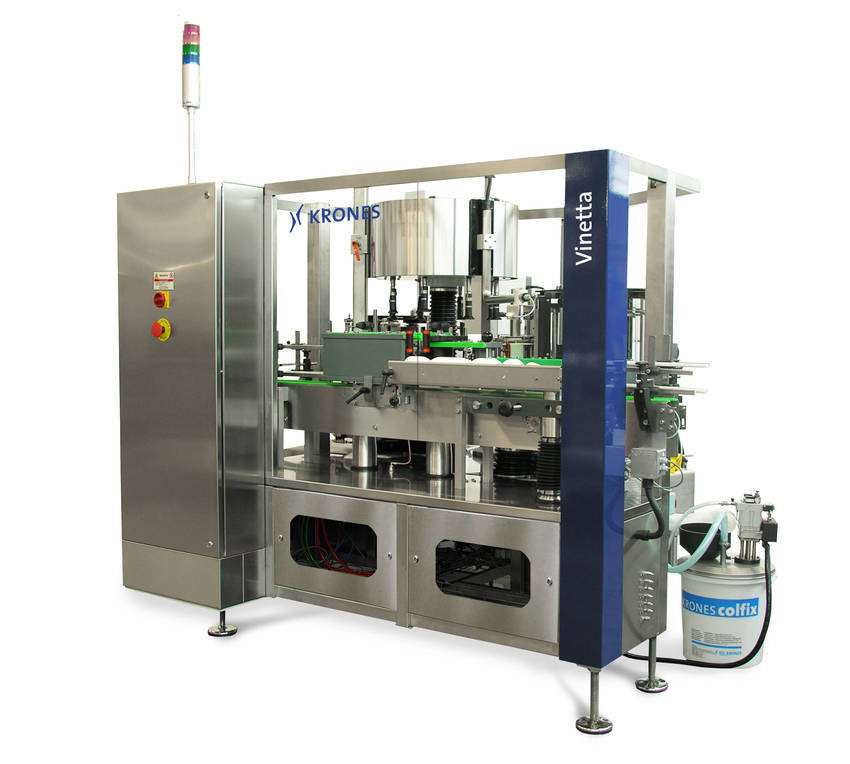

Mar 30, 2010 Krones Vinetta features rotary design and label magazine that holds 5,000 labels. Replaceable wear strips extend lifetime of bottle handling parts, while glue pump with heater ensures consistent quality and economical glue consumption. Standard version dresses glass and plastic bottles, jars, and special-shaped containers in body and shoulder labels. Machine can be fitted with cold-glue station as well as pressure-sensitive labeling station.

GoldEdge Steel Solutions, Inc.    New Bethlehem, PA 16242

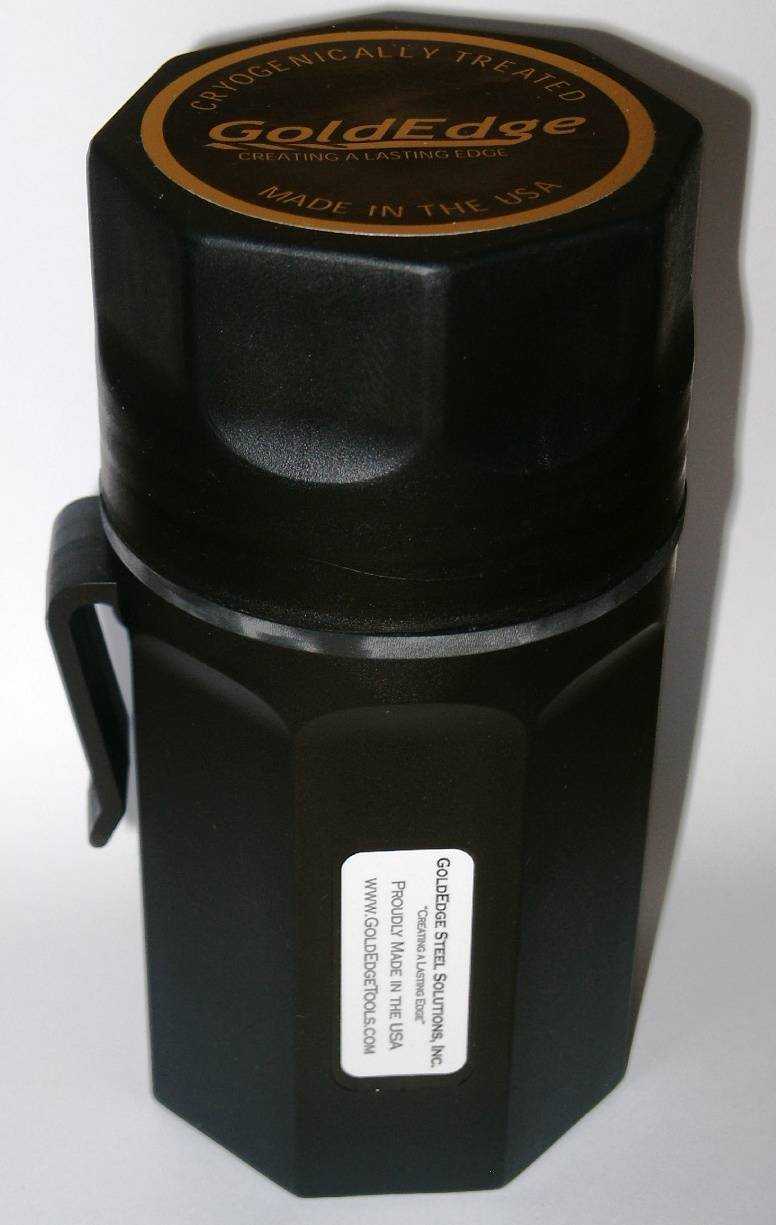

Mar 30, 2010 Manufactured using patented cryogenic treatment process that alters steel's molecular structure, ultra-durable GoldEdge® drill bits are designed to handle demanding jobs in construction, maintenance, and metal working industries. They feature 135° split point design that eliminates need for center punching, and 3-flat shank that eliminates chuck slippage, making it ideal for use in hand-held drills.

Mazak Corp.    Florence, KY 41042 3092

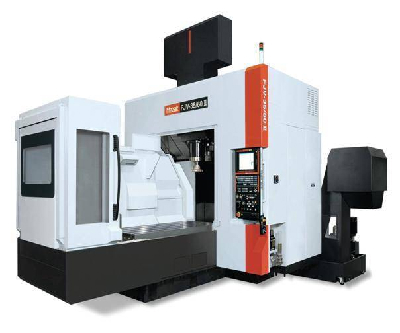

Mar 29, 2010 Accommodating up to 5,500 lb on 59.1 x 31.5 in. work table, Model FJV-35/60 II comes equipped with 50 taper, 40 hp, 10,000 rpm spindle that generates up to 433 lb-ft of torque for cutting large cast iron, steel, and aluminum workpieces. Double column machine utilizes roller guides on all axes for feedrates of 1,574 rpm in X- and Y-axes and 1,181 ipm in Z-axis. Featuring 12 in. LCD color display and USB port, Mazatrol MATRIX NEXUS CNC enables conversational programming and EIA input.

Multicam, Inc.    Dallas, TX 75261

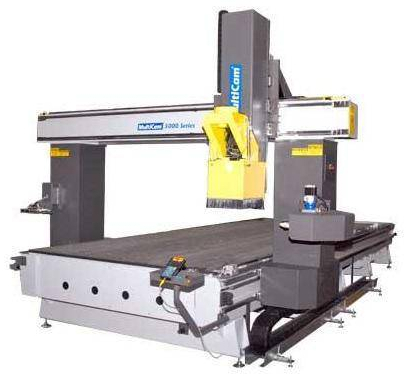

Mar 29, 2010 Designed for machining products such as mold layups and thermoformed parts, RAM-Z style CNC machining center offers up to 48 in. of gantry clearance and stroke. Available features include automatic tool changing components, up to 20 hp spindles, and 3- or 4-axis (simultaneous) configurations. Oversize gantry supports ride on dual 35 mm linear bearings on each side of tubular steel frame, and RAM-Z axis assembly also rides on 35 mm linear bearings supported by 6 bearing blocks.

Normac, Inc.    Northville, MI 48167
Mar 29, 2010 Delivering diverse functionality, CBN46 lets Positive Plated diamond and CBN grinding wheel manufacturers grind wheel core profile, condition or dress plated layer, and cut test piece coupon. Main table movement is provided by SKF satellite roller screws, and digital brushless servo motors provide consistent and accurate movement. Also, MSA 670 Series linear encoders provide feedback to Siemens 810 digital CNC control with positional accuracy of .0001 in.

SCHMIDT Technology GmbH    St. Georgen D-78112  Germany

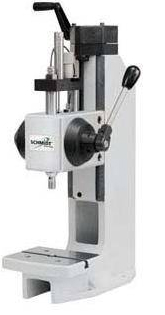

Mar 29, 2010 With Manual Press 305, it is possible to separate hand force from ram in controlled manner. Ram decouples at preset values, and return stroke lock makes sure preset values are achieved. Failed parts must be correctly separated by operator, otherwise system prevents operator from continuing. Available with MovTol and bending compensation, press offers extensive data acquisition, data evaluation, documentation, and statistical process control.

Schunk    Morrisville, NC 27560

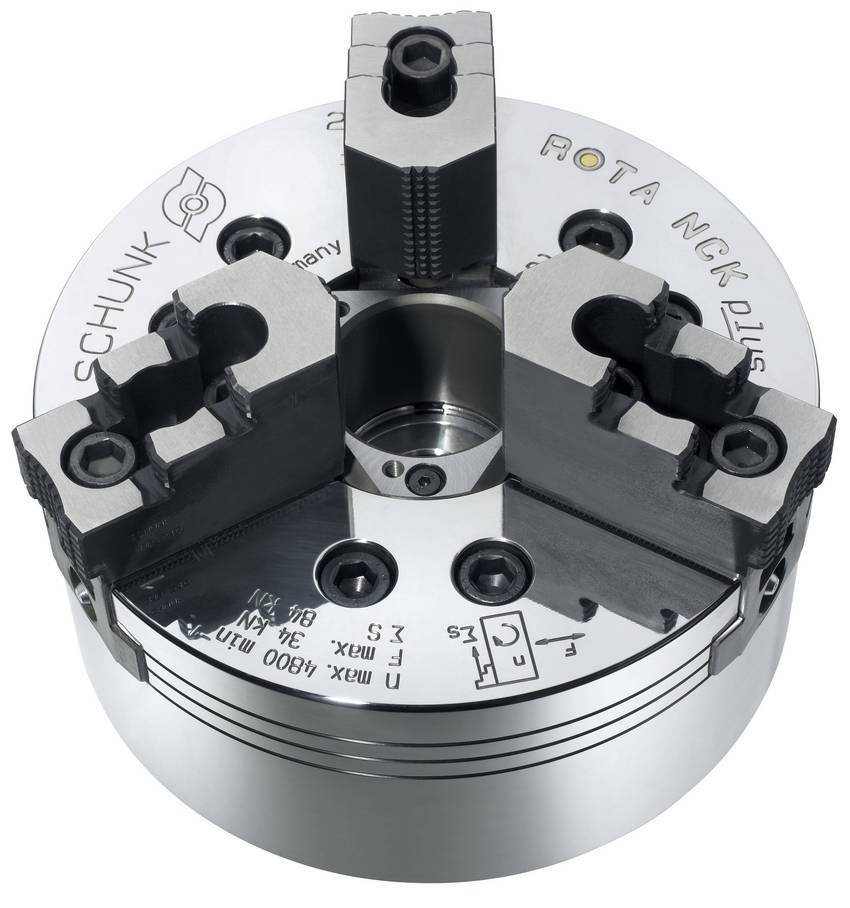

Mar 29, 2010 Built with one-piece chuck body for rigidity, ROTA NCKplus incorporates precision piston guide and support that minimize wear while promoting continuous clamping accuracy. Jaw interface is available in 2 versions: fine serration 1.5 mm x 60° or with 1/16 x 90° serration. Suitable for max speeds of 6,000 rpm and combining jaw strokes from 0.108-0.208 in. per jaw, chuck is available for all CNC lathes in 6, 8, 10, and 12 in. sizes with clamping forces from 12.814-32.392 lbf.

Schunk    Morrisville, NC 27560
Mar 29, 2010 Universal toolholder SINO-R uses solid body as pressure medium that enables clamping of cutting tool with actuation wrench. Intermediate sleeves allow nearly all common tool shank diameters to be clamped. Maintenance-free device has maximum torque transmission of 627 lb-ft at clamping diameter of 1.25 in., and is precision-balanced standard to 6.3 G at 15,000 rpm. High radial rigidity/dampening ensure smooth running of tool.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040

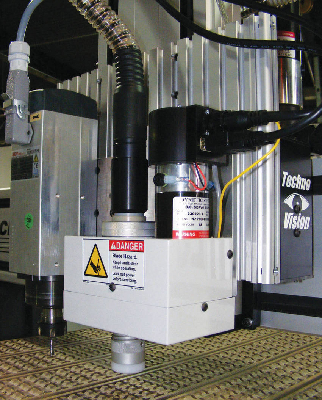

Mar 29, 2010 Using one main rotary drive, Techno Universal Knife System is capable of processing multiple applications through interchangeable heads. System can change between Oscillating Knife, Tangential Drag Knife, Spring Loaded Pen, Vinyl Drag Cutter, or Creasing Wheel Kit when needed. When combined with Techno Vision digital image verification package, system provides complete digital finishing solution for Sign and Graphics customers.

Marvel Manufacturing Company    Fairfield, NJ 07004
Mar 29, 2010 Featuring 18 x 22 in. capacity, optional vertical capacity of 28 in. and miter cutting capabilities up to 60° right and left, Series 8 Mark III employs 5 hp inverter drive motor and automatic column return with linear ball bearing ways. Easy Load Guide Blocks and Quick Change Column let users shift blade from 90° vertical to 3° forward cant. Optional power tilting of column is available, and all-mechanical feed system, combined with controls, facilitates operation and maintenance.
