Toolmex Corp., Machinery Div.    Schaumburg, IL 60193
Aug 06, 2010 Designed to handle parts up to 39 in. dia x 295 in. long with up to 19,800 lb between centers, Model FTM1000 maintains 39 in. swing over bed and cross slide. Spindle bore sizes are available in 5.5, 8.6, or 12.5 in. Suitable for parts up to 27 x 177 in. with up to 8,500 lb between centers, Model FTM700 maintains 27 in. diameter swing over bed and cross slide and is available with 5.5 or 8.6 in. spindle bores. Both are suitable for machining cast iron, steel, and alloy parts.

Rush Machinery, Inc.    Rushville, NY 14544
Aug 05, 2010 Utilizing edge filtration technology, Grinding Fluid Filtration System is suited for use with carbide, HSS, and stainless steel materials in grinding, honing, and lapping industries. Balanced clean and dirty fluid tank sizes ensure separation of clean and dirty fluid during automatic regeneration. Single and multiple pump configurations are available for clean fluid delivery, and for dirty fluid handling, system uses seal-less cast iron filter pumps.

Doosan Infracore America Corp & Eng Center    West Caldwell, NJ 07006
Aug 05, 2010 Providing 25.6 x 39 in. work envelope, Puma 480D features 10.8 in. through-hole diameter, 60 hp turning power, 3,293 lb-ft torque, and up to 6,102 lb Z-axis thrust. Wrap-around guideways are induction hardened, precision ground, and bonded with low-friction fluroplastic coating to minimize wear and dampen vibration. Power is supplied by 2-speed gearbox, generating spindle speeds up to 1,000 rpm. Employing 12.6 in. dia Curvic coupling, 12-station turret exerts 23,606 lb hydraulic clamping force.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Aug 05, 2010 Available in several shank sizes, adjustment-free 3700 Series features bearing capacity capable of producing large forms. While most common forms made with rotary broaching tools are hexagon and square holes, 3700 series tool holder also accepts special Slater broaches that can be used to create double hex, double square, serration, spline, and other custom forms. Toolholder eliminates secondary operations, which conserves time and expense.

Scotchman Industries, Inc.    Philip, SD 57567
Aug 05, 2010 Model DO 135 ironworker has 2-pump hydraulic system that ensures both operations have full hydraulic pressure and speed. It has 2 valves, 2 stroke controls, 2 remote foot pedals, and 4 built-in stations. With 12 in. throat depth, machine can punch 1 11/16 in. hole in 1 in. material. Machine also features 6 x 6 x ½ in. angle shear and rectangular notcher that can notch 3 x 5¾ x ½ in. material. Its 24 in. flat bar shear features low rake angle and can shear up to 1 x 12 in. and ½ x 24 in. material.

Scotchman Industries, Inc.    Philip, SD 57567
Aug 05, 2010 Complete with 2 valves, 2 stroke controls, and 2 remote foot pedals, Dual Operator 95/140 has hydraulic system designed with 2 pumps for operational consistency. It has 95-ton capacity punch and 9 in. throat depth, which can punch 1 3/16 in. hole in 1 in. material. Along with 4 built-in stations, system offers 6 x 6 x ½ in. angle shear, rectangular notcher that can notch 3 x 4 x ½ in. material, and 24 in. flat bar shear that can shear up to 1 x 8 in. and 3/8 x 24 in. material.

Thinbit Cutting Tools    Fort Wayne, IN 46898
Aug 05, 2010 FORM-A-GROOVE(TM) tooling consists of customized form tools capable of generating complex profiles in one plunge. Specifically, tools can consist of combinations of simple grooves or more complex combinations of grooves, arcs, angles, convex, and concave radii. They can be composed of stacks of individual inserts or one carbide block up to 2 in. wide. Available in 1 in. round and ½, ¾, and 1 in. square versions, products can be coated with TiN, TiCN, TiAIN, or Diamond film coatings.

SCHMIDT Technology GmbH    St. Georgen D-78112  Germany

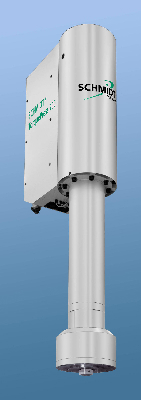

Aug 05, 2010 Featuring max ram speed of 200 mm/sec, SCHMIDT® TorquePress 200 uses torque motors for precise positioning tasks and features hollow shaft design that eliminates need for mechanical intermediate elements. Machine is permanent load stable due to active temperature-controlled cooling. If allowable top force of 250 kN has been exceeded, mechanical overload protection becomes active. Additional features include wear-free roller-guide, fail-safe force-stroke monitoring, and closed loop force control.

Seco Tools Inc    Troy, MI 48083

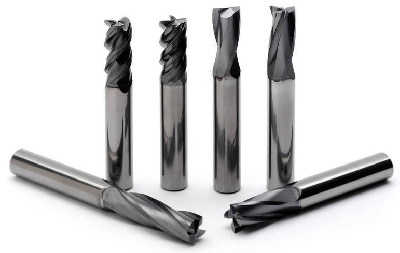

Aug 05, 2010 Available in sizes from 1/8 to 1 in., Jabro-Solid² Cutters suit general machining applications across range of materials, including carbon steels, gray cast iron, stainless steels, and super alloys in both wet and dry applications. Square shoulder mills come in 2-, 3-, and 4-flute models for side milling and/or slotting. Offered in 3- and 4-flute designs, JS550 Series features double-core technology for added stability. Both families are finished with proprietary Siron-A coating.

Sterling Edge Inc.    Wixom, MI 48393
Aug 05, 2010 Intended for hardened steel applications when wearing out nose is of concern, Hog Nose Cutters enable 5-axis mill-like cutting with vertical machine. Each uses standard proprietary Ball Nose body and are available with coatings and grinds for ferrous and nonferrous materials. Geometry eliminates problem of zero velocity at center of insert. Standard sizes include 3/8, ½, 5/8, ¾, 1, and 1¼ in. as well as 10, 12, 16, 20, 25, and 30 mm.

SNK America Inc.    Elk Grove Village, IL 60007
Aug 05, 2010 Providing rapid traverse rate of 1,575 ipm, Model HN1000-S is capable of swinging parts up to 90.6 in. in dia and 72.8 in. in height. Machine features hybrid guideway system consisting of heavy-duty roller guide system on X- and Z-axes and hardened ground box way system on Y-axis. Minimizing need to extend quill to reach part, rigid spindle snout provides radial load capacity for heavy milling cuts, while center-mounted spindle eliminates column twist of side-mounted spindle.

Morse, M.K., Co., The    Canton, OH 44711
Aug 05, 2010 Available in 1, 1¼, and 1½ in. sizes, M-Factor CH Blades are engineered for cutting case hardened materials, while M-Factor GP Blades handle general purpose cutting of carbon steels and stainless steels. Made of sub-micron grade carbide, blades feature triple chip tooth profile and are available in variety of band widths and thicknesses.

Scotchman Industries, Inc.    Philip, SD 57567
Aug 05, 2010 Able to swing 45° right or 60° left, 20 in. DS-20 horizontal band saw comes with quick-slide vise, 1¼ in. blade, saw guides with carbide inserts, and remote control console. Hydraulic clamping and head lift combine to provide semi-automatic cycle control Respective capacities for this general-purpose band saw at 90°, 45°, and 60° are 14 in. high x 20 in. wide, 14 x 14 in., and 14 x 10 in. Minimal maintenance is required.

Toolmex Corp., Machinery Div.    Schaumburg, IL 60193
Aug 05, 2010 Optimizing access to work pieces during setup and measurement, TUR630MN and TUR710MN series Manual Plus CNC long bed lathes are available as 25 or 28 in. swing over bed with 78, 118, or 157 in. between centers. Machines include independent overhead swivel control station to avoid cable damage, while absolute encoders on feed motors for z- and x-axis eliminate need for homing. Also incorporated are 4.1 or 5.5 in. spindle bores, with speeds up to 2,500 rpm on 4.1 in. bore.

Tornos    Lombard, IL 60148
Aug 05, 2010 Available with or without guide bush, single-spindle Gamma Turning Centers offer 1-2 tool systems and can handle parts up to 20 mm in diameter. Gamma 20/6 provides 6 linear axes, while Gamma 20/5 offers 5 linear axes. Ergonomic design provides access to all tool positions, while automatic lubrication unit, swarf tray, and removable oil pan facilitate maintenance.

AZCO Corp.    Fairfield, NJ 07004
Aug 05, 2010 Blister card cutting system, BCS(TM), allows original format of blister cards to be cut into different sizes. After operator places blister cards into this unit, it will automatically cut to size. This reduces waste, tooling cost, and delivery time. Offered as bench-top or in-line model with blister machine, product plugs into 110 Vac outlet and features vertical magazine. Feeding to shear cutting station is automatic, and machine is also capable of rounded corners and radius cuts.

Rollomatic, Inc.    Mundelein, IL 60060
Aug 04, 2010 Model 528XS GrindSmart series 5-axis grinder is suited for regrinding/modification grinding and manufacturing of rotary cutting tools. Machine includes PentaSmart software for endmills, drills, and step tools, as well as BurCalc software for bur production. Integration of robot is optional.

Rollomatic, Inc.    Mundelein, IL 60060
Aug 04, 2010 Model 628XS, GrindSmart series 6-axis grinder for manufacturing rotary cutting tools and inserts features rotary glass scale on tool rotation axis. Machine's software features interpolation capability and unit also optimizes surface finish on flute and ball relief. It is designed for producing endmills, drills, step drills, form tools, reamers, taps, and any derived variations, as well as surgical and orthopedic cutting tools, and is capable of insert periphery grinding.

Rollomatic, Inc.    Mundelein, IL 60060
Aug 04, 2010 Incorporating fifth axis, ShapeSmart NP5 can grind flats and unround surfaces on cylindrical parts. Machine utilizes 2 different grinding wheels running on separate spindles and positioned on independently controlled CNC linear slides. Roughing and finishing are performed in one pass, eliminating separate process. Applications include form grinding of cutting tools blanks as well as production grinding of precision punches and die and mold components.

CIMCOOL®    Cincinnati, OH Oh. 45209
Aug 04, 2010 Designed for moderate to heavy-duty operations, CIMTECH 609® is suitable for use with most aluminum alloys, titanium, exotic alloys, cast iron, carbon steels, high-speed steel, high alloy steels, and stainless steels. Product offers drawability and biological protection for use in recirculating systems. With no smoke and minimal residue, low-misting fluid leaves no slippery film on parts, machinery, or floor. Corrosion inhibitors allow use on both ferrous and non-ferrous applications.
