Dapra Corporation    Bloomfield, CT 06002
May 22, 2007 HFBD Series High-Feed Inserts are designed for metal removal when used with BNEM Cutter Bodies for high-feed roughing, pocketing, cavity/core roughing, and helical interpolation. Available in 3/8-¾ in. dia, cutters are furnished in medium- and high-temperature grades.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Apr 25, 2007 Optimized for interrupted cuts in case hardened steel, CB7025 is made of fine grain CBN, which controls wear and mechanically interlocks insert corners to provide strengh. Properties enable high machining speeds, as well as ability to finish components in one pass while retaining surface quality. CB7025 comes in 2 radius wiper geometries and wide range of positive inserts.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Mar 14, 2007 GC4235 steel turning insert features edge line security, as well as optimized coating and substrate that allow for high deformation resistance. Insert can handle situations such as intermittent cuts and profiling operations, and is available in selection of inserts for Coroturn® applications.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Mar 09, 2007 Offered as model numbers DW1204(B)-DW1232(B), DW1263, and DW1269, cobalt PILOT POINT® drill bits are engineered for use on stainless steel and other hard metals. Each bit (3/16 in. and up) is designed with 130° pilot tip on top of 130° split point with 4 cutting edges. This minimizes walking on material and enables bit to start on contact. While open-head flute design aids material removal, no-spin shank has 3 flats that provide positive lock on chuck to prevent slippage in tool.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Feb 21, 2007 Offered in steel (Type B) and stainless steel (Type BS), PEM® self-clinching blind fasteners provide permanently mounted blind threads in metal sheets as thin as .040 in. Blind-type design serves to protect threads against foreign matter and circuits from intrusion of extra long screws. Available with thread sizes from No. 4-40 through ¼-20 and M3-M6, RoHS-compliant fasteners come in 2 shank lengths for each thread size.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

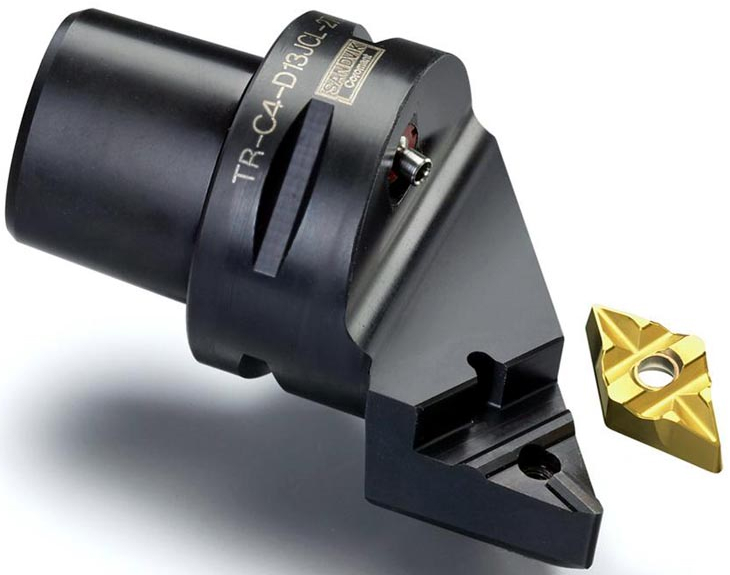

Feb 16, 2007 Designed to boost profile machining performance, CoroTurn TR® features T-rail design that uses long insert screws and horizontal and vertical rails to provide strong support while minimizing movement in tool holder. Optimized geometries facilitate high levels of chip evacuation necessary for continuous, uninterrupted machining. CoroTurn TR is suited for variety of finishing and turning operations, as well as multi-task machining.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Feb 14, 2007 Providing interrupted cuts in case hardened steel, model CB7025 insert grade features fine grain CBM, which controls wear and mechanically interlocks insert corners for strength and security. It is available in range of positive inserts and comes in WH and WG radius wiper geometries.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Feb 06, 2007 Operating in all conditions and speeds, GC4230 Insert Grade offers maximum resistance to all wear types. It is made with stressless coating technologies, which provide edge line toughness that exceeds CVD grades and allows for trouble-free machining in all applications.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Jan 30, 2007 CoroTurn TR® features T-rail interface that promotes performance in profile machining via clamping stability and security. With long insert screws and horizontal and vertical rails, design offers strong support while minimizing movement in tool holder. Optimized geometries facilitate chip evacuation levels necessary to achieve continuous, uninterrupted machining. Areas of use include turning operations, medium to finishing applications, and multi-task machining.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Dec 07, 2006 With measurements up to 43.99 mm and 1.687 in., 06 and 07 inserts offer application areas up to 5x dia. for multiple drilling options. Inserts for GC4225 feature stainless steel MF geometry for optimal chip control in stainless steel finishing applications. Larger nose radii (0.047 and 0.031 in.) are suited for applications where tool life or surface finish need to maximized. Other available inserts include ½ in. iC CNMG and DNMG as well as 3/8 in. TNMG types.

Genevieve Swiss Industries, Inc.    Westfield, MA 01085

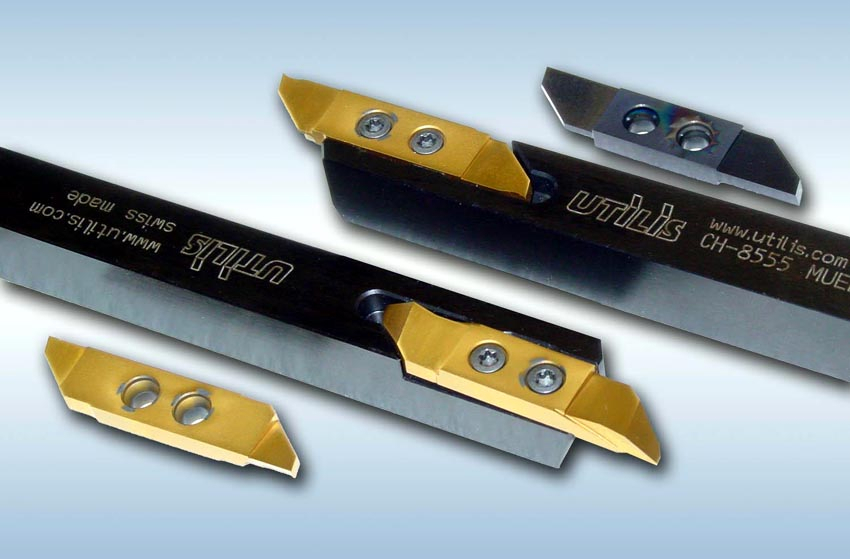

Dec 01, 2006 UTILIS® AG Multidec® Swiss Made turning inserts provide repeatability of less than .0004 in. for turning work 1 in. dia and below. Utilizing chipbreaker design for efficient chip flow, OD turning inserts feature holding system with dual screw clamping and 3-point insert location that provides rigidity and accuracy. They are suited for titanium and 300 series stainless and other difficult materials common in aerospace and medical applications.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

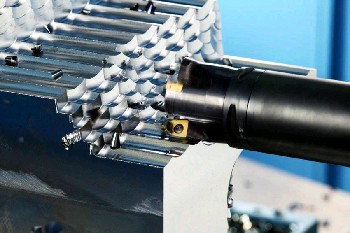

Nov 27, 2006 Designed for use with CoroMill 300 cutting tools in applications requiring high-performance profiling and contouring, E-xL inserts feature precision ground geometry that promotes cutting performance in titanium and stainless steel. They have 10° cutting rake angle, with 0.008 in. land, and serve to lower cutting forces to reduce vibration in unstable conditions.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Nov 20, 2006 Heavy-duty Atlas® MaxTite® inserts provide permanent metal threads in blind attachment applications where only one side of workpiece is accessible for fastener installation and final component assembly. During fastener installation, several thin sheets of dissimilar materials can be assembled and then final components can be attached. Available types include flathead and countersunk, with thread sizes from No. 4-40 through ½-13 in. and M3-M12.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

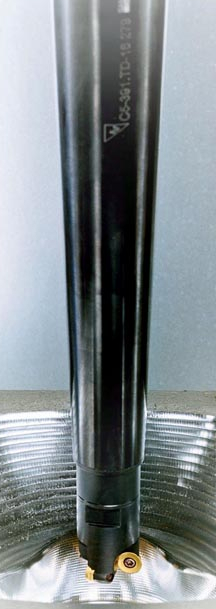

Nov 15, 2006 Suited for plunge milling and high feed milling applications, CoroMill 210 Inserts are optimized for cutting titanium, HRSA, tool steel, and stainless steel. Ten degree entering angle allows for extreme feed rates at small axial depths of cut when face milling, and high radial depths of cut when plunge cutting in rough operations. Design of cutter body allows for use of screws with coolant holes to provide through-the-tool coolant supply to each pocket.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Nov 09, 2006 Suited for machining nodular cast iron and wet cast iron, Model GC1020 has PVD coating that improves cutting speeds and wear resistance for reliability in unstable conditions. Model GC3220 has thick protective coating that helps dry machining of grey cast iron, and is designed for shoulder milling and face milling.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Oct 12, 2006 Suited for rough boring on cast iron materials, TN14 insert is made from hard C2 carbide substrate and features multi-layered coating to provide smooth cutting edge and abrasion resistance. Substrate and edge prep hone also provide security against chipping or fracturing when boring with interrupted cutting. Product is available in CC and SC insert styles for twin-cutter rough boring tools.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

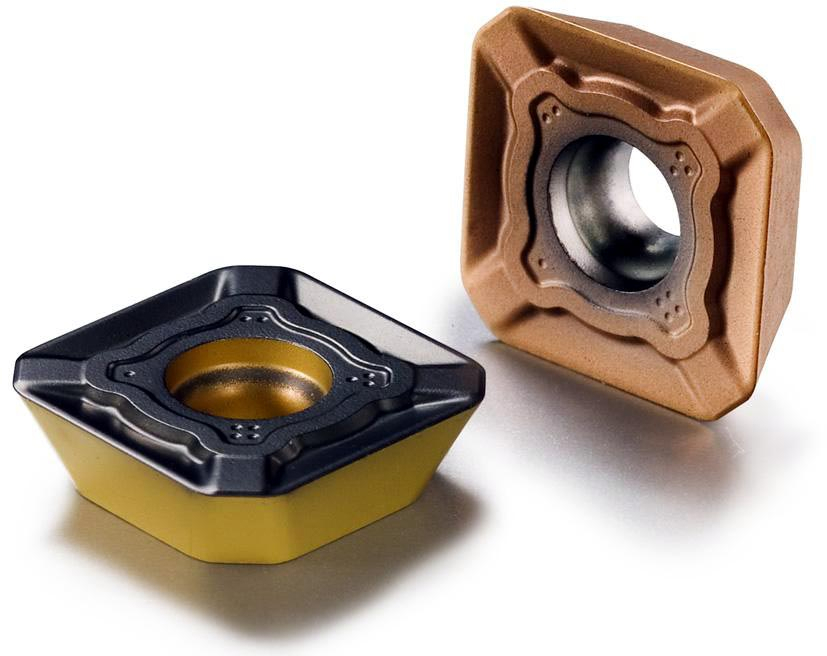

Oct 03, 2006 Intended for shoulder milling, GC1030 features PVD coating for wear resistance and is suitable for machining difficult materials or working in unstable conditions, such as applications with long overhangs contributing to vibration problems. Designed with CVD coating, GC4240 is adaptable to all milling operations. It excels in shoulder milling and other demanding steel milling applications where high metal removal rates are imperative.

Seco-Carboloy    Warren, MI 48089

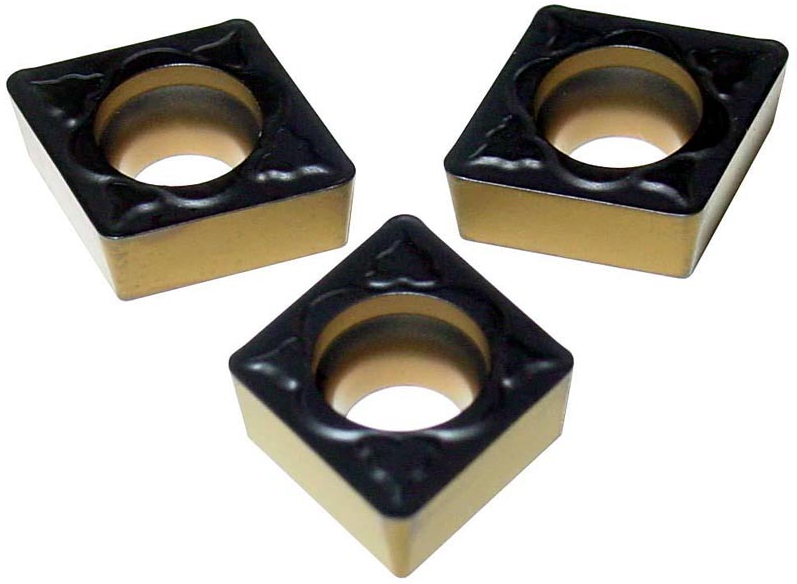

Oct 03, 2006 Featuring 3-pronged crown shape, MF5 chipbreaker is optimized for medium/finishing application area associated with near net machining. Groove allows for high feed rates when depth of cut is between 0.020 and 0.100 in. Along with chip deflectors and cooling ditches, product has open geometry. Ground island promotes insert seating as well as conduction of heat away from workpiece and cutting edge. Product comes in choice of positive C- and standard W-style inserts.

Seco-Carboloy    Warren, MI 48089

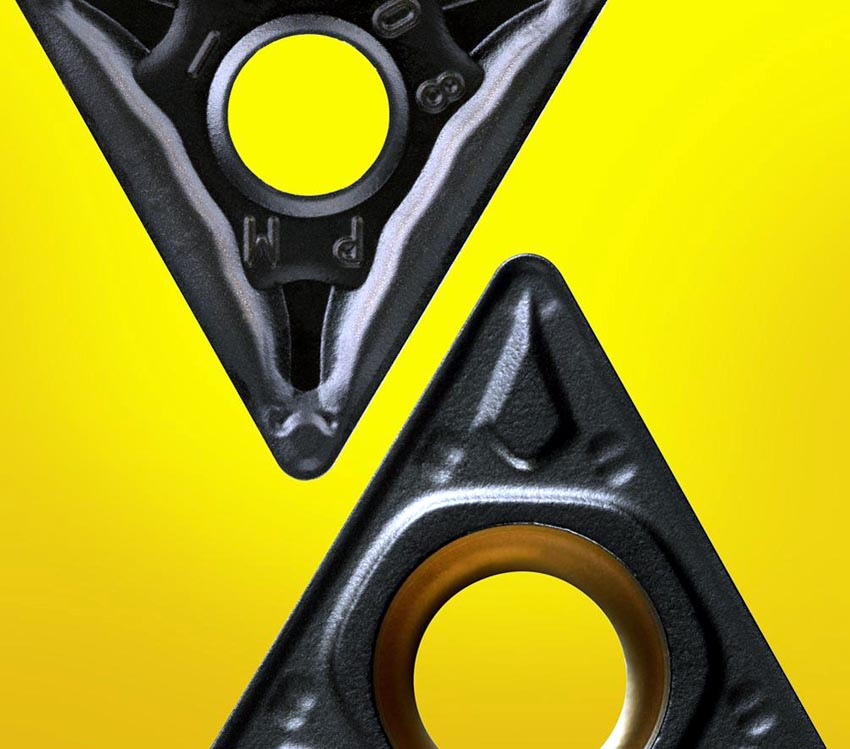

Oct 03, 2006 Offering wear resistance, TP2500 optimizes stainless steel turning and cast iron applications. Multi-functioning capability is achieved with functionally-graded substrate structure that provides edge toughness with no sacrifice in strength. Basic structure is aluminum oxide, and with DurAtomic process, coating is manipulated at atomic level. TP2500 is available in range of insert geometries including positive and negative rake angles as well as wiper version.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Oct 03, 2006 With max cutting depth of 0.100 in., 55° SumiTurn T-REX features 6 contoured cutting edges that result in rigid clamping within turning system and promote accurate insert indexing. Available grades include AC700G for finishing steels and stainless steels as well as roughing cast irons; AC2000 for general-purpose machining of steels, stainless steels, and cast irons; and AC3000 for heavy roughing and interrupted machining of steels and stainless steels.
