Shielded, SMT Power Inductors minimize EMI in small electronics.

August 13, 2015

Ultra-low profile SMT shielded inductors PA4330, PA4331, PA4332, PA4333, PA4334, and PA4335 vary by footprint, current rating, and inductance range. With mounted height profiles of 1.0–3.2 mm, these products feature core geometries and construction that enable high currents with no radiated magnetic fields to interfere with associated components. Metalized core termination provides shock resistance characteristics without impacting part height. Read More

Electronic Components & Devices

Five-Limb Chokes come with or without water cooling.

July 10, 2015

With 5-limb body, Series CNW 910 and CNW MC 835 are indispensable to electromagnetic compatibility of entire system. Units can be used as 3-phase network chokes or motor chokes, and in standard version are dimensional for nominal currents up to 1,200 A. Additional unwound limb ensures chokes are able to both transmit and damp common-mode noise until such time as it can be ultimately conducted to earth. Read More

Electronic Components & Devices

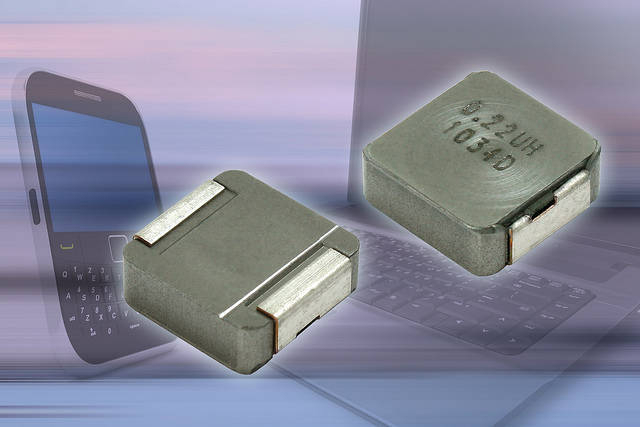

High-Current Power Inductors feature powdered metal cores.

May 28, 2015

Featuring powdered iron cores for high saturation current up to 5.8 A, IHHP Series is available in miniature 2.0 x 1.6 mm 0806 and 2.5 x 2.0 mm 1008 case sizes, each with low profiles of 1.0 mm and 1.2 mm. Devices offer high efficiency with max DCR down to 15 mΩ and wide range of inductance values from 0.22–10 µH. With RoHS-compliant, Pb-free shielded construction, inductors provide heat rating current up to 5.3 A and operate over temperature range of -55 to +125°C. Read More

Electronic Components & Devices

Wirewound RF Inductors suit military applications.

April 22, 2015

Comprising through-hole, molded RF inductors, QPL-approved MIL-PRF-15305 MS Series is suited for radio frequency applications in military, aerospace, and defense communities. Devices offer inductance from 0.47–10,000 µH, min Q from 35–95, self resonant frequency from 0.95–300 MHz, and DCR from 0.06–72 Ω. Available with current ratings from 47–2,400 mA DC, inductors feature powdered iron or phenolic core with operating temperature of -55 to +105°C or -55 to +125°C, respectively. Read More

Electronic Components & Devices

Surface Mount Inductors offer inductance range of 1-100 µH.

March 24, 2015

With current rating performance of 0.26–1.64 DC A, SMP2512 Series is designed for use in power applications requiring specific surface mount size of 0.25 x 0.10 in. Wirewound, ferrite core, molded power inductors are epoxy-encapsulated for environmental protection and withstand all types of reflow soldering. Operating from -55 to +125°C, devices come in both Pb and RoHS-compliant versions and are suited for DC/DC converters and switching regulated power supplies. Read More

Electronic Components & Devices

Dual Inductor operates up to 155°C.

February 26, 2015

Offering 2 inductors in one 4032 package, Model IHLD-4032KB-5A is optimized for automotive and commercial class D amplifier circuits. AEC-Q200-qualified inductor offers max DCR from 32.6–107 mΩ, inductance from 10–33 µH, rated current to 5.6 A, and frequency range up to 1 MHz. Manufactured with 100% lead-free, shielded, composite package, IHLD-4032KB-5A is specified for operating temperature of 55–155°C, with resistance to thermal shock, moisture, mechanical shock, and vibration. Read More

Electronic Components & Devices

Automotive-Grade High-Current Inductor comes in 4040 case size.

February 9, 2015

Along with 4.0 mm profile, 0.47–47 µH inductance, and frequency range up to 1 MHz, AEC-Q200-qualified Vishay Dale IHLP®-4040DZ-8A features 100% lead (Pb)-free, shielded, composite construction that minimizes buzz noise. RoHS-compliant and halogen-free device, able to handle high transient current spikes without hard saturation, is suited for VRMs, high-current noise filters, and DC/DC converters in high-temperature (up to +180°C continuous) automotive applications. Read More

Electronic Components & Devices

Commercial/Automotive Grade Inductors operate up to +155°C.

January 16, 2015

Supplied in 2020 case size with 3 mm profile, Vishay Dale IHLP®-2020CZ-51 and AEC-Q200-qualified IHLP-2020CZ-5A operate from 55 to +155°C and offer inductance ranges from 0.22–15 µH and frequency range of up to 1 MHz. Products handle high transient current spikes without hard saturation, while RoHS-compliant and 100% lead (Pb)-free shielded, composite construction reduces buzz noise. Heat rating current ranges from 2.4–16.0 A, and rated saturation current varies from 1.8–13.0 A. Read More

Electronic Components & Devices

Inductors are designed for high-power Class D amplifiers.

December 23, 2014

Inductors with DC current ratings up to 30 A use compact ferrite core made from high-saturation, low-loss material; employs flat wire for high-frequency operation; and uses transistors as on/off switches. Converted to series of pulses via PWM, signal is amplified and converted into analog signal as it goes through low-pass filter. Enclosed shape of core provides added shielding, and inductance values are available from 10, 22, and 33 µH and can be adjusted to any value up to 100 µH. Read More

Electronic Components & Devices

High-Current Inductor features integrated e-shield.

December 18, 2014

Saving board space by eliminating need for separate board-level shielding, Model IHLE-4040DC-5A contains electric field associated with EMI in tin-plated copper integrated shield, providing up to -20 dB of electric field reduction at 1 cm when shield is connected to ground. RoHS-compliant device features max DCR from 1.66–178 mΩ and inductance values from 0.47–47 µH. Housed in 4040 case size, AEC-Q200-qualified inductor is rated to 30 A and operates up to +155°C. Read More

Electronic Components & Devices

SMD Power Inductors target automotive applications.

December 18, 2014

Available in 9 models, SMD Power Inductor Series includes non-shielded and shielded versions that are AEC-Q200 qualified. Devices offer inductance values from 0.47–6,500 µH, has heating current range up to 17.9 A, and offers profiles as low as 3.2 mm. Inductors are suited for broad array of automotive applications, including driver assistant devices, information/entertainment systems, and lighting. Read More

Test & Measuring Instruments, Mechanical Power Transmission, Electronic Components & Devices

Integrated Measuring System features inductive design.

November 17, 2014

Available for ball and roller rail systems, IMS-I provides feedback for distances up to 4,500 mm, and allows several runner blocks to be positioned independently of each other on same rail. Scale is integrated into profiled rail and protected by tightly welded stainless steel strip across entire rail section length. Rated for positioning accuracy of 0.25 µm with scale precision of ±3 µm/m, inductive measuring system operates without physical contact and is therefore wear-free. Read More

Electrical Equipment & Systems, Electronic Components & Devices

DC Input EMC Filter features 50 A rating.

October 3, 2014

Enclosed in metal case, Model RDEN-048050 accepts input voltage up to 76 Vdc and will operate at 50 A in ambient temperature of -30 to 55°C, derating to 20 A at 85°C. With frequencies from 0.2–10 MHz, common mode attenuation is 30 dB and with frequencies from 0.7–30 MHz differential mode attenuation is 25 dB. Input to case (ground) isolation is 1,500 Vdc and isolation resistance is 500 MΩ at 500 Vdc. Measuring 90 x 60 x 30 mm, filter uses M5 studs for connections. Read More

Electronic Components & Devices

Inductive Chokes suit power electronics applications.

September 25, 2014

Available for frequencies up to 200 kHz and currents up to 1,000 A, Inductive Components are designed as single-conductor chokes for high-current applications, individual chokes, choke modules, or LC filters. Components' cores consist of powder composites with low magnetostriction. Offered in sizes ranging from 36–300 mm diameter, devices are available with protection from IP00 to IP66, depending on application. All are RoHS- and REACH-compliant. Read More

Mechanical Components & Assemblies, Electronic Components & Devices

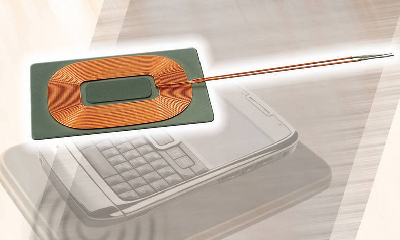

Wireless Charging Receiving Coil serves 10 W applications.

September 18, 2014

WPC (Wireless Power Consortium)-compliant IWAS-4832FE-50 provides efficiency >70% for wireless charging up to 10 W for portable electronics. High-saturation powdered iron is not affected by permanent locating magnets, and device blocks charging flux from sensitive components and batteries. Along with magnetic saturation of <50% at 4000 gauss, RoHS-compliant product offers inductance of 15 µH at 200 kHz with ±5% inductance tolerance, DCR of 255 mΩ at +25°C, and Q of 60 minimum at 200 kHz. Read More

Electronic Components & Devices

Chip Bead Inductors offer current ratings up to 7.5 A.

September 18, 2014

Used for noise reduction in power supply lines of car electronics and industrial DC motors, FB Series M Type Inductors include EIA 0603 size FBMJ1608 measuring 1.6 x 0.8 x 0.8 mm, EIA 0806 size FBMH2016 measuring 2.0 x 1.6 x 1.6 mm, and EIA 1206 size FBMH3216 at 3.2 x 1.6 x 1.6 mm. Models FBMJ1608HS220NTW, FBMJ1608HM180NTW, FBMH2016HM121NTV, and FBMH3216HM221NTV offer impedance values of 22, 18, 120, and 220 Ω with max rated current of 7.5, 7.5, 4.5, and 4.0 A, respectively. Read More

Electronic Components & Devices

Power Inductors suit DC/DC converters in mobile electronics.

July 30, 2014

Measuring 2.0 x 1.6 x 1.0 mm and 2.5 x 2.0 x 1.2 mm, respectively, Models SRP2010 and SRP2512 provide inductance values from 0.22–2.2 µH with lrms up to 4.5 A and lsat up to 6.5 A. RoHS-compliant SMD inductors feature wirewound construction and are designed with shielded iron powder core for low magnetic radiation. Inductors are suited for ultra-thin electronics applications including smartphones, tablets, and data storage devices. Read More

Mechanical Components & Assemblies, Electronic Components & Devices

UL-Approved Coils suit high-pressure CO2 systems.

July 28, 2014

With optimized pulling force, BJ and BX coils are designed for use with AKVH electronic expansion valves to meet demands of high-pressure CO2 systems. Frame and robust encapsulation promote durability and extended lifetime expectancy, while clip-on fastening system with audible latch click minimizes installation time and ensures proper installation. Comprising 6 models, these products are designed in accordance with UL 429 and tested in harsh operating conditions from -40 to +122°F. Read More

Electronic Components & Devices, Green & Clean

RF Chip Inductors are available with ceramic or ferrite cores.

July 23, 2014

Capable of operating from -55 to +125°C, RoHS-approved Series 5406 comprises 0603-size wire-wound chip inductors available with ceramic or ferrite core construction. Inductance values from 1.5–470 nH for ceramic and 470–2,700 nH for ferrite. Q ratings are as high as 80 at 800 MHz with Self Resonant Frequencies as high as 6 GHz for ceramic and 600 MHz for ferrite. Areas of use include applications within RF and communications markets. Read More

Electronic Components & Devices

Multilayer Ceramic Chip Inductors feature low DC resistance.

July 22, 2014

Supplied in standard surface mount footprint, RF Ceramic Inductors include Series 0201CC, 0402CC, and 0402CH with inductance ranges of 1.0–100 nH, 1.0–270 nH, and 1.0–15 nH, respectively. Units are made of monolithic non-organic substance that gives them tight tolerance. High Q value provides consistent, stable signal transmission at high frequencies. Applications include wireless devices, broadband circuits, RFID devices, RF transceivers, modules, and medical devices. Read More
