Spinner North America    Norcross, GA 30071
Apr 05, 2004 Made of silver-plated brass, Model 194400 7-16 Male to N Female Adapter operates in DC-to-8 GHz bandwidth with 3rd order intermodulation at -165 dBc and VSWR better than 1.02:1 at DC-2 GHz. It is suited for production applications and for field use.

Love Controls    Michigan City, IN 46361
Apr 05, 2004 Suited for heating and cooling applications, Series TCS Thermocouple Temperature Switch offers 2 selectable alarms sets, password protection, and internal buzzer to indicate alarm condition or error. Temperature and output status is indicated on red LED display. Series includes fitting clip for panel mounting, gasket, rear terminal cover, and instruction manual.

Artesyn Power Conversion Inc.    Framingham, MA 01701
Apr 05, 2004 Based on open-frame, single-board package, 25/20 A isolated eighth-brick dc/dc converters use full wave coupled inductor topology. They feature processor-based primary- and secondary-side control techniques, combined with precision timing of synchronous rectifiers. Protected against input voltage transients up to 100 V for 100 ms, modules accept input voltage from 36-75 Vdc and offer choice of 1.2, 1.5, 1.8, 2.5, and 3.3 V outputs.

Coto Technology    Providence, RI 02907 3105

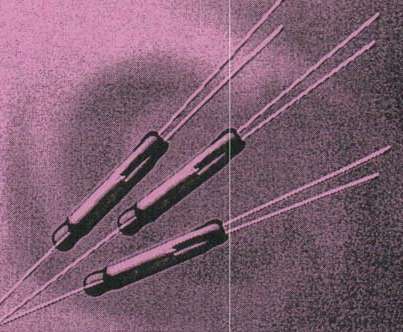

Apr 05, 2004 Series RI-90 Changeover Dry Reed Switch is an SPDT type unit with common, NO, and NC contacts. Ruthenium contact layers provide long-life switching at wide variety of loads. Maximum switching current is 400 mA with 125 Vac or 175 Vdc switching voltage. With initial contact resistance of 140 milliohms, switch is suited for applications in automatic test equipment, security, industrial, and consumer applications.

Molex Inc.    Lisle, IL 60532-1682

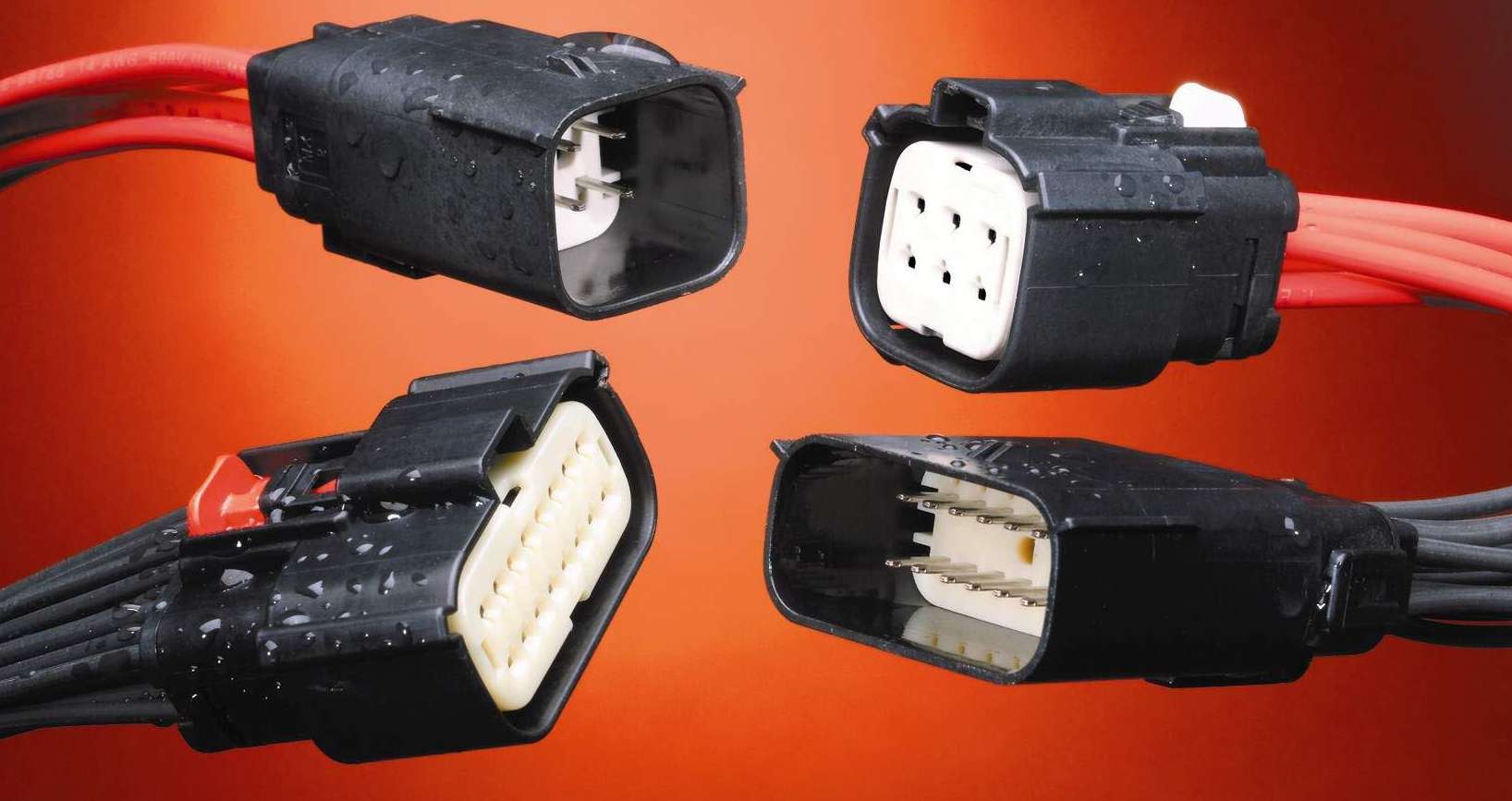

Apr 05, 2004 Able to withstand harsh conditions, MX150™ submersible, environmentally sealed interconnection system includes mat and interfacial seals, housing, and terminal position assurance (TPM). Unit requires users to insert crimped terminal lead and seat TPA into final lock position. Field repairable system has plug and receptacle housings with polarization features and accepts 22–14 AWG UL and SAE wire sizes for low-level signal and power applications to 18.0 A.

LEDtronics, Inc.    Torrance, CA 90505

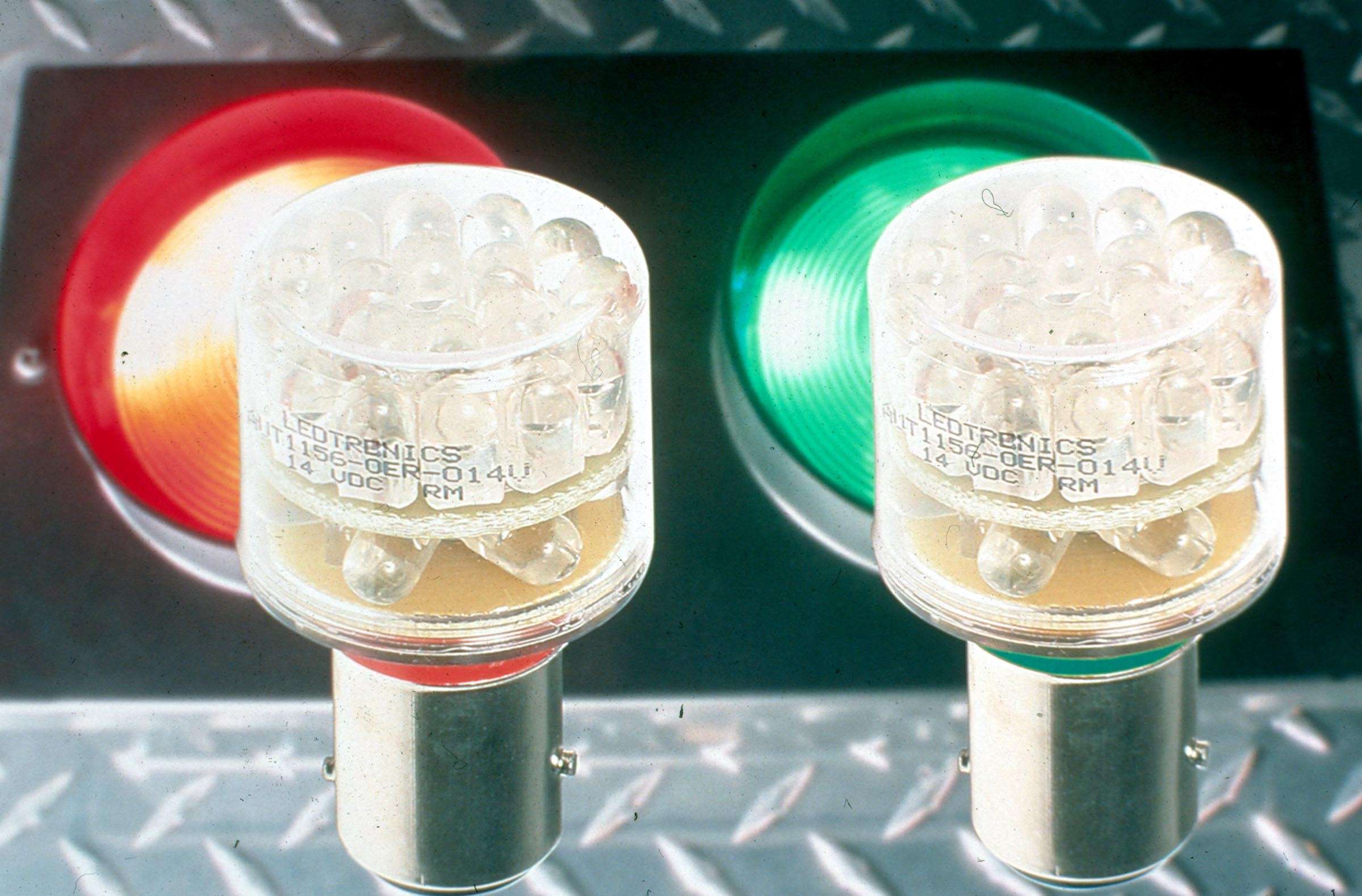

Apr 02, 2004 Series AUT-1156 integrates LED chip technology with optical grade epoxy. Available in 633 nm red or 560 nm green, lamps feature 24, 5 mm discrete LEDs. Bulbs have 15 mm single-contact bayonet base that is plug-compatible with 12 Vdc systems. Sunlight-visible lamps last more than 100,000 hours and are suited for fixtures that are frequently cycled on and off.

BTC Electronic Components    Raleigh, NC 27616
Apr 02, 2004 Surface-mounted, cylindrical connectors may be customized with printed circuit contacts to different diameters and lengths for any printed circuit design. Different mounting hardware such as clinch nuts and plates are available to meet specified requirements.

Unilux, Inc.    Saddle Brook, NJ 07663
Apr 02, 2004 Self-contained lights, offered with multiple intensity settings and synchronization to print patterns, reveal surface defects/imperfections in real-time at full production speeds. Guardian and Style IV Lith-O-Light models feature digital control technology to provide fine adjustment to 1 flash/min resolution. Cricket (flood pattern) and Scout (spot pattern) lights feature 5-digit LED displays and can be triggered internally or externally.

Advanced Energy Industries Inc.    Fort Collins, CO 80525
Apr 02, 2004 Linear-inductive RPS 1501 and RPS 3001 offer integrated, RF power delivery to cylindrical plasma chambers for foreline abatement of perfluorinated compound (PFC) gases in 200 and 300 mm semiconductor etch processes. Products help destroy PFCs and convert them into compounds that can be removed by standard scrubbing technologies. Able to be turned on only when necessary, units can be retrofitted to etch tools without changing scrubbers.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 01, 2004 INFINITE 1â„¢ LED Lamps feature Edison based housing assembly directly interchangeable with PAR style spots and floods. Thirty-nine Super-Flux MAKOâ„¢ LEDs are arranged in grid-array pattern to project evenly distributed light. Honeycomb style, prismatic lens geometry is formed in non-diffused, tinted polycarbonate, providing environmental sealing. Multi-optic lens can be rotated up to 90°. Consuming less than 5 W at 110 Vac, lamps output 54–100 cd.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Apr 01, 2004 Model FAN5019 multi-phase PWM controller and Model FAN5009 dual MOSFET driver form chipset that is part of VRM/VRD10.x power solution. Temperature-compensated inductor current sensing measures current and accurately sets and maintains loadline. FAN5009/FAN5019 chipset allows regulators to scale from 2, 3, or 4 phases and conveys 12 V main supply into core supply voltage.

Marinco Specialty Wiring Devices    Napa, CA 94558
Mar 31, 2004 ConnectGlowâ„¢ Connectors are 3-wire 15, 20, and 30 A electrical connectors with neon bulb that lights when cicuit is energized and is visible 360°. Mag-Vuâ„¢ windows magnify bulb and terminal connections for visual inspection. With ConnectGlow devices, users can see circuit status and determine if there is a problem with circuit or with apparatus being connected. Users can also visually monitor connection to assure it is maintained.

Waytek Inc.    Chanhassen, MN 55317

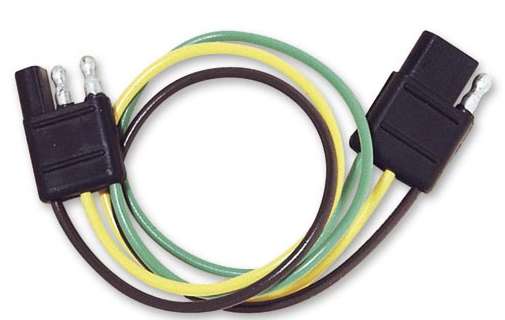

Mar 31, 2004 Molded connectors are available in loop style with male connector on one end and female connector on other end, or with male or female connector on one end only. Offered with 1–8 contacts (excluding 7-contact), products are designed for 12 and 24 V applications. Connectors include 16 gauge GPT wires on all but 8-contact connector, which has three 12 gauge wires and five 16 gauge wires. Loop GXL wire connector is available in 1–4 contacts.

Advance Transformer Co.    Rosemont, IL 60018 5625

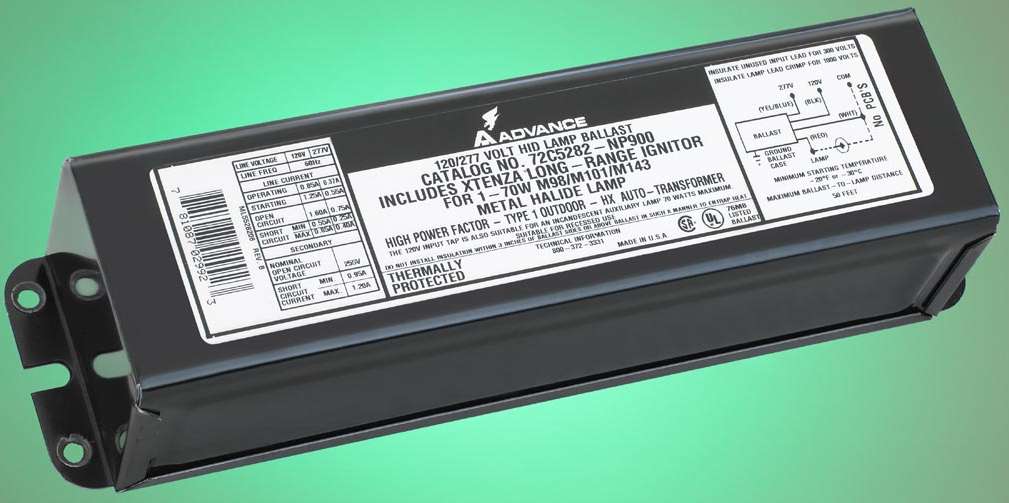

Mar 31, 2004 Low-wattage, metal halide F-Can ballasts incorporate Xtenza® wide-range ignitor, which supports applications involving up to 50 ft of remote ballast-to-lamp mounting distance. Available in 70, 100, and 150 W single-ended lamp versions, ballasts feature 120/277 V or 120/347 V, 60 Hz dual-voltage input and auto-reset thermal protection for both voltage taps. Products are suited for indirect lighting and other remote-mount applications.

Pass & Seymour/Legrand    Syracuse, NY 13221
Mar 31, 2004 Decorator Combination GFCI combines SafeLockâ„¢ Protection with decorative addition of single switch, double switch, or LED nightlight. Products offer up-and-down switching and are available in two-switch model. Resistant to surge, corrosion, and electrical power line noise, they install with side or screw-pressure-plate backwiring for line and load terminals. Features include trip indicator light and impact-resistant thermoplastic paddle, face, and backbody.

Pass & Seymour/Legrand    Syracuse, NY 13221
Mar 31, 2004 Compact angle plugs, configured so that cord exits vertically, allow equipment and furniture to be placed within 2 in. of connection and accommodate multiple outlet locations. Plugs feature polycarbonate body, clocked face with 4 potential directions of cord exit, slot-specific face, and 6 screws for installation. Applications include bench tools, appliances, vending machines, office equipment and portable medical equipment.

ITT Industries, Cannon    Santa Ana, CA 92705

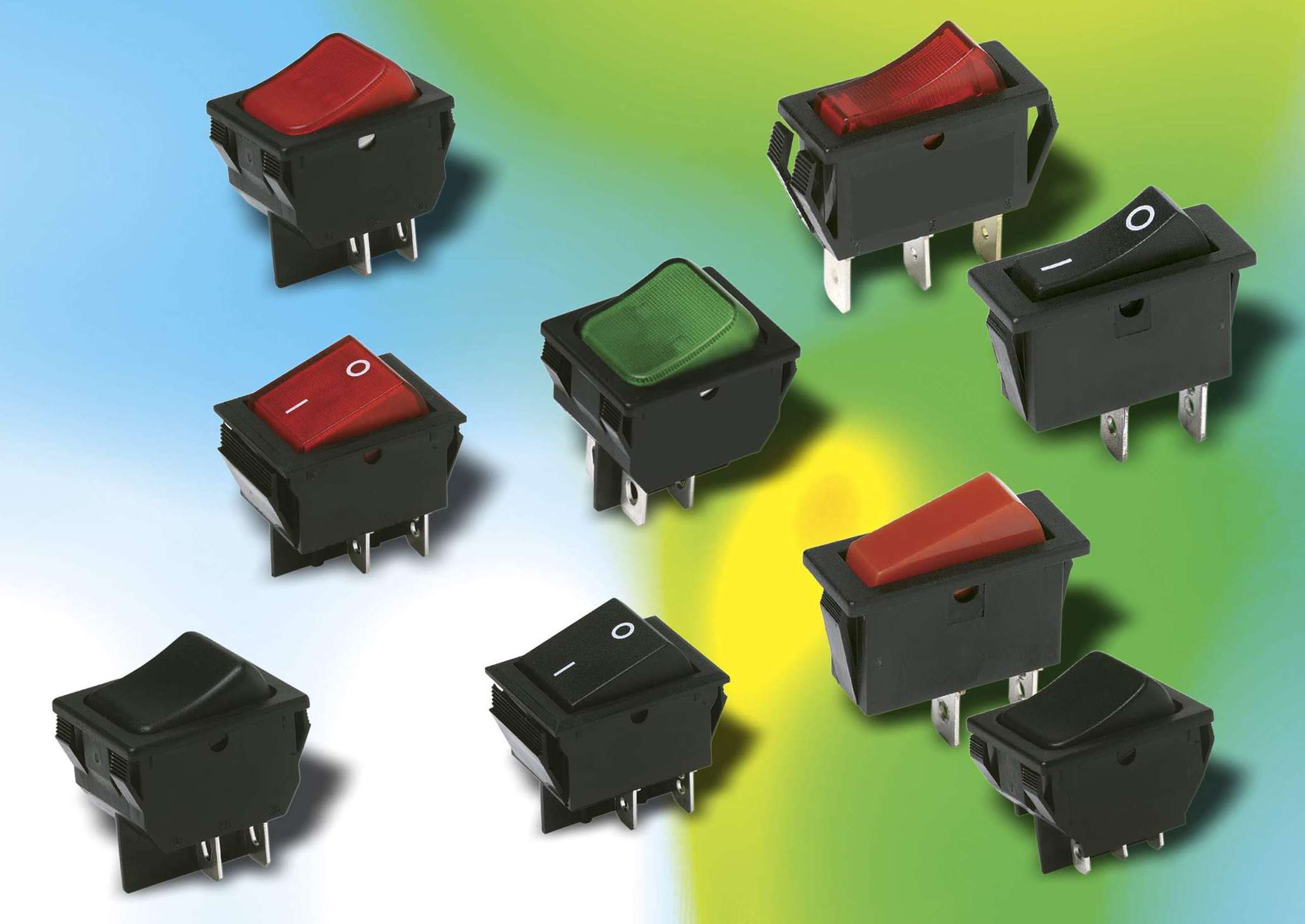

Mar 30, 2004 Single pole Series CM and double pole Series CN are rated at 16 A, 125 Vac, 1/8 hp or 10 A, 250 Vac, 1/3 hp. Multiple functionality includes SPDT and DPDT On-None-On; On-None-Off; On-Off-On; Mom-Off-Mom; and On-Off-Mom. Suited for small appliances and industrial equipment, panel-mount switches can be illuminated and marked, and come in white, red, amber, and green. Terminations are quick-connect or solder lug.

Power-IO    Naperville, IL 60563
Mar 29, 2004 Designed for switching DC loads, servos, or robotics, relays are tested at 15,000 on/off cycles per sec for fast response to command signals. With control input requirement of 4–32 Vdc and 6–10 mA, products are compatible with standard TTL logic systems, PLC, PCs, or customized control systems. Immune to mechanical contact bounce, relays have green LED for input status indication and are available for 0–100 Vdc switching of loads up to 12, 20, or 40 A.

Transtector Systems    Hayden Lake, ID 83835

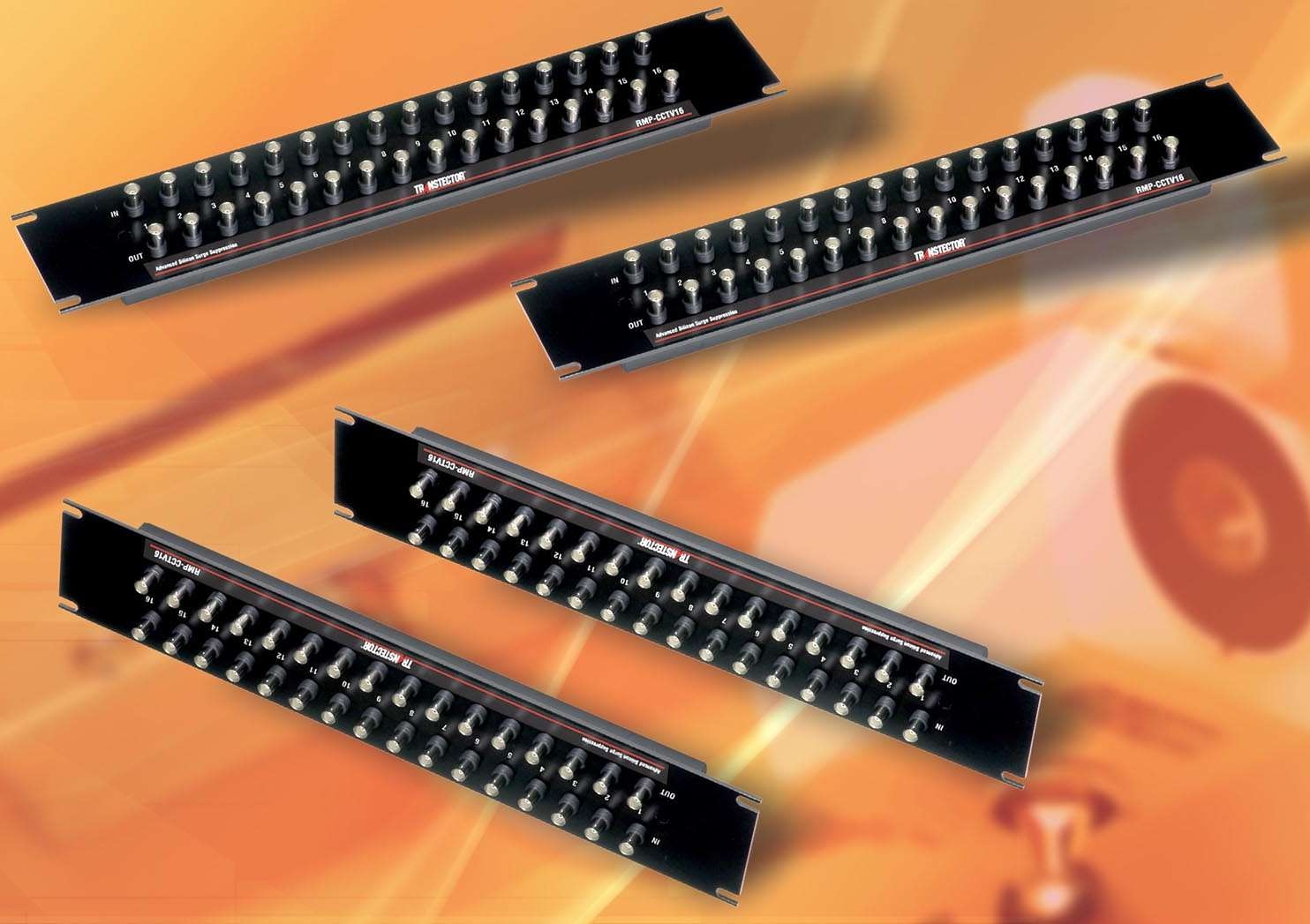

Mar 26, 2004 Model RMP-CCTV16, a 2U tall, 19 in. rack-mount unit, protects 16 ports, line-shield, and line/shield GND. Suited for high-end CCTV systems, head end equipment, digital video recorders, and routers, suppressor features diode design that will protect against 1,800 A at 12.5 Voltage Protection level.

Waldmann Lighting Co.    Wheeling, IL 60090-6051

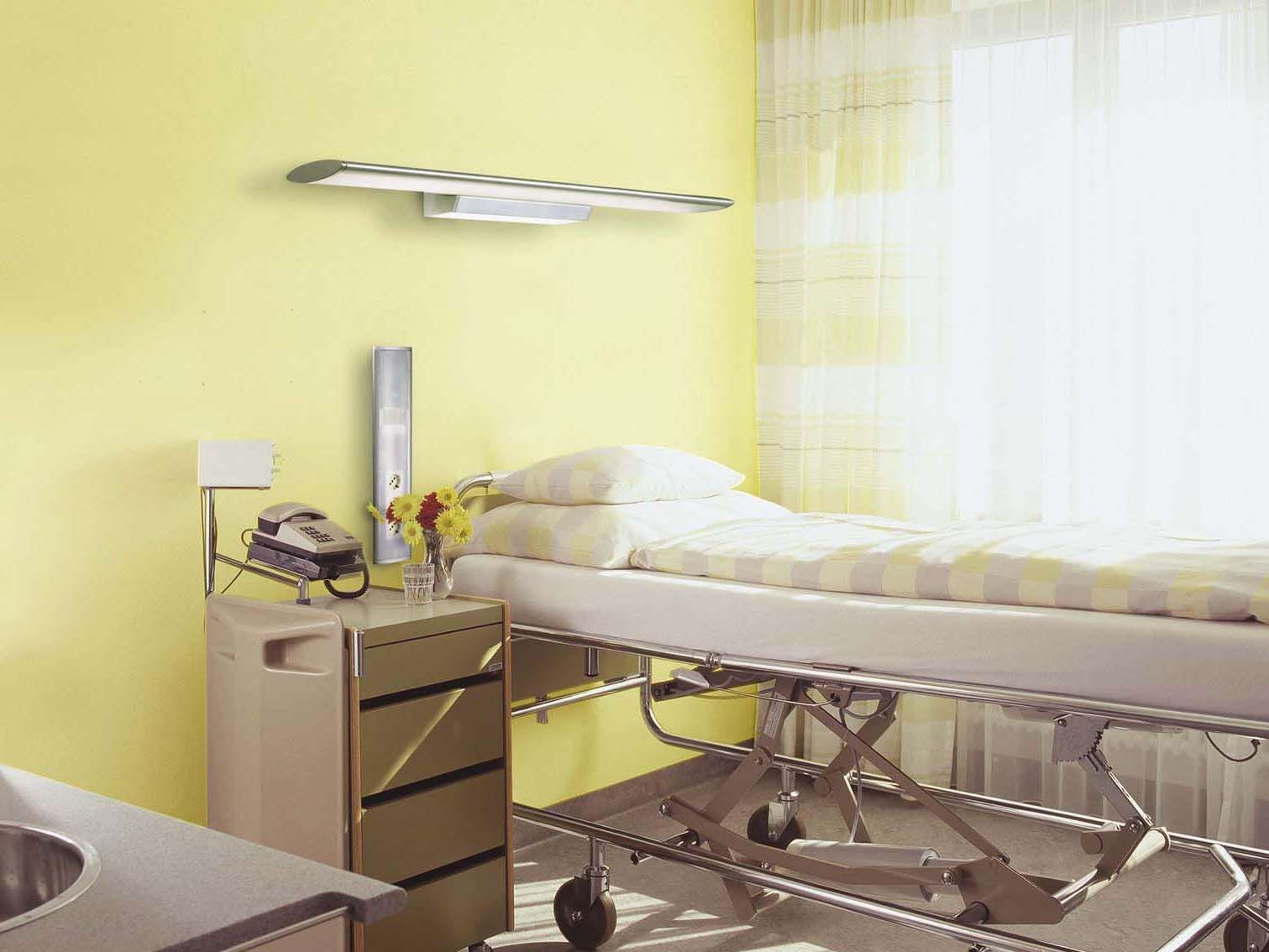

Mar 26, 2004 RL Architectural linear fluorescent lighting features impact-resistant polycarbonate tubes. Series RL40 ranges from 26–80 in. and uses T5HO lamps in 24, 39, 54, and 80 W. Series RL70 ranges from 30–84 in. and uses T8 lamps in 17, 32, and 40 W. Pathway Series RL70EP consists of stand-alone light columns with polycarbonate tubes ranging from 52–90 in. Intended for healthcare industry, Amadea Medical indirect/direct bed wall luminaires comes in 36 and 48 in. and provide 4-way light distribution.
