Northwire, Inc.    Osceola, WI 54020
May 04, 2006 DataCELL MVC-800 high-flex 1394b FireWire 800 Cable consists of two 26 AWG data pairs insulated with foamed polyethylene and 22 AWG PVC-insulated power pair, 100% coverage foil/polyester shielding with 2 drain wires, and overall tinned copper braid. Outer jacket is flexible oil-resistant PVC and cable is flame rated to FT-1. AWM style cable is UL recognized and CSA approved.

Nora Lighting    Commerce, CA 90040
May 04, 2006 Designed with 2-6 lamps per fixture, surface-mounted Multiple Lighting System uses 12 V 75W AR111 lamps and offers independent aiming of each lamp. Dual gimbal lamp holder mechanism allows for full rotation and 45° aiming. Offered with 1-5 lamp fixtures, recessed Multiple Lighting System comes in linear and square configurations. It uses flood or spot PAR lamps, has complete rotation for aiming, and provides accent and ambient illumination.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
May 04, 2006 Analog video front-end processor, TB1311AFG, accepts all standard analog audio and video signals required for HD TVs, set-top boxes, and other A/V products. Its programmable audio (L/R) block accepts up to 10 inputs and 3 outputs, while programmable video block accepts composite, S-video, component, RGB, and SCART signals and outputs up to 2 video signals plus monitor. Features include automatic sync processor, real-time format detector, and no-signal input detector.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 03, 2006 Designed for use with Loctite 3552(TM) and 3553(TM) Visible Light Cure Adhesives, Loctite ZETA 7720 Visible Light Wand System provides safe, immediate cure for assembly applications. Its output, which exceeds 1.5 W/cm² of visible light irradiance, can cure bead sizes as large as ¾ in. dia. Featuring fiber optic light guide and 100 W visible arc bulb, product requires no venting or specialized protective equipment to ensure worker safety.

Greenlee Textron, Inc.    Rockford, IL 61109
May 03, 2006 Model ES25 battery-powered ratchet style cable cutter is designed for ACSR and other steel reinforced cables. Unit weighs 7.7 lb, is operable with one hand, and suits overhead crews at power utilities and utility contractors. Cutter features 14.4 V NiCd battery, and makes about 50 cuts of Grosbeak or 120 cuts of Merlin on 1 battery charge. Blades are contoured to slice aluminum strands and then snap steel strands. It comes with 2 batteries, battery charger, and molded carrying case.

Endicott Research Group, Inc.    Endicott, NY 13761
May 03, 2006 Offered in open frame and vacuum encapsulated versions, dc-ac inverters can power up to 2 CCFLs. S Series, which measures 2.87 x 0.62 x 0.38 in. and weighs 12 g, handles up to 5 W of output power and comes in 5 and 12 V designs. SE Series dc-ac inverter, featuring same form factor as S Series, is vacuum encapsulated to provide resistance to shock, vibration, and humidity. Both inverter Series feature -20 to +70ºC operating temperature range and are PCB-mountable.

TE Connectivity Ltd.    Berwyn, PA 19312
May 02, 2006 Rated for up to 21 A at 125-250 Vac, normally open Half-Rocker Switch is packaged in nylon 6/6 UL 94V-2 housing that incorporates .250 in. quick connect tabs for connection to system wiring. Switch mechanism is rated for 6,000 cycles and features silver-tin contacts. Actuation force is 425 g with .345 in. actuator travel range. RoHS-compliant tamper switch is intended for use in furnaces, air cleaners, air conditioners, and power control panels.

Bryant Electric    Milford, CT 06460 2465
May 02, 2006 Plugs and connectors feature Triple-Gripper® cord clamp, which automatically centers and secures cord as assembly screws on face of device are tightened. Radius teeth design firmly holds cord without damaging conductors or use of external clamps or screws. Thermoplastic elastomer dust seal surrounds cord clamp opening, preventing ingress of moisture and contaminants. Designed with nylon face and housing, products feature double wall construction and accommodate 0.300-0.655 in. wires.

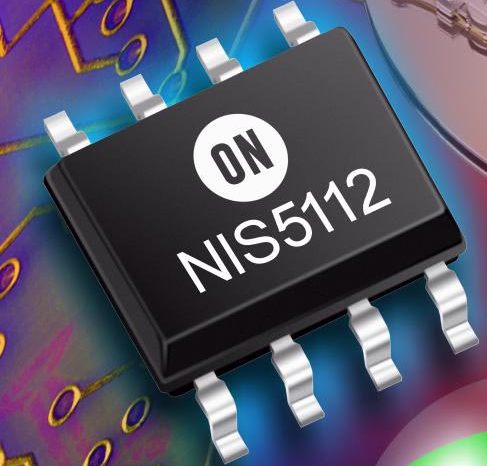

ON Semiconductor, LLC    Phoenix, AZ 85008
May 02, 2006 Designed for safe insertion and removal of equipment into 12 V backplanes, NIS5112 integrated self-protected, resettable, electronic fuse utilizes high side N-channel FET, driven by internal charge pump. With input voltage range of 9-18 V, device contains circuits to control turn-on voltage, output current, die temperature, turn-on di/dt and turn-on dV/dt, and enable/timer function. Thermal protection circuit is available in 2 thermal limit versions, auto-retry, and latch off.

AE Light    Grants Pass, OR 97527
May 02, 2006 Model PL24/6-S HID POWERLIGHT(TM) offers output of 1,300 lumen with 60 min burn time. Unit measures 13 in., weighs 32 ounces, and utilizes metal halide HID lamp and electronic ballast. Bulb and battery have life span of about 2,000 hr and 500 charges, respectively. Applications include search and rescue, law enforcement, EMS, security, inspections, fire investigation, and recreational activities like camping, hunting, boating, and aviation.

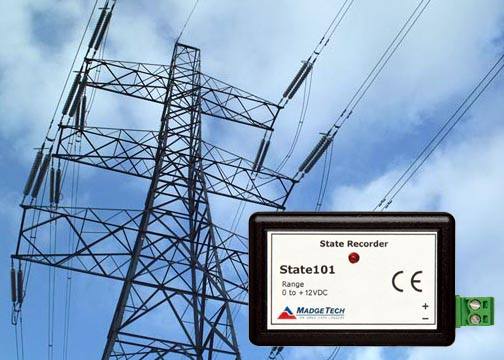

MadgeTech    Warner, NH 03278
May 02, 2006 In combination with State Data Loggers, non-contact, current relay switches captures and records on/off transition data with time and date stamp. Built-in relay switch provides ON status signal when power is present, and deactivates to provide OFF status signal when power is absent. Recorded data discloses how long and when device has been powered on or off. Applications include detection of defective equipment and short cycling, and on/off studies of power, equipment, motor, and light.

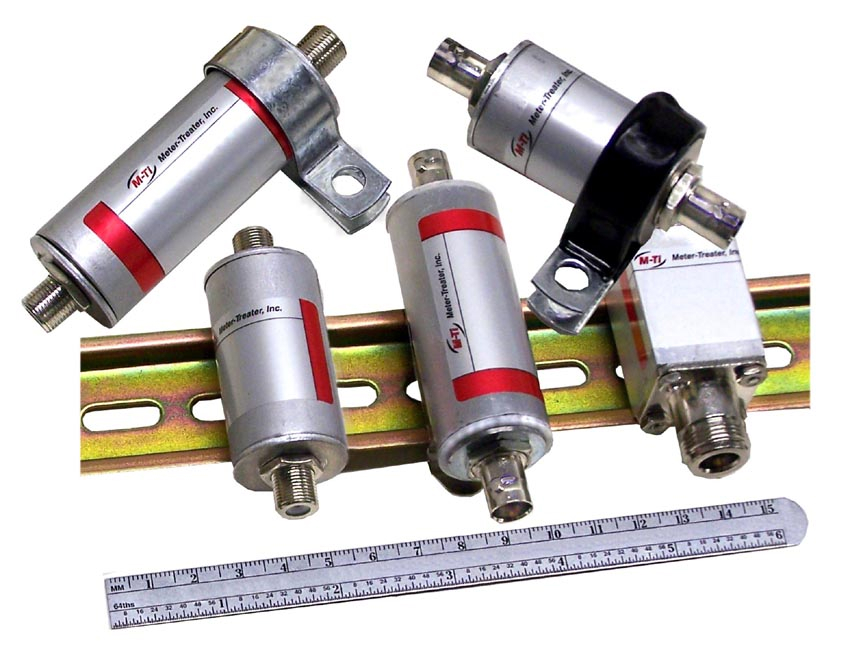

Meter-Treater Inc.    Lake Park, FL 33403
May 01, 2006 CLT Series provides bi-directional transient voltage surge suppression for coaxial applications and protects against surge current impulses up to 20 kA/wire. It diverts transient energies from system components and features UL listed 497B surge protectors. Nominal data range is up to 100 Mbps and insertion losses are as low as -0.8 dB @ 2.4 GHz. Models are available to protect CATV, SATV, CCTV, Digital Modems Ethernet ThinNet and Arcnet.

Vantage Controls, Inc.    Orem, UT 84097
May 01, 2006 Allowing for more than 100 available stations, InFusion Controller includes processor, memory, built-in Ethernet jack, and USB port. Infusion Design Center software accompanying controller provides 3rd party device libraries with drag-and-drop menus, facilitating integration of audio video solutions. Program also features savable and reusable customized programming.

Diodes, Inc.    Westlake Village, CA 91362
May 01, 2006 Operating with single 5 or 12 V supply voltages, Synchronous Buck PWM Controller, Model AP2014A, offers power efficiency up to 92% with output current to 20 A and output voltage as low as 1.5 V. It features 400 KHz internal oscillator, external programmable soft start, and built-in under-voltage lockout protection. With operating temperature range of 0-125°C, Model AP2014A is suited for power management designs supporting commercial and industrial markets.

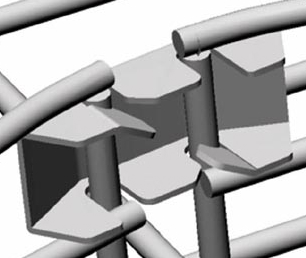

Cablofil Inc.    Mascoutah, IL 62258
Apr 28, 2006 FASLOCK splices provide expedient means with which to create sweeps and bends in wire cable tray. For complex installations, built-in locking tabs are bent with standard pair of pliers to secure splice in place. FASLOCK S splice is designed for use with trays from 100-200 mm wide, while FASLOCK XL splice suits 300-600 mm wide trays. Both sizes are available with Electrozinc, Dacroment, Black, Custom Painted, and 316L Stainless Steel finishes.

W.A.C. Lighting Company    Port Washington, NY 11050
Apr 28, 2006 Norfolk Series, comprised of architectural styled decorative fixtures designed to illuminate commercial interiors, features gently diffusing bowl-shaped shades with open tops that deliver indirect lighting. Offered in 24-48 in. dia, pendants can be extended from ceiling with stems. Styles are available with incandescent or compact fluorescent lamping options. Series also includes ADA sconces, ceiling mounts, and close-to-ceiling luminaires.

LEDtronics, Inc.    Torrance, CA 90505
Apr 28, 2006 Available in lengths of 6, 12, and 24 in., STP50XC Super White Inter-Connectable LED Light Strips feature 5 mm Dome LEDs in 7,000 and 3,000 K. Each module has double-ended connector harness for daisy-chain assembly, and pre-applied strip of double-sided foam tape for peel and stick placement. The 7,000 K versions provide 54-270 lumens, 202-1012 ftc, with viewing angles of 15°, while 3000 K models emit 70-351 ftc, 32-162 lumens at 20° viewing angles.

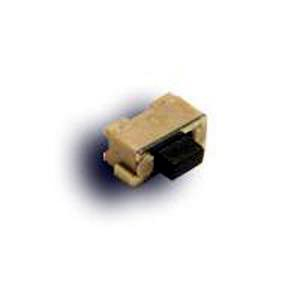

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Apr 28, 2006 Using silver-plated SS contacts and brass terminals, CS1211 Series right-angle, momentary, surface mount, tactile switch features electrical ratings of 50 mA @ 48 Vdc. With profile of 1.8 mm, switch measures 4.5 x 3.7 mm. Actuator and housing are composed of 4/6 Nylon with grounded SS cover for EMC protection. Actuation force on CS1211 is 180 gF, while operating temperature ranges from -40 to 85°C.

Vantage Controls, Inc.    Orem, UT 84097
Apr 28, 2006 Using wireless communication, TouchPoint 1210 provides definitive control of lights, heating and cooling, fireplaces, distributed audio systems, video equipment, home theaters, and window treatments. It offers in-wall, desktop, VESA mount, kickstand, and under-counter mounting possibilities. Included InFusion Media 1.0 software allows utilization of custom designed interface developed in InFusion Design Center. TouchPoint 1210 is available in white, silver, and black.

LSI Logic Corp.    Milpitas, CA 95035
Apr 28, 2006 Featuring nine x4 SAS ports, Serial Attached SCSI (SAS) switch enables SAS-based servers to connect to multiple SAS storage arrays. Size of SAS fabric can be increased by connecting multiple switches, and multiple storage domains can be configured via zoning support. Using copper cables, switch supports connection distances up to 8 m and provides complete SAS switch management through embedded Web server. SAS physical layer supports SAS and SATA.
