ITT Industries, Cannon    Santa Ana, CA 92705-5612
Mar 07, 2005 PowerLock Connectors use bayonet mating method and come in 4 formats. Source connectors feature male contact with rigid finger-proof nose and slot for secondary locking pin. Drain connectors include female contact with spring-loaded finger-proof nose and O-ring. Line or panel connectors support cable attachment or panel mounting, respectively. All are rated to 3000 V and come in 400 A and 660 A versions. Connectors are IP67-rated and operate beyond -30 to +125ºC range.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018
Mar 07, 2005 Suited for indoor/outdoor use, Zone 2 Mercmaster III Fixture is factory-sealed so there are no seals or putty needed to close off explosive vapors from globe chamber. High-lip hinge and bolt construction assures 360° compression at all points on ballast housing gasket. Fixture is rated IP66/NEMA 4x for use in washdown areas. Available lamp type and wattages include 35-150 W HPS, 35-150 W metal halide, 150 and 175 W pulse start metal halide, and 50-100 W mercury vapor.

Harting KGaA      Germany
Mar 07, 2005 Based on Push Pull locking mechanism, Push Pull Power interface carries up to 16 A current simultaneously on all contacts. It measures 21 x 33 mm on device side and features IP 67/65 level protection as well as creepage and clearance for pollution degree 3. Additional features include coding options, 750 mating cycles, and finger protection on plug and device side. It comes in 48 V version with 4 contacts or 250 V version with 3 contacts plus PE.

United Electric Controls    Watertown, MA 02472
Mar 04, 2005 One Series electronic switch features solid-state relay switching output, LCD, as well as built-in continuous diagnostics, self-checking, and decision making capabilities. Providing local switch wired directly to high-current relays or contactors, it handles pressures from 0–4,500 psi and temperatures from -50 to + 450°F. Set points are adjusted via front keypad and digital display. On-off dead bands are also adjustable, from 0–100% of range.

Metanetworks Technologies Inc.    Los Gatos, CA 95030
Mar 04, 2005 Model MTP-10G Network Intrusion Detection and Prevention System (IDPS) uses Meta Traffic Processor to exploit massive, fine-grain, instruction-level parallelism. This 64-bit, 66 MHz, full-size PCI card passes Gigabit Ethernet traffic between its two 10 gigabit ports with 500 ns latency. When determining whether to capture or block packets, card can apply up to 650 wire-speed stateful policies per packet. Users can install up to 6 cards in one host.

Para Light Corp.    Walnut, CA 91789
Mar 03, 2005 With average life exceeding 100,000 hr, 512 (12-LED) and 521 (21-LED) series lamps are supplied in standard MR16 format for use as incandescent and fluorescent lighting replacements. Products are specified for 12 V ac/dc operation, contain no hazardous materials, and come in red, green, and blue with outputs of 4.6, 16.5, and 3.5 lumens, respectively. Socket drop-in 2-pin lamps have GX5.3 base and measure 38 mm long, with front-lens diameter of 50 mm.

Elma Electronic Inc.    Fremont, CA 94538
Mar 02, 2005 Series C08 meets Six Sigma quality standards and works within original specification after 15–20,000 switching cycles. Available in Hex or Gray codes and in both SMD and THT styles, units feature 9 x 9 mm platform, M6 x 0.75 mm threaded bushing, and tactile feedback. Switches are suited for hand-held devices, 2-way radios, industrial and medical instruments, and video applications.

Leadis Technology, Inc.    Sunnyvale, CA 94085-4117
Mar 02, 2005 Area Color Organic LED display driver IC, Model LDS518 includes 16 Kbit display RAM, on-chip oscillator, and frame frequency adjustment. With max resolution of 128 x 64 and 4-gray scale color, unit offers programmable display features such as divided area display including flashing function per divided area and 2 screen saver modes. Device is suited for small electronic devices such as MP3, fax machines, printers, and main and sub-displays for mobile phones.

Semiconductor Circuits, Inc.    Atkinson, NH 03811
Mar 02, 2005 Portsmouth SC125A Series open-frame ½ brick converters feature input range of 36-76 Vdc and single output of 3.3 or 5 Vdc. Units include 2,800 Vdc I/O isolation, over-voltage protection, and remote on/off. Designed for through-hole mounting with industry standard footprint, converters are suited for telecom mobile/optical switches, high capacity network routers, and systems requiring distributed power architecture.

Whitney Blake Co.    Bellows Falls, VT 05101 0579
Mar 01, 2005 In-line Passive Latch Interconnect System detaches at specified force, preventing injury to operator and equipment. Sealed connector provides extra protection against moisture and debris. System is suited for OEM applications in medical, military, marine, and communication industries.

Streamlight, Inc.    Eagleville, PA 19403
Mar 01, 2005 Utilizing three C alkaline batteries, ProPolymer® 3C Luxeon® offers continuous runtime of 5.5 hr at full intensity, with 2 additional hours of declining usable output. ProPolymer 4AA Luxeon utilizes four AA batteries to provide continuous runtime of 4 hr at full intensity, with 2 additional hours of declining usable output. Both models feature one 1 W Super High Flux Luxeon LED, tail-end push-button switch, and polymer resin body that is shock-resistant and non-conductive.

Aromat Corp.    New Providence, NJ 07974 1507
Mar 01, 2005 Designed for FP2 Series programmable controllers, multi communication unit, Model FP2-MCU supports RS232, RS485, or RS422 detachable communication blocks. It operates in general serial mode, computer link, or PCLINK for networking FP2 and FPG PLCs. Unit supports ASCII and binary transmission codes as well as baud rates from 300-230,400 bps simultaneously in both channels. Transmission distance is 15 m for RS232, 400 m for RS422, and 1,200 m for RS485.

On-Line Monitoring Inc.    Exton, PA 19341
Mar 01, 2005 VPD Live addresses needs of utility industry for energizing digital relays requiring 0.5–2.5 VA. It comes in transformer-mounted package that can be used for single phase or 3-phase applications. VPD Live can also be used as Power Factor/Tan monitor for transformer bushings with optional portable software, or continuous on-line monitoring device.

Pilz Automation Safety L.P.    Canton, MI 48187
Feb 28, 2005 Mushroom-type PITestop Pushbuttons feature safety contact block, which ensures E-STOP is triggered immediately if individual contact elements are lost or attached incorrectly. Blocks have 1 or 2 N/C contacts plus additional N/O contact. Signal contacts are also available via PSEN ix1 interface, which can connect up to 4 E-stop buttons in series. IP65-rated, turn-to-release pushbuttons are available with illumination and with black actuator to issue STOP for area shutdown.

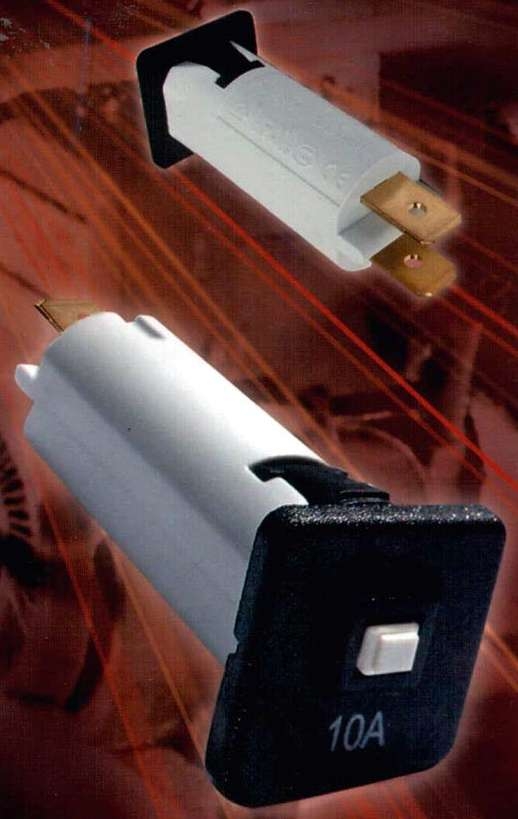

Schurter, Inc.    Petaluma, CA 94975-0158
Feb 28, 2005 Offered in push-to-reset configuration, lead-free T9 Series is designed with fuseholder body style and snap-in mounting (5/8 in. or 16 mm dia hole). Tripping operation is (cycling) trip-free, and terminals are ¼ in. or 6.3 mm quick-disconnect. Suited for use on equipment, product is rated for currents range of 5–16 A and is cURus approved at AC240V/DC48V for 5–8 A as well as AC240V/DC32V for 10–16 A. Ampere rating is visible on face.

Foundry Networks, Inc.    San Jose, CA 95164-9100
Feb 28, 2005 Providing bandwidth control for up to 300 Mbps of application throughput, ServerIron®XL Link Load Balancer distributes traffic over multiple IP links and allows user to configure bandwidth commitments for specified IP applications. Backup links and link groups can be configured for transparent and automatic failover in event of link outage. Network health, round trip response time, and bandwidth utilization control traffic distribution across multiple WAN connections.

Mechanical Products Inc.    Jackson, MI 49204
Feb 25, 2005 Offered in Push-to-Reset and Automatic Reset configurations, Series 18 has weatherproof, trip-free design. It features Short Circuit Interruption up to 3,000 A and is available in ratings of 2–60 A with voltage ratings of 32 Vdc/120 Vac. Series is validated to requirements of Society of Automotive engineers (SAE), Underwriters Laboratories (UL), American Boat and Yacht Council (ABYC), and US Coast guard as well as other Military Standards (MIL-STD).

Moore Industries International, Inc.    North Hills, CA 91343
Feb 25, 2005 SPA² Current/Voltage and RTD/Thermocouple Limit Alarm Trips provide on/off control, warn of trouble, and enable emergency shutdown. Units offer 2 or 4 independent and individually configurable alarm relay outputs as well as user-selectable high/low limit. Using on-board controls or PC Configuration Software, each alarm trip relay may be programmed as high/low limit process alarm, rate-of-change alarm, input fault alarm, or self-diagnostic alarm.

Waytek Inc.    Chanhassen, MN 55317
Feb 24, 2005 Models 25R and 25B are nickel silver test clips with 20° offset jaw that guards against shorting, and single piercing needle to penetrate insulation. Units are suited for testing integrity of electrical circuits, electronic equipment, prototypes, and electrical continuity.

NKK Switches    Scottsdale, AZ 85260-3420
Feb 24, 2005 Available in through-hole and SMT configurations, ND and ND3 series ultra-miniature, 8 mm DIP rotaries feature positive action detent mechanism and bifurcated and spring-loaded contacts. Products come in screwdriver and shaft-actuated models, in real or complement codes with 10 and 16 positions. Series also includes bracketed and unbracketed switches, in upright or right angle models, as well as with color-coded actuators.
