DDP Supply    El Segundo, CA 90245

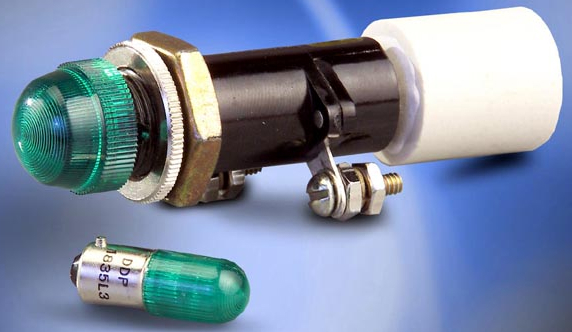

Jun 29, 2006 Designed as direct replacement for incandescent bulbs, LS Series lamp-based LEDs feature built-in shunt resistors to reduce unwanted illumination caused by leakage current. Shock- and vibration-resistant lamps have 100,000 hr-rated life and operate on currents as low as 0.25 mA. Offered in standard (9 mm MB LED lamp) or custom assemblies, products are suited for industrial environments, power generation, transmission, and distribution applications.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

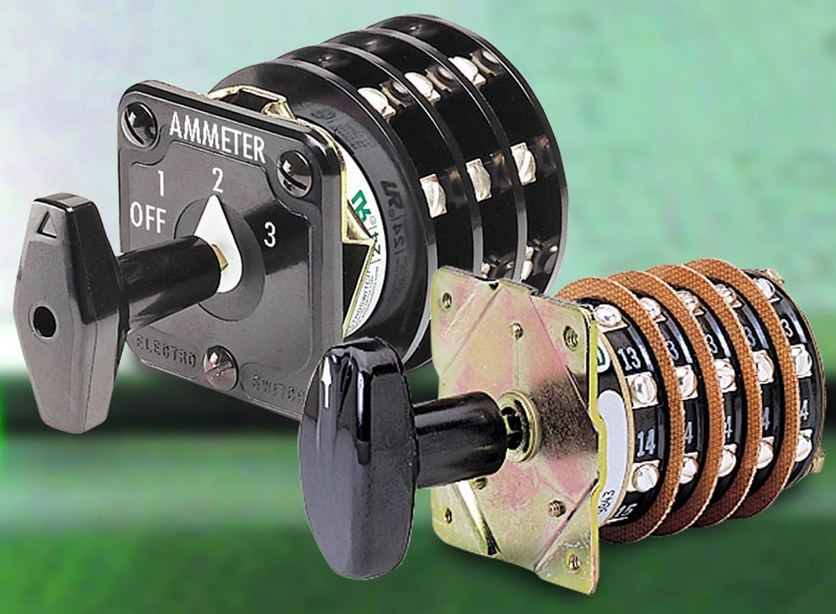

Jun 29, 2006 Offered in 5 models, Series 31, 28, 25, 24, and 21, switches provide up to 16 positions and up to 75 poles and feature continuous ratings from 5-30 A at 600 V. Each switch has spring return to normal (vertical) position and shorting contacts. Along with fully enclosed decks and positive detent action, products feature silver-plated, blade-type, double-sided, double-wiping contacts. Input tap switch arrangement allows sequential connection to several lines using same switching deck.

Thomas & Betts Corp.    Memphis, TN 38125
Jun 29, 2006 Suited for raised-floor applications, Steel City® AFM-4R Round Access Floor Module fits in same size hole used for standard air-handling devices. It features stamped steel construction, 3 compartments with removable voltage dividers, and black polycarbonate cover with 2 access lids for cable entry. Designed to fit holes from 8¼ to 8¾ in. dia, module is secured by 2 thumbscrews. Minimum raised-floor depth of 6½ in. is required.

Keystone Electronics Corp.    Astoria, NY 11105
Jun 29, 2006 Equipped with flow-hole SMT solder tail, low profile Battery Clip is engineered to securely retain cells. Unit is made of .010 thick nickel-plated spring steel and withstands shock and vibration. Clip is available loose or on tape and reel with 500 pecies per 13.0 in. reel. Polystyrene carrier tape meets ANSI/E1A-481 standards, and is 24 mm wide with parts mounted on 16 mm pitch.

Rockwell Automation    Milwaukee, WI 53204

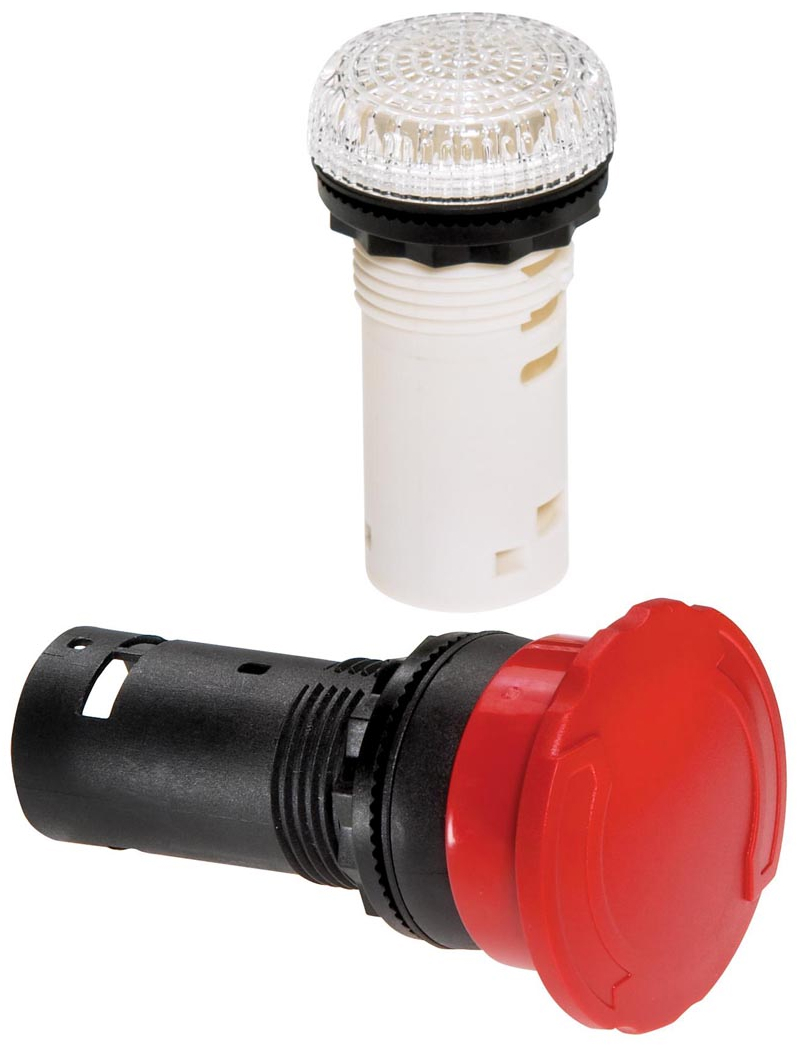

Jun 29, 2006 Allen-Bradley® Bulletin 800FD(TM) 22.5 mm Monolithic Push Button devices include pilot light and E-stop devices. Along with 45.7 mm back-of-panel profile, products feature silver-nickel contacts and leakage current tolerance up to 3 mA. E-stops incorporate 2 products into one, with push-pull and twist-to-release features in single operator. They also feature trigger action anti-tease. Pilot light lenses are optically enhanced for visibility in direct sunlight.

TDK-Lambda Americas Inc.    San Diego, CA 92154

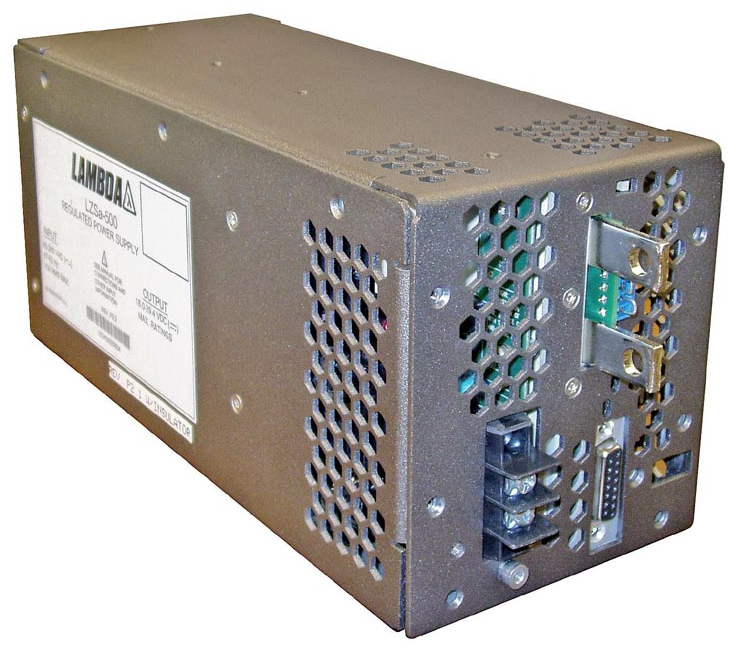

Jun 29, 2006 Rated 500 W, LZSa500-3 features active power factor correction and accepts input from 85-265 Vac, 47-440 Hz. It is available with 24 V output, adjustable from 18-29.4 V, and can provide full load of 21 A output current from -40 to +60°C. Supplied in 4.25 x 4.75 x 10.25 in., RoHS-compliant package suited for harsh environments, product features remote on/off, user-adjustable over-voltage protection, remote resistance or voltage programming, and 200 kHz synchronization signal.

Cliplight Manufacturing Company    Toronto M3J2J1  Canada

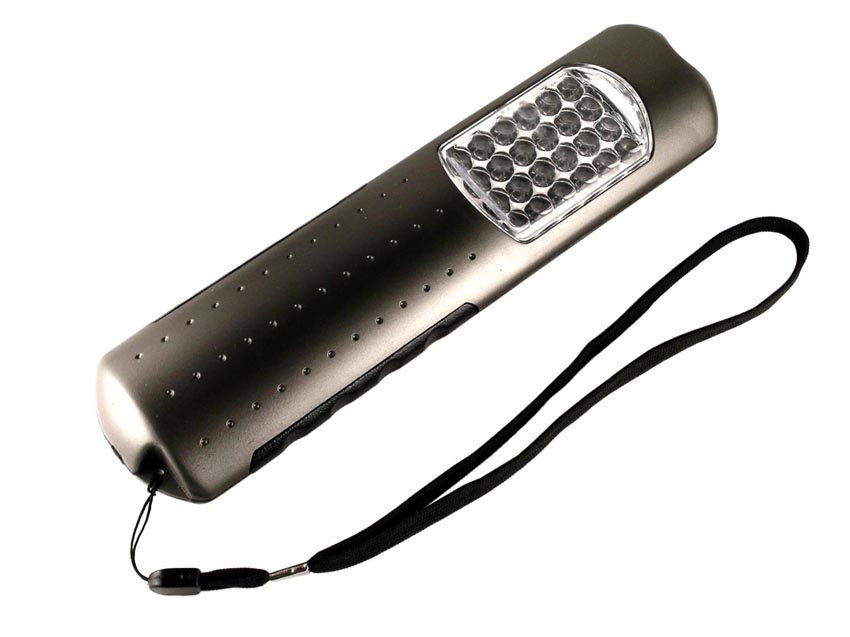

Jun 29, 2006 Featuring ergonomic grip, wrist strap, leatherette holster, and hideaway hanging hook, 9 x 2 1/4 in., 9 oz Cliplight 24 LED light suits service and repair work in places with limited electric power. LED lamps produce 20° light throw and task light has 5 hr battery run time. Product includes 120 V battery charger with green (fully-charged) or red light (charging) status indicator. LED lamps blink to indicate end of battery life.

Advance: division of Philips Electronics North America    Rosemont, IL 60018-5603

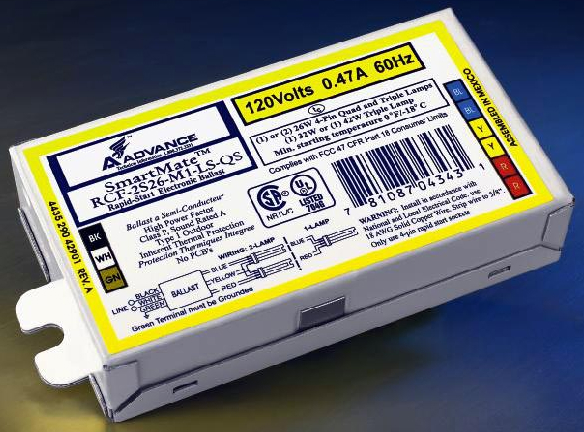

Jun 29, 2006 SmartMate® ballasts, available in Dual Entry, Bottom, and Side Lead housing options, are designed for operation of one or two 13, 18, or 26 W compact fluorescent lamps (CFLs) or one 32 or 42 W, 4-pin CFL. Integral Quik-Start(TM) technology ignites CFLs in less than 1.0 sec, while IntelliVolt® technology enables operation at any input voltage from 120-277 V, 50/60 Hz. Along with low-profile design, products feature color-coded, poke-in connectors.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jun 28, 2006 FSAM50SM60A (600 V/50 A) and FSAM75SM60A (600 V/75 A) Smart Power Modules (SPM) in 60 x 31mm DIP package handle inverter motor designs up to 7.5 kW. Utilizing direct bonded copper substrate technology, each SPM integrates 6 IGBTs, 6 freewheeling diodes, 3 HVICs, LVIC, and thermistor. RoHS-compliant module delivers switching frequencies to 20 kHz and 2,500 Vrms/min isolation voltage rating, and integrated thermistor monitors over-temperature conditions.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

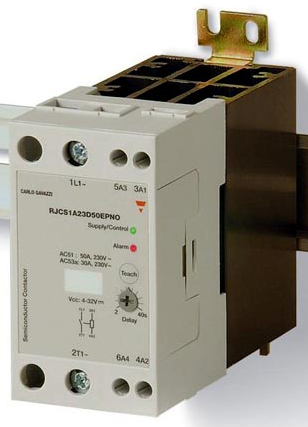

Jun 28, 2006 Microprocessor-controlled SOLITRON RJCS Series features internal current sensing circuitry that monitors industrial heating equipment and reacts to various load failure conditions. Equipped with heat sink and internal over-temperature and over-current protection, DIN rail-mount relays are available with NPN or PNP, NO or NC alarm outputs. They can switch 50 A single phase AC loads at up to 660 Vac when controlled by 4-32 Vdc signal, and alarm functions can be set locally or remotely.

CONCOA    Virginia Beach, VA 23454

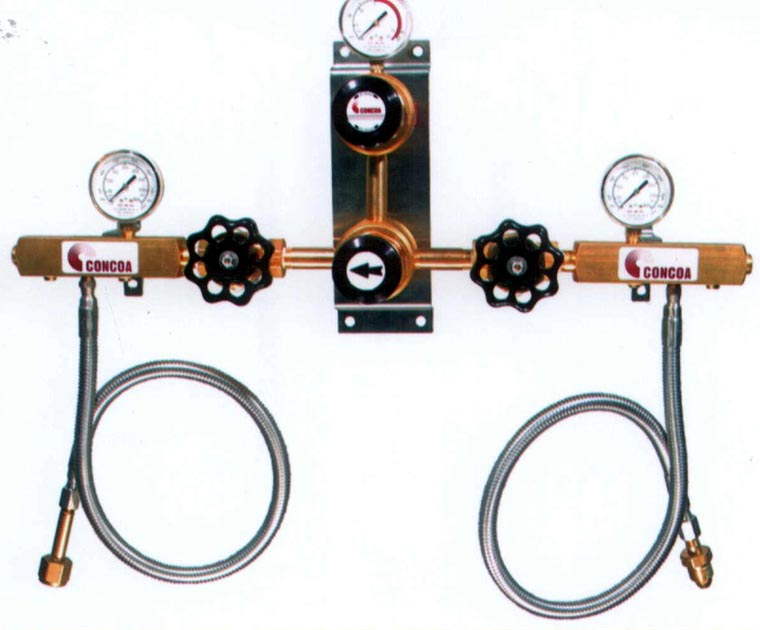

Jun 28, 2006 Suited for pipeline and high-flow applications, 2-stage 632 High-Flow Performance Series delivers continuous supply of gas from left/right cylinder bank configuration and consistent pressure utilizing pressure-differential technology. It is available in 15, 50, or 120 psig delivery models and enables users to select from liquid or high-pressure cylinders as mode of supply. Priority arrow provides cylinder use identification and control from single-valve body design.

Cal Test Electronics, Inc.    Yorba Linda, CA 92887
Jun 28, 2006 Providing way for users to repair test leads or build custom patch cords, 4 mm FlexPlug(TM) Model CT3276-# allows for solderless wire connection using setscrew attachment method. Non-sheathed unit is rated at 36 A and 33 Vac/70 Vdc per IEC61010-031, although it can be used up to 1,200 Vac/dc if not handheld. Fully compliant with RoHS specification, plug comes in black, red, yellow, green, blue, and white.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 28, 2006 Available in Category 3 and Category 5 versions, MADISON CABLE prevents permeation of vapor to non-explosionproof environments and complies with UL-87, section 36A and TIA/EIA-568. Terminated to RJ-45 connectors or terminal blocks, cable can be used without having to remove cable jacket and pot cable core. Cable satisfies requirements of gas and oil dispensing systems, allowing direct connection between pump and point-of-sale for Ethernet communication.

iLight Technologies    Chicago, IL 60661
Jun 28, 2006 With full spectrum of 16.7 million colors, Plexineon RGB Series combines smooth, even, and intense light output with exterior specialty-grade extrusion suited for interior or exterior lighting applications. Luminaire includes iPACT pre-programming, addressing, controlling, and troubleshooting handheld device, which provides complete multiple control functions. Series is suited for architectural, entertainment, hospitality, commercial, and residential applications.

Carmanah Technologies, Inc.    Victoria, BC V9A3S2  Canada
Jun 28, 2006 Suited for permanent, temporary, and emergency applications, Model A704-5 offers dual-function IR and visible-spectrum LED operation in addition to wireless control capabilities. Any single group of lights may be operated remotely from up to 2.5 miles away. Installed in minutes without trenching or wiring, waterproof light utilizes MICROSOURCE® Energy Management System and may be varied in terms of intensity. Light also includes manual switch.

Dolan-Jenner Industries, Inc.    Boxborough, MA 01719
Jun 27, 2006 Featuring stackable, heavy-duty steel housing with mounting capability, 150 W quartz halogen Fiber-Lite® DC950 offers dc regulated output and 0-5 Vdc remote intensity control interface with linear voltage adjustment. It can be operated remotely and offers remote notification of lamp failure. Illuminating options include color filtering, manual iris for intensity adjustment at constant color temperature, and analog or digital remote interface.

Electro Standards Laboratories    Cranston, RI 02921 3403

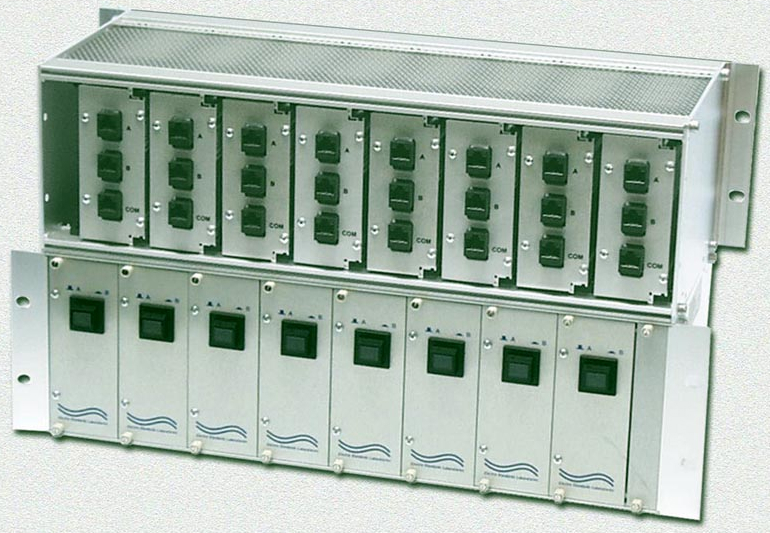

Jun 27, 2006 Featuring all-aluminum, rackmount construction, Model 9061 allows access to two 10 Base-T networks from one computer or workstation. Switch enables rerouting of data between 2 networks by pushing one button. It requires no power and eliminates need to plug and unplug cables. Up to 8 Model 9061 switches fit into Model 9025 equipment rack.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 27, 2006 Available in 2-, 3-, 4-, and 6-rail, IP65-rated junction boxes, SOLARLOK photovoltaic (PV) connector system is used to accommodate serial and parallel connection of PV arrays. Number of rails determines how many electrical connections can be made in junction box, and positive latching helps minimize unintentional disconnections. Junction boxes carry UL 1703 and TÜV approvals.

V-Infinity    Beaverton, OR 97005
Jun 27, 2006 Chassis-mount VKD1000 series comes enclosed in shielded metal case that measures 9.76 x 7.17 x 2.28 in. and has built-in heat sink. Available with 80-180, 200-400, and 400-800 Vdc input ranges, series delivers output voltages of 12, 15, 24, 28, and 48 Vdc at up to 1,000 W of power. Units include under-voltage lockout, over-current, over-voltage, and over-temperature protections and operate over -25 to +85°C (standard) or -55 to +85°C (optional) range.

Woodhead Industries Inc.    Deerfield, IL 60015
Jun 27, 2006 Featuring electronic ballast, portable Woodhead® 360° Work Light provides high-intensity illumination in all directions via 3 cool-to-the-touch, 32 W, T8 fluorescent lamps. Multifunctional lamp cap with impact-absorbing ribs and clear PVC diffuser guard helps protect lamps against breakage. Vertical ribbing also diffuses light, reducing glare while maintaining light output level. Along with tripod stand, product integrates 10 A un-switched convenience receptacle.
