Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460
Sep 19, 2006 Made from polycarbonate material, Non-Metallic In-Use Weatherproof Covers have modular design that accommodates multiple configurations. Units comply with requirements of NEC Article 406.8 in all wet locations for 15 and 20 A, 125-250 V applications.

PulseTech Products Corporation    Southlake, TX 76092
Sep 19, 2006 Offered in 2, 5, and 6 W models, SolarPulse® provides clean, quiet energy to all types of lead-acid batteries. Solar-powered device simultaneously emits constant electronic DC pulse that removes lead sulfate deposits on battery plates and returns them to battery acid as active electrolyte. Suited for vehicles and equipment in areas without access to electrical power, low-profile, industrial-strength solar panel mounts flat with no frame required.

LiteTronics International, Inc.    Alsip, IL 60803-1803
Sep 19, 2006 Usable in table lamps, recessed cans, general area lighting, signage, and medium-based lighting fixtures, 8 W Micro-Brite(TM) BR30 cold cathode compact fluorescent lamps are available in 2,700 K, 2,850 K pure white, 4,100 K, and pink colors. Cold cathode technology allows full dimming and flashing without shortening 18,000 hr life of bulb.

Molex Inc.    Lisle, IL 60532-1682

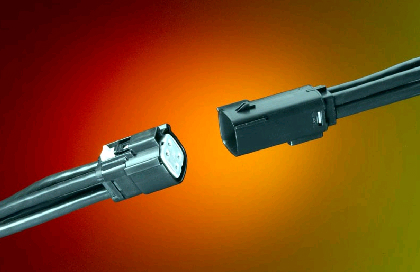

Sep 18, 2006 Designed to support applications with 8, 10, and 12 AWG wire-to-wire connectors, Series MX150L features integral 2-way, silicone-based mat-seal tested to IEC IP67, enabling connectors to exceed waterproof demands. Plugging in connectors requires inserting crimped terminal lead and seating TPA into final locked position. With 2 independent terminals, connectors have .300 in. pitch housing and insulation thickness ranging from 0.155-0.237 in. OD.

Ultra-tec Cable Railing Systems    Carson City, NV 89701-1484
Sep 18, 2006 Attached to cables by hand, field-installed Push-Lock(TM) Fittings eliminate need for swaging equipment. Cables come with tensioner on one end and bare cable on other end. Installation consists of cutting cable, pushing on fittings, and tensioning cable. When installed, there are no acorn nuts or rough cable ends and separate caps to deal with. Stainless steel fittings can be used with wood or metal framed railings, indoors or outdoors. Styles are available for level runs and stairs.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 18, 2006 Available in SOT23-5 and/or 6-lead LLP packages, LM283x Family of monolithic PWM step-down dc/dc converters suits low voltage point-of-load power applications. Model LM2830, LM2831, and LM2832 provide 1, 1.5, and 2 A output current, respectively, and are available with switching frequencies of 1.6 MHz, 3 MHz, or 550 kHz. Features include internal soft-start circuitry to reduce in-rush current, pulse-by-pulse current limit, thermal shutdown, and output over-voltage protection.

RIA Connect    Tinton Falls, NJ 07112

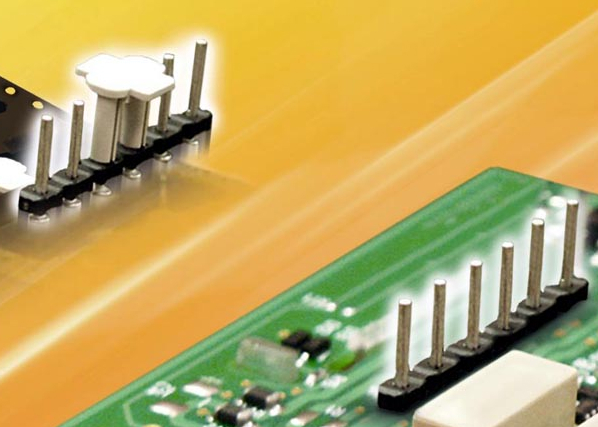

Sep 15, 2006 Available in 2, 3, and 6 pole versions, Type 318 SMT pin header features integrated cap that is compatible with various reflow ovens. This 5 mm vertical surface mounted device is suited for us in lead-free reflow processes and comes in tape and reel packaging for use in automated manufacturing environments.

I POWER Energy Systems, LLC    Anderson, IN 46013-2317
Sep 15, 2006 Combined Heat and Power EnergyNow(TM) Generator Sets convert natural gas to electric power for peak demand or stand-by applications. Controller allows them to automatically interface with utility company supply lines and switch on during peak power usage periods, or run continuously to provide clean electricity, independent of unpredictable delivery systems in traditional network.

FCI/Burndy Products    Manchester, NH 03108
Sep 14, 2006 Model PAT750XT-18V battery-actuated hydraulic crimping tool provides consistent connection on up to 750 kcmil copper and aluminum terminals and splices. Features include crimping head design that offers 360° rotation, high-speed hydraulic pump, 12-tons of output force, and audible pop-off crimp indicator. Operating on 2.6 AH high-capacity 18V Ni-MH battery, tool is suitable for contractor, utility, and telecommunications markets.

Thomas & Betts Corp.    Memphis, TN 38125
Sep 14, 2006 Steel City® MS series Bracket Boxes feature gripping teeth that eliminate need to use fasteners and tools for installing outlet box onto metal stud. Installed within 4 sec., products feature center mark locator window and side support for stud cavity depths up to 4 in. Boxes come in 4 and 4 11/16 in. square sizes, in 1 and 2 1/8 in. depths, and include eccentric knockouts and armored cable clamps; 4 in. boxes also include non-metallic cable clamps.

Interpower Corporation    Oskaloosa, IA 52577-0115

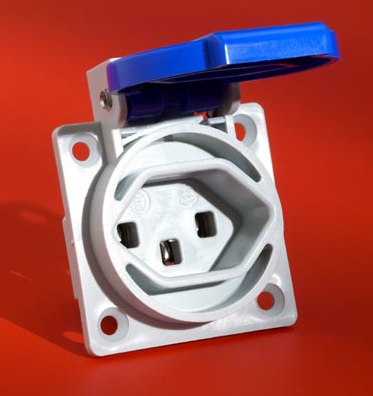

Sep 13, 2006 Designed for equipment rated up to 16 A with service at 250 Vac, Interpower(TM) Swiss 16A dust- and water-resistant outlet is approved to SEV, Electrosuisse standard type 1011 sheet 5934. RoHS-compliant product has snap cover with IP 54 rating. Applications include equipment designed for use in dusty or splashing water environment in Switzerland.

EnerSys, Inc.    Reading, PA 19612-4145
Sep 13, 2006 Used for emergency lighting and other float applications, Genesis NP5-6 features heavy-duty lead calcium tin alloy grids and does not require addition of water. Design controls gas generation and induces recombination of over 99% of gases generated during float usage for safe operation, while safety release valve ensures excess gasses never accumulate within battery. With nominal capacity of 5.0 Ah at 20 hr rate, 6 V battery has typical float service life from 3-5 years.

Impact Acoustics    Dayton, OH 45404
Sep 13, 2006 Suited for professional audio systems, SonicWave(TM) Pro instrument and microphone cables are available in coaxial and twisted pair, shielded configurations. CU Shielding Technology(TM) ensures interference-free transmission of audio signals, while connectors maintain integrity from component to component. Twisted pair cables are available with XLR male to female or ¼ in. TRS male to male connectors, while coaxial cables come with XLR female to ¼ in. male or ¼ in. male to male connectors.

Harting KGaA      Germany

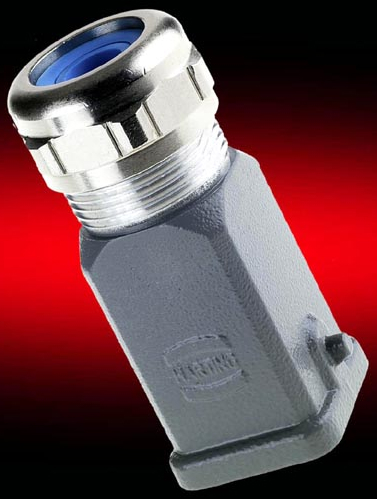

Sep 12, 2006 Used as power and data interface for industrial applications, Han® 3 A Hood has metal housing for use in industrial environments and clamping range for cable diameters from 5-13 mm. Harnesses, such as those for USB, Firewire, and RJ 45 interfaces, can be integrated into connector. Along with compact design, product features integrated cable gland and is compatible with data communication applications in industrial environments.

Harting KGaA      Germany

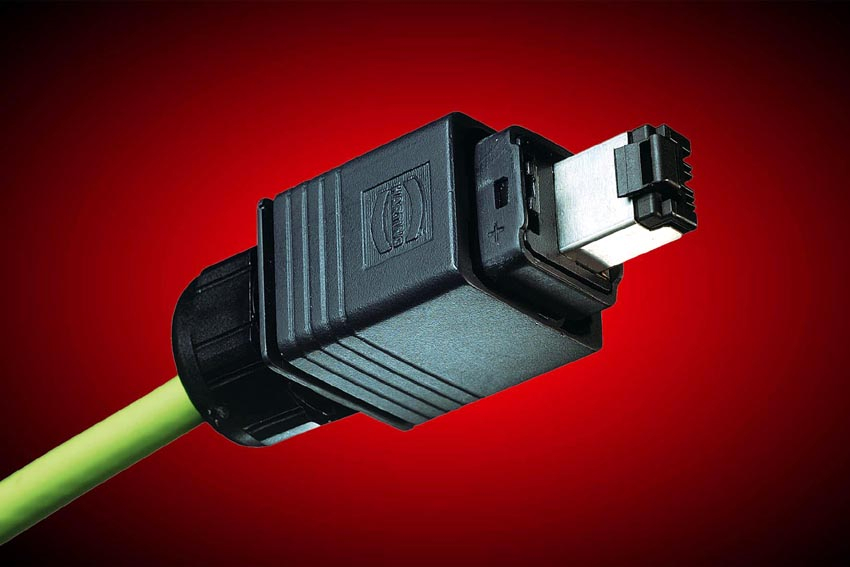

Sep 12, 2006 Han® PushPull connectors enable simple handling in confined spaces, and comply to requirements of automation initiative of German domestic automobile manufactures. IP 67 connectors are available in 2 housing sizes. Models include Han® PushPull RJ45 Industrial Ethernet connector, Han® PushPull SCRJ for optical data transmission, and Han® PushPull Power finger-protected connector for device power supply.

Dwyer Instruments, Inc.    Michigan City, IN 46361

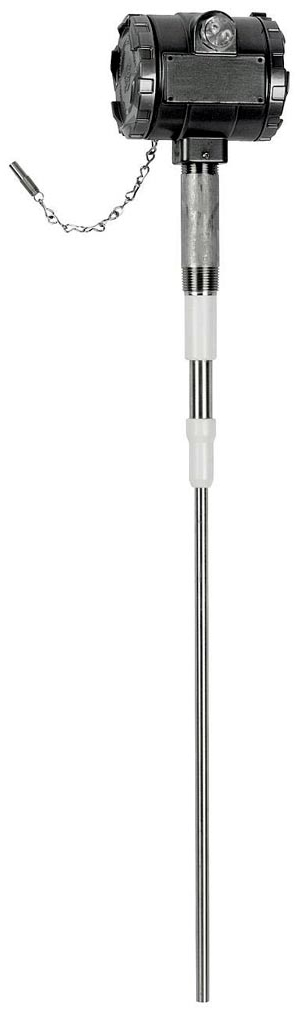

Sep 12, 2006 Insensitive to material buildup, CLS2 employs solid-state sensing technology, which uses impulse RF admittance measurement combined with active guard. Product is designed to auto-calibrate in application and features universal power supply that works from 12-240 Vac/dc. Also offered in weatherproof model, features include failsafe setting, status indicators, and programmable output time delay. Options include explosion-proof enclosure and food grade wetted materials.

Energizer Holdings, Inc.    St. Louis, MO 63141
Sep 12, 2006 Combining power of Energizer e²® Lithium® AA batteries with intelligent control chip, Energi To Go(TM) provides immediate power to operate cell phone. Call can be placed within 30 sec of activating unit on some cell phones with completely discharged battery. Wireless phone models with multimedia applications may require several minutes to activate. Phone tip connectors are available to fit approximately 100 phone models across multiple manufacturers.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Sep 11, 2006 Supplied in 28 x 5 x 15 mm, RoHS-compliant package, AZ6991 has UL/CUR rated switching capacity of 6 A @ 277 Vac and 30 Vdc as well as R300 Pilot Duty rating. Coil voltages are rated from 3-60 Vdc, with nominal sensitivity of 170 mW. Available in 1 Form A or 1 Form C versions, product features 4,000 Vrms contact to coil dielectric strength, 6 kV surge rating, and 8 mm creepage and clearance distances. It is available epoxy-sealed with silver nickel contacts.

Microsemi    Irvine, CA 92614

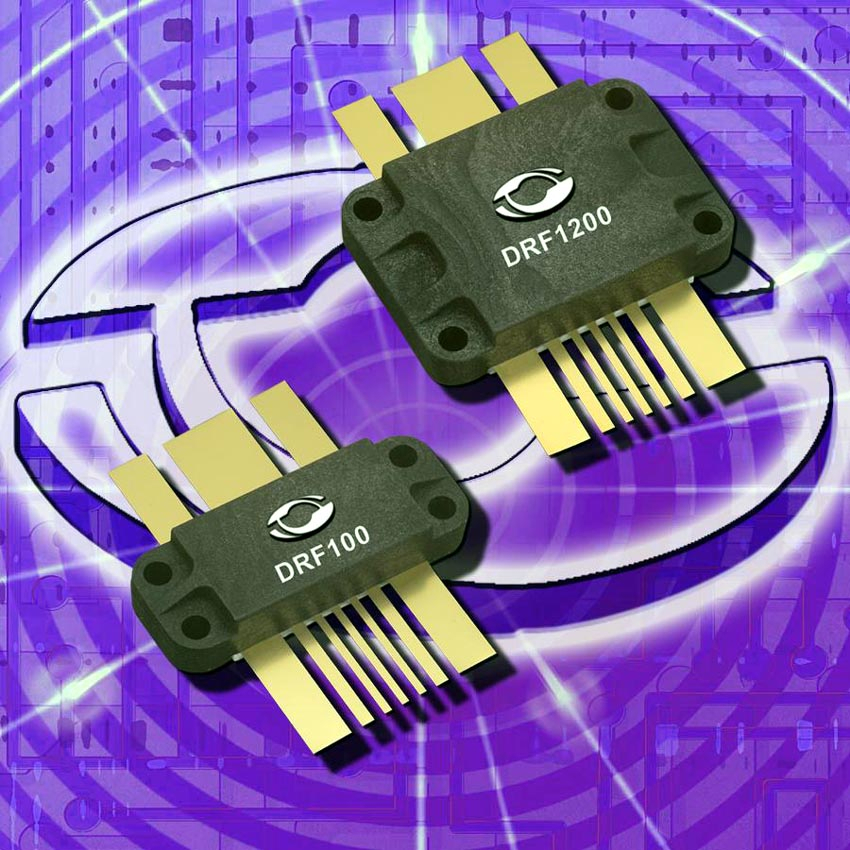

Sep 11, 2006 Designed for Class C, D, and E applications operating from 1-30 MHz, flangeless-packaged RF MOSFET Power Products feature 250 V operation and 600 W continuous wave output power. Model DRF100 RF Driver IC has 8 A output for driving 500-1,200 V RF MOSFETs. Model DRF1200 is comprised of DRF100 RF driver IC along with 1,000 V RF MOSFET output. Coplanar lead arrangement facilitates circuit layout and provides more than 2,500 V isolation between terminal and mounting surface.

Altech Corp.    Flemington, NJ 08822

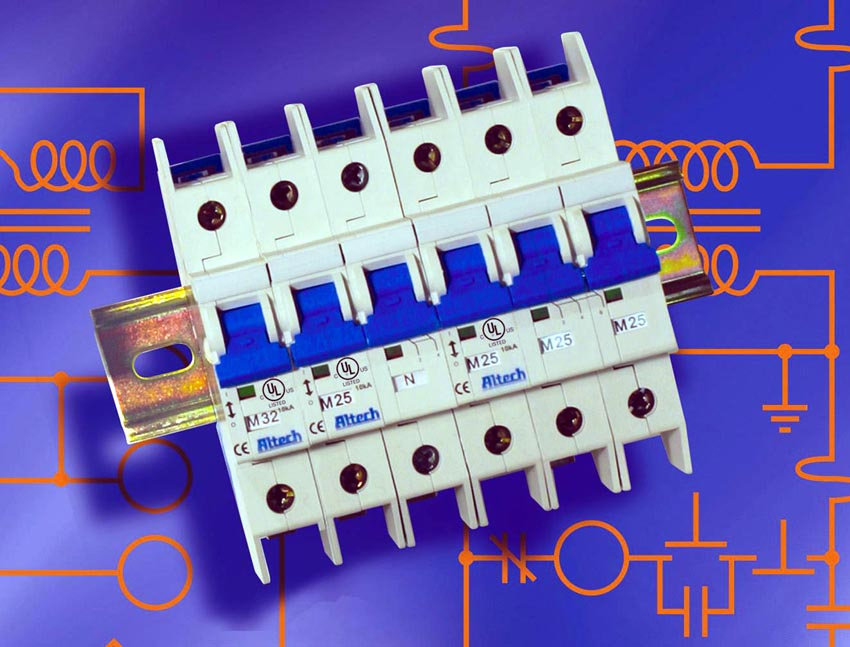

Sep 11, 2006 Available in 1-4 pole models, Altech® UL489 AC and DC miniature molded case circuit breakers are 17.5 mm wide. Designed for DIN rail mounting, HVACR 40ºC rated breakers feature green/red positive trip indicator and 10 kA short-circuit interrupt capacity. AC breaker versions offer ratings of 32 A at 480Y/277 Vac and up to 63 A at 240 Vac, while DC version offers 125 (1 pole) and 250 V (2 pole) up to 63 A.
