American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Oct 09, 2006 Suited for engineers designing HVAC controls, alarm systems, and industrial controls, AZ880 series subminiature power relay is UL rated for 10 A at 250 Vac, 10 A at 30 Vdc, and 1/3 hp at 250 Vac. Relay has power consumption of 200 mW and dialectic strength of 4,000 Vrms (6,000 V surge) from contact to coil. Latching and non-latching versions (single or dual coil), and 1 Form A, 2 Form A or 1 Form A, 1 Form B contact arrangements are available.

AgiLight, Inc.    San Angelo, TX 76904
Oct 06, 2006 Available in indoor and outdoor models with lengths of 12, 18, and 30 in., and custom sizes in 6 in. multiples, UnderFX incorporates BrightStrip component into plastic casing with anodized aluminum finish. Product features polycarbonate domed lens, standard beam angle of 165°, and soft white color temperature (3,000-3,500 K) to match incandescent lighting options.

SIXNET    Clifton Park, NY 12065 0767
Oct 06, 2006 With operating temperature range of -40 to +85°C, Kevlar reinforced CAT5E cable and cordsets are used for railway, maritime, and aerospace applications. Corrosion resistant double shielded RJ45 plugs with gold plated contacts prevent electro-magnetic interference and low smoke, halogen-free, flame-retardant polyurethane jacket material (UL94V-0) helps ensures personnel safety. Category 5E cables can be used in applications up to 1000BaseT.

Jadoo Power Systems, Inc.    Folsom, CA 95630
Oct 06, 2006 Hot-swappable XRT provides critical support power when grid is unavailable or unreliable. In addition to 6 N-Stor360 fuel canisters that provide up to 2,200 W-hr of runtime, fully configured mobile fuel cell power package includes one 100 W N-Gen fuel cell power unit, 110 Vac and 12 Vdc outputs, and digital state-of-fill indicator. Uses for this 50 lb unit include recharging portable radio and laptop batteries or powering emergency lighting.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Oct 06, 2006 Specified over -40 to +85°C range, AAT2554 combines 500 mA battery charger, 250 mA step-down converter, and 300 mA low dropout (LDO) linear regulator in 3 x 4 mm package. Multifunctional device helps reduce product footprint and design complexity. All 3 functions use single-cell Lithium-ion battery as power source. With 1.5 MHz switching frequency, step-down converter functions using inductor less than 1 mm high and delivers full-rated output current with up to 96% efficiency.

Weidmuller, Inc.    Richmond, VA 23236
Oct 04, 2006 Accepting pluggable jumpers, WTR 2.5 Disconnect Terminal enables user to plug multiple poles in place with press to back of insulation sleeve. Disconnection can be made using supplied lever or optional pull-pin. Component plug holder converts WTR into component holder where diodes and resistors can be soldered in place. Integrated test sockets allow for 2.3 mm banana plugs to be used for continuity, voltage, or current tests.

LEDtronics, Inc.    Torrance, CA 90505
Oct 04, 2006 Offering average life span of 100,000+ hr, TRF-G30 LED Series can be used in any situation that allows for 25 mm Edison screw base attachments. Globe covering lets LEDs shine in multiple directions and protects them from environment. Bulbs, which can output 510-970 candelas while consuming 13 W of power, have solid-state design impervious to shock, vibration, and frequent switching. Standard colors include red, green, yellow, super-bright warm white, and cool white.

XP Power    Sunnyvale, CA 94085
Oct 04, 2006 Available in 5, 15, and 35 W ratings, MTC series converters meet MIL-STD 810F specification for temperature, shock, vibration, bump, altitude, and salt fog. They have input range of 15.5-40 V and can operate through transients of 10 V for 10 sec and up to 50 V for 1 sec and are suitable for systems with 28 V input. Converters minimize external circuitry and include inhibit line, output voltage programmable by resistor/external voltage, and over-voltage and over-current protection.

M/A-COM, Inc.    Lowell, MA 01853
Oct 04, 2006 Fabricated on 0.5-micron gate-length GaAs process with full passivation, MASW-007107 features low insertion loss of 0.5 dB up to 6 GHz and 0.7 dB up to 8 GHz, and isolation of 30 dB. It is suitable for systems that require up to 27 dBm of output power with EVM less than 2% for OFDM, 64 QAM, 54 Mbps signal. This 8 GHz RoHS compliant switch is available in 2 mm 8 lead power quad flat leadless (PQFN) package.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2006 Model LTC3526 1 MHz current mode, synchronous boost dc/dc converter has internal 500 mA switches that deliver 5 V output from 0.85-4.4 V input, making it suitable for Li-Ion/Polymer or single/multicell alkaline/NiMH applications. Available in 2 x 2 x 0.75 mm DFN package, LTC3526 delivers up to 100 mA of continuous current at 3.3 V from single alkaline cell. Synchronous rectification enables efficiencies of up to 94% while Burst Mode® operation lowers quiescent current to only 9µA.

LEVITON    Melville, NY 11747
Oct 04, 2006 Combining occupancy sensing, daylight harvesting, and flexible lighting control in single package, Dual Room miniZ(TM) meets variety of commercial lighting needs. Self-contained, self-configuring system takes into account changing environmental conditions, and meets energy-code mandates for balancing artificial and natural light sources. AutoCal(TM) feature automates photocell calibration, establishing max light output levels and calculating light loss factors.

Digital Monitoring Products    Springfield, MO 65803
Oct 03, 2006 Available in 4-, 2-, and 1-button versions, Series 1100 two-way wireless key fobs have 9 programming options and LED that immediately confirms whether system has been armed or disarmed, or that panic signal has been sent. Key fobs operate using 3.0 V universal Lithium coin-cell battery.

Alcan Aluminum Corp., Alcan Cable Div.    Atlanta, GA 30346
Oct 03, 2006 Designed for commercial construction market applications, MODEX(TM) pre-fabricated modular wiring systems eliminate need for assembly of components at job site. Assemblies are delivered in pre-packaged units when needed, eliminating handling. UL and C-UL listed, systems comply with National Electrical Code and Canadian Electrical Code requirements.

Leadis Technology, Inc.    Sunnyvale, CA 94085
Oct 03, 2006 Model LDS522 65K color OLED driver IC with integrated controller supports 128 (RGB) x 68, 128 (RGB) x 36, and 96 (RGB) x 68 display resolutions. Integrating 139 kbits of full frame memory, on-chip oscillator, DC/DC converter, and temperature sensor, LDS522 SoC provides accurate color images for MP3 player and mobile phone sub-display applications. Two independent settings for RGB reference current enable device to make adjustments based on panel process variation and temperature changes.

TE Connectivity Ltd.    Berwyn, PA 19312
Oct 02, 2006 Featuring F-Crimp style wire and insulation crimp terminations that provide strain relief, Ultra-Pod fully insulated FASTON receptacle accepts .250 quick connect tabs and comes in straight or flag (90°) arrangements. It allows for 2-wire termination, or wire doubling, in single receptacle. While insulator comes in UL 94 V-0 or V-2 nylon, terminal is brass or tin plated brass. Upon processing, receptacles are terminated and insulated in one step.

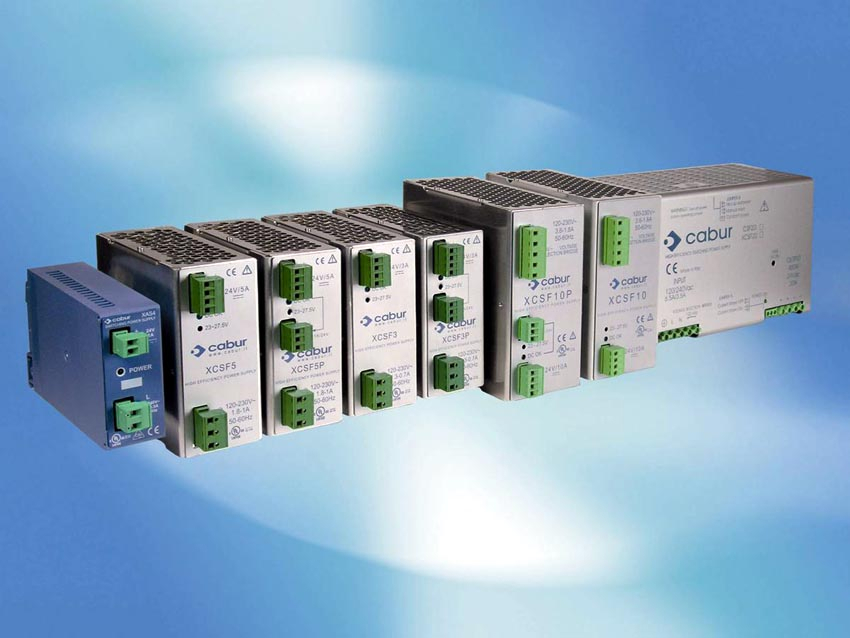

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Oct 02, 2006 Modular DIN rail mounted power supplies offer 24 Vdc output in single-phase and 3-phase inputs with 3, 5, 10, 20, and 30 A capacity. In addition to auto-ranging input and pluggable terminations, compact UL508C listed units provide short circuit, overload, over temperature, and input/output protection. Internal oring diodes and alarm contact makes supplies appropriate for redundant and back-up applications.

Protonex Technology Corp.    Southborough, MA 01772-1034
Oct 02, 2006 ProCore(TM) unmanned aerial vehicle (UAV) propulsion system combines fuel cell technology with chemical hydride fueling solution for hydrogen generation based on Millennium Cell's Hydrogen on Demand® technology. Enabling extended flight times and ability to carry greater payload, system suits UAVs designed for surveillance, chemical-biological monitoring, and border patrol.

Northwire, Inc.    Osceola, WI 54020
Sep 29, 2006 Meeting mechanical, electrical, and shielding requirements of industrial GigE Vision camera installations, DataCELL GEV-1000 Cable interfaces with standard and specialty Ethernet cable connectors. It features braid and foil shields, industrial-grade construction, and weld flash-resistant TPE outer cable jacket. Suitable for motion applications, cable is oil and abrasion resistant, and can be used for outdoor installations.

VisiWear    Bergen   Norway
Sep 29, 2006 Including advanced wireless security and encryption features, Model EX-AP-A EX certified access point helps create wireless infrastructure in EX/hazardous areas, ATEX zone 1, and can be configured as mesh endpoint and standalone access point. Integrated EX-ANT-B wide angle beam antennas connect with up to 30 m of cable without significant signal loss, and only one cable is needed to connect to network containing power lines and Ethernet (POE).

W. L. Gore & Associates, Inc.    Elkton,, MD 21921
Sep 29, 2006 Designed for aerospace market, impedance-matched Quadrax interconnects provide signal fidelity and are optimized for high data rate requirements by controlling impedance and minimizing jitter. Products include integrated alignment feature that prevents bending of pins in field, which eliminates tolerance and positioning issues associated with scaling down military connectors to increase density.
