ERICO    Solon, OH 44139-2631
Oct 09, 2006 Screw-On Conduit Supports attach ½-1 in. EMT conduit or MC/AC cable to wood and metal studs. They comply with NEC® 358.30(A) and CEC© rule 12-1404, which requires conduit support within 36 in. of electrical box. Units are gangable and work with both 1½ and 2 1/8 in. deep boxes. Alignment tab positively locates fastener on stud, and serves to keep conduit in line with box knockout and support brackets.

MPS Industries    Gardena, CA 90248
Oct 09, 2006 Suited for CATV/Broadband/RF applications, standard and custom products include Balun transformer and double balanced mixer, RF and wideband isolation transformer/mixer, directional coupler/splitter, and power RF chokes to over 800 MHz. They perform over industrial temperature ranges, with bandwidth from 100 kHz to 2 GHz. Packages vary from 3.8 x 3.8 mm with 1.25 mm pins spacing to 6.5 x 7.2 mm with 2.54 mm pins spacing, from gold plated ceramic base to LCP header.

austriamicrosystems AG    Premstatten   Austria
Oct 09, 2006 Eight-channel AS1109 uses serial data I/O lines for error information readback; no additional PCB tracks are needed for open and shorted LED error diagnostics. Built-in LED error detection can be invoked during normal operation without switching into separate detection mode. Currents, adjustable from 0.5-100 m, control LED brightness with ±2% output accuracy. Low-Current Diagnostic mode applies 0.6 A test current to display for short time, making LED testing invisible.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 09, 2006 Available in screw, spring, or IDC (insulation displacement connection) technologies, COMBI plug connectors plug into DIN-mounted pluggable terminal blocks, and use same plug-in zones for all basic blocks. Standard plugs (UP, SP, QP) feature wire exit on top, while plugs with screw and spring-cage technology (UPBV, SPV) have side wire exit. Units are available in pre-assembled position sizes or individually for self-assembly.

Ortronics, Inc.    New London, CT 06320
Oct 09, 2006 Designed for use in mission-critical data centers and SANs, Momentum 2 accelerates deployment and eliminates possibility of optical performance flaws while promoting network design flexibility. Cabling system combines optical ribbon cabling, MTP® termination, LC polishing, and hardware. Cassettes are available in 12-fiber SC or LC duplex and 24-fiber LC quad connector versions, with single-mode and leading 50/125 laser optimized multimode fiber.

Belden    Richmond, IN 47375
Oct 09, 2006 Offering alternative to modular patch panels, 10GX IDC System optimizes 10G performance with headroom to handle 10GBase-T data networking and multimedia applications. 10GX Connecting Block combines MatriX and X-Bar technologies from 10GX Module with X-Pair technology, which allows twisted pair concept to be carried through connecting hardware, making connector transparent within cable run. System can be configured in large cross-connect fields with up to 2,300 x 2,300 ports in 20 ft wall space.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Oct 09, 2006 Suited for engineers designing HVAC controls, alarm systems, and industrial controls, AZ880 series subminiature power relay is UL rated for 10 A at 250 Vac, 10 A at 30 Vdc, and 1/3 hp at 250 Vac. Relay has power consumption of 200 mW and dialectic strength of 4,000 Vrms (6,000 V surge) from contact to coil. Latching and non-latching versions (single or dual coil), and 1 Form A, 2 Form A or 1 Form A, 1 Form B contact arrangements are available.

AgiLight, Inc.    San Angelo, TX 76904

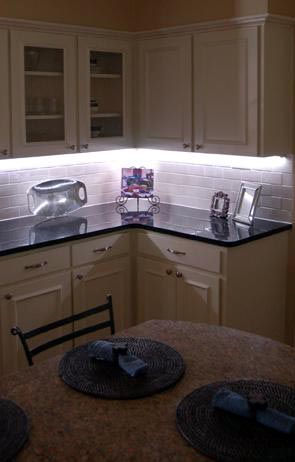

Oct 06, 2006 Available in indoor and outdoor models with lengths of 12, 18, and 30 in., and custom sizes in 6 in. multiples, UnderFX incorporates BrightStrip component into plastic casing with anodized aluminum finish. Product features polycarbonate domed lens, standard beam angle of 165°, and soft white color temperature (3,000-3,500 K) to match incandescent lighting options.

SIXNET    Clifton Park, NY 12065 0767

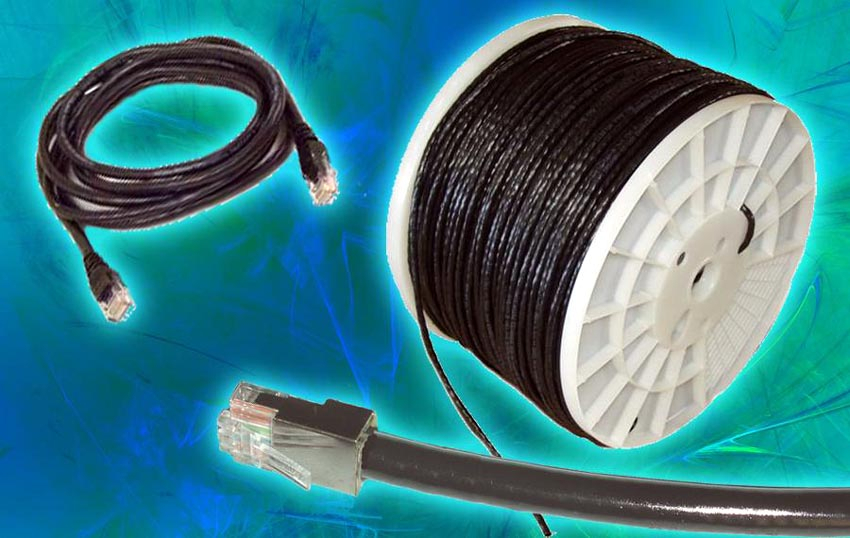

Oct 06, 2006 With operating temperature range of -40 to +85°C, Kevlar reinforced CAT5E cable and cordsets are used for railway, maritime, and aerospace applications. Corrosion resistant double shielded RJ45 plugs with gold plated contacts prevent electro-magnetic interference and low smoke, halogen-free, flame-retardant polyurethane jacket material (UL94V-0) helps ensures personnel safety. Category 5E cables can be used in applications up to 1000BaseT.

Jadoo Power Systems, Inc.    Folsom, CA 95630
Oct 06, 2006 Hot-swappable XRT provides critical support power when grid is unavailable or unreliable. In addition to 6 N-Stor360 fuel canisters that provide up to 2,200 W-hr of runtime, fully configured mobile fuel cell power package includes one 100 W N-Gen fuel cell power unit, 110 Vac and 12 Vdc outputs, and digital state-of-fill indicator. Uses for this 50 lb unit include recharging portable radio and laptop batteries or powering emergency lighting.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Oct 06, 2006 Specified over -40 to +85°C range, AAT2554 combines 500 mA battery charger, 250 mA step-down converter, and 300 mA low dropout (LDO) linear regulator in 3 x 4 mm package. Multifunctional device helps reduce product footprint and design complexity. All 3 functions use single-cell Lithium-ion battery as power source. With 1.5 MHz switching frequency, step-down converter functions using inductor less than 1 mm high and delivers full-rated output current with up to 96% efficiency.

Weidmuller, Inc.    Richmond, VA 23236

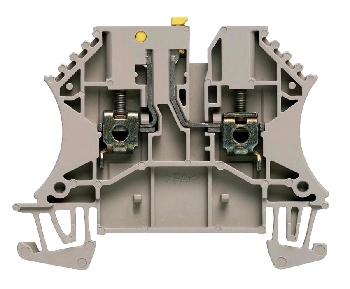

Oct 04, 2006 Accepting pluggable jumpers, WTR 2.5 Disconnect Terminal enables user to plug multiple poles in place with press to back of insulation sleeve. Disconnection can be made using supplied lever or optional pull-pin. Component plug holder converts WTR into component holder where diodes and resistors can be soldered in place. Integrated test sockets allow for 2.3 mm banana plugs to be used for continuity, voltage, or current tests.

LEDtronics, Inc.    Torrance, CA 90505

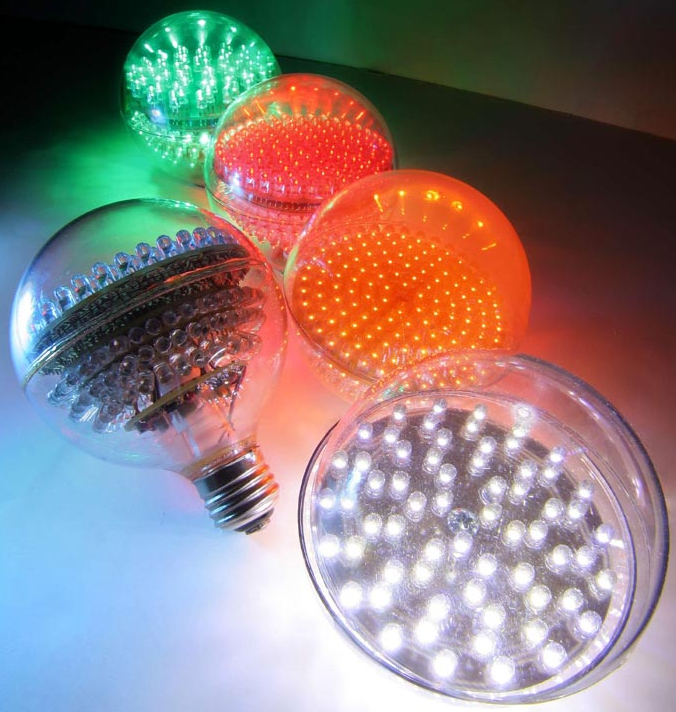

Oct 04, 2006 Offering average life span of 100,000+ hr, TRF-G30 LED Series can be used in any situation that allows for 25 mm Edison screw base attachments. Globe covering lets LEDs shine in multiple directions and protects them from environment. Bulbs, which can output 510-970 candelas while consuming 13 W of power, have solid-state design impervious to shock, vibration, and frequent switching. Standard colors include red, green, yellow, super-bright warm white, and cool white.

XP Power    Sunnyvale, CA 94085
Oct 04, 2006 Available in 5, 15, and 35 W ratings, MTC series converters meet MIL-STD 810F specification for temperature, shock, vibration, bump, altitude, and salt fog. They have input range of 15.5-40 V and can operate through transients of 10 V for 10 sec and up to 50 V for 1 sec and are suitable for systems with 28 V input. Converters minimize external circuitry and include inhibit line, output voltage programmable by resistor/external voltage, and over-voltage and over-current protection.

M/A-COM, Inc.    Lowell, MA 01853

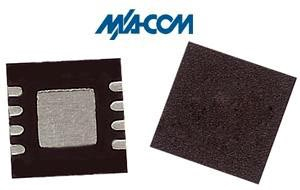

Oct 04, 2006 Fabricated on 0.5-micron gate-length GaAs process with full passivation, MASW-007107 features low insertion loss of 0.5 dB up to 6 GHz and 0.7 dB up to 8 GHz, and isolation of 30 dB. It is suitable for systems that require up to 27 dBm of output power with EVM less than 2% for OFDM, 64 QAM, 54 Mbps signal. This 8 GHz RoHS compliant switch is available in 2 mm 8 lead power quad flat leadless (PQFN) package.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2006 Model LTC3526 1 MHz current mode, synchronous boost dc/dc converter has internal 500 mA switches that deliver 5 V output from 0.85-4.4 V input, making it suitable for Li-Ion/Polymer or single/multicell alkaline/NiMH applications. Available in 2 x 2 x 0.75 mm DFN package, LTC3526 delivers up to 100 mA of continuous current at 3.3 V from single alkaline cell. Synchronous rectification enables efficiencies of up to 94% while Burst Mode® operation lowers quiescent current to only 9µA.

LEVITON    Melville, NY 11747
Oct 04, 2006 Combining occupancy sensing, daylight harvesting, and flexible lighting control in single package, Dual Room miniZ(TM) meets variety of commercial lighting needs. Self-contained, self-configuring system takes into account changing environmental conditions, and meets energy-code mandates for balancing artificial and natural light sources. AutoCal(TM) feature automates photocell calibration, establishing max light output levels and calculating light loss factors.

Digital Monitoring Products    Springfield, MO 65803
Oct 03, 2006 Available in 4-, 2-, and 1-button versions, Series 1100 two-way wireless key fobs have 9 programming options and LED that immediately confirms whether system has been armed or disarmed, or that panic signal has been sent. Key fobs operate using 3.0 V universal Lithium coin-cell battery.

Alcan Aluminum Corp., Alcan Cable Div.    Atlanta, GA 30346
Oct 03, 2006 Designed for commercial construction market applications, MODEX(TM) pre-fabricated modular wiring systems eliminate need for assembly of components at job site. Assemblies are delivered in pre-packaged units when needed, eliminating handling. UL and C-UL listed, systems comply with National Electrical Code and Canadian Electrical Code requirements.

Leadis Technology, Inc.    Sunnyvale, CA 94085
Oct 03, 2006 Model LDS522 65K color OLED driver IC with integrated controller supports 128 (RGB) x 68, 128 (RGB) x 36, and 96 (RGB) x 68 display resolutions. Integrating 139 kbits of full frame memory, on-chip oscillator, DC/DC converter, and temperature sensor, LDS522 SoC provides accurate color images for MP3 player and mobile phone sub-display applications. Two independent settings for RGB reference current enable device to make adjustments based on panel process variation and temperature changes.
