Greenlee Textron, Inc.    Rockford, IL 61109
Oct 11, 2005 Made from impact-resistant material, flame-retardant Cable Anchor(TM) secures multiple power, voice, data, and video cables to wood studs and plates using one nail. Holding fingers prevent each cable, regardless of size, from going slack during installation. Anchor positions all cables at least 1¼ in. from edge of studs and plates to meet 2005 NEC 300-4(d) and Canadian Electric Code Part 1, Section 12-516. Bright yellow color makes anchor visible in low light conditions.

Norstat Inc.    Mansfield, OH 44903
Oct 10, 2005 Designed for monitoring emergency stop and safety gate applications, SAFE 4 series features 3 normally open and one auxiliary normally closed contacts. LED indicators relay state of operation and channel power status. Housed in compact, 22.5 mm package, series includes 24 V as well as 110 and 230 V models and meets safety requirements for applications up to and including Category 4, with CE and TUV or BG approval.

NKK Switches    Scottsdale, AZ 85260-3420
Oct 10, 2005 Constructed of heat-resistant materials, Series LP01 features short body design with .551 in. behind panel depth and comes fully assembled with translucent, .535 in. diameter white cap as well as red, green, or amber LED. Units have snap action contact mechanism and arc barrier to protect against crossover. Offered in single-pole and double-pole momentary versions, switches are rated 3 A at 125 Vac, 3 A at 250 Vdc, or 30 A at 30 Vdc.

Sensitron Semiconductor    Deer Park, NY 11729
Oct 07, 2005 SSPC Module provides electronic equivalent to electromechanical circuit breaker with isolated control and status. Measuring 1.875 x 1.125 x 0.38 in., this 25 A microcontroller-based Solid State Relay offers integrated current sensing with no derating over full operating temperature. Features include current slew control, built-in R-C filters, repetitive fault handling, and true I2t protection from 32-250 A with nuisance trip suppression.

Advance: division of Philips Electronics North America    Rosemont, IL 60018-5603
Oct 07, 2005 Featuring IntelliVolt(TM), Multiple-Voltage technology, 100 W, 24 Vdc signPRO(TM) Model LED-INTA-0024V-41FO operates at any input voltage from 120-277 V, 50/60 Hz. Tested to IP66, damp location-rated unit includes inherent short-circuit protection, power factor correction, and temperature performance down to -40°F. Tightly regulated output of 1% line and 5% load insures consistent light output regardless of line conditions, load levels, and ambient temperatures.

Northwire, Inc.    Osceola, WI 54020
Oct 07, 2005 EnduroFLEX® ERP Cable is compliant with NPFA-79-2002, allowing exposed power trunk and drop cables on machinery up to 40 A. Cable is also TC/Exposed-run and STOOW Service-rated. Available in 3- and 4-conductor models and in gauges from 18-10 AWG, product meets UL1277 crush and impact requirements, and passes -40°C cold bend tests. It also meets UL vertical tray and CSA FT-4 flame resistance, as well as Oil I and II resistance standards.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 06, 2005 Incorporating all essential power transistors onto single device, Model TPS65800 delivers dc/dc conversion and battery management to 1-cell Li-Ion powered communications and multimedia devices with multiple voltages. It integrates 2 synchronous step-down dc/dc converters with integrated FETs, 1 boost dc/dc converter for white LED display backlight, RGB LED driver, 10-bit ADC, SIM card, RTC power supplies, and I2C communications interface for data transfers up to 400 kHz.

L.J. Star, Inc.    Twinsburg, OH 44087
Oct 06, 2005 Designed for continuous use, MetaClamp® ESL39 lasts up to 10,000 hr on one HID bulb and provides 300 W of light through Metaglas® safety glass lens. Unit has sanitary mounting system and is available with 40° beam angle for illumination of specific areas or 90° angle for uniform illumination of entire vessel. Usable on 6 in. and greater sanitary ferrules, luminaire mounts directly onto any vessel. Overall dimensions are 12 1/8 in. long x 5¼ in. dia.

EnerSys, Inc.    Reading, PA 19605
Oct 06, 2005 Using IGBT power electronics technology, Express UniMAX Models 10 and 15 fast charge smaller capacity batteries typically used in Class III trucks safely. They are designed for max charge output rates of under 320 A, requiring single battery connector similar to standard batteries. They can work with or without battery module ID, allowing any battery to charge on any charger. Modular, plug-and-play design results in near-zero service downtime.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 06, 2005 For control panels where knob or linear control is necessary, QT401 uses charge-transfer sensing method to provide linear or arc-based touch-sensing output with 7-bit resolution. Printed circuit resistive element is used as capacitive sensor and will sense through 3 mm of plastic or glass. Output is SPI serial signal, and sensor uses charge-transfer spread-spectrum sensing method to suppress EMI noise. Data output can be interpreted as linear control, series of buttons, or both.

STMicroelectronics    Lexington, MA 02421
Oct 06, 2005 With less than 1 µA standby current, Model STCF02 delivers controlled current to single, high-power white LED used for flash illumination in mobile imaging equipment. Device uses PWM control scheme with switching frequency of 1.8 MHz and provides regulated output voltage from 2.5-5.3 V, powered from single Li-Ion battery. Three logic-input signals allow selection of 4 different operating modes. If excessive white-LED temperature is detected, device is switched OFF.

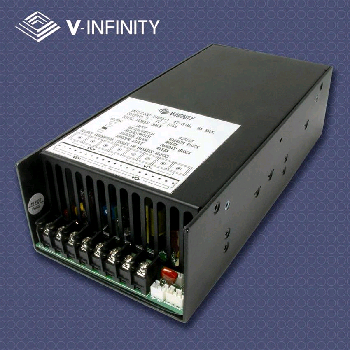

V-Infinity    Beaverton, OR 97005
Oct 05, 2005 Offered in U-frame or fan-cooled metal packaging, Series VPF/VPM-S800-XXR measures 7.99 x 4.33 x 2.56 in. or 9.17 x 4.25 x 2.50 in., respectively. Units provide more than 9 W/cu-in. and peak load of 900 W for up to 500 ms. Voltage outputs range from 12.0-48.0 Vdc, adjustable by ±5%. Power supplies include internal EMI filter, active power factor correction, remote on/off, and remote sense, as well as overvoltage, overcurrent, over temperature, and short circuit protection.

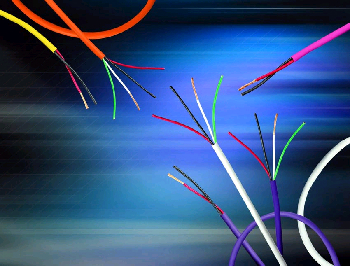

Belden    Richmond, IN 47375
Oct 05, 2005 Manufactured using oxygen-free, copper conductors and polyolefin dielectric, HomeChoice TruAudio Speaker Cables are intended for indoor/outdoor/burial residential applications, including patios, decks, gardens, and poolside. They transmit consistently pure sound, even at extended distances. Installers benefit from cables' brightly colored satin PVC jackets and identification of room and zone, as well as ascending and descending sequential footage markings.

TURCK, Inc.    Plymouth, MN 55441
Oct 05, 2005 Offered in standard and custom lengths, microfast (½-20 UNF) cordsets are available with PVC, PUR, TPE, and CPE cable options. Male or female, straight or right angle connectors, offered in 2- through 6-pin configurations, are rated for 250 Vac/Vdc and 4 A. They provide NEMA 1, 3, 4, 6 P, and IEC IP 67 protection. Fully encapsulated mating receptacles have nickel-plated brass housing and ½ in.-14 NPSM, ½ in.-14 NPT, or ¼ in.-18 NPT mounting threads.

TE Connectivity Ltd.    Berwyn, PA 19312
Oct 05, 2005 Available in 10-28 AWG range, Raychem FlexLite MT Wire (UL style 10916) is suited for general purpose use in appliance, electronics, and electrical equipment applications that require 600 V rating. It has average wall thickness of 6 mils and UL-rated operating temperature of 150°C max. Modified fluoropolymer insulation provides mechanical and chemical resistance. Tin plated copper conductor construction is standard, and other conductors are available upon request.

Zettler Magnetics, Inc.    Aliso Viejo, CA 92656
Oct 04, 2005 Featuring max working voltage of 275 V, Series AHP/ADHP offers 1 kV isolation, 10.0 mm creepage distances, and over 10.0 mm clearance distances. Isolation sleeve provides HiPot or isolation voltage as high as 4,250 V. With Pollution Degree III design, transformers are suited for motor controls and industrial controls, linear power supplies, and general ac/ac power conversion.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2005 With input voltages from 4.5-34 V, LTC4011 charges 1- to 16-cell NiMH/NiCd batteries at rates up to 4 A. Features include 550 kHz synchronous PWM current source controller, -dV and/or dT/dt fast charge termination, NiMH top-off charge, and operating temperature range of 0-85°C. Housed in thermally enhanced 20-lead TSSOP package, autonomous charger solution is suited for use in portable instruments, diagnostic and control systems as well as back-up equipment.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2005 Standalone, dual-input LTC4076 and LTC4077 charge single-cell Li-Ion batteries from wall adapter or USB power sources. They use constant-current/constant-voltage algorithm for charging, with charge current programmable up to 950 mA from wall adapter supply or 650 mA from USB supply, while auto-sensing presence of voltage at each input. Model LTC4076 features programmable C/x charge current termination, while LTC4077 offers fixed C/10 termination.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2005 Designed to drive up to 16 white LEDs, dual step-up dc/dc converter, Model LT3586 includes PWM driver, which allows for 1,000:1 dimming range. Two independent converters are capable of driving asymmetric LED strings, up to 8 in series per converter, from input voltage of 2.5-24 V, delivering efficiencies up to 85%. Housed in 5 x 3 mm DFN or TSSOP package, Model LT3586 features fixed frequency up to 2 MHz, soft-start/inrush current limiting, and open LED protection.

Igus, Inc.    East Providence, RI 02914 0349
Oct 04, 2005 System E2 Energy Tubes protect cables and hoses from debris and contaminants. Fully enclosed Energy Chains are opened with snap-open hinges to facilitate repair or replacement of cables therein housed. Hinges are located on inner or outer radius of lid, depending on preference. Products are suited for machine tool or other applications where items such as wood chips, metal shavings, dirt, or dust are prevalent. Multiple sizes and styles are available.
