Princo Instruments, Inc.    Southampton, PA 18966
Jan 02, 2007 Available in 19 pressure ranges from -14.5 to 5,800 psi, SmartPress Model LP-D pressure/liquid level transmitters feature 316 SS flush diaphragms and variety of process connections including 1 in. NPT and several Triclamp® sizes. Two-wire, loop-powered units offer push button programming and can be supplied pre-calibrated. Provided in IP65/NEMA 4X housings, transmitters operate over temperature range of -14 to +158°F ambient and -13 to +257°F for process materials.

TURCK, Inc.    Plymouth, MN 55441
Jan 02, 2007 Able to be extended up to 4 times their original retracted length, retractile cordsets are constructed with polyurethane jackets and straight or right angle connectors. They can extend up to 1, 2, or 5 m in length and feature nickel-plated brass and stainless steel coupling nuts to promote durable connection. Suited for motion and robotics in automotive applications, products meet requirements of EN-50170-2-2 for communication up to 12 Mbaud.

Technology Dynamics Inc.    Bergenfield, NJ 07621
Dec 29, 2006 Featuring universal ac input, 1,500 W single-output Series TD-RSP includes OV/OL/OT protection, ZVS technology, remote turn-on/turn-off, dc-operated ball bearing fan, and ±10% voltage adjust range. Units operate from -20 to 50°C, are RoHS-compliant, and include UL, CSA, and CE approvals. They are suited for industrial telecommunications, communications, and military applications. Rack mount and panel mount options are available.

Tripp Lite    Chicago, IL 60609
Dec 28, 2006 Providing UL 60601-1 compliance for connected mobile electronic devices, Medical-Grade Power Retrofit Kit includes everything needed to power medical carts. Power supply features isolation transformer, which minimizes cumulative shock potential of connected equipment. Battery module provides up to 12 hr of mobile power in standard applications, while PowerAlert Software saves patient data from loss or corruption. Kit also includes remote user interface, mounting hardware, and cabling.

Absolute Process Instruments Inc.    Libertyville, IL 60048
Dec 26, 2006 Offering 2 channels of signal isolation and retransmission, DuoPak(TM) Signal Conditioners can be custom-configured to accept any 2 process signal inputs including DC voltage or current, AC voltage or current, frequency, potentiometer, or RTD temperature. Two optically isolated output channels can be configured for standard or custom DC voltage or current signals. Units include I/O LoopTracker® LEDs and functional test pushbutton for testing output independent of input signal.

California Micro Devices    Milpitas, CA 95035
Dec 26, 2006 Featuring current drive capabilities of up to 1 A, PhotonIC white LED drivers support input range of 3.0-5.5 V, switching frequency of 1 MHz, and shutdown current of less than 0.3 µA. Shutdown, torch, and 2 flash modes can be selected through single wire interface, and preview and flash currents can be programmed independently via external resistors. Model CM9410 is offered in 0.4 mm pitch CSP, and CM9412 is housed in 3 x 3 mm TDFN package.

HTP Connectivity, LLC.    Parsippany, NJ 07054
Dec 22, 2006 With IP68 protection rating and ability to operate between -40° and +80°C , 7/8 in. circular connectors are offered in male and female versions with field attachable or molded PVC cable versions (right angle/straight) and receptacles. Units are constructed using metal housings with gold plated surfaces for optimum contact efficiency.

Cole Hersee Co.    Boston, MA 02127 2467
Dec 22, 2006 Compatible with microprocessor-based electrical/electronic systems, water-resistant Sigma(TM) Rocker Switch comes with LED backlighting. Low current input membrane switch features silicone rubber actuator, which can be customized using laser etching technology. Options include custom colors, imprint, graphics, and shape and location of LED lens.

Sipex Corp.    Miliptas, CA 95035-1701
Dec 22, 2006 Capable of driving low forward voltage LEDs from 33 mA to 1 A, SP7618 enables range of LED lighting applications with zero external components and minimal design time. It can drive LED directly from single cell Li-Ion or 3 alkaline batteries in series without additional boost regulator. Product can also dynamically change current level and PWM width simultaneously. Also available, SP7619 and SP7619A Flash Drivers let user select from 2 pre-set current levels.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
Dec 22, 2006 Featuring high-reflectance, matte white reflector and custom-faceted acrylic diffuser, Series LICHP direct/indirect luminaires provide high light levels with optimal distribution. When compared to 3-lamp T8 center basket recessed indirect, T8 LICHP offers equal light levels with only 2 lamps. Luminaires are available in T8, T5, and long twin-tube options.

Applied Power Systems, Inc.    Hicksville, NY 11801
Dec 22, 2006 Integrating IGBT technology with thermal management system, dc link capacitor, laminated bus, and IGBT driver and control boards, SixPac(TM) Power Stages can be used as inverters, brake choppers, motor drives, power supplies, and frequency converters. Units come in 10 current levels, 3 voltage levels, and 4 circuit configurations. Providing ratings from 50-2,500 A, field repairable stages include fault detection and protection circuitry.

Canfield Connector    Youngstown, OH 44514

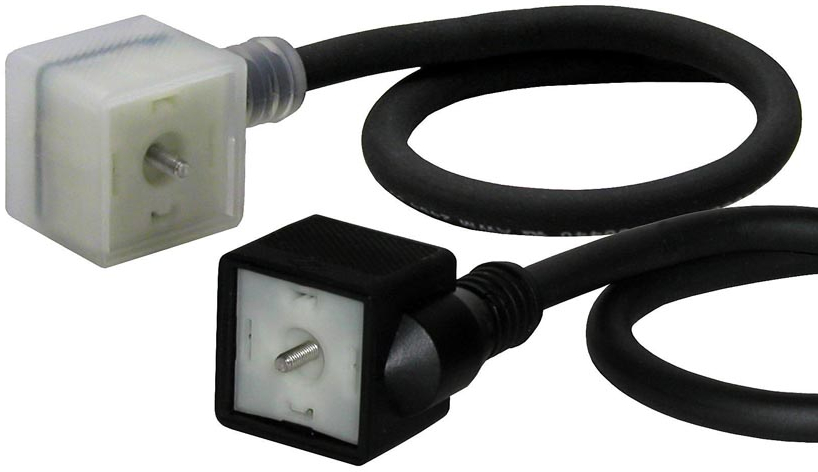

Dec 21, 2006 Able to turn alternating current into direct current, 5FR and 5JR series incorporate full-wave bridge rectifiers inside fully molded connectors. Both reduce coil burnout due to valve sticking and eliminate hum of alternating current. Rated to IP67/NEMA 6, products are made from flexible polyurethane and come in low-profile, straight-line (5FR) or 90° (5JR) interface/cord configurations. Black version is standard, and white translucent version is offered for lighted versions.

Besa Lighting Company, Inc.    Columbus, OH 43219

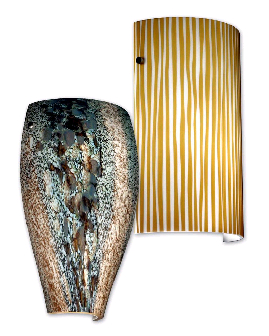

Dec 21, 2006 Featuring mouth-blown European glass shades, Glass Wall Sconces are available in several decors to complement contemporary and eclectic interiors. Units range in size from 9 x 9 in. to 6.25 x 13.5 in., and to comply with ADA regulations, all are less than 4 in. deep. Ranging from crescents to cylindricals, sconces accommodate 120 V incandescent lamping, which is dimmable with standard incandescent dimmers. Compact fluorescent lamping options are also available.

Peachtree Lighting    Covington, GA 30014
Dec 21, 2006 NeoClassic, RedOndo Beach, and Madison Chase series geometric architectural pendants come in octagonal, hexagonal, and square shapes measuring 24, 36, and 48 in., respectively. Designed for use in low energy LEED certified or Green buildings, pendants are offered with companion wall sconce and matching ceiling luminaire. Each series is available in 9 finishes with white acrylic or Faux Alabaster lens.

GC Electronics    Rockford, IL 61102

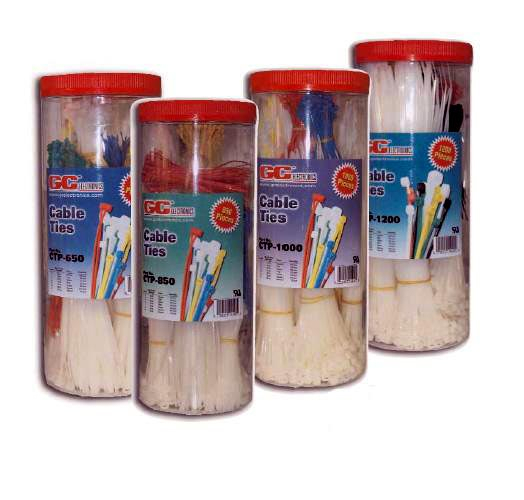

Dec 20, 2006 Available in lengths of 4-11 in. with minimum tensile strength ranging from 18-50 lb, cable ties are available in different packaging options, including poly-bags, reusable canisters, and tackle boxes. Products come in variety of colors and are suited for range of uses in home, office, or industrial environments.

SIXNET    Clifton Park, NY 12065 0767
Dec 20, 2006 Offered in 16-, 25- and 32-port models, RK series of industrial switches are configurable with up to 4 flexible slots, accepting wide range of modules. With 1U high design, CE and UL rated switches operate from -40 to +85°C, and are NEMA-TS2, NEBS Layer3/ETSI compliant for traffic control systems and mission critical applications, respectively. Switches also feature software capabilities for network management, optimization, and security.

Pomona Electronics    Pomona, CA 91766 3835
Dec 20, 2006 Designed for accelerated panel construction and optimal conductivity, IEC 1010, 4 mm Banana Jacks for Sheathed Plugs are available with threaded studs, solder tabs, and threaded studs with hexagonal nuts. Jacks feature gold-plated nickel pins (nickel-plated brass for Part No. 72930) to promote connectivity and polyamide bodies for durability. Packaged in quantities of 10 per color, 1.34 in. long jacks are rated 1,000 V Cat III, 36 A max, with 30 Ncm max screwing torque.

Vicor Corp.    Andover, MA 01810 5424
Dec 20, 2006 PFC FrontEnd(TM) provides control and signaling flexibility, supplying AC OK, Power OK, Temp failure warning, and 4 discrete isolated enable/disable lines for block control. Operating from 85-264 Vac input, this fan-cooled, power factor corrected (PFC) AC-DC front end module provides 375 V out with power density greater than 28 W/in.³ and measures 6.4 x 7 x 1.72 in. It provides power outputs of 1,100 W @ 115 Vac or 2,200 W @ 230 Vac through 4 non-isolated outputs.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Dec 20, 2006 Rotary Switches feature snap-action design to ensure that switch makes or breaks contact, independent of handle speed, and holds its set position, even in high-vibration environment. With continuous ratings from 20-200 A at 600 V, and transfer time of approximately 10 msec, switches include double-wiping contacts to minimize heating, and stationary contacts extended outside disks to serve as connecting terminals. All switching takes place within molded phenolic disks to prevent contamination.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Dec 20, 2006 Model FSUSB30 USB 2.0 switch combines more than 720 MHz bandwidth, 6 pF on-capacitance, 8 kV ESD protection in compact 1.4 x 1.8 x 0.55 mm ULMP device. It allows designers to save board space while enabling applications to quickly multiplex between 2 high-speed (480 Mbps) data sources. Product is suitable for applications such as slider cell phones, MP3 players, notebooks, and in-car entertainment centers.
