Anderson Thermal Devices, Incorporated    Hawthorne, NJ 07506
Aug 31, 2011 Complimentary to various substrates, Fast Response Medium Wavelength Lamps (FRMW) are engineered to optimize radiation of energy within medium wavelength range. Medium wave IR energy output by these heaters is absorbed by water, inks, paints, and plastics. Supplied in lengths up to 52 in., IR lamps are capable of color temperature of 2100°F and peak wavelength of 2.0 microns. This frequency can be generated with up to 100 W per linear inch.

Dwyer Instruments, Inc.    Michigan City, IN 46361

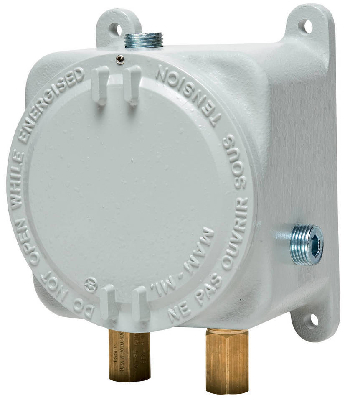

Aug 30, 2011 Available in flame-proof package, Series AT11910 has set points from 0.07-20 in. w.c. for air and non-combustible compatible gases found in hazardous area applications. Set point adjustment is made via range screw located inside aluminum enclosure. Equipped with 1/8 in. NPT female brass pressure connection and two ½ in. FNPT electrical connections, IP66-rated SPDT switch features temperature range of -30 to 180°F.

Alltec Corporation    Canton, NC 28716
Aug 30, 2011 Designed to be less attractive to thieves, TerraBar® busbars are available with custom-engraved messages such as "PROPERTY OF..." and "DO NOT RECYCLE." Products can also be plated with materials that disguise copper makeup while still providing optimal conductivity. Full line of available hole patterns and sizes with all associated mounting hardware and insulators is available, and busbars can be delivered with ground leads already exothermically welded to them as needed.

Weidmuller, Inc.    Richmond, VA 23236
Aug 30, 2011 Designed for use outside cabinet in machine and industrial automation applications, M23 Circular Connector Series includes 6- to 19-pole signal connectors, 6-pole power version, and hybrid model with 4 power contacts and 4 signal contacts. All contacts are gold-plated, guaranteeing over 1,000 mating cycles with currents from 8-28 A at voltages of 100-800 V, depending on connector. Operating from -40 to +257°F, connectors are IP67 and IP69K rated and CE and UL approved.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 30, 2011 Measuring 6 mm wide with 6 A contact rating, CK Series is available with integrated fuse protection and LED indication. Relays offer variety of electromechanical, solid-state, and passive interface modules, as well as PTC push-in jumper to common inputs and outputs. Electromechanical relays are rated AC or DC for inductive applications, while solid-state relays come in single or dual models for packaging machinery applications. All are soldered in, making them impervious to shock and vibration.

Electronic Design & Research Inc.    Louisville, KY 40258
Aug 30, 2011 Rated at 220 Vac/50 A (11 kW), Intelligent Sustainable Switch (iSUPS-220/50, P/N EDR84080) provides power to load from one of 2 power sources: power line (grid) and backup. It does not require additional power source for normal operation or any external commands to function. Self-contained solution exploits fuzzy-logic SPDT/N relay with tri-state output, intelligently processing signals in real-time when switching instantly (less than microseconds) from failed to reliable power source.

AR RF/Microwave Instrumentation    Souderton, PA 18964
Aug 30, 2011 Hybrid Power Modules (HPMs) deliver linear output powers approaching 5 W across instantaneous bandwidth of 4-18 GHz. Exhibiting optimized gain flatness, products can withstand infinite output mismatch and are available in various power and gain configurations. HPMs can be customized to meet individual specifications concerning bandwidth/power requirements. Also, products can be supplied as military and commercial solutions as well as in true hermetic connectorized or open pallet designs.

Phoenix Contact    Harrisburg, PA 17111 0100
Aug 29, 2011 High-flex M12 cordsets can flex up to 15 million bend-cycles. Sensor/actuator cables suit applications where cables need torosional and bending strength exceeding standard PUR cable material. Welding slag-resistant, gray PUR jacket can flex, bend, and twist during manufacturing process. Free of halogen, silicone, and cadmium, products are resistant to acids, alkaline solutions, and solvents. With zinc die-cast coupling nut, M12 connectors come in 3-, 4-, and 5-position variants.

Electro Standards Laboratories    Cranston, RI 02921 3403
Aug 29, 2011 Suited for supporting RS422 applications that have DB9 connector interface, Model 9449 eliminates task of unplugging and plugging cables when switching over critical networks during outages in computer rooms, offices, and labs. For each of its 3 channels, switch enables connection to any one of 2 devices from one common device. Rackmount unit simultaneously switches all channels with one turn of rotary switch and comes in anodized, black box packaging that provides EMI/RFI shielding.

Larson Electronics, LLC    Kemp, TX 75143
Aug 26, 2011 Designed to provide illumination during tactical and professional conditions, HML-5M-LED produces 3,600 lm and draws 1.6 A on 24 V. It operates on any voltage from 9-32 Vdc and produces 1,600 ft long x 120 ft wide beam. Suited for operators in military, law enforcement, as well as professional utility and emergency services, light features waterproof PAR46 solid-state LED bulb, UV-resistant housing, and 100 lb grip magnetic base. Spotlight also comes in other color and IR versions.

Maxxeon Inc.    Ottawa   Canada
Aug 26, 2011 Designed to enable hands-free use, WorkStar 2000 is equipped with integral magnets and retractable hook as well as multi-directional head that stays in place once directed where it is needed. Work light is supplied with belt clip for portability, 12 V charger, 110 V charger, and connection in base that allows mounting product to tripod. Rechargeable with runtime up to 10 hours, WorkStar 2000 includes LED charge indicator.

Larson Electronics, LLC    Kemp, TX 75143
Aug 26, 2011 Mounted via 100 lb grip magnetic base, HML-7LED-3C produces 650 ft long 50 ft wide beam with 1,596 lm while drawing 24 W @ 1.7 A from 12 V electrical system. Product employs 7 Edison Edixeon® Emitters containing CREE EZBright® 3 W LEDs, which have rated life of 50,000 hr. IP68-rated as waterproof to 3 m, construction includes extruded aluminum housing and polycarbonate lens designed to withstand rough conditions and handling. Unit can operate on any voltage from 9-48 Vdc.

Aven, Inc.    Ann Arbor, MI 48108
Aug 26, 2011 Using array of 40 lights on each side of 5-diopter glass lens measuring 7.5 x 6.2 in., Mighty Mag Magnifying Lamp provides hands-free illumination during assembly and inspection of electronics, small parts checks, and research/medical lab analysis. Lamp has 32 in. adjustable arm and LEDs rated at 20,000 hours and 1,000 lux intensity. Spring-balanced arm allows task-specific height and angle settings, while tension knobs hold lens firmly in any position.

EnerFusion Inc.    Lansing, MI 48906
Aug 25, 2011 Providing 110 Vac GFCI Green power outlets, Solstice Power Station and Solar Dok-1 Picnic Table enable users to charge phones and use computers or any other electronic device with 100% solar energy. Both include 2 USB Type A power outlets and battery bank for energy storage and usage during evening hours. Additionally, Solar Dok-1 is equipped with two 700 lumen LED lighting system. Applications include Wi-Fi restaurants, schools, parks, and recreation areas.

Larson Electronics, LLC    Kemp, TX 75143
Aug 25, 2011 Available in spot or flood configurations, BL40-LED Blasting Light respectively produces 1,200 ft (spot) or 375 x 260 ft (flood), 7,200 lm light capable of cutting through dusty and murky blasting room conditions. IP68-rated, corrosion-resistant construction withstands conditions found in sand, water, and media blasting operations. Waterproof to 3 m, light contains 40 Edixeon® 3 W LED emitters rated at 50,000 hr and has magnetic mounting system for attachment to metallic surfaces.

AutomationDirect.com    Cumming, GA 30040-9905
Aug 25, 2011 Combining performance of high-speed semiconductor fuses with Class J branch-circuit fuses in one package, JHL Series protects AC and DC drives and controllers. Fast-acting fuses are also suitable for power semiconductor devices which utilize diodes, GTOs, SCRs, or SSRs, as well as electronic motor controllers. Available 1-600 A sizes, fuses are current limiting and are designed with no intentional time delay to open quickly on overload.

LED Autolamps    Sutton Coldfield B76 1AL  United Kingdom
Aug 25, 2011 Suited for vehicles with limited fitting space, Vertically Mounted Bracket is made from ABS plastic and accepts 80 Series rear lamp modules. Square rear single- and multi-function lamps can be clicked into place and hardwired. In event of damage, lamps can be unclipped individually and replaced as necessary. Each lamp is 12/24 dual voltage capable with current draw of 0.04-0.42 A at 13.8 V, dependant on function. Overall size of bracket with 3 lamps fitted is 278 x 98 x 45 mm.

W.A.C. Lighting Company    Garden City, NY 11530
Aug 25, 2011 Hybrid luminaire merges LED and OLED technology. Six luminaire panels, each with profile of 4.5 mm, feature color changing RGB and white Organic LEDs with color temperatures from 2700K to 6500K. Each OLED panel features colors that can be individually customized to requirements via DMX Controller. Glare-free OLEDs deliver diffused ambient illumination and 300+ lm at 12 W. At 3000K, OLED CRI is 80. LED multichip performs task lighting with 12 W downlight, delivering 557 lm onto surface below.

Power Partners    Hudson, MA 01749
Aug 24, 2011 Featuring 3 x 5 x 1.38 in. footprint, Series PPWAM250 accepts 90-264 Vac universal input and delivers 250 W of power with 17 cfm of forced air. Single output models have regulated voltages from 12-48 Vdc with no minimum load. Series provides efficiencies greater than 85% and leakage currents as low as 300 µA at 264 Vac. Equipped with overvoltage and short circuit protection, power supplies are compliant with UL/cUL60601-1 and TUV 60601-1 medical safety standards.

Emerson Network Power    St. Louis, MO 63136
Aug 24, 2011 Operating from 120-277 Vac input, 25 W-rated LDS25 series delivers up to 700 mA at 36 Vdc, incorporates active PFC, and offers conversion efficiency of 86% typ. Constant current mode operates from 36-26 V, while constant voltage mode operates with load currents from 300-700 mA or to programmed current limit level that can be set by single resistor. Output current can be user-adjusted over full 0-700 mA range by IEC 60929-compliant dimming function, controlled via 0-10 V signal.
