XP Power    Sunnyvale, CA 94085
Mar 12, 2007 Convection cooled 150 W Model SDS150 open frame version measures 3 x 5 x 1.44 in. and offers power density of 6.9 W/in.³, while U channel, 3.2 x 5 x 1.54 in. version has power density of 6.1 W/in.³. Featuring up to 90% efficiency, universal input of 90-264 Vac, and offered in 8 single output 9-48 Vdc voltage versions, power supplies provide overvoltage, overcurrent, and short circuit protection. SDS150 operates at full power from 0-50°C and up to 70°C with derating.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Mar 09, 2007 Supplying up to 4.5 W of power, AAT1210 step-up converter can take single-cell Lithium-ion battery voltage and boost it to 5 V/900 mA output. Hysteretic current mode control circuit eliminates need for external compensation, and 2 MHz switching frequency enables use of low-profile external components. Supplied in 1 mm high, Pb-free, 16-pin TDFN34 package, product achieves power efficiency levels to 90% and provides fixed output voltage set using external resistor divider.

Dymax Corp.    Torrington, CT 06790
Mar 08, 2007 Emitting UVA and blue visible light from 300-450 nm, BlueWave(TM) 200 cures adhesives, coatings, and encapsulants. Intensity Adjustment feature allows manual adjustment during initial UV process validation and production and permits engineers to evaluate full range of intensity produced by lamp from 0-100%. Integral shutter can be actuated by foot pedal or PLC, making lamp suitable for manual and automated processes. Solid-state power supply delivers 90-263 V, 47-63 Hz.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 08, 2007 Able to accommodate variety of electrical terminals and splices, offerings include hydraulic pumps, controls, and hose; heavy-duty crimp heads for shank dies; medium-duty crimp heads and hand tools for U-dies; and integrated crimp die tooling for SOLISTRAND terminals. Portable, battery-powered hydraulic unit and self-contained power unit are also available. All tools operate at 10,000 psi and suit crimping applications requiring up to 12 tons of crimp force.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

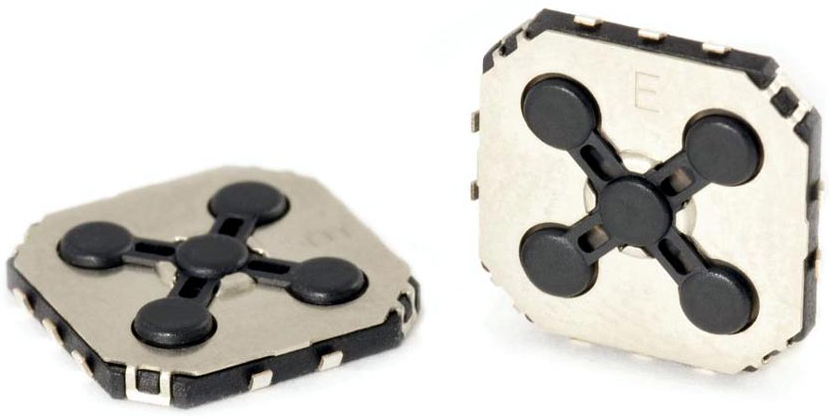

Mar 08, 2007 RoHS-compliant JS1300 Navigation Switch features multi-position, multi-switch functionality integrated into single package. With contact rating of 12 Vdc, 50 mA, SPST normally open switch exhibits typical operating life of 100,000 cycles. It is suited for use in hand-held instrumentation, laptop computers and peripherals, as well as other electronic devices.

IDEC Corporation    Sunnyvale, CA 94089-2209
Mar 08, 2007 Measuring 90 x 22.5 x 95 mm, 10 and 15 W PS5R-SB Slim Line power supplies snap onto DIN rail with built-in clips or mount directly on panel. Products are UL508-Listed, allowing for 100% full load operation, and suitable for hazardous locations. While 10 W model offers 5 V output, 15 W model is available with 12 or 24 V output. All models feature fingersafe spring-up screw terminals, universal input voltage, and overload protection.

EM Microelectronic-US    Colorado Springs, CO 80918
Mar 07, 2007 Low multiplex controller and driver for monochrome TN/STN LCD displays, EM6111, can be operated from 1.8 V (static) to 5.5 V (multiplexed) input and requires no external components. It can drive 1 or 2 rows x 7 columns, with display refresh implemented internally. RAM data corresponds directly to LCD pixels, and all segments can be individually turned on or off by SET or BLANK bit commands. Circuit can be controlled for initialization, memory programming, and circuit status readout.

Micro Plastics, Inc.    Flippin, AR 72634
Mar 07, 2007 Molded in black or natural nylon 6/6, Combo Cradle Mount offers chemical resistance and optimal wear properties. Large base assures stable mounting surface and can be secured with screw or rivet. Part can be used with standard or hook-and-loop wire ties to route bundles of wires, cables, or tubing.

Siemon Co., The    Watertown, CT 06795
Mar 07, 2007 TERA®-MAX®, supplied in 1U, 24-port configuration, has angled design that allows patch cords to be routed directly into vertical cable managers. Meeting/exceeding all 10GBASE-T standard requirements, unit supports company's Cat 6A 10G 6A(TM) F/UTP (screened) and Cat 7 fully shielded TERA solutions and supports Quick-Ground(TM) features. Solution accepts all Siemon MAX and TERA outlets and connectors and features integrated rear cable management and strain relief.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Mar 07, 2007 Suited for dc-dc power supply designs in telecommunications, automotive, and industrial control applications, LM5116 features current mode control utilizing emulated current-mode technology to minimize noise sensitivity of PWM circuit. Operating frequency is user-programmable up to 1 MHz, with capability to synchronize switching to external clock signal, and output is user-programmable from 1.215-80 V. Unit also offers programmable soft-start and adjustable UVLO.

BI Technologies Corp.    Fullerton, CA 92835-1051
Mar 07, 2007 Packaged in hybrid SIP configuration, 2 W Model MS2378 uses ceramic base and hybrid technology to virtually eliminate heat sinking requirements. Unit features fixed output voltage of 5 V at up to 400 mA, and input voltage range of 12-32 Vdc. Line regulation is 1.0% measured at 16-32 V, 400 mA and load regulation is 1.0% at 100-400 mA. Measuring 1.0 x 0.5 x 0.225 in. with typical lead spacing of 0.10 in., converter mounts vertically or horizontally.

MGR Industries, Inc.    Fort Collins, CO 80524 8457
Mar 07, 2007 Featuring 10.4 in. touch screen and IP65-sealed face, APC Technology(TM) ET41150 is impervious to dust, airborne particulates, and liquids. Touch screen utilizes projective through-glass technology and can be used with or without glove. Designed as drop-in replacement for 3M Dynapro(TM) ET3170, Model ET41150 interfaces with host computers using ANSI-based control code protocols.

Advance Div. of Philips Electronics North America    Rosemont, IL 60018
Mar 06, 2007 Designed for use with 24 W T5 High Output and 24 W Long Twin Tube fluorescent lamp applications, Mark 10® Powerline measures 16.7 x 1.18 x 1 in. and features IntelliVolt® technology for operation at 120-277 V, 50/60 Hz. Ballast delivers 100-5% continuous dimming capability and takes dimming signal directly from power line to eliminate need for additional control wiring. Operation above 40 kHz minimizes risk of interference problems, and THD is less than 10%.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Mar 06, 2007 Offered in 3 power levels, single-output KPS series are RoHS-compliant Class II devices that do not require ground connection. Package sizes vary from 1.38 x 2.17 x 0.79 in. (5 W) to 1.89 x 2.75 x 0.91 in. (15 W), and are rated for operation in convection-cooled environment from 0 to +70ºC. Commonly used output voltages from 3.3-24 V are also offered, with typ efficiency of 82% (24 V models). All configurations accept inputs from 90-264 Vac, 47-440 Hz or 110-370 Vdc.

BEA Lasers    Elk Grove Village, IL 60007
Mar 06, 2007 Available with choice of 60 mm ID adjustable ringlight or 18 in. dual chrome goosenecks with spot lens, stackable Model BEA-150 provides consistently adjustable illumination in laboratory or inspection environments. Cold light source, compatible with existing illuminators and microscopes, incorporates switching 115/220 Vac power supply as well as on/off switch separate from rheostat intensity control. Removable front panel assembly facilitates lamp and filter replacement.

Linear Technology Corp.    Milpitas, CA 95035
Mar 06, 2007 Dual-input Model LTC4097 charges single-cell Li-ion/polymer batteries using constant-current/constant-voltage algorithm with programmable charge current up to 1.2 A from wall adapter or up to 1 A from USB supply. Device features final float voltage accuracy of ±0.6% and is equipped with thermal regulation scheme that maximizes charging rate without overheating. Housed in 2 x 3 mm DFN package, charger includes automatic input power detection and selection.

American Power Conversion    West Kingston, RI 02892
Mar 06, 2007 Available in 46 models for residential and professional market, AV Pro Interconnects are designed for digital coax, optical toslink, composite video, S-Video, component video, DVI, and HDMI. Units have flexible nylon outer jacket, and highly polished chrome or precision molded PVC connectors. Dual link DVI cables are capable of 1,080 p transmission, while analog cables use silver-plated oxygen-free copper for true 75 W impedance.

austriamicrosystems AG    Premstatten   Austria
Mar 06, 2007 AS1110 16-channel LED driver has LED error detection that can be invoked during normal operation. It employs low-current diagnostic mode that applies test current of 0.6 mA to display, with serial data input/output lines providing error information readback. Output ports can withstand up to 15 V, and with external resistor currents can be adjusted from 0.5-100 mA for controlling brightness. Accuracy is ±3% between channels, and device can drive up to 64 independent LED nodes.

Magic Power Technology Inc.    Sunnyvale, CA 94085
Mar 05, 2007 Rated to 400 W, MPM-842P medical grade certified ac-dc power supply is compliant with UL 60601-1 and IEC 60601-1, meets EMI IEC 60601-1-2 Class B, and operates over 90-264 Vac input. It features CE Mark for European Low Voltage Directive (LVD), is SELV-certified, and has 12 V rail. Along with short-circuit, overvoltage, and thermal protection, device offers active PFC to meet IEC 61000-3-2 and IEC 61000-3-3 class D harmonic and flicker standard.

FEI Co.    Hillsboro, OR 97124-5830
Mar 05, 2007 Eliminating boundaries imposed by existing high vacuum systems, DualBeam(TM) Quanta(TM) 3D FEG features high-current ion column for rapid, site-specific cross-sections of samples to reveal sub-surface structures and features. System's electron source optimizes SEM imaging, while electron beam current enables high throughput spectroscopy.
