Lapp USA    Florham Park, NJ 07932
Apr 16, 2007 Complying with NEC Hazardous Area Standard for flexible cables for use in Class 1, Division 1 locations, OLFLEX® POWER CLASS 1 DIV 1 power and control cable also conforms to RoHS requirements and is UL/CSA STOW hard service cordage rated. Oil and crush-resistant cable with exposed run approval is a multiconductor, 600 V, 90 oC, UL Type TC-ER, c(UL) Type TC/CIC that suits applications in all electrical equipment in dry, damp, and wet conditions.

Caplugs    Buffalo, NY 14207
Apr 16, 2007 Manufactured in red low-density polyethylene, PDH Series of hydraulic block plugs feature straight threads with Allen wrench drive socket, making them suitable for flat-faced O-ring hydraulic fittings. PDH Series is offered as alternative to using metal plugs.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 13, 2007 Designed as all-in-one splice, Raychem Cold Applied Shrinkable Joint (CSJA) suits medium voltage polymeric cable applications to 28 kV. Major elements - stress control, insulation, shielding, and re-jacketing sleeve - are pre-expanded on one holdout. Construction is based on silicone rubber joint body, and electrical stress control is provided by factory-molded stress cones and Faraday cage. Kits are available without connector or with copper ShearBolt connector.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Apr 13, 2007 WQVGA(x) LCD driver chip uses MDDI (Mobile Display Digital Interface) technology, which can shift data from parallel to serial between mobile phone modem and LCD panel. MDDI also allows for high-speed transmission of data to LCD panels and high-resolution camera phones. Chip transmits data at maximum of 220 MB/sec, and only requires 7 circuit lines to connect modem and LCD panel.

SANRAD, Inc.    San Mateo, CA 94403
Apr 13, 2007 Utilizing embedded StoragePro software and iSCSI to Fibre Channel (FC) protocol conversion, V-Switch 3400 allows users to attach and manage hundreds of servers to existing FC SANs. All storage capacity is shared and optimized for use across data center, data is centralized for facilitated backup and recovery, and server maintenance and replacement is simplified. LAN- and server-free backup ensures data migration or duplication without server interruption.

Spectrum Control, Inc.    Fairview, PA 16415
Apr 12, 2007 Combining high-power, direct-feed breakers with discrete low-power breaker channels, Hybrid DC SMARTstart provides remote breaker cycling capabilities within same 1RU package for applications with both direct-feed high power and intermediate power requirements. Input voltage range is 38.5-72 Vdc with individual output steady state load range of 4-100 A. Device includes SNMP agent and onboard event log that can track up to 6 months of data.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Apr 12, 2007 Offering SPST NO, SPST NC, and SPDT contact arrangements, RoHS-compliant J102 Series provides 1, 3, and 5 A contact options at 125 Vac or 30 Vdc with coil voltage options of 3, 5, 6, 9, 12, and 24 Vdc. Insulation resistance is 100 MW minimum at 500 Vdc. Measuring 15.5 x 10.5 x 11.25 mm, relay operates from -40 to 155°C and is suited for telecommunications, security, intercom, audio visual, and control board applications.

Linear Technology Corp.    Milpitas, CA 95035
Apr 12, 2007 Standalone, dual-input Model LTC4075HVX manages charging single-cell Li-Ion/Polymer batteries from 2 separate power sources. Using constant-current/constant-voltage algorithm, charger delivers up to 950 mA of charge current from wall adapter or up to 850 mA from USB supply, and provides protection up to 22 V on both inputs. Offered in 3 x 3 mm DFN package, charger is rated for -40 to 85°C operation and is suited for PDAs, MP3 players, and portable medical and test equipment.

Reelcraft Industries, Inc.    Columbia City, IN 46725
Apr 12, 2007 Constructed from impact-resistant composite materials, Series LG medium-duty industrial power and light cord reels can be mounted overhead, on wall, or detached from mounting bracket for complete portability. Units feature adjustable cable stop and circuit breaker that can be reset. Accommodating up to 50 ft lengths of 16/3, 14/3, and 12/3 diameter cable, reels help make workplace safe by keeping electrical cords up and out of harm's way.

RF Industries    San Diego, CA 92126 4202
Apr 12, 2007 Designed for LMR-600® cable, Model RFD-1600-2L2 attaches to cable with solder/clamp method, while Model RFD-1505-2L-2 attaches with crimp/solder method. Both 7/16 DIN connectors are large format 50 ohm interfaces that conform to DIN specification of silver-plated bodies and pins with Teflon® dielectric. Units include combination feature that allows them to be assembled for straight or right angle applications in field.

Northwire, Inc.    Osceola, WI 54020
Apr 11, 2007 Suited for tough plant environments, DataCELL FIELD Profibus DP Cables include ITC/PLTC-ER cables for factory floor installations. They are exposed-run rated, eliminating need for conduit when installed in accordance with NEC amendments. Suited for machinery applications, RoHS-compliant AWM cables feature PUR outer jacket with resistance to oils, chemicals, cuts, and abrasions. Marine/shipboard cables have TPE outer jacket and are Arctic-rated down to -60°C.

Magic Power Technology Inc.    Sunnyvale, CA 94085
Apr 11, 2007 Converting 24 Vdc input to ATX output, 150 W Model MPD-815H features U-channel chassis for efficient heat conduction and reduction of dust into system. It operates over 18-36 Vdc input range and from 0-50°C without performance derating. Designed to fit within 1U height constraints, RoHS-compliant device provides short circuit, over voltage, and thermal protection. It is suitable for variety of dc input industrial applications and embedded devices.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 09, 2007 Equipped with output error detection and output disable, Model XTR111 voltage-to-current converter/transmitter is designed for standard 0-20 mA and 4-20 mA analog signals as well as 5-25 mA signals and voltage outputs. Unit features low supply current of 500 µA, low drift span of 5 ppm/C and 7-44 V supply range. With accuracy of 0.015%, unit is suited for current-mode sensor excitation and as voltage-controlled current source.

W.A.C. Lighting Company    Port Washington, NY 11050
Apr 09, 2007 Crafted of die-cast aluminum, VAMP Track Heads combine smooth cylindrical form with black silicone accents. Closed back eliminates light leaks, while threaded captive accessory holders accommodate up to 2 filter mediums including hexagon louvers, cross-blade louvers, color lenses, or dichroic lenses. Designed with aiming indicators, each track head is lockable and adjustable in field without tools, with 350° horizontal rotation and 90° vertical rotation.

Cree, Inc.    Durham, NC 27703
Apr 09, 2007 Designed for general illumination applications, warm white XLamp® LEDs produce up to 124 lumens at correlated color temperature (CCT) of 3,000 K when driven at 700 mA. Products hold stable color point and are available across range of color temperatures, allowing lighting manufacturers to build LED-based fixtures for indoor home and office applications. To facilitate selection, XLamp XR-E and XR-C power LED families are binned to proposed ANSI standard.

Timbercon, Inc.    Lake Oswego, OR 97035
Apr 09, 2007 Combining fiber and copper cable into single cable assembly, MIL hybrid cables are suited for applications requiring low voltage copper cable and fiber cable to be used within same space or for equipment requiring different cable types. Copper wire can carry power, while fiber can transmit data without risk of EMI. Products are offered in D38999, M28876, and other ruggedized/harsh environment connector designs depending on specific application.

Cablofil Inc.    Mascoutah, IL 62258
Apr 06, 2007 Cablo Snap secures cable bundles to wire cable tray and features extra-wide flared design to eliminate pinched data cables. With built-in teeth to lock it in place, product snaps over cables and is squeezed to reach desired pressure, to unlock, and to add or remove cables. It is available in 4 sizes to accommodate cable bundles from ½-2 in., is UL listed, and meets EIA/TIA requirements.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Apr 06, 2007 Supplied in fully enclosed and touch-safe enclosure, 42 Amp Three Phase Switching Power Supply has universal auto-ranging input for use with 340-550 Vac and provides 24 Vdc output. User-selectable output protection allows for hiccup or constant power protection based on application requirements. Also able to be wired in parallel, product features overload and short circuit protection, power loss alarm, front panel LED status indication, and adjustable output.

Molex Inc.    Lisle, IL 60532-1682
Apr 06, 2007 Optical Industrial Connector System has IP67-rated sealing and is designed for harsh environments. With -40 to +85°C temperature range, it features bayonet-style mechanical latch, and removable connector providing sealing between adapter mating surface, as well as cable exiting connector. Models include single-fiber SC (subscriber connector) and 8-12 fiber MPO (multi-fiber push-on connector).

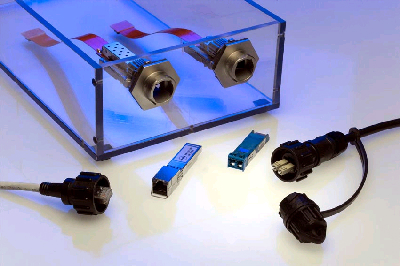

Molex Inc.    Lisle, IL 60532-1682
Apr 06, 2007 Panel-mounted Sealed SFP Assemblies accommodate SFP transceivers and enable transceiver to be removed or replaced from either side. They also enable upgrades from copper Ethernet system to optical transceiver. Receptacles feature IP67-rated hardened user interface for dust and water protection. Made of diecast, units have electronically conductive sealing gaskets that deliver EMI suppression and are compatible with ODVA compliant optical and copper assemblies.
