MGV Stromversorgungen GmbH      Germany
Jun 12, 2007 Designed for 90-264 Vdc mains, Model SPH500 500 W DIN rail power supply offers 24 V/20 A and 48 V/10 A outputs which can be adjusted between 23-29 V and 44-54 V. It is available in 4 different types of output including parallel, boost, fuse, and continuous mode, and each mode is µC-controlled and µC-monitored and can be set using front-panel DIP switch. Other features include compact design, multiple boost, hold-up time, and remote operation.

Endicott Research Group, Inc.    Endicott, NY 13761
Jun 12, 2007 With 2-12 W of output power, W10M Series DC-AC inverter provides input voltage of 8-24 V. Measuring 38.1 x 121 mm, product offers multiple connector options and operating temperature range of -30 to +85ºC. Providing CCFL starts up to 2,400 Vrms, unit is suitable for powering LCDs used in portable applications such as medical diagnostic equipment and handheld measurement instrumentation.

Phihong USA    Fremont, CA 94539
Jun 12, 2007 Designed to IEEE802.3at standards, 60 W midspan (POE60U-560G) and 52 W PoE Gigabit high-power splitter (POE60D) are suited for implementing PoE to power multi-radio access point arrays in business and educational environments. Midspan powers wireless access point arrays and WiMAX access points that require up to 52 W of power, while splitter mounts directly next to powered device to perform connect identification function as well as separate power and data.

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2007 LTC4090 is autonomous linear PowerPath(TM) manager, diode controller, and stand-alone high input voltage battery charger for portable USB devices. Switching front-end topology accommodates power sources up to 38 V, and PowerPath control provides power to device while charging its single-cell Li-Ion battery from USB bus or adapter power supply. Device also features 5x/1x USB current limiting, thermal regulation, and automatic battery recharge.

MEDER electronic, Inc.    West Wareham, MA 02576
Jun 12, 2007 With package height of 0.157 in. that enables parallel board stacking, RM Series features 3 I/O options (4/2, 4/4, 4/1 in-/outputs) on rugged thermoset epoxy overmolded FR-4 substrate. Capable of switching beyond 3 GHz with less than 40 ps rise time, relay switches into range of operations. Leadless SMT design eliminates skewing and co-planarity concerns. Short BGA terminals allow short signal path which makes relay suitable for RF applications and reflow up to 260°C.

Ad Hoc Electronics    Orem, UT 84058
Jun 12, 2007 Eliminating need to cut hole in wall and run wire to new switch location for dimming control installation, wireless plug-in dimmer E8R-D12GP-1 can communicate with self-powered and wireless light switches, and can be installed and configured in less than 5 min. As light switch operates independently from batteries and wires, it can be mounted anywhere on walls within range of dimmer receiver.

D-Link Systems, Inc.    Fountain Valley, CA 92708
Jun 12, 2007 With Layer 3 routing functionality beyond standard RIP and OSPF, Models DGS-3650 (48-ports) and DGS-3627 (24-ports) suit environments that require managed, full-featured centralized point of termination for multiple fiber cable connections. Multi-layer switches provide option to stack at up to 40 GBps, and allow up to 32 units to be managed via single IP address. Units feature support for 12 1000BASE-X and/or 100BASE-FX fiber transceivers, and L2/3/4 QoS and ACLs.

Next Generation Power Engineering, Inc.    Jacksonville, FL 32246
Jun 12, 2007 Featuring radiator-cooled, heavy-duty Kubota engine, Model UCI3-8.0 industrial 8 kW diesel gen-set includes 3-cylinder vortex combustion system. Running at mid-speed, gen-set operates at 2,800 rpm. Suited for mobile or stationary applications, product includes resilient engine mounts, measures 23 x 18.5 x 20 in., and has dry weight of 310 lb. One-side maintenance provides access to all service points.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 11, 2007 Suited for control of liquids, specialty gases, or air in high-purity and sanitary processes, inline NuTec® FS2000L employs solid-state, temperature-compensated thermal mass flow sensor that installs flush inside pipe ID. General-purpose switch is available with electropolish finish of 20 or 10 Ra for service in line sizes from 0.5-2.0 in. It is accurate to ±3% of alarm set point +0.25% of set point range over any 100°F temperature span. Response time is adjustable from 0.5-2.5 sec.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jun 11, 2007 Offered in Pb-free 12-pin TSOPJW package, AAT4620 is P-channel current-limited MOSFET power switch for high-side load switching applications in PC modem cards. It integrates all circuitry required to limit current, protect PC Card connector, continuously charge capacitor, and notify system when it is ready for use. Along with integrated reverse blocking protection, IC features current limiting, which lets capacitor charge until it reaches 98% of its final value.

Pericom Semiconductor Corp.    San Jose, CA 95131
Jun 11, 2007 Providing Vcc operating range of 1.5-2.0 V, Signal Switches operate at PHY layer, and are used for I/O slot configuration in volume workstation, server, desktop video and gaming, storage, and telecom market segments. Model PI2PCIE2412 is 2-lane switch that provides 2:1 mux/demux operation via single select control, while Model PI2PCIE2422 provides bypass capability in addition to 2:1 mux/demux operation. They come in Pb-free, 42-contact 3.5 x 9 mm TQFN package.

GlobTek, Inc.    Northvale, NJ 07647

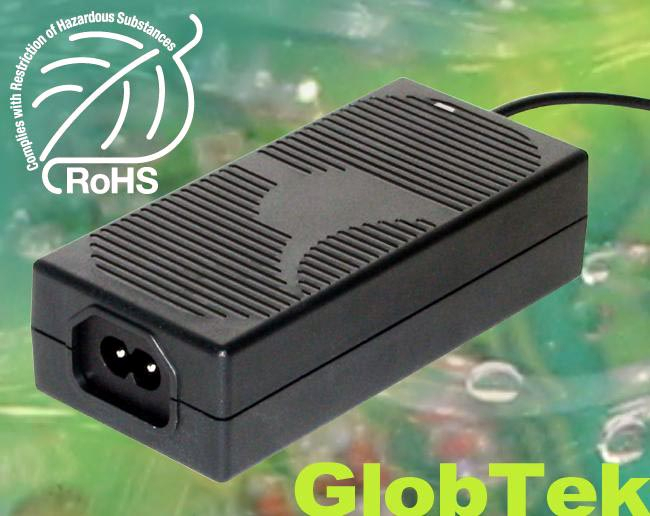

Jun 08, 2007 European approved Desktop Switching power supplies from 12-24 Vdc are suited for household and similar electrical appliances. RoHS compliant supplies feature polycarbonate enclosure, thermal conduction cooling, regulated 50 W output with low ripple, and stand at 119 x 60 x 32 mm. Units accept universal input from 100-250 Vac, and comply with EMI/RFI regulations, EMC directives, and CE and FCC Class B for grounded Class I, or Class II ITE applications.

Bryant Electric    Milford, CT 06460 2465
Jun 08, 2007 Suited for industrial, commercial, and construction environments, 15 A in-line cord sets come in single- and triple-tap configurations and can be used indoors or outdoors. Portable ground fault products feature heavy-duty construction and NEMA-3R rating. LED indicator provides at-a-glance power and fault status, while recessed test and reset buttons help user avoid accidental actuation during handling and use. Products are offered with automatic reset or manual (safe-start) reset.

Linear Technology Corp.    Milpitas, CA 95035
Jun 08, 2007 Housed in 3 x 3 mm DFN package, Model LTC3559 integrates standalone Li-Ion/Polymer battery charger with 2 synchronous buck regulators. Linear battery charger can deliver up to 950 mA charge current from wall adapter supply, or up to 500 mA charge current from USB supply. Final battery float voltage is accurate to ±0.4%. Featuring 100% duty cycle operation, buck regulators deliver output currents up to 400 mA each, with programmable output voltages as low as 0.8 V.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 08, 2007 PresencePLUS® ring lights connect directly to PresencePLUS vision sensors or external power supply. Using 3 tiers of bright LEDs, 150 mm lights provide illumination of inspected parts by enhancing contrast of surface features. They include 2 m attached cable with threaded 3-pin Pico-style pigtail quick disconnect for direct connection to P4 sensor. Flying leads are also available to connect lights to 24 Vdc power source.

Avago Technologies    San Jose, CA 95131
Jun 08, 2007 With input drive as low as 2 mA and switching speed less than 0.5 ms, ASSR-301C/302C and ASSR-401C/402C Solid State Relays provide off-state capacitance less than 15 pF and off-state leakage less than 10 nA. Units operate from -40 to +85°C with transient immunity greater than 1 kV/µs. Models ASSR-301C and ASSR-401C are single-channel, 1 Form A relays that come in SO4 package, while Models ASSR-302C and ASSR-402C are dual-channel, 2 Form A relays with DIP8 footprint.

EcoLEDs.com    Tucson,, AZ 85718
Jun 07, 2007 EcoLEDs 7x1W LED uses 7.7 W of electricity and produces 382 ftc of light on surface from 24 in. away. Manufactured with aluminum alloys and American-made LED components, it produces no IR or UV radiation and is suited for use in museums, medical offices, and commercial applications. It also runs at less than 127°F, enabling safe use in homes.

Linear Technology Corp.    Milpitas, CA 95035
Jun 07, 2007 Housed in 4 x 5 mm package, LTC3555 USB Power Manager and Triple Step-Down DC/DC Converter incorporates range of power management functions, including switching PowerPath(TM) manager, stand-alone battery charger, 3 monolithic buck regulators, and always-on LDO, controlled via I2C interface. PowerPath control manages power flow between AC/DC wall adapter, USB port, Li-Ion/Polymer battery, and system load, while providing up to 1.5 A to system from wall adapter.

OPTILED Technology, LLC    Henderson,, NV 89052-4395
Jun 07, 2007 Featuring GU5.3 base, Model MR-16 Six Star LED produces more than 150 lumens of homogenous light at 60° beam angle. It also features overall power of approximately 6 W and life of more than 35,000 hrs. Suited for accent or display lighting in museum, retail, residence, and entertainment applications, product is designed to handle variations in voltages that noisy power supplies can produce.

Phaseda LLC    Beaverton, OR 97005
Jun 07, 2007 Available in both single and double pole versions, oval shape rocker switches are UL, cUL, and VDE approved. Series RL3-6 multi-functional SP has UL rating at 16 A 125 Vac and 1/3 hp 125 Vac for high power and motor applications, and standard 10 A 125 Vac for small appliances and normal usage. Series YSR-34 DPST oval rocker switch comes with UL rating at 16 A 125 Vac, ½ hp 125 Vac. All units feature illuminations in red, green, or amber.
