Safety Technology International    Waterford, MI 48327
Sep 04, 2007 Available for flush- and surface-mount installations, multipurpose Stopper® Station features Mini Weather Stopper® polycarbonate protective cover, with weather gaskets, that protects button from damage or harsh environments. Pneumatic mushroom button, available in 5 colors, opens or closes circuit and has timed delay (2-60 sec) before reset. Designed to prevent accidental activation, switch has stainless steel backplate and does not require electricity to operate.

Fibox Enclosures    Glen Burnie, MD 21061
Sep 04, 2007 Made from injection molded polycarbonate, ARCA enclosures are available in interior sizes ranging from 6.00 x 6.00 x 4.00 in. up to 14.00 x 12.00 x 7.00 in. NEMA 4X rated enclosures come with screw cover, hinged screw cover, or hinged enclosure with several latch options. Covers feature overlapping design that protects formed-in-place polyurethane gasket. Mounting plates and fixed and hinged inner panels are offered in metal/non-metallic versions.

Pickering Interfaces    Wobum, MA 01801
Sep 04, 2007 Using high density DIN41612 connectors, Model 40-566 is available in variety of 2 pole matrix configurations ranging from 55 x 4 to 385 x 4, and each version supports 2 A hot switching and voltages up to 250 Vac. BRIC4 form factor occupies 4 slots of PXI chassis and supports up to 165 x 4 2-pole matrix while BRIC8 supports up to 385 x 4 2-pole matrix and occupies 8 PXI slots. Unit is supplied with VISA and IVI drivers and can be operated in any PXI chassis.

LEDtronics, Inc.    Torrance, CA 90505
Aug 31, 2007 Combining LED technology, standard 25 mm Edison screw bases, and light optimizing designs, PAR20 Bulbs are available in 15, 20, and 22° light emitting angles in 120 Vac. Units measure 3.50 in. long and have 2.53 in. diameter, making them suited for small spotlighting tasks, artwork accenting, and recessed lighting. With power draw of 2.5 W, bulbs come in 3,000 K Warm White and XWarm White, 7,000 K Cool White, 633 nm Super Red, and 525 nm Aqua Green.

GE Company GE Industrial Systems    Plainville, CT 06062
Aug 31, 2007 Suited for commercial office, hospital, retail, hotel, and school settings, ISB Integrated Switchboard includes power panels up to 1,200 A, lighting panels 400 A and less, A-Series lighting control panels, transformers 150 kVa and less, lighting contactors 400 A and less, and back mounting plates. Speedi Integrated Switchboard Configurator allows authorized distributors and sales people to configure switchboard, create drawings, and order directly from field.

WAGO Corp.    Germantown, WI 53022
Aug 31, 2007 Designed to meet NEC 410.73(G), CEC 30-308(4), and CSA/UL Standard 2459 for Insulated Multi-Pole Splicing Wire Connectors, 2-pole LUMI-NUTS(TM) 873 Series can daisy-chain power from one ballast to another, eliminating additional connectors. Integral locking latch prevents accidental disconnection of mating halves, while touchproof design eliminates need to disconnect power. Unit features color-coded molding and on-unit markings that reduce risk of wiring errors.

Dolan-Jenner Industries, Inc.    Boxborough, MA 01719
Aug 31, 2007 Fiber-Lite® DC950H Machine Vision Fiber Optic Illuminator is 150 W quartz halogen regulated illuminator that has DC regulated output, fast lamp response, and 0-5 Vdc remote intensity control interface with linear voltage adjustment. Made of stackable heavy duty steel housing with mounting ability, it can be operated remotely and offers remote notification of lamp failure to decrease downtime. Illuminating options include color filtering, manual iris, and analog/digital remote interface.

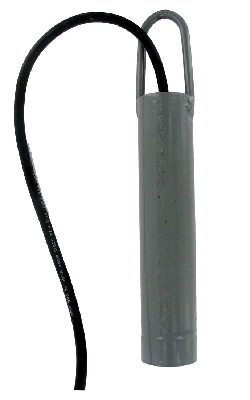

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Aug 30, 2007 Featuring airtight, dust-tight, waterproof design, Series LTS is designed for use where bulk material to be sensed is exposed or open. Units contain SPST, normally closed switch and feature probe activation angle of 25° from vertical. Typical applications include high or low level detection in large hoppers, silos, crushers, or trippers, as well as high level control under stackers, and detection of plugged conditions at conveyor transfer points.

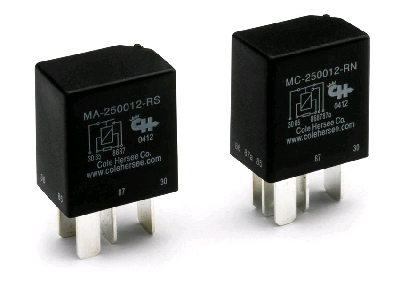

Cole Hersee Co.    Boston, MA 02127 2467
Aug 30, 2007 Offered in Form A and Form C changeover, MicroRelay Switches act as remote switching devices to turn on or off heavy current circuit. Units are weather resistant and have contacts made from silver alloy to extend life. Switches are suited for variety of industrial vehicle applications such as lamp control, horns, power windows, fuel pumps, fans, and lift gates.

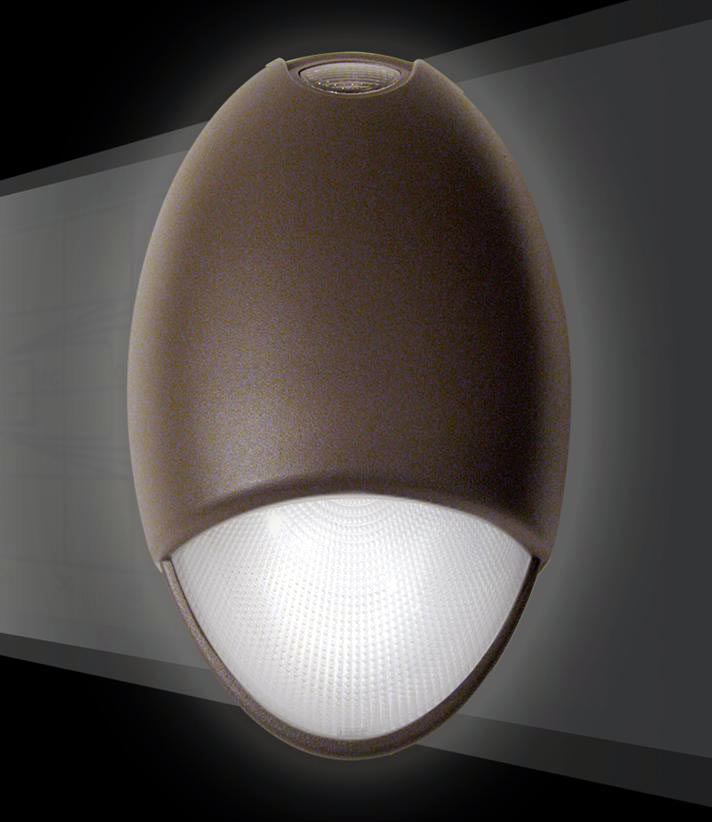

MULE LIGHTING, INC.    Providence, RI 02905
Aug 30, 2007 Available in nickel, black, dark bronze, and white, Series MAKO-3 provides minimum 90 minutes illumination upon loss of ac power. UL 924, NFPA 101, NFPA 70-NEC, and OSHA compliant series comes with two 6 W Xenon lamps, polycarbonate lens, mirrored reflector, and 32-122°F and 40-122°F temperature ratings for standard and cold weather options, respectively. Nickel-cadmium battery is standard, as is dual-voltage input capability of 120 or 277 V.

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 29, 2007 Providing grounding for solar panels and related products, SolKlip Connectors have 4 points of electrical contact and are suited for use with 12-10 AWG uninsulated copper wire. They can be installed with pliers and Phillips screwdriver and can be reused several times. Made from high conductivity copper alloy, Solar AWG Cable provides UV resistance in outdoor PV and solar panel installations. It is available in 500 or 1,000 ft reels in 10, 12, or 14 AWG wire size.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 29, 2007 Supplied in 2 x 2 mm 8-pin µDFN package, MAX4943-MAX4946/MAX4949 devices implement battery charging from wall adapter while providing overvoltage protection up to +28 V. Products integrate nFET switch and provide overvoltage trip levels from 4.56-8.9 V as well as undervoltage trip levels from 2.45-4.15 V. Along with thermal-shutdown protection and 1.7 A (typ) current-limiting function, additional features include FLAG signal, ±15 kV ESD protection, and 30 ms startup delay/retry times.

Power-One, Inc.    Camarillo, CA 93012
Aug 29, 2007 Measuring 2.4 x 0.55 x 1.1 in., ZY8160 DC-DC converter provides open-architecture digital power management to data server, storage, and communications applications. It enables complete elimination of external components for sequencing, tracking, protections, monitoring, and reporting when used with ZM7000 Series Digital Power Managers, and all parameters are programmable via I²C communication bus. Active digital current sharing is standard.

FCI    Etters, PA 17319
Aug 28, 2007 Featuring 0.3 mm pitch, Model YLL-D provides 0.3 mm spacing, 13-45 down-side contact positions, and max height of 1.0 mm, while Model YLL-U provides 0.3 mm spacing, 13-45 upper-side contact positions, and max height of 1.05 mm. Both have surface mount leads, and front flip-type actuator for error-free cable insertion. Gold plating is used in contact area to prevent whiskering issues. Applications include mobile phones, digital still and video cameras, and displays.

PowerGate LLC    Santa Clara, CA 95054
Aug 28, 2007 Suited for motor-based applications, Mean Well PID-250 Series features V1 output of 12/24/36/48 Vdc rated for 180-225 W of continuous power and up to 170% peak load. V2 output is 5 V at 5 A for logic control. Each output is isolated and regulated with separate remote on/off control of V1. Featuring open-frame design and convection-cooled operation, power supplies provide efficiencies up to 86% and include short circuit, overload, over voltage, and over temperature protection.

Marktech Optoelectronics    Latham, NY 12110
Aug 28, 2007 With InGaN/Phosphor technology and 120º viewing angle, Model TLWK1100B LED offers efficient operation with maximum power dissipation of 114 mW and typical forward voltage of 3.2 V. Designed for use with automated lead-free production lines, device is compatible with reflow soldering processes at temperatures up to 260°C, and features -40 to 100ºC operating temperature range. It is available in 3.2 x 2.9 x 1.9 mm PLCC2 surface-mount package.

Marktech Optoelectronics    Latham, NY 12110
Aug 28, 2007 Providing flux of 30 lm from drive current of 250 mA, Model TL12W01-D surface mount LED delivers typical performance of 35 lm/W. It features typical forward voltage rated at 3.4 V, -40 to 100°C operating temperature range, and compatibility with reflow soldering processes at temperatures up to 260°C. Device comes with 110º viewing angle, and is suited for broad range of commercial, domestic, industrial, and automotive applications.

Pass & Seymour/Legrand    Syracuse, NY 13221
Aug 27, 2007 DuraShield(TM) employs integral oversized rubber gasket to protect electrical components and seal wall box opening, while rubber curtains let plug blades in and seal out water, dust, and insects. UL-certified GFCI resists corrosion with nickel post-plated mounting strap, and weather-resistant Nylon 66 face provides durability and resists cracking from UV degradation and cold temperatures. SafeLock(TM) Protection shuts off power if there is ground fault and if GFCI is miswired or fails.

C&D Technologies, Inc.    Tucson, AZ 85706
Aug 27, 2007 Suited for industrial, medical, and telecom applications, UQQ converters supply up to 100 W of usable power and come in standard quarter-brick package and pin-out. They feature 9-36 V (12/24 Vin nom) or 18-75 V (24/48 Vin nom) dc inputs, efficiencies up to 91%, optional base plate with total package below 0.5 in., and UL/EN/IEC safety approvals. Available models are 3.3 V/25 A, 5 V/20 A, 12 V/8 A, 15 V/7 A, and 24 V/4 A with basic grade input to output isolation of 2,250 V.

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 24, 2007 Supplied in SC-70 package, RoHS-compliant M/A-COM MASW-008075 is suited for 802.11b/g applications with bias of 3.0 V. It has typ insertion loss of 0.40 dB while achieving isolation of 25 dB and P1dB of 28 dBm. Diversity switching can be achieved by connecting 2 switches back-to-back on PCB. Fabricated on 0.5-micron, gate-length GaAs process, product features full passivation.
