Engstler Elektrronik Entwicklung GmbH    63868 Grosswallstadt   Germany
Sep 07, 2006 Offering 100 brightness settings per color channel, high resolution SB6432 keyswitch includes extended command set and 64 x 32 pixel display resolution. RGB-backlit switches allow control of LCD bias, refresh, and drive current, and backlighting and display can be turned off without loosing bitmap data. Switches self-initialize and self-generate clock signal when no data transfer is taking place.

Schaffner EMC, Inc.    Edison, NJ 08837
Sep 07, 2006 Featuring minimum of 100 db insertion loss up to 6 GHz and EMI attenuation up to 6 GHz, ACARA(TM) filtered electrical power connectors have capacitance values from 220-2,100 nF. UL-listed and EN-approved units have ability to prevent RF emission and protect sensitive computers, switchgear, and cellular equipment. Positive latch prevents accidental unmating, but allows for immediate power disconnect for emergency service.

FCI Electronics    Etters, PA 17319 9769
Sep 07, 2006 SOFIX® I/O Connectors include right-angle PCB headers and cable connectors for distribution of signals or power. They are fully shielded down to PCB level and support wide range of cable types and diameters. SOFIX 4 x 6 signal connectors feature densities up to 96 lines per 10 cm on 20 mm slot pitch and 25 mm connector pitch, while 2 x 4 connectors provide 45 lines per 10 cm on 15 mm slot pitch and 17.5 mm connector pitch.

HellermannTyton, A Spirent Co.    Milwaukee, WI 53224
Sep 07, 2006 Offering tear resistance for long-term applications, TipTags non-adhesive markers are cross laminated polyolefin tags with die cut cable tie slots for mechanical fastening. Thin profile, pre-cut sensor slots ensure that markers print in any thermal transfer printer, and tags are perforated in bandolier for easy kitting and access to individual markers. Halogen-free, RoHS-compliant products meet Mil-Std 202G, Method 215J, and SAE-AS81531 specifications.

NKK Switches    Scottsdale, AZ 85260-3420
Sep 07, 2006 Ultra-miniature G Series and Subminiature B Series are process compatible and designed to clearly indicate circuit status. Actuators are clear polyamide, allowing LED color to fully illuminate through entire actuator. Rated 0.4 Va at 28 Vac/dc max, both types are available in single-pole maintained circuit options of ON-ON and ON-OFF-ON. Sliding twin crossbar contact mechanism ensures positive detent, while .100 x 100 in. PC terminal spacing enables high-density mounting.

C & D Technologies    Mansfield, MA 02048-1151
Sep 07, 2006 With MTBF of 1.4 million hrs, quarter-brick UCQ series includes 24 V input version with 3.3 V, 35 A output; and two 48 V input versions with output of 3.3 V, 30 A and 5 V, 20 A. Synchronous-rectifier topology offers 93% efficiency, line and load regulation down to ±0.2%, 35 mV peak-to-peak noise, and 150 µS step response. Modules operate between -40 and +70ºC with no derating. Full isolation to 2,250 Vdc meets basic requirements of UL/EN/IEC60950.

C & D Technologies    Mansfield, MA 02048-1151
Sep 07, 2006 Model D1U 1600 front-end ac/dc power supply delivers up to 1600 W at 220 Vac and 1200 W at 110 Vac, while Model D1U 1200, with 91% efficiency, offers up to 1200 W at 220 Vac and 900 W at 110 Vac. Using high-density dc/dc packaging techniques, units maximize space and reduce heat generation in systems. Features include N+1 redundancy, hot-swapability, active current sharing on main output, I2C bus, and over-voltage, over-current, and over-temperature protection.

Esterline Leach International    Buena Park, CA 90622
Sep 06, 2006 Microprocessor-controlled Secondary Power Distribution Units (SPDUs) utilize programmable, multi-channel Solid-state Power Controllers (SSPCs) with dual redundant power supplies and dual redundant data bus. Featuring continuous built-in-testing, 6.75 lb products distribute 28 Vdc power to aircraft loads and provide protection for wiring. They can receive input power from multiple sources and control loads based on commands received through data bus or by discrete signals.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 06, 2006 Designed for use in highly polluted environments, high-voltage HVT-Z includes non-tracking tube and co-extruded stress control grading layer, which uses ceramic semi-conductor technology. Heat-shrinkable tubing conforms to many varying surfaces of termination and provides moisture sealing and stress control. Several configurations are available in voltage categories of 5-8 kV, 15 kV, and 25-35 kV. HVT-Z is fully qualified per IEEE-48, Class I terminations.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 06, 2006 Cosmic 927R Micro-Cable Stripper strips conductors from 36-10 AWG, and features controls allowing stripping diameters to be set in 0.1 mm increments. Machine is capable of stripping lengths from 1-25 mm, with partial lengths of 1 mm possible. Device features 1.5 sec maximum cycle time, and is suited for use with Teflon® insulation, rubber, and various wire and cable insulations and jackets.

Dialight Corp.    Farmingdale, NJ 07727
Sep 06, 2006 Designed to mount directly into industry-standard sockets for replacement of miniature incandescent lamps, variable input 586 VIP Series delivers 100,000 hr service life. LEDs utilize VIP technolgy to provide 6-36 Vdc variable operation with constant light output. Incorporating AlInGaP and InGaN technologies, RoHS-compliant units draw 10 mA and are available in red, green, yellow, blue, and white with intensities from 200 mcd for blue lamps to 1,500 mcd for green.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Sep 06, 2006 Offering 2 actuator options and 4 switch functions, BSR Series provides electrical ratings from 0.4 Va for dry circuit applications to 3 A for power applications in both SPDT and DPDT. Unit is available with silver-plated, gold-plated, and gold over silver plated contacts. Case and bushing are made of UL 94VO flame retardant material. Termination options include PC pin, horizontal-mount or vertical-mount right angle PC pin, and PC pin with support bracket.

Emerson Network Power    St. Louis, MO 63136
Sep 06, 2006 Configurable as tower or rack-mount model, 10 kVA Liebert GXT delivers online double-conversion UPS (uninterruptible power supply) protection for up to 8,000 W of equipment in 6U of rack space. Modular system design incorporates dual inverter, serial communications, and Intellislot(TM) communications port. Design allows for unrestricted ventilation and features automatic frequency detection, self-diagnostics, and remote shutdown capability.

AccelRate Power Systems, Inc.    Vancouver V6E 4G1  Canada
Sep 06, 2006 Designed for use with AccelRate® SC Chargers and other chargers using AccelRate High-Speed technology, AS-350 Sequencer enables 1-4 batteries to be connected to single high-speed charger, which then sequentially charges each battery. If extra time is available, unit sequentially equalizes each battery as well. Charger technology provides full state-of-charge to forklift truck batteries in 2 hours or less, without generating detrimental heat.

Alcan, Inc.    Montreal, QC H3A3G2
Sep 06, 2006 Mitigating effects generated by harmonic currents in electrical systems, CSA-approved, multi-conductor armoured N2(TM) NUAL® type ACWU-90 cable with 2 full size neutral conductors is flexible, interlocked aluminum armored, and PVC-jacketed. It has five 90°C wet-rated, cross-linked, polyethylene insulated NUAL conductors and 1 bare NUAL bonding conductor. Cable is factory-assembled, eliminating need for conduit and conduit fittings.

Meyda Tiffany    Yorkville, NY 13495
Sep 05, 2006 Lucerne Collection, comprised of crystal decorative lighting fixtures, includes wrought and gold washed iron chandelier, mini pendant, and one- or 2-light wall sconces. Hand-crafted with gold detail, each fixture is draped with strings of crystal jewels and pendalogs. While mini pendant features white alabaster shade, Lucerne Chandelier (No. 80110) is equipped with 8 lights to promote optimal visibility.

ATEN Technology, Inc.    Irvine, CA 92618
Sep 05, 2006 Two-port Model VS0202 provides output to 2 video sources from 2 computers, while 4-port Model VS0204 provides output to 4 video sources from 2 computers, and 4-port Model VS0404 delivers output to 4 video sources from 4 computers. Suited for education, commercial, and security environments, all models are audio enabled and feature up to 300 MHz video bandwidth as well as duplicate video signals to up to 210 ft. Users can toggle between video sources via front panel push buttons.

Exar Corp.    Fremont, CA 94538
Sep 05, 2006 Composed of 6 devices with either 16-, 32-, or 64-byte FIFO, XR16M and XR68M series 1.8 V UARTs feature fractional baud rate generator, automatic sleep mode, automatic hardware and software flow controls, wireless infrared encoder/decoder, and selectable TX and RX FIFO trigger levels. Series is compliant with Intel and Motorola bus interfaces, and devices are supported by serial port software drivers for various operating systems.

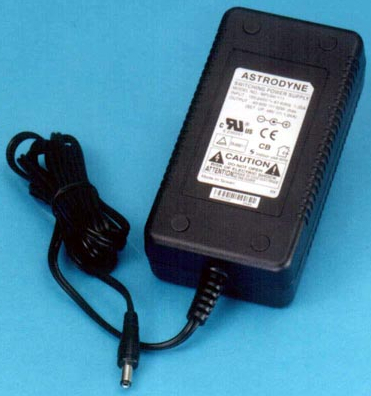

Astrodyne Corp.    Mansfield, MA 02048
Sep 04, 2006 With typ operational efficiency of 83%, medically approved MPU50 Series of 30, 50, and 100 W desktop power adapters includes models with single, dual, and triple outputs in voltages from 2.5-48 Vdc. Series meets VDE/FCC Part 15/Level B EMI/RFI requirements and offers over-voltage and over-current protection. Along with 90-264 Vac auto-switching universal input, models offer Line/Load Regulation of ±3-7%, ripple/noise of 0.5% typ, and I/O isolation of 4,000 Vac.

PowerLight Corp.    Berkeley, CA 94702
Sep 04, 2006 Deployed without rooftop penetration, pre-engineered PowerTilt(TM) modules tilt at 10° angle for maximum exposure to sunlight and optimal energy capture for subsequent storage or output. Each module weighs less than 4 lb/ft² and interlocks for secure installation. Able to resist winds up to 120 mph, module can adapt to requirements of any rooftop and is also deployable on non-soil ground sites. Unit operates with existing electrical network.
