Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148
Jan 09, 2008 Available with 18, 30, 48, and 60 I/O, ModICE Modular Integrated Connector Enclosure System with breather offers design options for applications that will experience thermal or altitude cycling. Membrane vents are designed to equalize pressure differential between enclosure and ambient while maintaining IP67 and IP69K seal ratings. Enclosure is suited for on highway, agricultural, construction, and recreational applications.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jan 09, 2008 High-brightness, adjustable constant current LED driver IC operates from input range of 6-40 V. Linear constant current output can be adjusted to deliver up to 350 mA in typical application. ENABLE input is used to drive LED, which can also be driven with PWM input for dimming of LED brightness. IC is fully protected against shorts to ground or to battery and includes thermal shut-down circuit that disables it if junction temperature reaches 165°C.

Schaffner EMC, Inc.    Edison, NJ 08837
Jan 09, 2008 Featuring earth link choke, Model FN9222E targets applications requiring optimized attenuation performance or additional attenuation on ground wire. Unit is suited for max continuous operating voltage of 250 Vac, and is rated from 1-15 A at 50°C with operating frequency of DC-400 Hz and temperature range of -25 to +85°C. Featuring traditional screw mounting, filter supports electrical, household appliance, test and measurement, and electric data processing applications.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jan 09, 2008 Operating from AC adapter or USB port, Model AAT3663 features Digital Thermal Loop charge reduction circuit, which monitors internal die temperature and gradually steps down charge current to avoid thermal shutdown. Device operates across 4.0-13.2 V input range and supports user-programmable charge current from 100 mA to 1 A via external resistor. Programmable charge termination current feature sends device into sleep mode if charging current dips below pre-defined threshold.

Pass & Seymour/Legrand    Syracuse, NY 13221
Jan 09, 2008 Weather-Resistant Receptacles suit residential and commercial applications subject to 2008 National Electrical Code® (NEC) requirements, where all non-locking 15 and 20 A, 125 and 250 V receptacles installed in wet and damp locations must be weather-resistant. Products are cULus-listed and include duplex, decorator, and specification grade receptacles in commercial and residential versions. Residential varieties are tamper-resistant.

Power-One, Inc.    Camarillo, CA 93012
Jan 09, 2008 Providing 25 A, user-adjustable 16.8-32.2 V output, Model FBA48T25280 700 W DC-DC converter delivers 126 W/in.³ power densities for RF amplifier applications. Unit features active current sharing for load sharing within ±10%, remote differential output voltage sense, -40 to 100°C operating temperature range, 36-75 V input range, 7-9 V at 20 mA auxiliary output, capability to start-up into pre-biased loads, and on-board input differential LC-filter.

Power-One, Inc.    Camarillo, CA 93012
Jan 09, 2008 Series SQE48T eighth-bricks provide single outputs of 1.2 V at 50 A, 1.5 V at 40 A, 1.8 V at 40 A, and 2.5 V at 40 A. Through-hole-mounted dc-dc converters feature 36-75 Vdc inputs, 2,250 Vdc input-to-output isolation, basic insulation, start-up into capacitive loads, and ability to withstand 100 V input transient for 100 msec. Units are available with both 6-substance and lead-solder-exempted RoHS compliances.

Alpha & Omega Semiconductor, Inc    Sunnyvale, CA 94085
Jan 09, 2008 Suited for powering wide range of networking, consumer, and industrial applications, Models AOZ1210 and AOZ1212 are rated at 2 and 3 A, respectively. Current-mode PWM step down regulators come with integrated high side NMOS switch, and feature discrete MOSFET technology that enables RDS (ON) as low as 70 mW. Duty cycle can be adjusted from 6-85%, allowing wide range of output voltages with 0.8 V minimum output voltage.

Vaisala, Inc.    Woburn, MA 01801 1008
Jan 09, 2008 Offering 3-stage protection against surge currents up to 10 kA entering through power and signal cables, Model WSP150 features 4 channels, 2 of which are dedicated to power lines and 2 for data lines. Compact transient overvoltage suppressor also includes noise filtering against HF and RF interference. It can be used when wind and weather instruments are installed on top of high buildings or masts and in open grounds, or anywhere where there is elevated risk of lightning.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Jan 09, 2008 YR Series power rocker switch uses heavy-duty silver alloy contacts to achieve rating of ¾ hp 125 Vac. Available in wide variety of colors, lighted version employs neon bulbs for use at 125 or 250 Vac, while non-lighted family includes single-throw and double-throw devices in maintained and momentary action. All standard versions are UL, CSA, and VDE approved, and carry CE mark. Panel cutout is 30 x 22 mm and maximum operating temperature is 105°C.

Power-One, Inc.    Camarillo, CA 93012
Jan 09, 2008 Available in shelf, rack, and cabinet configurations, 48 V Guardian(TM) Series DC power systems deliver power densities exceeding 27 W per cubic in. or 25 kW per one rack unit. Their rectifier subsystems feature wide-range 90-300 Vac input with high-input-voltage shutdown and ability to withstand loss of phase or neutral without damage. Rack and cabinet systems can deliver up to 500 A with up to 720 A-hr of back-up battery capability.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jan 08, 2008 Housed in 2 x 2 mm, 10-lead MLF® package, dual 400 mA Model MIC23250 integrates 2 synchronous rectified dc-dc converters, which eliminates need for external MOSFETs. Device accommodates input range of 2.7-5.5 V and has fixed preset output voltage options down to 0.72 V. Under normal loads, unit features 4 MHz CCM PWM operation mode and automatically transitions to variable frequency Hyper Light Load(TM) operation mode during light load conditions to maintain efficiency.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Jan 08, 2008 Serial RapidIO-based central packet switches (CPS) are capable of routing packets for distribution among DSPs, processors FPGAs, other switches, or any other serial RapidIO-based devices. They can also be used in serial RapidIO backplane switching. Model CPS-16 offers support for up to 16 ports of 1x or 4 ports of 4x (or combinations of 1x/4x), while Model CPS-12 provides 12 ports 1x or 3 ports 4x (or combinations), and Model CPS-8 provides 8 ports 1x or 1 port 4x with 4 ports 1x.

Catalyst Semiconductor    Sunnyvale, CA 94089
Jan 08, 2008 Suited for digital photo frames and other backlighting applications, Model CAT4139 boost converter provides switch current up to 750 mA and drives LED strings up to 22 V. It uses 1 MHz fixed frequency switching architecture to enable low noise applications, and features high voltage CMOS output stage that allows 5 LED strings to be accurately biased and regulated from low voltage input supply. Designers can control LED dimming using dc voltage, logic signal, or PWM signal.

LEDtronics, Inc.    Torrance, CA 90505
Jan 08, 2008 Engineered to handle variations in voltages accompanying noisy/dirty ac or dc power supplies, LED MR16 bulb eliminates potential burnout from incoming voltage that is higher than lamp's capacity. Unit delivers light outputs of 102.9, 120.6, and 140.7 lumens using 2.6 W with 12 Vdc, 3.7 W with 12 Vac, 3.8 W with 24 Vdc, respectively. Bulb features 3 LEDs, and is offered in Cool White (6,500 K) and Warm White (3,000 K) color temperatures with 61° beam angles.

GC Electronics    Rockford, IL 61102

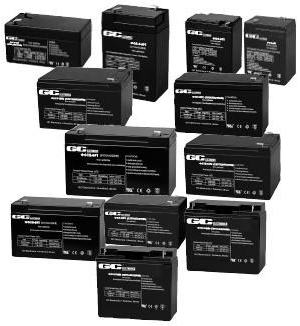

Jan 07, 2008 Available in 75+ models, sealed lead-acid batteries are offered with outputs of 4, 6, 12, and 24 V in capacities from 1.2-230 Ah. These UL- and CE-approved products are offered in 6 terminal types with flame-retardant cases. Applications include backup for uninterruptible power supplies (UPS), security, programmable logic controllers (PLCs), emergency lighting, and communications equipment.

C&K Components    Newton, MA 02458
Jan 07, 2008 Featuring actuation height of .098 in., miniature JSM Series is available in single-, double-, and triple-throw configurations with momentary and maintained contacts, and G and J surface-mount terminations. One-pole units feature electrical rating of 0.3 A at 4 Vdc and minimum electrical life of 10,000 cycles. Designed to operate from -10 to +60°C, lead-free switches are process compatible and withstand shock and vibration of 10-55 Hz 1 min sweep.

C & M Corporation    Wauregan, CT 06387 0348
Jan 07, 2008 Made for Point-of-Sale (POS) bar code scanners that are cradled in fixed upright position but can also be removed for scanning distant items, cord assembly offers flexible 90° angle strain relief connector for scanner's handle attachment. This eliminates stress to connection when scanner is in its cradle and also enables full mobility for non-fixed (out-of-cradle) position scanning.

V-Infinity    Beaverton, OR 97005
Jan 07, 2008 Measuring 2.28 x 2.4 x 0.25 in., VHB200 W Series 200 W half-brick dc-dc converters deliver up to 89% efficiencies, and suit telecom, industrial, and battery applications. With rated input range of 18-75 Vdc and outputs of 3.3, 5, 12, 15, and 24 Vdc, converters also feature 1,500 Vdc isolation voltage, fixed switching frequency, and monotonic start-up. Other features include remote on/off and under-voltage, over-temperature, over-voltage, and over-current protection.

Fairchild Semiconductor    San Jose, CA 95134
Jan 07, 2008 Models FSQ0765R and FSQ0565R feature valley switching, hybrid control, and inherent frequency modulation, providing reduced switching losses by up to 500 mW and EMI by up to 5 dB over hard-switch converter topologies. They offer protection against overload, over-voltage, abnormal over-current, internal thermal shutdown with hysteresis, output short, and under-voltage lockout. Green FPS units are suited for applications such as LCD TVs, PDP TVs, DVD RW, and set-top boxes.
