Emerson Network Power    St. Louis, MO 63136
Mar 16, 2007 Operating from 38-55 Vdc supply, 642 W quarter-brick Model IBC60 and 300 W eighth-brick Model IBC32 are suited for powering multiple, downstream, non-isolated POL converters in distributed power systems with 9.6 V intermediate bus architectures. They have fixed 5:1 conversion ratio and generate isolated, unregulated dc output. Model IBC60 delivers up to 60 A, achieving power density in excess of 400 W/cu-in., while Model IBC32 has 32 A output capability.

Harting KGaA      Germany

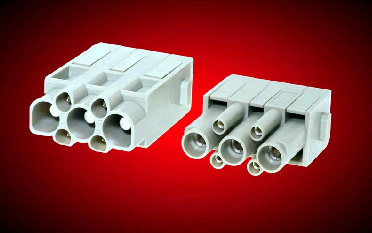

Mar 16, 2007 Suited for servomotor applications, Han® CD-Module accommodates three 40 A Han® C power contacts and four 10 A Han D® signal contacts, both with crimp connection. Finger protected male and female contacts enable safe connection in applications where power could come from male or female side, such as frequency converters, power ring circuits, or battery charging circuits. Connector is also suitable for power transmission on 3-phase motors where additional signal contacts are required.

Harting KGaA      Germany
Mar 16, 2007 Available with single-mode or multi-mode glass fibers, Fiber Optic Connectors are vibration-protected and fulfill requirements according to IP65/67. Hybrid versions, with LC fiber or RJ45, combine data and power in one connector. All units are designed for fiber-to-fiber connection in miscellaneous applications, such as connection of base station to antenna unit with integrated RF head.

Linear Technology Corp.    Milpitas, CA 95035
Mar 16, 2007 Operating within VIN range of 3.6-34 V, step-down Model LT3684 is suitable for load dump and cold-crank conditions found in automotive applications. Its 3.2 A internal switch can deliver up to 2 A of continuous output current at voltages as low as 1.265 V. Switching frequency is user programmable from 300 kHz to 2.8 MHz. Housed in 3 x 3 mm, DFN-10 package, regulator includes integrated boost diode, power good flag, and soft-start capability.

PowerGate LLC    Santa Clara, CA 95054
Mar 16, 2007 Housed in 1.31 x 0.81 x 0.40 in. encapsulated package, 5 W surface mount TES-5 Series includes 21 models offering input ranges of 9-18, 18-36, and 36-75 Vdc with single and dual outputs from 3.3-15 Vdc. Standard features include 1,500 Vdc I/O isolation, short circuit protection, and remote on/off control. RoHS-compliant converters operate from -40 to +85°C and are suited for battery powered equipment, instrumentation, communication systems, and industrial controls.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

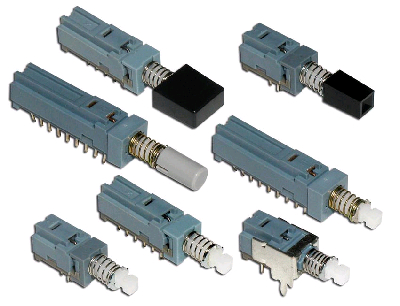

Mar 16, 2007 Available in DPDT, 4PDT, and 6PDT configurations, RPH Series is rated 100 mA at 30 Vdc. Units feature contact resistance of less than 50 mW initially at 2-4 Vdc and 100 mA, dielectric strength of 1,250 Vrms, and insulation resistance of greater than 100 MW. Offered in latching and non-latching models, RoHS-compliant switches operate from -20 to 70°C and are suitable for audio products, computers and peripherals, instrumentation, and non-power on/off applications.

Linear Technology Corp.    Milpitas, CA 95035
Mar 16, 2007 LTC3533 synchronous buck-boost converter delivers up to 2 A output current from Li-Ion/Polymer sources or 800 mA from dual cell alkaline/NiCad/NiMH sources. Its .8-5.5V input range and 1.8-5.25 V output range provide regulated output with inputs above, below, or equal to output. Programmable Burst Mode® operation allows programming of load current, and device includes 2 N-Channel and 2 P-Channel MOSFETs with RDS(on) of 0.06 and 0.08W respectively.

Nexergy, Inc.    Columbus, OH 43228
Mar 16, 2007 Available in desktop and wall-plug configurations, LC Series is designed for Li-ion and Li-polymer batteries. Each product can be customized with proprietary firmware, aligning charge current and voltage to match unique requirements. While offered in 12 or 24 W versions, with output current to 3 A, higher available voltage allows chargers to accommodate batteries with up to 6 Li-ion or Li-polymer cells in series. Multiple safety features are incorporated into design.

Micrel Semiconductor Inc.    San Jose, CA 95131
Mar 16, 2007 Designed with single-wire digital interface for brightness control and enable function, MIC3289 comes in TSOT-23-6 or 2 x 2 mm MLF® 8L package and features internal Schottky Diode and 16 logarithmic dimming steps. This 1.2 MHz PWM White LED driver requires 4 external components to provide complete solution and is protected with OVP circuit. Full operating input voltage range, 2.5-6.5 V, supports use with various power sources.

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749
Mar 16, 2007 Weatherproof 14MP7 Male Plug and 14FP7 Female Connector are molded in solid Hypalon® chlorosulfonated polyethylene type 4085 rubber permanently bonded to heavy-duty cable. Seal design isolates one contact from other and creates watertight seal. Connectors are available molded to Type SOOW-A Cable on No. 14 AWG rated 7 A (600 V max) and are available as pigtails or extension cords. Products are designed to eliminate GFI system problems.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Mar 15, 2007 With Multi-Channel Cable technology, 1-4 or 1-8 sensors can be connected with one single cable running from mold to monitoring system. Based on single-wire technology, different wire strands are combined into one cable, eliminating hazard of potential mix-up of sensor connectors. Range of adapter cables ensures that connection technology is compatible with existing analysis systems.

FCI    Etters, PA 17319
Mar 15, 2007 Minitek(TM) 2 mm headers feature high-temperature plastic molded housings with design optimized for solder paste flow. Standoffs raise housing body above board surface to provide clearance for paste to be deposited and allow molten paste to flow freely from printed position into board through-hole and around each pin. Options include shrouded and unshrouded headers in straight, right-angle, or stacking versions to support custom board spacing.

LEDtronics, Inc.    Torrance, CA 90505
Mar 15, 2007 Designed to replace 9 mm bayonet-based incandescent lamps, B3127 Series 7-LED Lamps incorporate optical-grade epoxy and single-contact bayonet bases. Light emitting angle is 50°, but custom viewing angles are available. Drawing 8-75 mA of power, lamps are available in voltages of 6, 24, and 28 Vdc as well as 120 and 130 Vac. Colors include 660 nm Ultra Red, 635 nm High-Efficiency Red, 590 nm Ultra Yellow, 585 High-Efficiency Yellow, and 565 nm High-Efficiency Green.

Linear Technology Corp.    Milpitas, CA 95035
Mar 15, 2007 Models LT3478 and LT3478-1 are 40 V, 4.5 A converters that can drive up to six 700 mA LEDs in series from 12 V input. Model LT3478-1 uses internal current sense resistor, limiting output current to 1 A, whereas Model LT3478 uses external sense resistor to extend max LED current to 4.5 A. True Color PWM(TM) dimming delivers constant LED color with dimming ranges up to 3,000:1. Housed in thermally enhanced package, both parts deliver efficiencies up to 90% in boost mode.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Mar 15, 2007 Featuring 2-lead, 6 x 6 mm design, Model TL1140 provides 100,000,000 cycle operating life. RoHS-compliant unit has contact rating of 30 Vdc, 50 mA and is suited for handheld instrumentation, laptop computers and peripherals, and other electronic devices.

Westinghouse Lighting Corporation    Philadelphia, PA 19154
Mar 15, 2007 Intended for high bay mounting heights of 18-105 ft, Industrial Fluorescent Lighting Fixtures feature one-bounce-and-out reflector design that focuses light only where it is needed, maximizing ftc/W consumed. Units employ T5H0 lamps that maintain up to 95% of lumen output over 20,000 hour rated life. Available in over 20 configurations, fixtures use specular reflector styles designed specifically for jobs requiring narrow, medium, or wide beam distribution.

Innovative Lighting, Inc.    Roland, IA 50236
Mar 15, 2007 Designed to help prevent difficult or dangerous conditions, ChannelBrite illuminates interiors of cargo trailers to facilitate loading of equipment. System utilizes white LEDs and comes in 2, 4, or 8 ft lengths. Depending on space available, system can be cut every 3 in. to fit. Aluminum channel measures 2 in. wide and is offered in colors to match design of trailer. Weatherproof system secures to trailer and has aesthetic, non-obtrusive design.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 15, 2007 Comprised of terminated and un-terminated SP4T and SP6T multiport switches as well as one transfer switch, L Series features insertion loss repeatability of under 0.03 dB throughout 2-million-cycle operating life. RF switches operate up to 26.5 GHz and provide flexibility to deal with complex switch matrix and automatic test equipment (ATE) applications. Series includes 4-port (L7104A/B/C, L7204A/B/C) and 6-port models (L7106A/B/C, L7206A/B/C).

BI Technologies Corp.    Fullerton, CA 92835-1051
Mar 15, 2007 Supplied in SMT packages for variety of output voltages, RoHS-compliant HM110 Series features flyback topology. Models come in 4 power ratings, from 5-15 W, with inductance values from 180-70 µH. Transformers are specified at powered device and serve to step down voltage to IC level. Designed for Power-over-Ethernet (PoE) applications, products feature dc resistance from 2.5-75.0 mW, 1,500 Vrms isolation, and -40 to +125°C operating temperature range.

Belden    Richmond, IN 47375
Mar 14, 2007 Delivering optimal video and audio functionality to ENG/EFP cameras, Belden Brilliance Composite Camera Cables incorporate two 1505A RG-59 Type SDI coaxes featuring 20 AWG solid .032 in. bare copper conductors, gas-injected foam polyethylene insulation, Duofoil plus tinned copper braided shields, and PVC jackets. Coaxes are sweep tested from 5-1,600 MHz and 1,600-4,500 MHz, achieving minimum Return Loss values of 23 dB and 21 dB, respectively.
