Belden    Richmond, IN 47375
Aug 15, 2008 Suited for HD, SDI, and digital video equipment in professional and commercial applications, including broadcast and cable TV stations, sports stadiums and arenas, convention centers, and other large facilities, 1855P Brilliance® Plenum Mini Digital Coax cable is 100% sweep tested from 5 MHz to 4.5 GHz. It features high velocity foam FEP Teflon® dielectric, foil plus braid shield, and flexible Flamarrest PVC jacket, available in 10 different colors.

Phoenix Contact    Harrisburg, PA 17111 0100
Aug 15, 2008 Capable of starting lamp loads or capacitive loads, STEP general purpose power supplies feature voltage versus current characteristic output, and can provide constant current output upon heavy load demands. Targeting building automation industry, compact units come with DIN rail clip for being mounted either on a rail or in a panel. Some STEP models also have adjustable output voltages, allowing for lead length compensation.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210
Aug 14, 2008 Supplied in shielded metal package with industry-standard pin configuration, Tracopower TEN30WIN Series is comprised of 26 standard models featuring input voltages from 9-36 or 18-75 Vdc and single, dual, or triple outputs with voltages from 1.5-15 Vdc. Other features include 1,500 Vdc isolation, short circuit and overtemperature protection, undervoltage lockout, remote on/off, and adjustable output voltages. Products are approved to EN60950-1 worldwide safety standards.

Southern Weaving Co.    Greenville, SC 29602
Aug 14, 2008 Constructed of 1050 ballistic nylon with urethane coating, Sleeve Wrap can be cut with scissor for any application requiring field or shop fitting of hose sleeving in various lengths. Flexible sleeve material, resistant to heat, wear, and ozone, is offered in various lengths with IDs from 1-8 in. or 150 ft bulk rolls. While industrial hook and loop closure withstands 1,000+ open-close cycles, post assembly installation prevents hydraulic system contamination.

ETCO Incorporated    Warwick, RI 02888 1501
Aug 14, 2008 ETCO Specialty Terminals featuring dual-gauge materials can combine 2 functions, such as rigid tab or connector with formable ear section mating end. They are suitable for designing terminals and connectors incorporating multiple bends and forms. Allowing engineers to specify parts 0.032 in. thick on one end and 0.016 in. thick at other end, units can be fabricated from any alloy in sizes from 0.008-0.900 in. thick with ±0.002 in. tolerances.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Aug 14, 2008 Used for drive-study analysis, Tortoise(TM) contains ultra-clean, Class A amplifiers for simultaneous, dual-band independent transmissions from one portable unit. Four fans provide cool operation, and internal dual amplifiers simultaneously transmit up to 45 W each. Along with direct and remote control capabilities, unit offers built-in over-voltage protection, forward/reverse power measurement, and internal/external temperature measurements. Optional WiMAX modulator is also available.

Canfield Connector    Youngstown, OH 44514

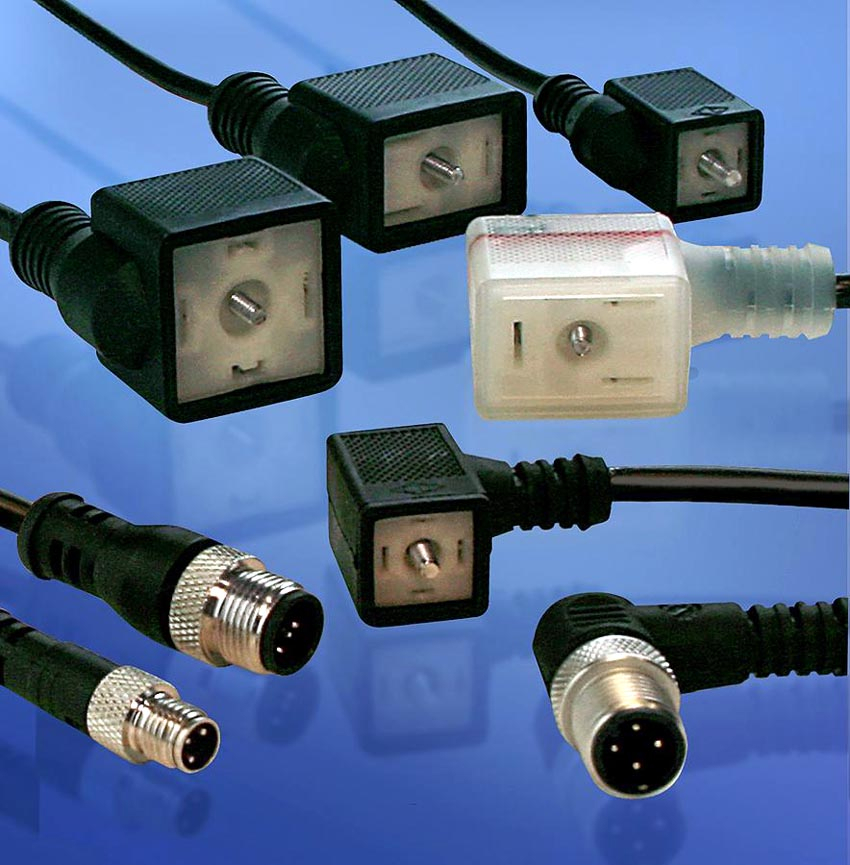

Aug 13, 2008 Series 5FFAC and 5JFAC feature molded solenoid and molded plug and play design for rapid installation, and low-profile straight line configuration allows for installation in limited space applications. Both models feature bi-directional indicator lights, load suppression, ambient temperature rating of -25°C to 80°C, and meet environmental protection to IP67/NEMA 6 standards. Connectors are available in DIN sizes to round sizes 8-12 mm straight as well as UL and CSA versions.

Ideal Industries, Inc.    Sycamore, IL 60178
Aug 13, 2008 Supplied in re-closable pail, Pail-o-Tails includes five hundred 6.5 in., 12 AWG solid wire grounding tails. Pail is built to withstand elements, and moves with contractor from one jobsite to another without spilling or allowing dirt and moisture inside to damage tails. Once emptied, pail can be used to hold any number of additional supplies.

Dynatronix, Inc.    Amery, WI 54001

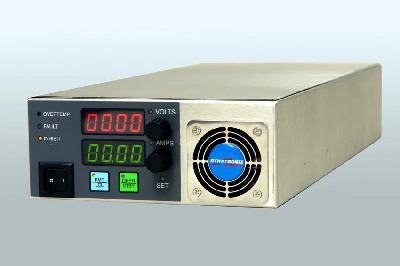

Aug 13, 2008 With inputs ranging from 85-264 Vac, 47-63 Hz, single phase, 1,200 W half-rack LT Series operates in parallel or series mode. Internal electronics are sealed against harsh environments and packaged in 316 SS. Power supply is equipped with two 10-turn potentiometers for voltage current or cross-over regulation, and 2 digital meters for voltage and current read-back. Optional interface enables use of variety of controls.

GE Co., GE Consumer Products    Louisville, KY 40225

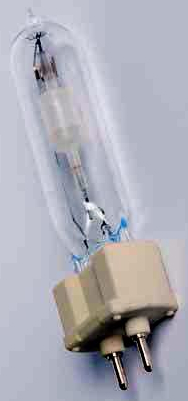

Aug 13, 2008 Suited for use in retail, accent, and general display lighting, ConstantColor® Ultra 70 W G8.5 lamp and G12 ConstantColor CMH® lamp feature 90% mean lumen maintenance and 88 color-rendering index. Both lamps offer color temperature of 3,000°K and have rated life of 12,000 hr. They are designed for direct ceramic metal halide retrofits as well as OEM use.

Lutze, Inc.    Charlotte, NC 28273
Aug 13, 2008 To speed installation, CONDUFIX uses holding cams to provide mechanical lock. Three-staged conduit profile maintains roundness even when bent, preventing kinks. Tapered conduit socket provides IP66 rating, which can be increased to IP68 by inserting O-ring into last groove. Ranging from lightweight to medium to reinforced versions made of PA6 corrugated conduit for various loads, conduit system also comes in PA12 corrugated version for continuous motion robotic applications.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 13, 2008 Models N5161A and N5162A MXG ATE analog and vector RF generators are designed for R&D and manufacturing engineers who define, develop, and optimize wireless network and mobile communications test systems. Model N5161A provides CW and analog modulation, while model N5162A supports multitude of digital modulation types up to 6 GHz. Delivering output powers of +23 and +16 dBm with option 1EA, units offer specified ACPR performance of -71 dBc for single-carrier W-CDMA up to +5 dBm.

Generac Power Systems, Inc.    Waukesha, WI 53187
Aug 13, 2008 Including 5 models, professional-grade XP line features oversized full wrap frame tubing, impact resistant corners, and utility-quality power for sensitive electronics and covered, circuit breaker-protected outlets. Available in 6 models, GP line has oversized steel tube cradles for full wrap protection, low oil shutdown that protects unit from damage, circuit breaker protected outlets, and low-tone mufflers.

Rohde & Schwarz GmbH & Co      Germany
Aug 13, 2008 Enclosed in weather- and temperature-proof housing, R&S NV8303VO has output power of up to 900 W. Suited for setting up new mobile-TV or pilot-test networks, transmitter supports ATSC, MediaFLO(TM), DMB-T, DVB-T/-H digital standards, as well as standards such as A-VSB. Independent of existing infrastructure, it can be used in inaccessible areas, and can be set up anywhere and connected to network for emergency use when main transmitter fails or needs to be serviced.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Aug 12, 2008 Available with 3-6 pin contact arrangements, RoHS-compliant Mini-XL Series accommodates both cable and panel-mount applications. Units feature socket insulator that minimizes vibration and electrical noise, disconnect latch lock, gold-plated contacts, and low reflectivity satin finish. Rear housing is available in plastic or metal for male and female plugs. Applications include recording equipment, microphones, amplifiers/speakers, medical instruments, and industrial controls.

Marktech Optoelectronics    Latham, NY 12110
Aug 12, 2008 Available in 12 and 24 V versions with 15 or 30 cm lengths and adjustable light angles, ExtendLite LED Lights integrate into existing design schemes to promote application versatility. Quick connect system can be joined together to produce desired fixture length, and various mounting options address all application needs. In addition to amber, blue, green, red, and yellow, LED lights come in 6,500°K Pure White, 2,800°K Warm White, and Full Spectrum White, which offers CRI of 94.

SecuTech Solution Inc.    Quebec   Canada
Aug 12, 2008 Measuring 52.5 x 17 x 7 mm, UniKey Time helps vendors control and manage software rental as well as sales of subscriptions or maintenance based on specific period. Hardware key supports pay per use, allowing complete control of sales by charging end-users timely and periodically. Function is based on RTC in dongle, which also prevents hacking. Software vendors get paid for every copy of software, and on-chip 128-bit encryption ensures link between application and USB hardware key.

Tech9 Corporation    Mounds View, MN 55112
Aug 12, 2008 Model PC24-12-1 is 1 A, 24 V/12 V dc-dc power converter that tolerates ISO7637-2 voltage transients (especially load dump condition) as well as similar SAE J1455 voltage transients in mobile applications. With 60 dB typical line and load rejection characteristics, it features +2% output voltage tolerances. Available with and without enclosures, unit offers short circuit protection, and can be operated in ambient temperatures as high as 85°C.

Electro Standards Laboratories    Cranston, RI 02921 3403

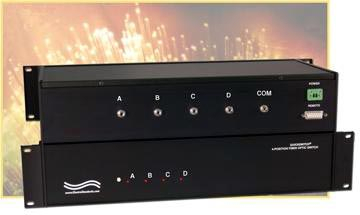

Aug 12, 2008 With 1,310 and 1,550 nm wavelengths, QuickSwitch Model 6274 ST Simplex, Single Mode, Fiber Optic A/B/C/D Switch allows users to connect one workstation or device to any one of 4 networks supporting gigabyte data rates. Contact closure on DB15 port allows users to change switch position and lockout front panel. Transparent to all data, network switch offers local access via front panel pushbutton and Remote Contact Control, and maintains position and data transmission even if power is lost.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Aug 12, 2008 Suited for use in mobile phone displays, TA8560 combines MIPI (Mobile Industry Processor Interface) and DSI (Display Serial Interface) onto one driver chip. DSI, based on scalable serial interconnect, provides lower power modes and allows bi-directional communications. It supports 16-, 18-, and 24-bit pixels, buffered and un-buffered display panels, and QVGA (240 x 320) resolution. Chip can drive up to 4 panels from 1 interface and displays up to 16 million colors.
