3M Co., Electronic Products Div.    Austin, TX 78726
Jan 07, 2009 Suited for space-constrained applications, MDR Camera Link Full Configuration Cable allows direct cable drops by virtually eliminating cable bend radius requirements of traditional straight exit products. Cable meets EU RoHS requirements and is labeled in accordance with China RoHS marking standard SJ/T 11364-2006.

3M Co., Electronic Products Div.    Austin, TX 78726
Jan 07, 2009 Suited for restoration or permanent splicing, Fibrlok products enable accelerated, on-site installation of 250 micron and 900 micron fiber for analog video applications. Fibrlok II Angle Fiber Splice 2529-AS, designed for CATV or FTTH networks, can splice any combination of 250 micron and 900 micron fibers. Fibrlok 250um Angle Fiber Splice 2540-AS can splice 250 micron fiber with smaller form factor. Both deliver minimal optical reflections across temperature extremes.

One Stop Systems    Escondido, CA 92029
Jan 07, 2009 Installed on CPU board in host system, XMC x8 Gen 2 Host Cable Adapter enables data transfers to 40 Gb/s. PCIe x8 cable inserted into cable connector on face of XMC expands PCIe bus to PCIe downstream device or expansion chassis. XMC x8 cable connector on bezel and PCIe x8 edge connector are routed directly to Pericom 5804 redrivers. Since adapter is based on redriver technology, there are no latency obstacles to throughput.

Avnet, Inc.    Phoenix, AZ 85034
Jan 07, 2009 Intended for medium-power applications, Power Module Reference Design PMRD-0012 utilizes National Semiconductor's LM3495 emulated current-mode buck controller with peak efficiency of 95% and 0.6 V minimum output voltage. Drop-in power module reference design is suited for use with Intermediate Bus Architecture, Distributed Power Architecture, digital circuits, complex multi-voltage systems, telecommunications, and industrial equipment.

Mean Well USA, Inc    Fremont, CA 94538
Jan 07, 2009 Using high-frequency circuit topology, A300-100 series can provide 100 W continuously with up to 90% efficiency, 150 W for 3 min, and 200 W surge power of peak load capability. Shape and fanless design facilitate installation without ventilation concerns, while built-in USB port output can power/charge various consumer electronics. Along with multiple protection features for input and output sides, inverter offers compliance with global safety and EMC certificates.

Clare Inc.    Beverly, MA 01915
Jan 07, 2009 Employing optically coupled MOSFET technology, 60 V Model CPC1014N provides 1,500 Vrms of input/output isolation, 400 mA current handling, and 2 W of on-resistance. Normally open, 1-Form-A relay is housed in 4-pin SOP, and is especially suited for security systems complying with EN50130-4, passive infrared detectors, data signaling, and sensor circuitry applications.

Amulet Technologies    Santa Clara, CA 95050
Jan 07, 2009 Graphical OS Chip(TM) includes all hardware and software needed to create and drive color-rich GUIs (graphical user interfaces) for LCDs and touch panels. GUI creation is performed in dynamic HTML with drag-and-drop authoring tools, and built-in microprocessor manages all GUI functions. Integrated LCD controller supports 24-bit color and alpha-blending on active and passive displays up to 12 in. Along with power management controller, chip offers multiple interface options.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jan 07, 2009 Single-output AAT1185, fabricated in Modular BCD process, offers high- and low-side pins to drive external N-Channel MOSFETs. Supporting fully synchronous and non-synchronous operation, device enables development of solutions for disparate applications. Input range is 6-24 V, output voltage is adjustable from 0.8-5.5 V, and output current ranges from less than 1 A to 10 A. Controller has 490 kHz switching frequency and constant frequency voltage mode control.

Diodes, Inc.    Westlake Village, CA 91362
Jan 07, 2009 Packaged in MSOP-10L format, Models AP6714 and AP6015 are boost and buck converters with max switching frequencies of 2.2 and 1.2 MHz, respectively. Model AP6714, with adjustable output voltage of 1.8-5.5 V, can produce drive current up to 1.4 A. Capable of driving up to 800 mA, AP6015 is offered with choice of 1.8, 2.5, or 3.3 V fixed output voltages or adjustable output voltage of 0.8 V to Vin. Both offer typical efficiency of 94% and quiescent current of 150 µA, extending battery life.

Diodes, Inc.    Westlake Village, CA 91362
Jan 07, 2009 Dedicated synchronous controller, ZXGD3101, drives MOSFETs to perform as ideal diodes in synchronous flyback converters employed in external power adapters, servers, LCD monitors, and STBs. Leveraging zero point detector driver platform, device produces source/sink currents up to 2.5 A and offers 180 V blocking capability to ensure reliable operation. Proportional gate drive improves turn-off time to minimize shoot through as well as prevent premature turn-off of MOSFET at low loads.

Meyda Tiffany    Yorkville, NY 13495
Jan 07, 2009 Measuring 39 x 14 x 26 in., Loxley 18-Light Chandelier (82712) offers Gothic appearance that replicates fixtures forged of iron and hung from ceilings of stone castles during Middle Ages. This handcrafted, rustic fixture is designed with 18 amber simulated-dripping wax candle columns and hand-finished in Timeless Bronze for warm appearance.

Semtech Corp.    Newbury Park, CA 91320
Jan 07, 2009 Supplied in 5 x 5 mm package, SC417 high-current POL voltage regulator achieves optimal power density through power circuit layout and matching of driver to internal power switches. It has 3-28 V input range and programmable 150 mA LDO that can be used to provide 5 V for gate drive bias, allowing operation from one rail. Other features include internal crossover circuitry, pseudo fixed frequency adaptive on-time control, SmartDrive(TM) technology, and selectable ultrasonic power save.

Semtech Corp.    Newbury Park, CA 91320
Jan 07, 2009 Tested to withstand 100 A surges commonly required on telecom Ethernet interfaces, 2.5 V TClamp(TM)2502N can protect sub-micron transceivers against GR-1089 level lightning pulses. Silicon-based, RoHS-compliant unit features max line-to-line capacitance of 12 pF. Housed in 2.6 x 2.6 x 0.6 mm SLP package, device also protects telecom and networking interfaces against ubiquitous threats from electrostatic discharge, cable discharge events, and electrical fast transients.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jan 06, 2009 Operating in temperatures from -20 to +70°C, LP11 series offers operating force of 250 ±100 gf and travel of 4.50 ± 0.2 mm. Contact rating is 100 mA at 12 Vdc and switch features contact resistance of 200 mW minimum at 500 Vdc. Dialectic strength is 500 Vac. Targeting various markets, it is available with multiple cap and LED color options as well as with or without tactile feel.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 06, 2009 Model 4124 DB9 switch allows sharing of single device connected to Common port among 2 other devices connected to A and B ports, accepting Contact Closure commands to remotely control switch position, lockout local front panel pushbutton, and obtain switch status. Mounting with steel pass-through bolts through bottom of desktop enclosure, network switch offers Automatic Fallback mode based on loss of data on port A and can also operate simply as A/B switch.

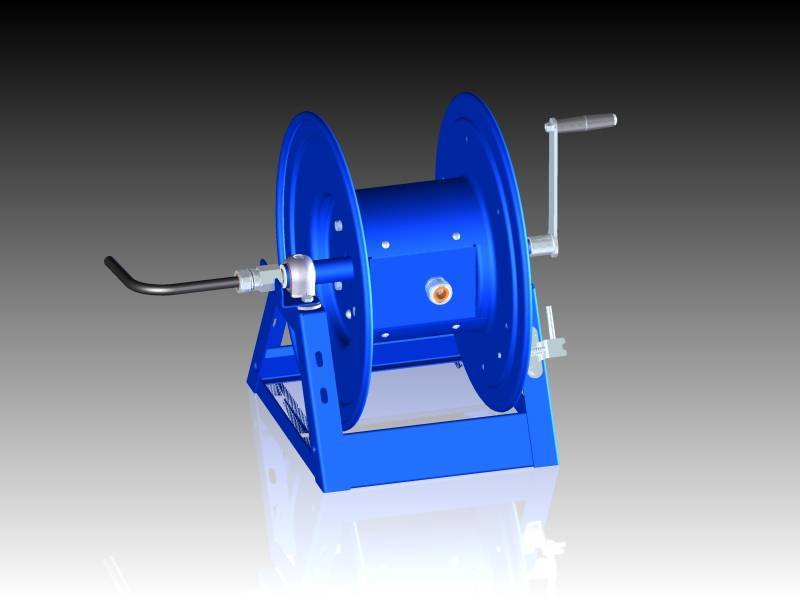

Coxreels    Tempe, AZ 85283-4323
Jan 06, 2009 Available in either hand crank or electric motor rewind with direct gear driven design, 1125 PCL Series Power Cord Reel handles up to 250 ft of 12/3 Ga and 200 ft of 10/3 Ga SO type power cord. It features integrated cable keeper to avoid 5 ft pigtail from whipping or twisting. Equipped with drum lock-pin to avoid free-wheeling and cable uncoiling during storage and transport, unit comes with either 30 or 45 AMP slip ring assembly, which is accessible through removable panel.

3M Co., Electronic Products Div.    Austin, TX 78726
Jan 06, 2009 Suited for smart cards, e-passports, ID cards, banking/credit cards, and transportation cards, 3M ToughShield Protective Sleeves block radio frequencies to help eleiminate data theft or skimming. Inner copper-coated conductive polyester layer is bonded to outside layer of 3M TufQUIN inorganic hybrid insulating paper. This material is tear- and water-resistant and also withstands wear. After 2,000 cycles of abrasion resistance testing, it retains 99% of its shielding effectiveness.

KYOCERA Corporation    Kyoto 612-8501  Japan
Jan 06, 2009 SAMURAI and ECONOROOTS models optimize power output by adopting 156 x 156 mm solar cells. Standard type ECONOROOTS models, designed for sloped or flat roofs, deliver 183 W output per module via 6 x 8 solar cell configuration. SAMURAI models SD62X-QPS-B and SD46X-QPS-B, developed for installation on roofs characteristic of Japanese homes, are respectively produced with 2 x 6 or 2 x 8 cell arrays and deliver 48 or 62 W output.

Meyda Tiffany    Yorkville, NY 13495
Jan 06, 2009 Featuring 9 wine bottles as decorative shades in antique green frosted glass, Wine Bottle Chandelier is suited for illuminating dining tables, conference rooms, and retail displays. Hand forged vine and leaves coil wrap around arms and necks of wine bottles, and all of hardware is hand finished in black. Measuring 34 in. wide with overall height of 45-75 in. from ceiling, fixture includes 2.5 ft of chain, 4 ft of wire, and canopy.

Astec America Inc.    Carlsbad, CA 92008
Jan 06, 2009 Models NTS505 and NTS508 AC-DC power supplies deliver 24 and 48 V output, respectively, and power boards fitted with multiple nonisolated DC-DC converters. They feature universal input of 85-264 Vac at 47-440 Hz and offer 85% conversion at full load with nominal 115 Vac input. Controlled via PMBus(TM)-compliant I2C interface, 4 x 7 in. units are available in convection-cooled, 200 W output, and fan-cooled, 500 W output versions. NTS500-M Series is available with medical approvals.
