Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 06, 2008 Model 7239 16-Channel RJ45 A/B Switch allows capability of accessing, on each channel, one of 2 separate devices via device connected into channel's common port. It offers remote access via RS232 port or front panel push button control. Switches can change position simultaneously upon command. All 8 pins of each switch port are transparent to all data.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 06, 2008 Using Telnet commands or GUI, Model 7352 Dual CAT5e RJ45 A/B/OFF-LINE Switch offers password protected remote access via 10/100 Base-T LAN Ethernet environment to monitor status and control switch functions. It has 2 channels, each allowing ability to share single device connected to COMMON port among 2 other devices connected to A and B ports or to be switched off line for complete isolation. Switched signals are passed via latching copper contact relays.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Jun 06, 2008 Complying with European CEN/TS 45545 standards governing railway fire safety, VEAM CIR Series has exposure period of at least 15 minutes at ISO 834-1 heating curve, where maximum temperature is 800°C. Featuring stainless steel shell and ceramic insulation, units come with 35 size 12 poles at 40 A. Silicon rubber grommet ensures sealing, while contacts with metallic retention clip provide high integrity contact that does not release under extreme shock and vibration conditions.

Fil-Coil Filters    Central Islip, NY 11722
Jun 06, 2008 Mounted through outer wall of shielded enclosure, Series FCP power line penetration filters are RFI-secure and supplied with threaded nipple. Products are supplied with bleeder resistors to prevent shock hazards and can withstand 140% of rated current for 15 min without any deterioration. Providing specified insertion loss of 100 db min over indicated frequency range, series filters from 60-400 Hz with 100 db attenuation from 14 KHz to 10 GHz and 100 KHz to 10GHz.

Superior Signals, Inc.    Olathe, KS 66062
Jun 06, 2008 Available in high or low profiles with permanent or magnetic mounts, Meteorlite® SY22050 Class I heavy duty potted strobe light features 24 LEDs per head and up to 11 built-in selectable flash patterns. Constructed with polycarbonate lens and aluminum base, product operates at 12-48 Vdc with maximum draw of .8 A at 12 Vdc. Colors offered include amber, blue, or red, and magnetic mount models have lighted on/off rocker switch.

On Board Solutions, LLC    Portsmouth, NH 03801
Jun 05, 2008 Designed for use in 24 and 36 Vdc applications, ProTech-C Series 3-stage commercial- and industrial-grade battery chargers employ solid-state technology along with charging and conditioning algorithms. All 5 models come in extruded aluminum casing and have auto-ranging global AC input of 95-250 Vac, 50/60 Hz. Compatible with various battery types, chargers can be switched between portable and onboard applications. Various safety features are included.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jun 05, 2008 Model A3941 automotive grade MOSFET pre-driver IC is developed for industrial systems utilizing 24 V battery. Capable of driving 4 external N-Channel MOSFETs in full-bridge configuration, it is used in brush dc motor drive applications where high-currents in combination with high ambient temperatures require use of external MOSFETs. IC is rated over full automotive temperature range of -40 to 150°C and full battery supply range of 7-50 V.

Bomar Interconnect Products    Ledgewood, NJ 07852
Jun 05, 2008 With waterproof, weather-tight, through-panel mount seal, V-Bite(TM) female Type N connector provides performance in frequencies through 18 GHz. It has impedance of 50 W, and can be employed in high power applications including base stations, cellular antennas, and portable test and measurement equipment. Featuring brass/gold contacts, unit is precision engineered of machined brass and includes straight-through contact design to provide low reflection factor with VSWR of 1.30.

Vicor Corp.    Andover, MA 01810 5424
Jun 05, 2008 Operating from primary bus voltages of 48 V and 350/380 V, VI BRICK(TM) BCM(TM) delivers isolated outputs with voltages from 1.5-48 Vdc, depending on model. Module can be used to provide isolated intermediate bus to power multiple non-isolated POL converters or as independent power source. Measuring 1.91 x 1.09 x 0.37 in., RoHS-compliant unit offers efficiency up to 96% and operating temperature of -40 to +125°C with slotted-flange baseplate and through-hole pin style.

Anderson Power Products    Sterling, MA 01564
Jun 04, 2008 Made of PBT material, High Performance SB® Connectors feature UV resistance, temperature range of -40 to 266°F, and resistance to hydrocarbons and solvents used in automotive applications. Products are UL recognized from 50-350 A and rated at 600 Vac or Vdc operation. Designed with mechanically keyed housings, dual-pole connectors are fully intermateable and interchangeable with standard SB® connectors.

Belmont Metals, Inc.    Brooklyn, NY 11207
Jun 04, 2008 Flexible with regards to formulas and quantities, pure metals and alloys can be provided in custom shapes and sizes to meet casting, plating, brazing, soldering, and other application requirements. In addition to standard nickel shapes, service deals with powders and shapes for Dipolarized Ni Anodes, Ni Cathodes, Low Melting Foundry Shot, as well as Ni-Copper and Cupro Nickel in standard and special compositions. Monel® (Nickel-Copper alloy) and Nickel-Silver are also available.

American Ballast    Fremont, CA 94538
Jun 04, 2008 With minimum lamp starting temperature of -30°C, energy efficient electronic HID ballasts are designed for supermarkets, malls, industrial sites, parking lots, and warehouses. Operating quietly at high frequency, they feature auto restart and shutdown function, 65-90 color rendering index, open circuit protection, short circuit protection, igniter failure protection, and surge protection. Units meet FCC rules and regulations and ANSI requirements as well as EISA and RoHS standards.

Arcos Industries, LLC    Mount Carmel, PA 17851
Jun 04, 2008 Designed for welding nickel-copper alloys (ASTM B127, B163, B164, and B165), Arcos 816 (ERNiCu-7) electrode can be used for welding in salt, seawater, and reducing acids environments. Dissimilar welding applications include joining nickel-copper and copper-nickel alloys to Nickel 200. Developed for GTAW/GMAW overlay of nickel-chromium alloy onto carbon and stainless steel and for cast repair, Arcos 72 (ERNiCr-4) offers resistance to high temperature and fuel-ash corrosion.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 04, 2008 Supporting active matrix OLED displays, Model TPS65136 utilizes one 2.2 µH inductor and buck-boost topology to generate positive voltage up to 4.6 V and adjustable negative output voltage down to -7 V. Input voltage can be above or below positive output voltage, allowing it to support batteries with starting voltage up to 4.8 V. Housed in 16-pin QFN package, IC maintains switching frequency above audible range with VCO to avoid causing audible noise from vibration of ceramic output capacitors.

Phaseda LLC    Beaverton, OR 97005
Jun 04, 2008 Approved under UL1077 as supplementary protector with rating up to 18 A, 125 Vac, DLQ3-Series thermal circuit breaker features rocker switch on/off function and offers red, green, or opaque illumination options. RoHS-compliant solution snaps into industrial panel cut-out, and terminals come in standard quick connect or solder lug for different applications. Product also provides over-current protection with UL and cUL Marking.

Igus, Inc.    East Providence, RI 02914 0349
Jun 04, 2008 Suited for machine vision applications, Chainflex® CFBUS.055 FireWire cable is designed for continuous-flexing and tight bending radii inside Energy Chain® cable carriers. Its bus pairs and supply wires are twisted together with flexible shields and optimized pitch length. Gusset-filling extruded, flame-resistant, TPE outer jacket provides protection required to prevent cable core ruptures. Tested to more than 6 million flex cycles, product supports transmission lengths up to 20 m.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 03, 2008 Available for pressure, vacuum, and differential applications, PDPS Series incorporates large diameter diaphragm and snap action switch to optimize dependability and reliability (±0.02 in. of wc). Solution is factory preset for pressures from 0.07-1.0 in. wc and handles temperatures from -40 to 185°F. Features include multi-barb port connections, inherent mounting, and quick-disconnect terminals.

Astrodyne Corp.    Mansfield, MA 02048
Jun 03, 2008 Designed to meet space and performance parameters for medical and dental systems, PMMK225 series provides output of 225 W with active PFC. All models accept universal input from 90-264 Vac, and 6 models - available in each package style - are available with single outputs from 5-48 Vdc. Approved for UL/EN60601-1 medical safety specifications, series provides power densities to 4 W/in.³ and features SMT construction. Package styles include U-Channel, fully enclosed, or DIN Rail mount.

Expand International of America, Inc.    Stratford, CT 06615
Jun 03, 2008 Featuring rigid plastic cover to prevent overheating, 50 W, L3-BLA-50US spotlight fits all Expand retractable and non-retractable products. It includes dimmer switch for adjusting brightness, fitting that securely holds light bulb in place, and cord holder that prevents tangling. Spotlight is ETL-certified under UL, CSA, and CE and has been approved according to Intertek-Semko S-mark. Protective black nylon bag allows for secure transportation.

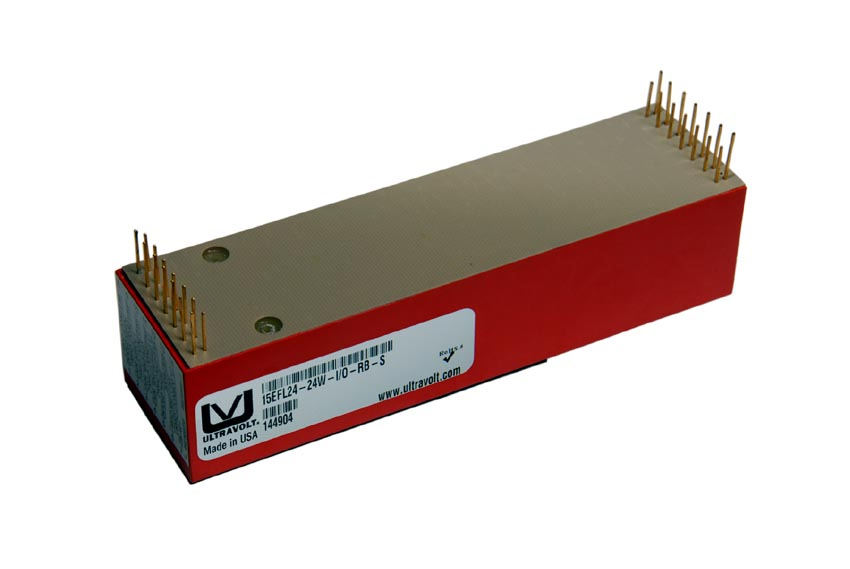

UltraVolt Inc.    Ronkonkoma, NY 11779
Jun 03, 2008 Featuring analog and digital I/O as well as up to 15 kV isolation, EFL Series offers main outputs of 12 V, 1 A or 24 V, 1 A/1.5 A. I/O faraday shielding reduces power-stage coupling noise, and low-voltage output power provides regulated ±15 Vdc @ 50 mA and +5.1 Vdc at 500 mA. Analog channels auto-zero and auto-correct for linearity errors and full-scale gain, providing control and monitor capability of 0-10 Vdc with temperature coefficient of less than 10 ppm/°C.
