WEG Electric Corp.    Duluth, GA 30097
Aug 28, 2008 Combining V/F, Sensorless Vector, VVW, and vector (with encoder) control techniques in single unit, WEG CFW11 Vectrue Inverters are suited for 3-phase ac induction motor control. Built-in memory card allows users to create functions without use of any external PLC, while connect and use technology automatically recognizes and configures the accessories and options being used. Inverters come with normal and heavy-duty ratings with flange and surface mounting options.

Channellock, Inc.    Meadville, PA 16335-0519
Aug 28, 2008 Weighing just over 1 lb, No. 88 Rescue Tool is made of drop-forged, 1080 high-carbon steel and combines 6 uses into one device. Tool has beveled plier head with cross-hatched teeth that twist and pull. Tapered pry wedge opens doors and windows, while spanner wrench tightens and loosens hose couplings, and hardened tool steel punch shatters safety glass. Additional features include gas shut-off valve slot and laser heat-treated cutting edges for cutting wires and cables.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Aug 28, 2008 Designed for HVGA LCD displays, Model TA7601 provides 262,144 colors and 2.76 Mbit SRAM for frame memory. Single-chip driver IC supports serial peripheral, parallel, and RGB interfaces, and is designed with power saving features, such as partial display and Smart Mobile Luminance Control. For optimal image quality, IC includes separate gamma and Vcom tuning function.

C&D Technologies, Inc.    Blue Bell, PA 19422
Aug 28, 2008 Suited for telecommunication applications, C&D TRUE FRONT ACCESS Valve Regulated Lead Acid (VRLA) batteries have front access terminals and provide 100% out-of-the-box capacity ratings at installation. Multiple models are available to fit system power demands, and each has seismic design and 13+ year service life expectancy. Solutions support build out of digital fiber optic based systems and upgrades of existing systems requiring added runtime to meet minimum 8 hr backup standards.

Kim Lighting    City of Industry, CA 91749
Aug 28, 2008 Utilizing low heat compact fluorescent technology, temperature of Lightvault® lens can be reduced to as low as 50°C, suitable for walk-over locations and high-traffic pedestrian areas. Available in 26, 32, or 42 W versions with 9 and 11 in. dia, product is designed for uplighting architectural and landscape accent applications. Uplights come in bronze or composite housing with reverse updraft design and resist moisture, fertilizers, flooding, debris, vandalism, and solar UV rays.

Duracell, Inc.    Bethel, CT 06801
Aug 28, 2008 Powered by Duracell batteries, heavy-duty Duracell Daylite(TM) LED is developed with TrueBeam(TM) technology which uses both lens and reflector to capture, focus, and project up to 100% of light, delivering bright and white beam. Targeting safety professionals, compact and portable unit can be used in harsh environments as well as household projects or DIY fixes.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Aug 27, 2008 Designed for use with aluminum interlocking armored all purpose MC Cable, MCI-A line of cable connectors includes Whipper-Snap single-screw, strap-type connectors to connect 14/2 to 10/4 MCI-A cable to box or enclosure. It also includes Whipper-Snap 2-screw, strap-type connectors for use with 14/2 to 10/3 MCI-A cable, Whipper-Snap snap-in, U-shaped strap connectors for use with MCI-A cable 14/2 to 10/3, and E-Z Lock connectors to connect 14/2 to 10/4 aluminum MCI-A cable.

Alpha Wire Corp.    Elizabeth, NJ 07207 0711
Aug 27, 2008 Suited for motor and drive applications requiring small OD, XTRAoGUARD cables feature round geometry that facilitates environmental sealing and symmetry that promotes electrical performance via uniform bending characteristics. SUPRASHIELD® EMI/RFI shielding options, PVC nylon tape, 4 symmetrical drain wires, and oil-resistant PVC jacket extend durability in demanding environments. Available in 16-6 AWG sizes, RoHS-compliant cables operate from -20 to +90°C.

Bulgin Components PLc    Barking Essex IG11 0AZ  United Kingdom
Aug 27, 2008 Available in flex, flex in-line, panel mount, and flange mount types, 10 pole Buccaneer Connector with body shell that features sealing properties of IP68 dust and water resistance to be maintained. UL, CSA, and VDE approved unit features ratings up to 32 A, 600 Vac/dc, temperature range from -40 to 85°C, and accommodates cables with 7-22 mm dia.

Loadstar Sensors, Inc.    Mountain View, CA 94043
Aug 27, 2008 Combining display and controller functions into singe unit, DS-3000 is 4-channel interface device for iLoad Series load cells. Users can connect up to 4 iLoad series load cells and view individual and/or total loads in 3 different units including Kilograms, Pounds, and Newtons, and can also interface via USB uplink to plot/chart data to any PC. Optional relay outputs allow users to activate relays based on load limits in order to control up to 2 external devices.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185

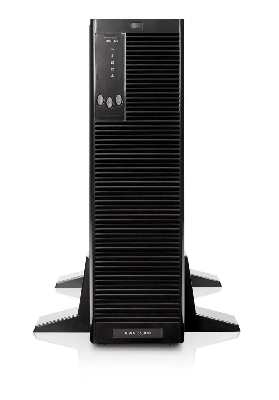

Aug 26, 2008 Designed for dense data-center environments, line-interactive HP R5500, offering 1,500 W per U, uses digital signal processor rather than transformer and provides voltage regulation without using battery. Two load segments provide flexibility to configure scheduled startups and shutdowns, in addition to independently control separate loads. Option cards and Extended Runtime Modules add networking capabilities and load segmentation, while maximizing system back up time.

Kingbright Corporation    City of Industry, CA 91789
Aug 26, 2008 Measuring 1.6 x 0.8 x 0.25 mm, Kingbright 0.25 mm Ultra-Thin 0603 SMD LEDs (APG1608 package) offer viewing angle of 120° and operate using current as low as 1 mA. Blue (470 nm), green (525 and 571 nm), yellow (589 nm), orange (605 nm), and red (631 nm) versions are available, each meeting industrial temperature rating of -40 to +85°C. Designed for automatic pick-and-place mounting process, package provides zener diode option to withstand ESD voltage up to 8,000 V.

LEDtronics, Inc.    Torrance, CA 90505
Aug 26, 2008 Engineered to handle variations in voltages that may accompany noisy or dirty ac power supplies, Series GMR16-5W MR16/GU10 LED bulb produces light output of 123 lumens from 80-260 Vac input. It features 3 high-power LEDs, and is offered in Warm White (3,000 K) color temperature and in 20° spotlight beam angle. Along with 50,000 hr lifespan, LEDs feature solid-state design, making them impervious to electrical and mechanical shock, vibration, frequent switching, and environmental fluctuation.

Cooper Lighting    Peachtree City, GA 30269
Aug 26, 2008 Suited for commercial, hospitality, healthcare, retail, and residential applications, Halo LED Downlight features rendering of 80 CRI, warm white color temperature of 3,045 K nominal, and over 600 lumens of light. Low glare lighting is virtually maintenance-free, and is dimmable to approximately 15% using standard ac incandescent analog dimmers and approximately 5% with dimmers that have low end trim adjustment. It exceeds high efficacy requirements for California's Title 24.

Pericom Semiconductor Corp.    San Jose, CA 95131
Aug 26, 2008 Supplied in 10 x 10 mm QFN package, ROHS-compliant PI7C9X20303UL UltraLo(TM) 3-port, 3-lane PCIe packet switch has programmable EEPROM port and typical power consumption levels of under 250 mW in active mode or under 200 mA in standby. Featuring non-blocking pre-emphasis circuitry to ensure signal integrity, PI3VDP612 3-port, 12-lane DisplayPort(TM) (DP) switch comes in 11 x 5 mm TQFN package, offers up to 8 kV ESD protection, and consumes under 200 µW at full operation.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 26, 2008 Housed in 0.9 x 1.3 x 0.6 mm wafer chip scale package, 500 mA Model TPS62601 achieves up to 89% power efficiency and 30 µA typical operating quiescent current. Synchronous, switch-mode device features fixed frequency of 6 MHz, allowing use of only one 0.47 µH inductor and 2 ceramic capacitors. With input voltage range of 2.3-5.5 V and 1.8 V output, step-down dc/dc converter supports ultra-thin smart phones, wireless modules, and portable electronics.

Elma Electronic Inc.    Fremont, CA 94538
Aug 25, 2008 Supplied in 1U height and 240 mm or 360 mm depth, SlimKit 19 in. EMC Enclosure provides EMC performance without separate gaskets. Covers of chassis have EMC tabs that provide protection, while sidewalls have punched and formed EMC spoons that provide extra EMI/RFI suppression. As enclosure has EMC built into sheet metal, fewer screws are required.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Aug 25, 2008 Comprised of variable area flowmeters with flow switches, Universal® Series monitors cooling water, circulating lubrication oil, and other clean fluids. Units include transmitter for remote readout, recording, or data logging, as well as high-amperage-limit alarm switches for troubleshooting and notification of flow failure. Models include L Series piston-style meters for very low flows from 1-3 gpm, S series for flows from 3-20 gpm, and M series for flows from 20-160 gpm.

Extreme CCTV Surveillance Systems    Burnaby V5A 3C2  Canada
Aug 25, 2008 Powered by Black Diamond(TM), AEGIS UFLED utilizes color-corrected LEDs to enable High-Fidelity(TM) night-time color reproduction for critical surveillance applications. Built-in low-voltage power circuit facilitates installation, and 26-45 W operation promotes energy efficiency. Also included, Constant Light(TM) technology ensures consistent imaging quality throughout life. Lighting fixture is suited for utility sites, ports, and commercial buildings.

Mersen    Newburyport, MA 01950
Aug 25, 2008 Fused Selective Coordination Panel is UL67-listed panelboard that uses class CC Ultrasafe(TM) fuse holders with blown fuse indicators (fuses provided separately to suit specific loads during installation). Compact size and removable backpan facilitate installation. Capable of accomodating 12-42 circuits, panel features 100, 200, or 300 A copper main bus, and bonded ground bar and neutral bar with set-screw terminations.
