Vicor Corp.    Andover, MA 01810 5424
Dec 08, 2008 Available in two models, VMB0004MFJ (J-lead version) and VMB0004MFT (through-hole version), MIL-COTS BCM(TM) bus converters operate from MIL-STD-704E/F 270 Vdc and deliver isolated 30.0-41.3 Vdc. Sine amplitude converter's output voltage is suitable as input to MIL-COTS PRM(TM) regulator and VTM(TM) current multiplier. Available in VoI Chip package compatible with standard pick-and-place and surface mount assembly processes, product is ideal for aircraft distributed power applications.

Ideal Industries, Inc.    Sycamore, IL 60178
Dec 05, 2008 Telco BigFoot(TM) ratcheting cable cutter lets datacom installers cut up to 2700 pair telephone cable or thick Stalpath® type communications cable with minimal stress on their hands and forearms. Use requires contractor to plant unit's over-molded boot on ground and push down on other handle; tool's mechanical leverage cuts cable instead of muscular force. Rounded, hardened steel blades with 5-tooth ratchet action hold cable tight for minimal distortion.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Dec 05, 2008 Rated at 24 Vdc/10 A, SITOP Wall Mount Power Supply is built with heavy-duty components that are securely mounted with high temperature resistant silicon glue. Unit's heat sink is mounted on housing with clip for added strength. Because power supply is wall mounted, there is no danger from spring effect of DIN rail clip. Unit is suitable for use in mining, marine, and transportation industries.

LEVITON    Melville, NY 11747
Dec 05, 2008 Hospital Grade (HG) duplex receptacles, constructed without ferrous materials, may be used in MRI rooms of hospitals, health care facilities, medical buildings, imaging centers and other environments where high-magnetic fields are present. Available in 15 and 20 A, 125 V versions, products feature impact-resistant thermoplastic nylon covers and bodies. Smooth face resists dirt and dust, while triple-wipe brass T contacts provide optimal contact and conductivity.

LEVITON    Melville, NY 11747
Dec 05, 2008 Supplied in SmartLockPRO® GFCI and Decora® versions, Lev-Lok(TM) Modular Receptacles are available with snap-in, right-angle wiring module (MSTWL-A), available in solid and stranded No. 12 THHN wire, that conserves space in tight electrical outlet boxes. Wires exit from side of module, facilitating installation and replacement. Design suits applications where multiple feed-through circuits are involved. Lev-Lok system consists of wiring module and duplex receptacle.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Dec 05, 2008 Manufactured with die cast copper free aluminum with gray enamel finish, Combination Type LLR conduit bodies are UL Listed rain tight when used with threaded Rigid/IMC conduit and Rain tight EMT connectors. Units come preassembled with cover and gasket, and are available in ½-2 in. trade sizes.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Dec 05, 2008 Approved to UL 60601-1, CSA C22.2 No. 601.1, EN 60601-1 medical standards, TM650 series of 650 W AC/DC switching power supplies withstand voltages of 4,000 Vac from input to output, 1,500 Vac from input to ground, and 500 Vac from output to ground. Series includes 20 models of single to triple outputs of 650-700 W continuous power at 50 cfm forced air. Operating at 90-264 Vac universal input, series offers 300,000 hr minimum MTBF at full load at 25°C ambient per MIL-HDBK-217F.

Next Generation Power Engineering, Inc.    Jacksonville, FL 32246
Dec 05, 2008 Measuring 23 x 20 x 21 in. and weighing only 240 lb, UCI 2-5.5, compact generator provides back-up power for outages, work trucks, fire/rescue operations and onsite construction equipment. With minimal noise, vibration, and wear, unit runs at 2,800 rpm. It also comes standard with remote start panel, hour meter, harness and oil pressure and water temperature shut down. Heavy-duty, water-cooled, 2-cylinder Kubota diesel engine employs three-vortex combustion system.

ILLUMRA    Orem, UT 84058
Dec 05, 2008 EnOcean + ZigBee long-range wireless remote control system provides light control at distances up to 1 mile without repeaters. Effective for controlling electrical loads across large open spaces, hybrid system combines ZigBee 802.15.4 Industrial Wireless Relay pair from Ad Hoc Electronics with ILLUMRA self-powered wireless light switches and sensors. It may be used in 3-way switch applications by connecting ILLUMRA 5-wire Relay Receivers between external relays and electrical loads.

Kim Lighting    City of Industry, CA 91749
Dec 05, 2008 Utilizing white LED technology, LED Compact Floodlight features 45 W constant current electronic driver available in 120 or 277 V input. Housing and doorframe are precision die-castings with integral cooling ribs that dissipate heat, allowing electrical components to operate below allowable limits. Available in 6 finishes, light includes heavy-duty swivel with concealed internal locking teeth. Recommended distance from lighted surface is 3-15 ft, depending on lamp and wattage.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
Dec 05, 2008 Offering tool-less ballast access, Max-ER recessed direct/indirect revitalization luminaire delivers up to 97 lumens/W. Fully-wired, one-piece unit uses T5/T5HO lamps and ballasts and can be directly installed into most existing parabolic housings. Luminaire brings volumetric-type lighting to any space, delivering even light distribution and eliminating cave effect produced by parabolic luminaires.

Linear Technology Corp.    Milpitas, CA 95035

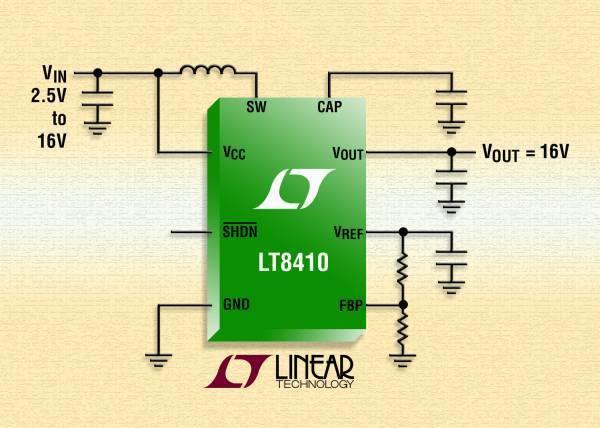

Dec 04, 2008 Models LT8410/-1 low-noise micropower boost converters with integrated power switches, Schottky and catch diodes, and output disconnect circuitry are housed 2 x 2 mm DFN package. Integrated high value (12.4M/0.4M) output feedback divider resistors enable device to regulate 16 V output with no load with less than 30 µA of quiescent current. Wide 2.6-16 V input range enables them to operate from single cell Li-Ion batteries up to fixed 12 V input rails, delivering outputs up to 40 V.

Astrodyne Corp.    Mansfield, MA 02048
Dec 04, 2008 Accepting universal input of 90-264 Vac, ADA100/120/150 Series External Desktop Power Adapters offer single outputs from 12-48 Vdc. Units provide line/load regulation of 0.5/5% respectively, ripple/noise of 1.5%, plus overvoltage, overcurrent, short circuit, and over-temperature protection. Offering efficiencies up to 94%, adapters provide input-to-output isolation of 3,000 Vac. Output connection is made via standard DIN plug with other connections available upon request.

Terex Aerial Work Platforms    Redmond, VA 98052
Dec 04, 2008 Powered by Tier 4 compliant 37.7 hp Kubota diesel engine, T30 Super Quiet Generator comes standard with 110% spill containment of all onboard fluids and 64-gal fuel tank for 24 hr of continuous operation. Operator can use 3-phase power, single-phase power, or both simultaneously. Three-phase voltages include 208/240/440/480 while single-phase voltages are 120/240. Built for quiet operation, generator is rated 65 dB at 23 ft when carrying prime load.

Kim Lighting    City of Industry, CA 91749
Dec 04, 2008 Suited for integration into outdoor lighting plans, Round Wall Forms® Series is made of die-cast, low-copper aluminum alloy with double side walls. Full-, half-, cutoff-, and shallow cutoff-face fixture types are available. Flat clear lens option reduces unwanted glare, while ADA recessed lens option provides optimal visual impact. Available with 15 or 30 W super bright white LED modules, series also provides choice of prismatic, smooth, or hooded exterior fixture lens.

Linear Technology Corp.    Milpitas, CA 95035
Dec 03, 2008 Used in step-down, step-up, inverting, and SEPIC topologies, Model LT3724 features voltage range of 4-60 V, output voltages to 36 V, and quiescent current of 100 µA. Unit operates at constant 200 kHz switching frequency and safely powers pre-biased load by not allowing negative currents to flow in output inductor. Additional features include undervoltage lockout, 10 µA shutdown current, programmable soft-start, and operating efficiency as high as 93% when used as step-down converter.

Linear Technology Corp.    Milpitas, CA 95035
Dec 03, 2008 Models LTC3642EDD/LTC3642EMS8E 45 V input capable converters deliver up to 50 mA of continuous output current and operate from input voltage range of 4.5-45 V, with transient protection up to 60 V. From 3 x 3 mm MSOP8-E package, they utilize internal high side and synchronous power switches. Units operate from -40 to +125°C and are suited for automotive and industrial 4-20 mA control loop applications. They are available with adjustable output down to 0.8 V or with fixed 3.3 or 5 V output.

Greegoo Electric Co.,Ltd    Zhejiang   China
Dec 03, 2008 To conserve space, Control and Protective Switching (CPS) Device integrates breaker, fuse, contactor, overload protection relay, starter, and isolator into one module. Solution may be applied to power system of AC 50/60 Hz, with rated voltage up to 690 V and current from 1-125 A (adjustable from 0.4-100 A). It is suited for connecting, loading, and breaking current during normal and urgent situations.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Dec 03, 2008 Fully regulated and PCB-mounted PFE1000F modules, offered with 12, 28, and 48 V nominal outputs, handle AC input rectification, power factor correction (PFC), DC-DC isolation, and low-voltage conversion in one 3.94 x 0.53 x 6.3 in. brick. Line and load regulation is 0.4% max, and efficiency varies from 82-86% depending on output voltage. Models accept ac input from 85-265 V at 47-63 Hz while also providing input to output isolation of 3,000 Vac and various protections.

SAS Automation, Ltd.    Xenia, OH 45385
Dec 03, 2008 Featuring twist-on design, Cable Saddle frame connector and wire tie system enables End-of-Arm Tool builders to easily attach air hoses and/or power cables to tools. Twisting cable saddle to lock into profile provides ability to move cables or hoses without having to cut wire ties off. Wire ties can be looped through opening built into base of cable saddle, allowing for it to be permanently attached to cables or hoses. Product is available in 15 and 25 mm sizes.
