Saia - Johnson Electric    Vandalia, OH 45377
Oct 09, 2009 Offered in compact, IP67 rated 33 x 10.4 x 15.9 mm package, Burgess V3NS series miniature micro switches feature prewired, 6.8 or 4.8 mm faston terminal connection systems. UL, ENEC, IEC, and CSA certified switches are suited for wide range of applications in medical, building automation and security, leisure and fitness, material handling, and transportation industries.

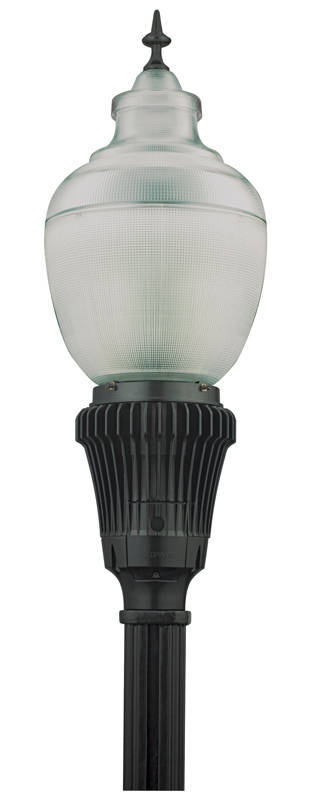

Holophane    Granville, OH 43203
Oct 09, 2009 Featuring dedicated heat sink for LED thermal management, Acrylic Washington PostLite® LED luminaires are designed for use in parks, city streets, campuses, walkways and parking lots. They have IP65 rating, with 116 W luminaire UL listed for 30ºC ambient temperature and 58 W unit listed for 40ºC ambient. Units have passed 1,000 hr salt test per ASTM B-1117, making them suited for seaside locations. Access door for electronic driver and photocell receptacle aids in maintenance.

Raritan Computer, Inc.    Somerset, NJ 08873
Oct 09, 2009 Dominion® PX-5652 has 24 outlets - three 120 V NEMA 5-20R; 18, 208 V IEC C-13 outlets; and three 208 V IEC C-19 - that enable mix of servers requiring different voltages and outlets to be plugged into same rack PDU. Able to provide reliable power to servers as well as collect key power information, 3-phase intelligent PDU offers individual outlet-level metering as well as room temperature and humidity information through optional sensors. It also supports remote operations.

Thomas & Betts Power Solutions    Richmond, VA 23231
Oct 09, 2009 Cyberwave CI is double-conversion UPS with rugged electrical design. Ranging from 10-160 kVA, system utilizes PWM inverter technology and fiber optic data paths to ensure accuracy of controls and communications. It includes DSP digital controls, parallel redundancy, and overload and fault clearing capabilities and is designed for 20 yr lifespan. System is suited for petrochemical, oil and gas, power generation, and heavy manufacturing processes.

Prysmian Fiber Cable - a Division of the Prysmian Group    Claremont, NC 28610
Oct 09, 2009 GR-20 and RUS standards compliant, ezInterconnect(TM) MDU Drop cables are offered with 3 different levels of bend insensitive fiber including BendBright, BendBright-XS, and BendBright-Elite. Drop cable is available from 1-12 fibers, gel or dry tube, is round in shape, armored, bends in any direction, and contains single tube. Offered with indoor or outdoor style connectors and with HLC Scratchguard technology, cables can be used for aerial, duct, or direct buried applications.

Marktech Optoelectronics    Latham, NY 12110
Oct 08, 2009 Supplied in lengths from 1-5 ft with 50° or 100° viewing angles, T9 LED Light Tubes have CRI of 80 and contain no lead, mercury, or glass. Each 24 V, aluminum tube includes 2 mounting hardware options that can rotate up to 120°, and lumen output can be dimmed to any desired brightness using remote LED dimmer module. There are 3 available color temperatures: 3300k (cool white), 4200k (neutral white), and 6500k (warm white).

LEDtronics, Inc.    Torrance, CA 90505
Oct 08, 2009 Model WWL20-24X2W-XPW-001W runs on voltages from 100-277 Vac and consumes 56 W. Mountable on walls, ceilings, or floors, indoors or outdoors, unit features lens that sends circular beam of 85° that spreads 157° vertically and 38° horizontally. Device utilizes 24 CREE XR-E LEDs and provides 6,000 K pure-white light with 2,777 lumens. Silicone gasket seals weatherproof, die-cast aluminum housing and lens frame to keep out moisture and dust.

Binder-USA, LP    Camarillo, CA 93012
Oct 08, 2009 Designed for a variety of Fieldbus and Ethernet network applications, 7/8 in. cable connectors with 2.5 mm terminal cross-section capacity of Series 820 field-attachable connectors are offered with 5 gold-plated contacts in male and female versions with straight and right-angle options. Cables up to 14 mm in dia can be connected to straight versions and up to 12 mm can be connected to right-angle versions. Screw-type terminals are used to attach wires.

B & K Precision Corp.    Yorba Linda, CA 92887
Oct 08, 2009 Including 4 models providing varying voltage and current levels in 500 W range, 9150 series single-output, linear-regulated DC power supplies are programmable via USB or RS232 using standard SCPI commands. Other features include digital port with external triggering and remote inhibit functionality, high resolution milliohm meter supporting 4-wire measurements, and fan-speed control to minimize audio noise. With low ripple and noise below 3 mVp-p, units also offer list mode operation.

Micro Plastics, Inc.    Flippin, AR 72634
Oct 08, 2009 Accommodating up to 4 wire handling accessory fasteners which mount into 3/16 in. dia holes on clip, Din Rail Clip snaps onto DIN rail and is easily removable to allow reconfiguration of wiring. It can be used in conjunction with wide variety of wire/ cable clips that can mount in 3/16 dia hole and 1/16 in. panel. Clip is molded of nylon 6/6 which offers electrical insulation and is UL rated 94-V2 for flammability.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Oct 08, 2009 With 0.5 mm pitch and height of 2 mm, series HF601 has cover that can be opened widely and accepts insertion of standard flexible flat cable (FFC). This zero insertion force (ZIF) connector can contact FFC with or without positioning part, but positioning part ensures increased safety against extraction. Design promotes plug security, and cover locks with audible click when closed. Pin counts - 10, 20, 26, 30, 40, 45, 50, and 60 - provide application flexibility.

Belden    Richmond, IN 47375
Oct 08, 2009 Classic Design VFD Cables with Beldfoil® plus TC Braid Shield are available in 14-2 AWG and feature oversized XLPE insulation, dual shielding, and 85% braid coverage for EMI protection. Aluminum/Mylar tape shield protects against RF noise. Symmetrical Design with Spiral Copper Tape Shield versions, offered in 1-4/0 AWG, feature spirally applied dual copper tape EMI/RFI shields. All 2,000 V, UL 1277 Type TC-ER cables feature black sunlight- and oil-resistant PVC jackets.

Shat-R-Shield, Inc.    Salisbury, NC 28147
Oct 08, 2009 Safety-coated, 25 W T8 fluorescent lamps provide high color rendering, lumen maintenance of 97%, range of color temperatures, and extended rated-life of up to 46,000 hr. Lamps operate on any instant start and programmed start ballast.

Cooper Lighting    Peachtree City, GA 30269
Oct 07, 2009 Included in Halo recessed downlight series, 4 in. compact fluorescent (CFL) downlights include 13 and 18 W models available for residential and light commercial spaces. AIR-TITE(TM) housings are designed for IC-rated insulated ceilings. Used for accent, task, and perimeter area lighting, products employ thermally protected, fused, 120 V electronic ballast that provides full light output with flicker- and noise-free starting/operation.

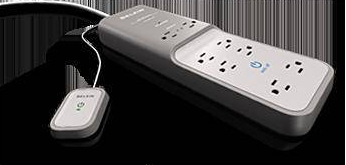

Belkin Components    Compton, CA 90220
Oct 07, 2009 With Conserve Surge with Timer, employees can plug office electronics into 1 of 6 Auto Off outlets, while Always On outlets keep PCs and other critical devices powered on at all times. Users can activate 6 switched outlets with single press of on/off button, allowing automatic timer to eliminate power to those outlets after 11 hours. When employees leave for the day, switched outlets turn off, eliminating power consumption that would normally occur throughout evening and weekends.

Motolight    Cincinnati, OH 45215
Oct 07, 2009 Available for motorcycles with radial mounted brake calipers, Halogen Riding Light Kits use radial block, spacer, and special bolt for installation. Units come standard with 35 W halogen MR16 bulb providing 8° beam spread, optimizing daytime visibility while maximizing nighttime visibility for rider. Offered with black powder coat or brushed metal finish, lights are optionally available with 50 W MR16 halogen bulb or 50 W MR16 amber bulb.

Power Distribution, Inc.    Richmond, VA 23223
Oct 07, 2009 Intended for data centers, industrial, and commercial applications, Powerwave Bus System(TM) with Tough Rail Technology(TM) features 225 and 400 A continuous rail system and 80-150 A vertical drop down power distribution connections. Modular, pre-engineered system also includes integrated Wavestar(TM) technology, which provides intelligent monitoring and communications.

Electro Standards Laboratories    Cranston, RI 02921 3403
Oct 07, 2009 Featuring both local front panel pushbutton control and remote control access using Ethernet 10/100 Base T connection with either Telnet commands or GUI, PathWay Model 7355 dual channel RJ45 Cat 5e A/B/ switch allows sharing of single device among 2 other devices with secure off-line position for each channel. Unit includes password protection with ability to change login password and/or switch's IP address. All switched signals are passed via latching copper contact relays.

Xandex    Petaluma, CA 94954
Oct 07, 2009 Designed for photovoltaic panels, SunMizer(TM) recovers power that is lost when shade falls on solar panel. By isolating shaded solar panels from rest of panels in series connected string, SunMizer prevents shaded panels from drawing down power output of unshaded panels. At same time, system harvests power from shaded panels and contributes that power to string.

Belden    Richmond, IN 47375
Oct 07, 2009 To ensure optimal performance in extreme or mission-critical environments, Industrial Ethernet Cordsets and Patch Cords have individual insulated conductors bonded together along longitudinal axis for uniform conductor-to-conductor spacing. Cables are also chemical- and temperature-resistant and incorporate rugged RJ45 or over-molded M12, IP67-rated industrial connectors.
