Phihong USA    Fremont, CA 94539
Nov 05, 2009 Available in 5 and 9 Vdc outputs, PSC12x Series consists of A, E, K, S, and C fixed plug versions for use in US, Europe, UK, Australia/New Zealand, and China, respectively. Units are double insulated, meet Class B EMI standards, and feature short-circuit protection with auto-restart, as well as over-current and over-voltage protection. Per ENERGY STAR Level V efficiency standards, all models feature power draw of less than 0.3 W at no-load.

Philips Lighting Co.    Somerset, NJ 08875

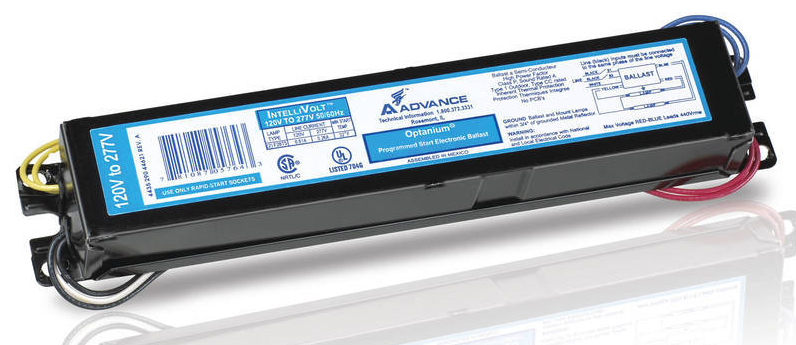

Nov 05, 2009 Optanium® T8 programmed start parallel electronic ballasts, designed to maximize energy savings, enable independent lamp operation, which allows exact identification of expired lamps. Hot restrike feature allows users to replace lamps without cycling power, while striation reduction feature minimizes chance of striation issues when used with standard/energy-saving lamps. They are available with .88 balast factor and meet NEMA/CEE energy efficiency requirements.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Nov 05, 2009 Providing full-load performance across -40 to +85°C temperature range, MER1 Series isolated 1 W single-output DC/DC converters are available in 5 input voltages ranging from 5-48 V and output voltages of 5, 9, 12, or 15 V. Typical efficiency levels are up to 89%, while galvanic isolation of 1 kVdc helps minimize switching noise. Fully encapsulated 0.774 x 0.242 x 0.4 in. units utilize UL 94V-0 package materials and are RoHS-compliant.

Powerex, Inc.    Youngwood, PA 15697
Nov 05, 2009 Models VLA312-2425 and VLA313-2450 step-down DC-DC converters feature capacity of 25 or 50 W, respectively, and provide 2,500 Vrms electrical isolation between input and output. Input voltage range is 475-850 Vdc. Featuring overcurrent and overvoltage protection, units are intended for use on board preregulator for industrial control equipment.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 05, 2009 Featuring compact Lexan 943 housing, Series DSSR includes internal heat sink, bistable clips for DIN rail or panel mounting, and LED indicator light. Unit provides reliable switching in applications where inrush currents can affect mechanical state relay operation. Operating from 24-480 Vac, relay features max voltage loss of 1.6 Vac, max output leakage current of 10 mA, and temperature limits of -22 to 176°F.

PCT International Inc.    Gilbert, AZ 85233

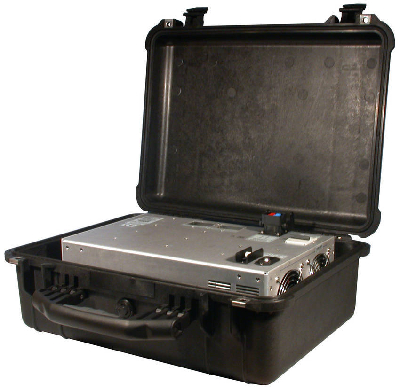

Nov 05, 2009 Battery Testing and Charging System helps cable system operators test, re-charge, and redeploy batteries from EMTA deployments. Comprised of servers, testing software, and tester/charger, system can be stacked to service up to 192 batteries in one 19 in. rack. It provides complete testing and battery charging linearity test for 2-, 3- and 4-cell battery packs. System can also plot minute by minute charging reports; provide current and voltage curves; and test power drain linearity.

NexTek, Inc.    Westford, MA 01886

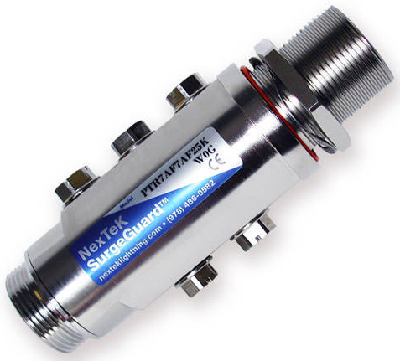

Nov 04, 2009 Built to IP68 standards, SurgeGuard(TM) K-Series protects RF transmission lines rated up to 50,000 W with surge capability to 125,000 A. It addresses demands of mission-critical RF applications, including HF, VHF, and UHF frequency ranges from 0 (DC) to 1,000 MHz. Based on multiple gas discharge tube design with serviceable replacement elements, arrestor measures 119 x 45 mm, has 7-16 female to 7-16 female connectors, and delivers 50 kW max RF power at max through-current of 30 A.

Linear Technology Corp.    Milpitas, CA 95035
Nov 04, 2009 Featuring programmable average input current limit, Model LTC3606B delivers up to 800 mA of continuous output current with efficiencies up to 96%. Using constant frequency and current mode architecture, unit operates from input voltage of 2.5-5.5 V, making it suited for single-cell Li-Ion and USB applications. Device can generate output voltages from 0.6-5 V and uses switching frequency of 2.25 MHz. Housed in 3 x 3 mm DFN-8 package, synchronous buck regulator operates from -40 to 125°C.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Nov 03, 2009 Supplied in DIP24 package, AM8TW-Z series offers 9-36 and 18-75 Vdc input ranges and remote ON/OFF control suited for portable, battery-powered applications. Single and dual output voltages of 3.3, 5, 12, and 15 Vdc, accurate to ±1%, require no minimum load and feature over-voltage, over circuit projection, and tight line/load regulation of ±0.2%/±0.5%. Also, I/O isolation of 1,600 Vdc protects load circuit from any transient voltage surges presented at input.

Lighting Specialties    Buffalo Grove, IL 60089
Nov 03, 2009 Wolf EcoFlex features grooved aluminum head that rotates 340° vertically and 90° horizontally and incorporates four 1 W dimmable white LEDs that are optically mixed to produce even light pattern. Thermal engineering allows LEDs to achieve rated life of 50,000 hr, and 25 in. flexible arm lets user aim light where it is needed. Designed to be environmentally friendly, lamp offers light intensity of 500 fc at 12 in.; 2,000 fc at 6 in.; and 5,000+ fc at 3 in. or less.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Nov 03, 2009 With rugged 2-wire (IEPE) single ended design, Model 2771C-XX operates from 4-20 mA of constant current power. Unit offers broadband noise range down to 5 µ Vrms, with frequency response of 0.4-50 kHz, and can withstand shock loads of up to 100 g peak. Available in 3 different fixed gains of 0.1, 1.0 and 10 mV/pC, model supports TEDS as per IEEE P1451.4 for smart sensor and larger channel count applications.

Cree, Inc.    Durham, NC 27703
Nov 03, 2009 XLamp® XP-C LEDs come in cool white with up to 107 lumens at 350 mA. Warm white models are available up to 80 lumens at 350 mA. They are offered in ANSI-compatible chromaticity bins for cool and neutral white and in ANSI-compatible warm white bins.

Larson Electronics, LLC    Kemp, TX 75143
Nov 03, 2009 With 400 W of solar panel collection and deep cell gel style 366 A hr batteries, SPG366A-400 can provide area lighting for events, work sites, and remote areas. Trailer-style, solar-powered generator has integral light tower, and wheeled base includes trailer hitch, rubber torsion axle, and pneumatic compressor. Latter elevates light mast, which can hold several LED lights - including 7,200 lm LED10W-9S or 14,400 lm LEDLB-80X2. Dual gel pack batteries support 366 A for 20 hr.

AEMC Instruments    Foxborough, MA 02035
Nov 02, 2009 Composed of flexible sensor and electronic module, MiniFlex(TM) MF 300-6-2-10 and MF 3000-10-2-1 have mV output proportional to current measured for direct readings on DMMs, data loggers, oscilloscopes, and power or harmonic meters. Units are insensitive to DC currents and only AC component of signal is measured. Available in 6 and 10 in. lengths, sensors are insulated for 1,000 V CAT III; 600 V CAT IV. Electronic module provides Off-Low Range-High Range selections with measurements from 0.5-3,000 A.

WAGO Corp.    Germantown, WI 53022

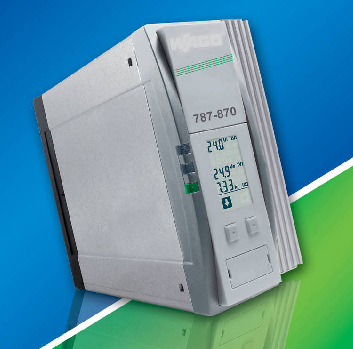

Nov 02, 2009 Encapsulated in DIN-rail mounted metal housings, 787 Series includes UPS controller as well as Buffer and Redundancy modules. Modules include 3 LEDs, at least 1 signal output status LED, and CAGE CLAMP® Spring Pressure Connection Technology for maintenance-free terminations. Operating from -10 to +60°C with 95% efficiency, UPS Controller includes LCD/keypad, RS-232 interface, and software for custom configuration, diagnostics, and monitoring.

Crydom    San Diego, CA 92154

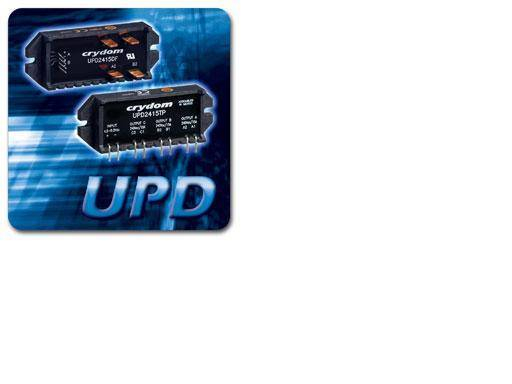

Nov 02, 2009 UL approved UPD Series solid state relays come in single-in-line PCB mounted version or low profile panel mount package with 0.25 in. male quick connects. They are designed for single channel, dual channel, or 3 phase operation rated at 280 Vac with either 15 or 25 A/channel output, depending upon model, available heat sinking, and operational ambient temperature. Units feature optically isolated DC input control ratings of either 3-32 Vdc, 3-15 Vdc, or 4.5-8 Vdc.

XP Power    Sunnyvale, CA 94085
Nov 02, 2009 Housed in metal package, high power density 15 W JTK15 and 30 W JTL30 series accept either 9-36 or 18-75 Vdc inputs. JTK15 series comes in single or dual output models, and measures just 1 x 1 x 0.39 in., while JTL30 series has footprint of 2 x 1 x 0.4 in., and offers single, dual or triple output options. Units feature input to output and input/output to case isolation of 1,600 Vdc for up to 1 min, and remote on/off signal to control output rails or to sequence start-up procedures.

SunPower Corp.    San Jose, CA 95134
Nov 02, 2009 Incorporating 128-cell, 400 W solar panels for maximum energy output, T20 Tracker generates up to 3.7 kW of power and, by following the sun, delivers up to 30% more energy than fixed tilt systems of same capacity. Single-axis, ground-mounted tracker has mechanical structure that lends to wind resistance and employs minimal moving parts. Included PV tracker control system offers real-time tracker status updates, remote monitoring/control, and energy production optimization algorithms.

TE Connectivity Ltd.    Berwyn, PA 19312

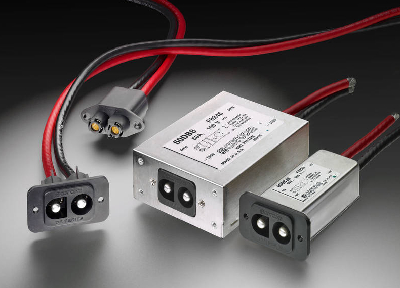

Oct 30, 2009 UL recognized and CSA/TUV certified, Corcom DB Series operates at 60 A, 150 Vdc in filtered versions, and up to 300 Vac/Vdc in unfiltered version. Power inlets feature 2-position keyed input receptacle connectors with No. 6 AWG hi-flex stranded lead terminations, while mating plugs have pre-terminated, hi-flex wire of various lengths. Filtered models include basic clean-up DBJ style, as well as DB and DBX styles, which provide up to 68 dB insertion loss within 150 kHz to 30 MHz range.

Absopulse Electronics, Ltd.    Carp, ON K0A1L0  Canada
Oct 30, 2009 Integrating analog voltmeter and ammeter to indicate charge current and battery voltage status, BCH 1K5T-400 uses high-frequency conversion technology to deliver up to 1,500 W continuous output power. Automatic 2-step charge mode runs at full 4 A charging current until preset voltage threshold of 380 V is reached and then switches to 1 A maintenance current. Also included, output separation diode prevents battery discharge back into charger if AC is disconnected.
