TRENDnet    Torrance, CA 90505
Dec 24, 2009 Model TEW-649UB Mini Wireless N Speed USB Adapter connects laptop or desktop computer to wireless n network. It features one-touch Wi-Fi Protected Setup (WPS) technology to simplify connection to network. Measuring 1.3 in. across, it includes 2 onboard antennas that utilize Multiple Input Multiple Output (MIMO) antenna technology to maximize range and output. It also offers wireless encryption for data protection.

Littelfuse, Inc.    Des Plaines, IL 60016
Dec 24, 2009 Housed in 1.25 x 1.0 x 0.5 mm µDFN package, ±8 kV Model SP1010-04UTG has capacitance of 3.5 pf for high speed buses, while ±15 kV Model SP1011-04UTG offers 7 pF of capacitance for optimized ESD protection. Both 4-channel arrays are RoHS-compliant and suitable for cell phones, smart phones, PDAs, portable navigation devices, digital cameras, netbooks, and portable medical devices.

Northwire, Inc.    Osceola, WI 54020
Dec 24, 2009 Bulk cable, CoilBoss(TM) Retractile Cords, and complete cable solutions are available for charging electric/hybrid vehicles. Available in standard/custom configurations, UL 62-approved cables are compatible with SAE J1772 connectors, UL 2594, and NEC 625 charging systems. Products include 600 V EVE (TPE) and EVT (PVC) cables, available from 2-18 AWG, as well as 300 V EVJE (TPE) and EVJT (PVC) cables from 12-18 AWG. All are resistant to temperature, oil, chemicals, abrasion, and crushing.

Philips Lighting Co.    Somerset, NJ 08875
Dec 23, 2009 Suited for 1-4 lamp T8 fluorescent systems, Optanium 347V Instant Start ballasts are available in normal and low Ballast Factor versions, and feature instant start ignition, independent lamp operation, and striation reduction. They offer -20°F cold start for outdoor applications and are compatible with standard and energy saving T8 lamps. Also available are 2-4 lamp models that meet all CEE, Hydro Quebec, and BC Hydro energy efficiency requirements.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 22, 2009 Designed as monostable normally closed relay, Model HCR 200 provides electrical continuity in case of failures in control circuit. Current carrying capability is up to 130 A continuous at 110°C ambient temperature, enabling integration into pre-fuse boxes and power distribution boxes in engine compartment. Relay offers both galvanic isolation and shock resistance of 30 g.

NKK Switches    Scottsdale, AZ 85260-3420
Dec 22, 2009 Incorporating Sliding Twin Crossbar contact mechanism to ensure smooth positive detent action, B Series features antistatic superstructure with carbon-impregnated bushing that prevents static discharge to contacts. Glass-reinforced polyamide housing and process sealed body protect against contact contamination. Rated 0.4 Va max at 28 Vac/dc max, PCB-mount switches come in single and double pole models with 11 circuits in momentary and maintained actions.

Aven Industries, Inc.    Ann Arbor, MI 48108
Dec 22, 2009 Mighty Mag Magnifying Lamp offers shadow-free lighting for design, assembly, and inspection work. It features 3-diopter crystal clear lens that delivers 1.75x magnification, 7 x 5.2 in. surface for wide field of view, and 9 W fluorescent bulbs for distortion-free light. Adjustable lamp is integrated into tiltable ivory or black plastic housing engineered with ESD protection. Internal spring-balanced arm with jointed neck extends up to 30 in. and sets in any position.

Mean Well USA, Inc    Fremont, CA 94538

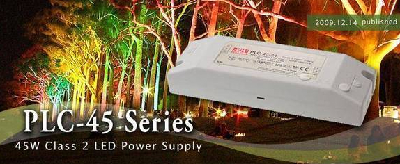

Dec 21, 2009 Measuring 181.5 x 62 x 35 mm, 45 Watt Series PLC-45 features terminal block style I/O connection and fully enclosed plastic case with 2 small holes on top that allow users to adjust output current or voltage without removing cover. Single-stage PFC topology enables efficiency as high as 87.5% and operation from -30 to 50°C by free air convection only. In addition to CC+CV mode output style, power supplies include short circuit, overload, over voltage, and over temperature protections.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Dec 21, 2009 Featuring 16-40 Vdc input voltage range, 15 Watt Okami(TM) OKI-T/3-W40 Series delivers programmable output voltage of 0.75-5.5 Vdc and can drive up to 1,000 µF ceramic capacitive loads. Non-isolated, surface mount modules include on/off control as well as over-temperature, over-current, and UVLO protection. Measuring 0.82 x 0.47 x 0.34 in., devices are suited for 24 Vdc industrial applications that require low-voltage dc source for powering FPGAs and microprocessors.

Linear Technology Corp.    Milpitas, CA 95035
Dec 21, 2009 Operating from 6-40 V with efficiencies above 92%, LT3760 utilizes internal 60 V step-up DC/DC controller capable of driving up to 45 V string of 100 mA LEDs per channel. LED current matching of ±2.0% (±0.7% typ) ensures uniform display brightness, and dimming ratios up to 3,000:1 can be attained by using True Color PWM(TM) dimming. Programmable 100 kHz to 1 MHz fixed frequency operation and current mode architecture offers stable operation over supply and output voltage ranges.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 21, 2009 Featuring parallel-pair design, Madison Cable TurboTwin Low Smoke Zero Halogen (LSZH) cables support high-speed connectivity in computer, networking, and telecom applications. In fire, PVC-free cables minimize emission of smoke and toxic gases. They also meet CSA FT4 flammability and physical testing requirements. Two-pair cables, available in wire range from 32-24 AWG, feature individual pairs that are foil shielded, with overall cable shield of foil/braid.

Linear Technology    Dallas, TX 75248
Dec 21, 2009 Supplied in 4 x 5 mm QFN and TSSOP packages, LT3492 offers 3 channels that can each drive up to ten 300 mA LEDs in series at efficiencies up to 96%. All 3 channels are operated by independent True Color PWM(TM) signal, enabling each to be dimmed independently to ratios up to 3,000:1. Along with programmable frequency from 330 kHz to 2.1 MHz, constant current LED driver offers fixed frequency, current mode architecture that ensures stable operation over supply and output voltage ranges.

ITT Interconnect Solutions    Santa Ana, CA 92705
Dec 18, 2009 Suited for transportation/automotive industries, APD Series circular 1-way connector features plastic cap to prevent injuries in maximum power applications and IP69K sealing for use in harsh environments. Product has receptacle that mates with standard APD 1-way plug and incorporates APD contact, crimp, and coupling nut system. Rated to 400 Vdc in mated condition, it can handle voltages to 630 Vdc and has current rating to 245 A at 25°C. Connector suits cable cross-sections from 16-50 mm².

Sabritec    Irvine, CA 92614
Dec 18, 2009 Utilizing Hypertac Hyperboloid® contact technology, High Power Connectors offer shock and vibration resistance for harsh environments. Units are available with socket ODs from 0.256-0.828 in. and pin diameters from 0.142-0.500 in. They feature continuous contact current ratings from 60-500 A and max contact resistance from .50-.10 mW. To enable multi-pole use, contact elements can be insulated.

ON Semiconductor, LLC    Phoenix, AZ 85008
Dec 18, 2009 Supplied in lead-free SOT-223, DPak, and SOIC8 packaging, NCV840x devices are qualified in accordance with AEC-Q101 standard and used to switch variety of resistive, inductive, and capacitive loads in harsh automotive and industrial environments. Design integrates logic level input and lets engineers replace electromechanical relays or discrete circuits. Integrated features include temperature and current limiting, ESD protection, and drain-to-gate clamping for overvoltage protection.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Dec 18, 2009 Designed to meet UL standards required by utilities in North America to feed solar power into grid, Sinvert PVS350T UL also meets DIN, VDE, IEC, and EN international standards. This 350 kW solar inverter, intended for photovoltaic (PV) fields with 600 Vdc input, takes energy gathered by solar panels and converts it into AC power. Under-over-voltage control, under-over-frequency control, open phase control, grid synchronization, and anti-islanding protection features are standard.

C&K Components    Newton, MA 02458
Dec 18, 2009 Featuring Hall-effect contactless sensing technology and integrated temperature compensation and short circuit protection, RoHS-compliant AR3 Series analog rockers have operating force from 4-6 N with rocker deflection angle of ±30º. Utilizing K12 switch technology, SR3 Series switch rockers feature precise tactile feedback, operating force of 5 N, and rocker deflection angle of ±12º. IP65 rated switches operate at -35 to +70ºC and handle maximum vertical load of 30 N.

LDD Trading Associates, LLC    Milford, NH 03055
Dec 18, 2009 Available in 6 standard sizes ranging from 3-14 in. in dia, IDD-KH series provide machine vision systems with light for measuring, inspecting, and reading applications. They come with red, white, blue or green power LEDs. Hemispherical dome offers broad angle of illumination onto part's surface, reducing shadows that make imaging shiny spherical and irregular surfaces problematic.

WAGO Corp.    Germantown, WI 53022

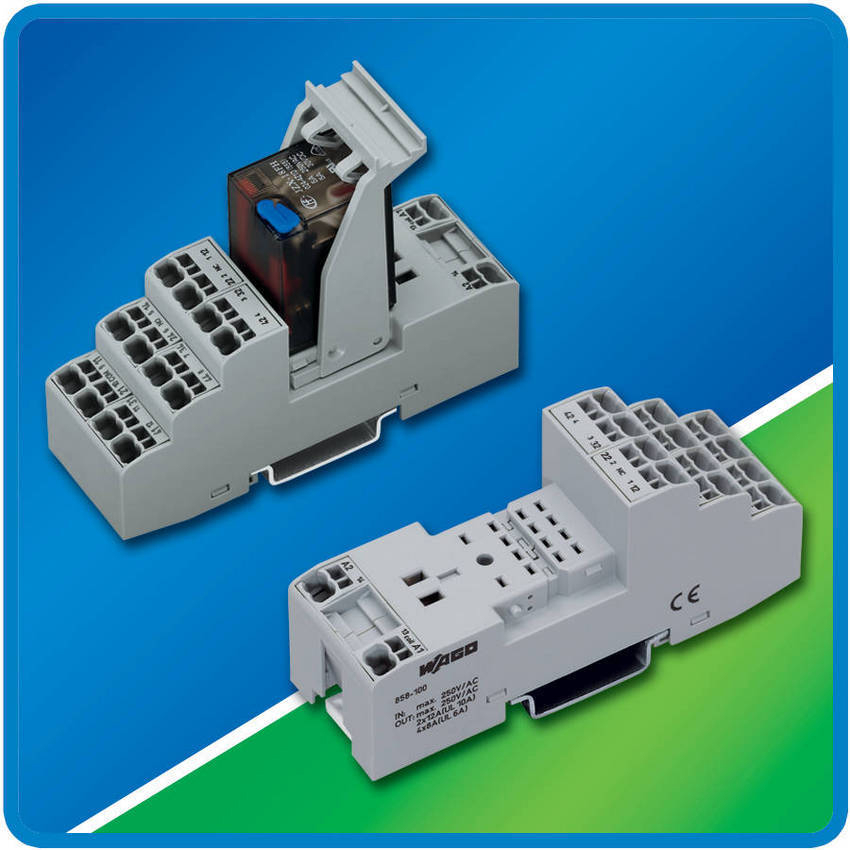

Dec 17, 2009 Available in coil voltages of 24 Vdc, 120 Vdc, and 230 Vac, as well as gold contact-equipped variants, DIN-rail mount 858 Series is offered as Complete Relay Modules or as customizable Socket/Base with standalone Relays as components. Modules carry 4 change-over contact relay, retaining clip, and base with 2 conductor entries at each connection point and provide various marking options/locations. Manually operated devices incorporate LED status indicator and push-to-test capability.

Greenlee Textron, Inc.    Rockford, IL 61109
Dec 16, 2009 Offering optimal balance and over-molded tacky grip, Crimping Tools include IntelliCRIMP(TM) pressure sensor, which notifies users with visual and audible alert if crimping force is below specifications for successful crimp. Most models also include Automatic Retraction Stop, which automatically retracts ram just enough to get ready for next cycle. In addition to providing battery charge and tool maintenance status, LED light facilitates working at night or in dark spaces.
