Basler Electric Co.    Highland, IL 62249
May 20, 2011 Offering complete current-based thermal motor protection, Model BE1-11m features multifunction current, voltage, frequency, power, and differential protection elements. Relay includes unbalanced current biasing, custom voltage dependent curves, RTD biasing, and emergency start override. Unit also provides users with oscillography, sequential events recording, breaker- and trip-circuit monitoring data for metering maintenance, and operational analysis.

Dontech, Inc.    Doylestown, PA 18901

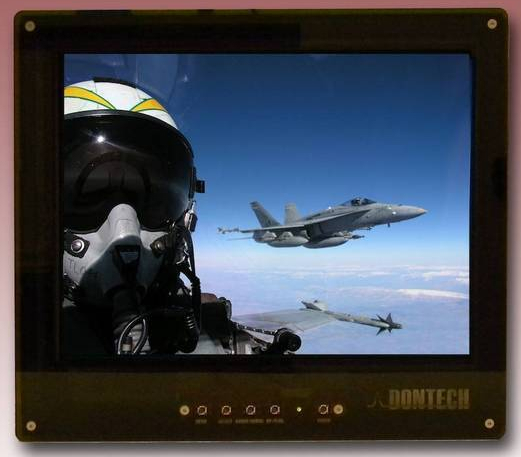

May 19, 2011 Day Vu(TM) Display Series products offer typical display luminance of 850-1,250 nits and, when used with optical filters, are suitable for marine, military, and industrial applications. Ranging in size from 4.1-24 in. diagonal, fully customizable displays can be configured with touchscreens, anti-reflective cover glass, transparent heaters, and EMI/RFI shielding. They can also be optically bonded to optimize impact resistance and contrast.

Electro Standards Laboratories    Cranston, RI 02921 3403

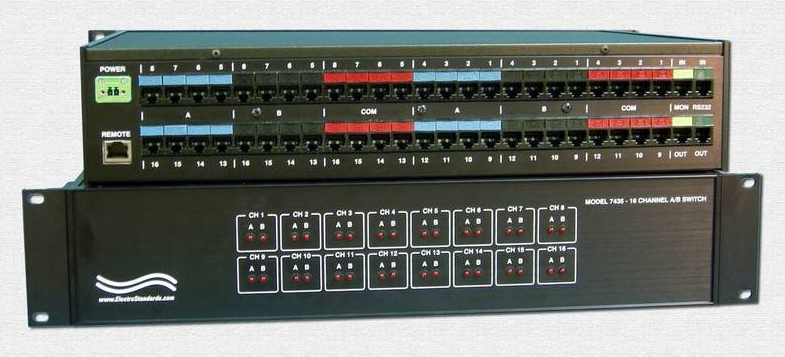

May 19, 2011 Supplied in rackmount configuration, Model 7435 allows single-port RJ45 interface device to be connected to COMMON port among 2 other devices connected to A and B ports for each of 16 channels. User may configure port position, A or B, of individual channels manually, via GUI, or via programming. With latter, switch automatically controls position of individual channels by sensing incoming data on A/B ports every millisecond. Gold-clad, silver relays are used to pass switched signals.

W.A.C. Lighting Company    Port Washington, NY 11050
May 19, 2011 In addition to 8 faceted crystal brackets illuminated by low-power LEDs, Hybrid-OLED Luminaire has six 4.5 mm panels featuring Organic LEDs with color-tunable RGB or color-tunable white, and color temperatures from 2,700-6,500 K. OLEDs are glare-free while diffusing ambient illumination and delivering 300+ lumens at 12 W. At 3,000 K, OLEDs' Color Rendering Index is 80. Hybrid luminaire provides average directional illuminance of 40 ftc at horizontal surface, 6 ft below fixture.

Schréder Lighting LLC    Elk Grove Village, IL 60007
May 19, 2011 Using open technologies and secure Internet connection, Owlet(TM) enables control of street and area lighting via Web-based applications. Wireless solution, used for monitoring, controlling, metering, and managing outdoor lighting, improves outdoor lighting reliability and security. Each light point can be switched on/off or dimmed at any time. Operating status, energy consumption, and possible failures, along with exact time stamp and geographical location, are stored in database.

Power-One, Inc.    Santa Clara, CA 95054
May 19, 2011 Suited for roof top installation, 2.0 kW AURORA UNO-2.0 is equipped with built-in heat sink compartment, front panel user interface, and RS-485 communication interface for connection to laptop or datalogger. Completely sealed, IP65-rated unit withstands harsh environmental conditions and provides efficiency rating of 96.3%. Wide input range begins harvesting at low voltages, extending daily working time of inverter.

Electro Standards Laboratories    Cranston, RI 02921 3403
May 19, 2011 Equipped with 4 channels, Model 7199 allows each channel to share 2 BNC networks from 1 common BNC network or device. Switch also includes DP9 remote port for RS485 multi-drop applications. With Model 7199, 4 independent channels can be switched individually or simultaneously via RS485 commands. Rackmount unit with anodized black box packaging also provides EMI/RFI shielding. For added security, switch has no front panel pushbuttons and can only be controlled remotely.

Lutze, Inc.    Charlotte, NC 28273
May 18, 2011 Due to extra thick XLPE insulation, DRIVEFLEX(TM) offers 1,000 V VFD 90°C rating per UL as well TC-ER and WTTC approvals. XLPE insulation is thermo-set material with elevated voltage breakdown level, inherently addressing corona discharge effect and making it suited for any type of motor and drive application. Along with design that facilitates stripping and installation, cable features foil and braid shield combination with drain wire that ensures compliance with EMC requirements.

K&H Industries, Inc.    Hamburg, NY 14075
May 18, 2011 Featuring dual lampheads that can be positioned 330° in both horizontal and vertical planes via hard-wired or wireless remote controller, vehicle-mounted StarBeam SB-101T-LT433 generates total output of 1,200,000 cp. Made with marine quality materials that are chemical and saltwater resistant, unit has hard-coated anodized drive shafts, brushless connections, and lubrication-free drive system. Housing and base are completely enclosed and are weather-resistant.

Gigavac, LLC    Santa Barbara, CA 93140
May 18, 2011 Models G2SPD/G8SPD/G15SPD have 2 sets of mechanically connected SPDT contacts that allow use of one set as auxiliaries to monitor relay status. Model G2SPD has copper-molybdenum contacts for carrying 50 Adc current and providing 12 milliohm contact resistance. While G8SPD and G15SPD both have tungsten-molybdenum contacts, only G15SPD uses gas mixture for loads such as capacitance discharge applications. All models measure 3.5 x 1.5 in. and are available with 12 or 26.5 Vdc coil.

Allegro Microsystems    Walton-On-Thames S KT12 2TD  United Kingdom

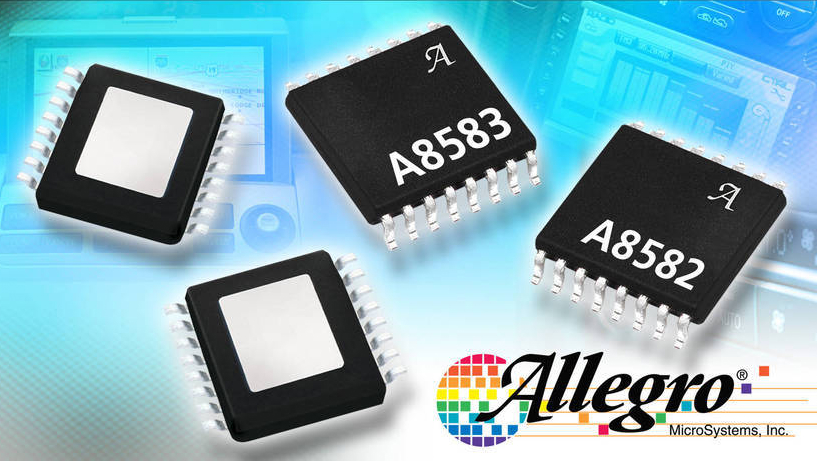

May 17, 2011 Model A8582 supplies load current of at least 2 A, and A8583 supplies current of 3.5 A, while both regulate input voltages from 4.7-36 V down to output voltages as low as 0.8 V. Available in 16-pin TSSOP package with exposed pad for thermal dissipation, they incorporate low resistance, high-side, N-channel MOSFET. Units include VIN under voltage lockout, cycle-by-cycle over current protection, hiccup mode short-circuit protection, over voltage protection, and thermal shutdown.

RF Industries    San Diego, CA 92126 4202

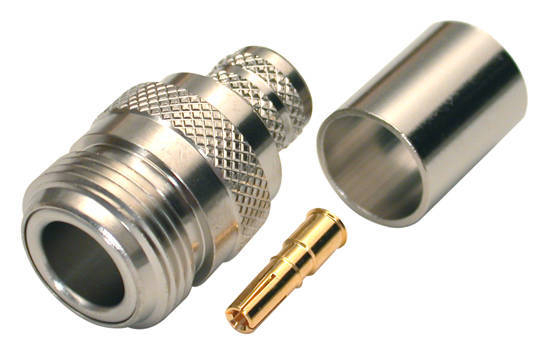

May 17, 2011 Model RFN-1028-I2 N female connector with crimp attachment has body constructed from machined brass with nickel plating. Product's dielectrics are manufactured from Teflon® with gold plated contacts. It is designed for use with LMR®-400-LLPL indoor fire-retardant cable that is intended for runs within return air handling plenums such as dropped ceilings and raised floors.

Semaphore    Nashua, NH 03063

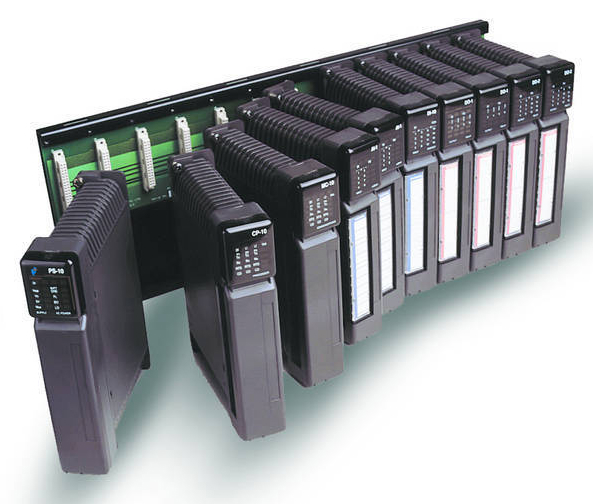

May 17, 2011 In one module, IO-5 provides 4 analog inputs; 4 digital inputs, of which 2 are 10 KHz counters; 4 solid-state digital outputs; and one analog output. Power supply modules PS-12 and PS-22, which respectively operate over 90-260 Vac and 20-60 Vdc ranges, include processors for voltage monitoring. All modules work with Kingfisher Plus+ RTU, which is based on automation technology for SCADA applications. It features embedded programming environment that complies with IEC 61131-3 and 61499.

CILS INTERNATIONAL    Beverly, MA 01915
May 16, 2011 To add variable data such as barcodes and serial numbers, CILS 8/9000 Wrap Around Labels can be printed from standard PC and laser or thermal transfer printer, and come with self-adhesive clear over-laminate to safeguard printed data. Available in range of polyesters and self-extinguishing vinyls, markers resist oil, grease, abrasion, moisture, and extreme temperatures from -196 to +388°C. They are suited for single/multicore cables, fiber optics, shielded twinax cables, and coaxial cables.

Heyco Products    Toms River, NJ 08753

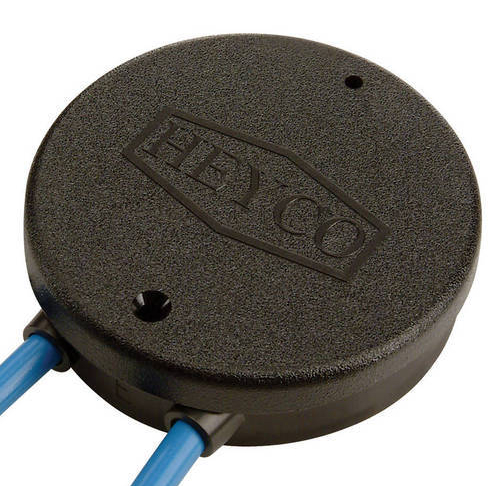

May 16, 2011 In applications that require diodeless junction box, PVB 001 can be used with USE-2 and 1000V PV wire and features 2-piece construction. Low-profile design minimizes use of potting material while permitting ample access for electrical connections. Constructed of high-temperature polycarbonate with 5 VA and UL F1 ratings to withstand outdoor exposure with excellent cold impact performance, junction box has lid that securely snaps on without tools to accelerate panel fabrication.

Thomas & Betts Corp.    Memphis, TN 38125
May 16, 2011 Made of advanced heat-resistant nylon, Ty-Rap® Extra High Temperature Cable Ties offer alternative to metallic fasteners. Units feature smooth, low-profile head that resists snagging when bundle is pulled, and non-magnetic, stainless steel locking wedge that replaces ordinary nylon catches to secure tie. Cable ties are suited for OEM and industrial MRO applications where temperatures range from -40 to 302°F.

Phoenix Products Co., Inc.    Milwaukee, WI 53224
May 16, 2011 While retaining design of jelly-jar fixtures, Metallic LED VP Series houses Bridgelux LED light source rated for 50,000 hr of illumination. Fixtures are UL 1598A-listed for marine, outdoor, and saltwater environments; UL 844-listed for hazardous locations; and ABS-listed as well as IP66 and LM79 tested and certified. Thermal paste in mounting array optimizes transfer of heat for dissipation, while driver and array are fully potted to protect against moisture, dust, and vibration.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
May 13, 2011 FieldConnex Compact Power Hub is compact motherboard that holds up to 16 plug-in power modules to supply redundant power for up to 8 FOUNDATION Fieldbus H1 segments. It has typical power loss of 1.3 or 1.6 W, allows modules to be exchanged without interruption of power supply, and also supports physical layer diagnostics. Measuring 150 x 268 mm, system features passive impedance design that results in minimum heat dissipation. Unit is available for 21-23 V/500 mA or 28-30 V/500 mA operation.

Larson Electronics, LLC    Kemp, TX 75143

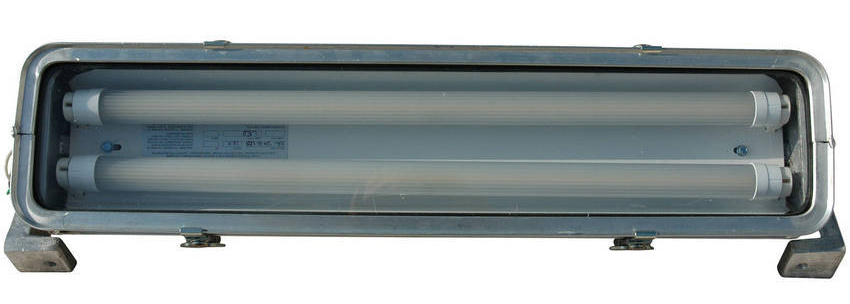

May 13, 2011 Designed to replace explosion-proof fluorescent fixtures, Magnalight HAL-24-2L-LED carries T4 temperature rating and is equipped with two 15 W LED tube lamps that offer 50,000+ hr operational life. No ballast is used in this fixture, which is constructed of copper-free aluminum and built with corrosion-resistant reflector with glossy finish and hinged glass door. Product is UL-approved for Class 1 Div 2 Groups A/B/C/D, UL 595 Outdoor Marine Type, and UL 1598A Marine Type environments.

Larson Electronics, LLC    Kemp, TX 75143
May 13, 2011 Magnalight PML-70-DP-120 70 W HID Spotlight produces 6,300 lumen light beam that can reach over 4,800 ft. When operated directly from 12 Vdc current, spotlight consumes 5.9 A at 70 W. Product includes Xenon D2 type HID lamp and instant-on HID ballast that brings it to full power in 3 sec. It's housing is IP67-rated and constructed of high-impact nylon, and rubber isolators provide vibration-resistance. Polycarbonate handle is affixed to adjusting bracket for beam direction adjustment.
