Switch Cabinet Connector facilitates wiring.
HARTING, Inc. Of North America
Elgin, IL 60123 5538
Dec 09, 2003
Han-Snap® is designed for wiring of multiple closed electrical equipment cabinets. Hinged, rail fixing, connector-mounting element facilitates use of standard connector inserts inside electrical control enclosure. Connector inserts are locked into carrier element without use of tools.
Gigabit Backbone Switch has 48 fixed 10/100/1000 ports.
Irvine, CA 92618
Dec 09, 2003 Compact TigerSwitchâ„¢ SMC8648T, suited for enterprise workgroup or backbone switching applications, moves data at speeds to 96 Gps (9K in jumbo frame support mode). Along with RADIUS, 802.1x, SSH and SSL for security, unit offers complete Layer2/3/4 switching with traffic prioritization, including DSCP- and TCP/UDP Port-based CoS and port and protocol-based VLANs. It also provides rate limiting, SNTP, and SMTP, configurable through command line interface.

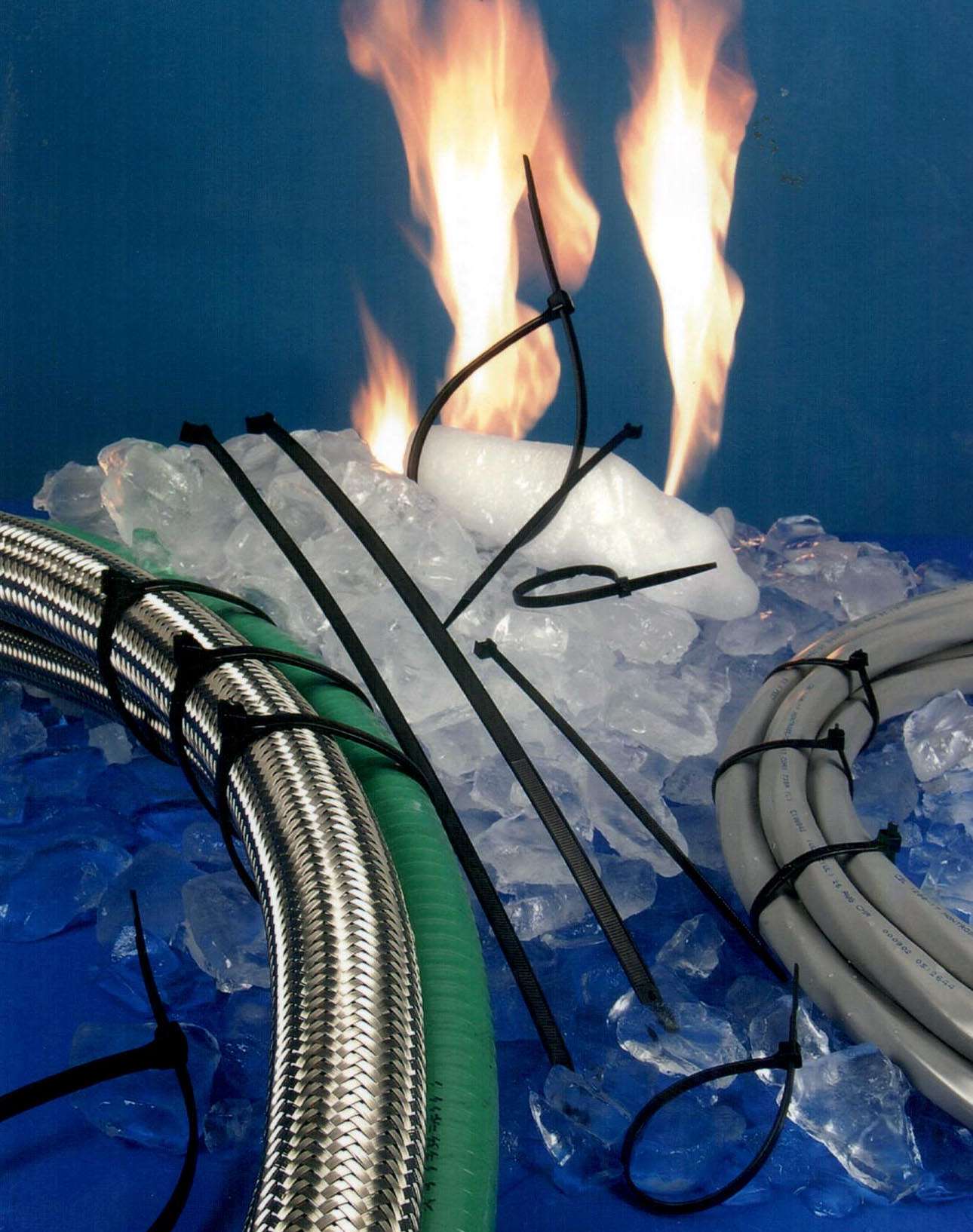

Cable Ties are flame retardant and non-absorbent.
Nelco Products Inc.
Pembroke, MA 02359
Dec 09, 2003
Polyketone Cable Ties contain no halogen and are resistant to UV, most chemicals, and acids. They can be continuously submerged in water, do not become brittle, and operate from -50 to +100°C. Featuring rounded and recessed head and rounded tie body to reduce strain when closed, units include graduated notches for stress-free tensioning. Sizes range from 8-31 in. long with either 50 or 100 lb tensile strength.
LED Illuminator suits bi-color water gauges.
Clark-Reliance Corporation, The
Strongsville, OH 44136
Dec 08, 2003 Simpliport® LED illuminator for bi-color water gage glass produces intense, highly visible light for improved safety, eliminating burning hazard. It retrofits on existing Simpliport® gauges and has a service life of 8 years. LED lights consume 90% less power than standard light bulbs.
Solid State Relays feature integrated heat sink.
Carlo Gavazzi Electronic Packaging
Brockton, MA 02301-5548
Dec 05, 2003 Series RJ Solitrons can replace electromechanical contactors in high switching frequency applications. They may be snapped onto DIN-rail or mounted to back chassis. Units include LED indication of control input and over-voltage protection. Installation is via self-lifting connection clamps and 2 terminal layouts. Relays are offered in Mini style for switching up to 30 A at 600 Vac, Midi for switching 75 A, and Power for switching up to 90 A at 600 Vac.
Hydraulic Crimping Tool includes visual indicator.
Manchester, NH 03108
Dec 05, 2003 KOMPRESSORâ„¢ LPHY750 remote-operated, 12-ton crimping tool is double acting for hydraulic ram advance and retract. It includes spring back-up for ram retraction in case of hydraulic pressure loss. Tool has 1.65 in. jaw opening with 350° head rotation. It can be powered directly from open or closed center hydraulic tool circuits, which are present on most utility trucks, or from individual, 1,500-2,500 psi hydraulic units.
Finger-Proof Connectors provide user safety.
Anderson Power Products
Sterling, MA 01564
Dec 05, 2003 Powerpole® 15/45 Connectors prevent finger access when unmated and energized. Flat-wiping contact system reduces contact resistance at high current, while wiping action cleans contact surface during connection/disconnection. Molded dovetails secure connectors into keyed assemblies, preventing misconnection. With interchangeable genderless design, connectors are rated 15, 30 and 45 A for 600 V of continuous AC or DC operation. Wire sizes range from 10â€“20 AWG.
Driver Module powers electroluminescent lamps.
Rogers Corp., Circuit Materials Div.
Chandler, AZ 85224
Dec 05, 2003 Durel® D355B stand-alone driver module provides integrated solution, combining all external, discrete components required to backlight monochrome displays and keypads into one 5 x 7 mm chip. Power inductor is embedded inside module, which operates with DC input voltage range of 1â€“7 V. It utilizes three-port topology for reduction of audible and electrical noise and features internally controlled current discharge for built-in EMI shielding.

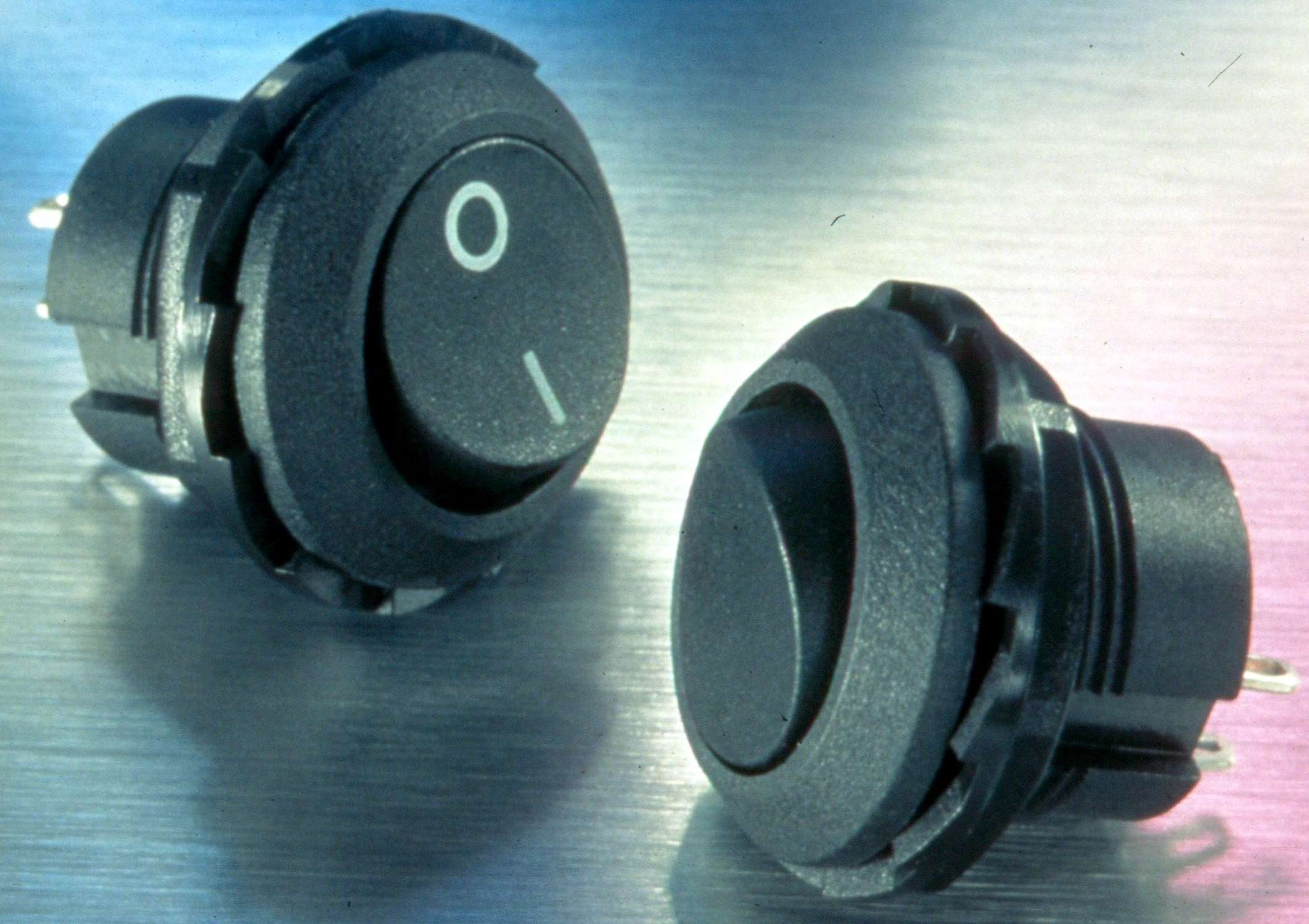

Round Rocker Switch is suited for electronic devices.
Brooklyn Park, MN 55428 1514
Dec 05, 2003
Round, panel-mount RR Series, available in illuminated and non-illuminated versions, is ergonomically designed and has electrical life of 6,000 cycles at max load. Model RR 3130, rated 10 A @ 125 Vac and 6 A @ 250 Vac, is non-illuminated and available in SPST, On-Off; DPDT, On-On; and SPDT, On-On configurations. Model RR 3112, rated 16 A @ 125 Vac and 10 A @ 250 Vac, is offered in illuminated and non-illuminated versions in various configurations.
Cable Tray offers knockout option.
Highland, IL 62249-1331
Dec 04, 2003 Redi-Rail Knockoutâ„¢ features straight section knockout option for installations where system needs to be enclosed or cables must exit through side rail. Side rail systems are 6 and 7 in. with ½ to 1½ in. knockouts located on 9 in. centers.
Switching Power Supplies offer power factor correction.
Technology Dynamics Inc.
Bergenfield, NJ 07621
Dec 04, 2003 With output voltages of 24 and 48 V, NNTDM Series single output 2,500 W power supplies feature compact size, universal 110/220 Vac input, and active current share. They have 0 to 55°C operating temperature range and offer OV/OL/OT protection. Able to be paralleled for power levels exceeding 20 KW, units have remote turn-on/off, ±10% voltage adjust range and DC-operated ball bearing fans.
Flat Glass LED Illuminator has bulb life of over 8 years.
Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.
Strongsville, OH 44136
Dec 04, 2003 Suited for use in transparent level gages, backlighting unit features redundant array of LED lights every ½ in. to ensure even light distribution. It enables coverage of up to 4 gage sections and allows use of one illuminator and power supply for majority of level gage applications. Product is available in 120 and 240 Vac options.

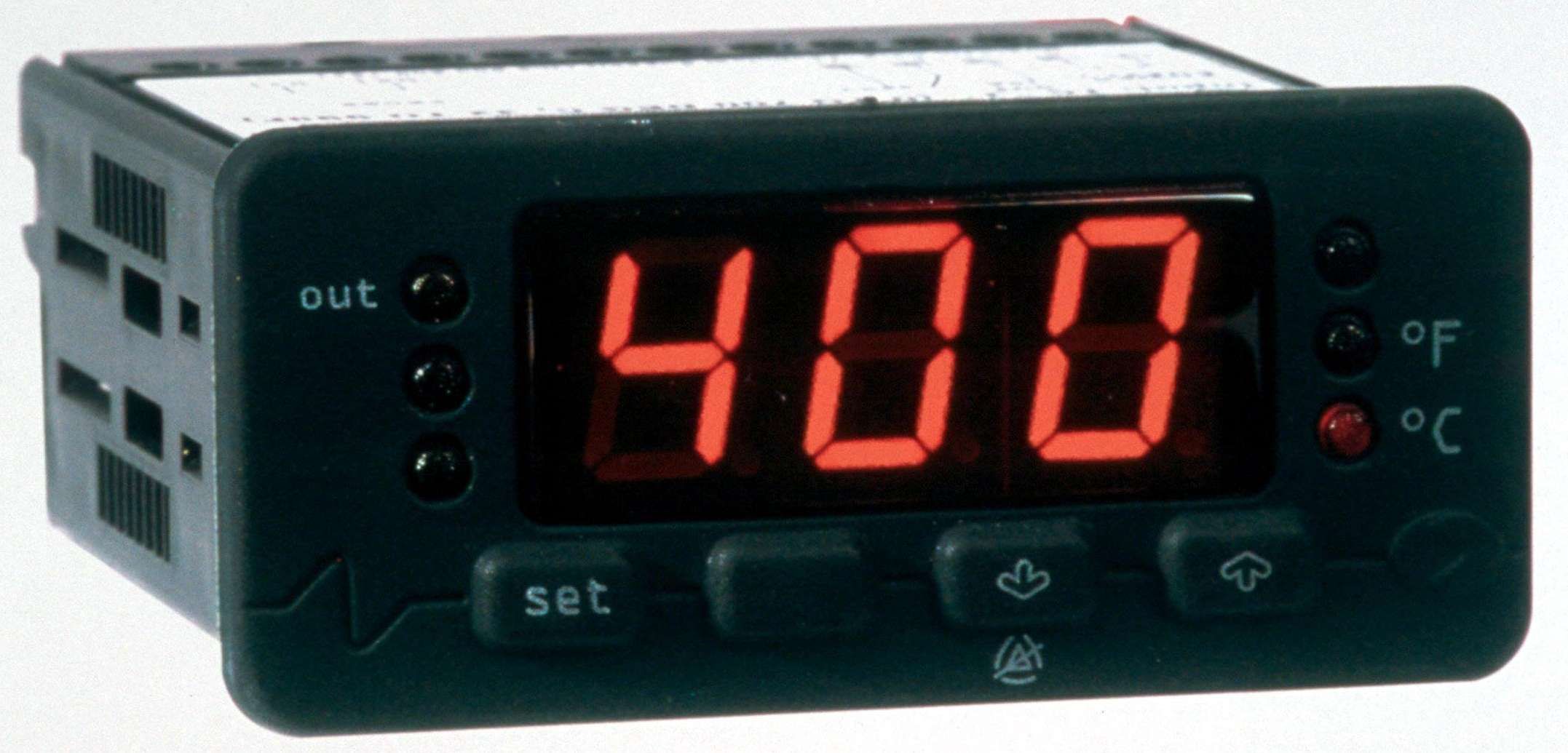

Digital Temperature Switches accept various inputs.
Michigan City, IN 46361
Dec 03, 2003 Housed in compact, 1/32 DIN package with NEMA 12X rated enclosure, 40 Series switches control heating or cooling processes with adjustable hysteresis. They allow use of standard Thermocouples, RTDs, or 4â€“20 mA process inputs and are available for operation on 120, 240, or 24 Vac, with single- or dual-relay output. Optional alarm may be programmed as high, low, or guard band alarm. Products fit into same cut-out other brands, allowing for retrofit.

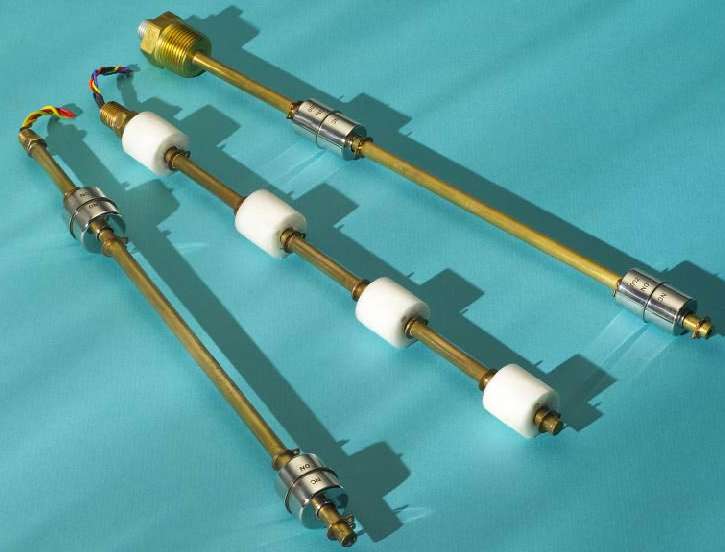

Liquid Level Switches works with various media.
Littleton, CO 80120
Dec 03, 2003 Multi-point, liquid level switches enable users to choose standard or custom detectors for multi-point applications. Overall length is available up to 72 in., with up to 6 actuation control points on one tank entry. Mounting styles include ½, 1¼, 1½, and 2 in. NPT; 3 in. 150 lb CS Flange; and ½ in. Tubing, and floats are available in 316 SS, Buna N, and PVC materials.
Line-Interactive UPS mounts in 19 in. rack or tower.
Skokie, IL 60077
Dec 03, 2003
Available with power ratings of 1,000, 1,440, and 2,200 VA, compact Model S3K2U provides surge protection for telephone and network connections. It includes automatic voltage regulation, sine-wave output, and configurable input/output. Battery management system offers remote power-off function and full sequence, automatic bi-weekly battery testing. UPS integrates with workstations and PLCs, as well as robotic, industrial automation, and process control systems.
Pushbutton Switch handles manufacturing applications.
Milwaukee, WI 53204
Dec 03, 2003
Equipped with plastic and metal operator components, Bulletin 800F series employs flexible, constant energy design that incorporates interchangeable components and allows one-person mounting. Available back-of-panel components, designed to fit space and application requirements, include latch, contact block, and LED. Series provides protection and corrosion resistance for IP65/66 and Type 4/4X/13 environments.
DC Power Supply includes RS 232/485 interface.
Protek Test & Measurement
Englewood, NJ 07631
Dec 03, 2003
Model P6000 is programmable via PC or front panel keyboard. With ±36 V output at 3 A, unit will store 10 voltage current settings in memory. Program setting time is 10 mS for both voltage increase and voltage decrease. Volts, Amps, and Power are displayed on backlit LCD panel, and operation is in Constant Voltage and Constant Current modes. Software is supplied on CD Rom with Active X modules for VC++, Visual Basic, Delphi, and optional Lab View capabilities.
Switch combines temperature and level control.
Littleton, CO 80120
Dec 03, 2003 Temperature/Level Switch is available with variety of switching configurations and temperature settings. Floats are provided as normally open on stems, but can be reversed to normally closed when specified. Switch wiring and installation is through one opening. Suitable for water and hydrocarbons, switch has max operating pressure of 150 psi. Operating temperatures are from -40 to +225°F in oil and -40 to +180°F in water.
Power Supplies come in 5-48 Vdc and 1.6-10 A ranges.
Yes Controls LLC
Irving, TX 75062
Dec 02, 2003
Fully enclosed switching power supplies, UL listed and CSA approved, are comprised of 4 families: 45, 75, 120, and 240 W. They feature 12 DIN rail mounted models, measuring 2.19-3.94 in. along the rail. All supplies have over-voltage protection as well as overload and short-circuit protection with automatic recovery. Overall efficiency, ranging from 72-85%, minimizes heating, and LED indicator provides status verification for operator.

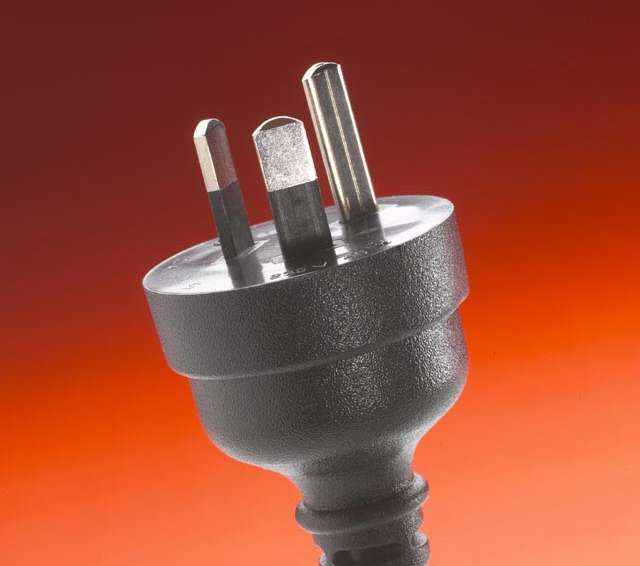

Australian Power Cords feature added insulation.
Oskaloosa, IA 52577-0115
Dec 02, 2003
Interpower(TM) Australian power cords and cordsets include partially insulated pins to minimize safety hazards and to comply with AS/NZS 3112:2000 fifth edition standard. They are rated up to 10 A with service at 230 Vac. Custom lengths and packaging options available.
