Honeywell Sensing and Control    Golden Valley, MN 55422
Mar 05, 2004 Fully-enclosed Series EVN2000 offers snap-action 1 NO/1 NC direct opening operation, with 4 mm air gap and choice of 4 actuator types. Units have no removable external parts. Termination design eliminates need for access inside housing, making housing cover, cover screws, and gaskets unnecessary. Pushing insert into housing and tightening cord grip not only ensures electrical connection, but also seals and provides strain relief for cable.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

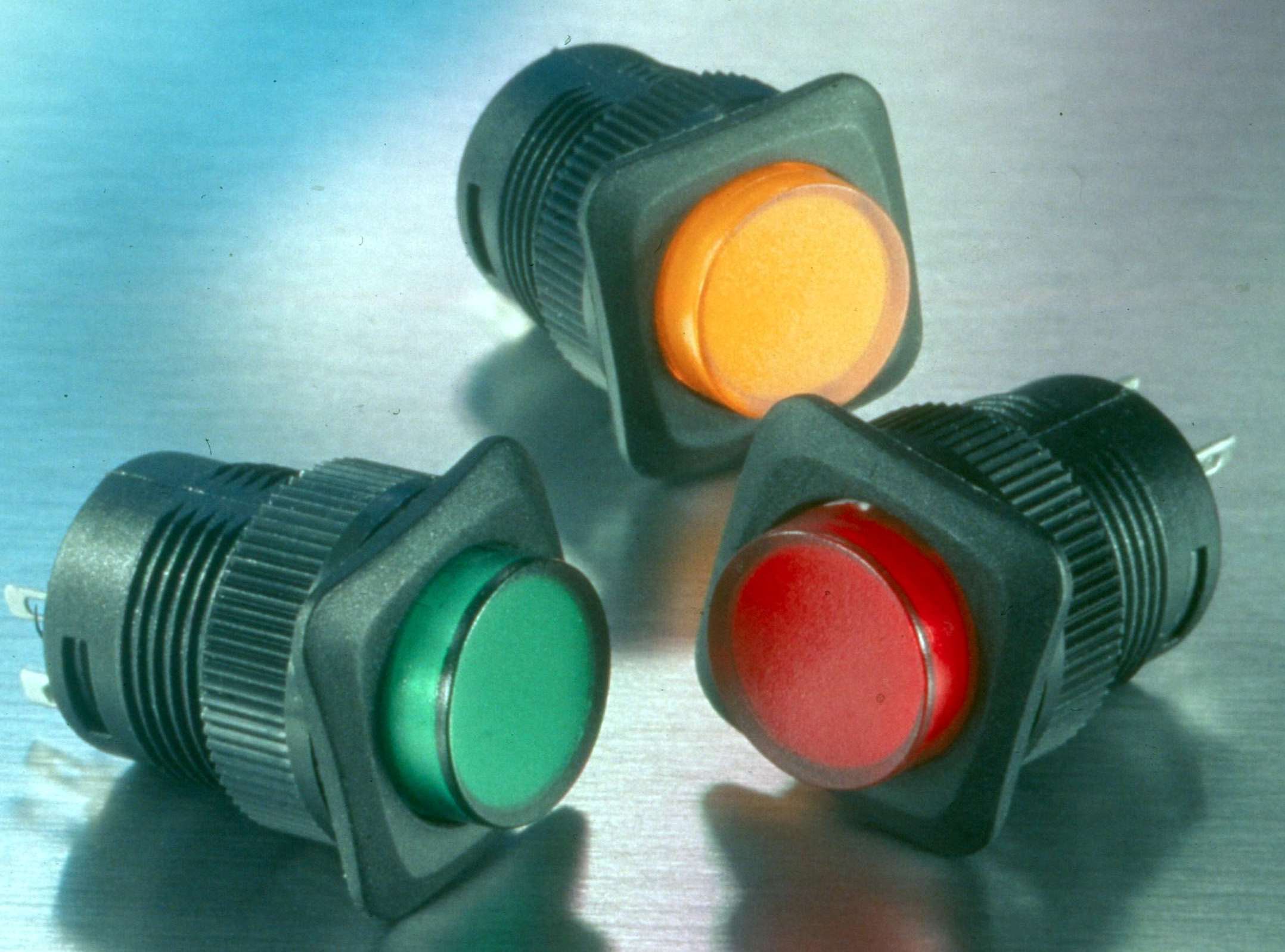

Mar 05, 2004 Model RP 3508 comes with or without illumination in SPST, off-(on) momentary or SPST, off-on. Contact ratings are 3 A at 125 Vac or 1.5 A at 250 Vac, with mechanical life estimated at 20,000 cycles. Accommodating panels up to 7 mm thick, switch features silver-plated solder lugs and sculptured squared flange measuring 18 x 18 mm. Knurled, threaded plastic lock-ring provides secure mounting without tools. Operating temperature range is 0-65°C.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Mar 04, 2004 Thermal Arc® Next Generation Power Supplies are stackable units that range in weight from 19-63 lb. They include control panel covers to protect against elements, voltage reduction safety for STICK welding, and full digital controls. Units are suited for STICK, DC TIG, AC/DC TIG, and MIG applications.

Lapp USA    Florham Park, NJ 07932
Mar 04, 2004 CE-conforming, OLFLEX® 190 multi-conductor cables provide resistance to mineral oils, synthetic oils, and water-based coolant. Jacket passes stringent requirements of Oil Res I and II, plus UL Style 21098. Shielded OLFLEX 190 CY incorporates tinned copper braid for isolation from electrical interference. Cables feature working voltage of 600 V, temperature range of -40 to +90°C, and bending radius of 4x cable OD. Conductor sizes range from 20–2 AWG.

Lapp USA    Florham Park, NJ 07932
Mar 04, 2004 OLFLEX® VFD Slim consists of reduced diameter, shielded motor supply cable for variable frequency drives. It has blended PVC jacket that is TC approved for UL and CSA standards for 600 V. Lapp Surge Guard semi-conductive insulation holds up to non-linear power distortions by smoothing out stranded copper; dispersing increases in voltage caused by wave reflections, harmonics, and spikes; and preventing conductor and cable failure.

Technology Dynamics Inc.    Bergenfield, NJ 07621
Mar 03, 2004 Suited for use in severe environment applications, contactors feature standard coil voltages of 12, 24, 30, 48, 60, and 110 Vac. Features include aux switch option and screw terminals or bus bar mounting connections. Current ratings from 30–1,500 A make them suited for commercial, industrial, and military applications.

Technology Dynamics Inc.    Bergenfield, NJ 07621

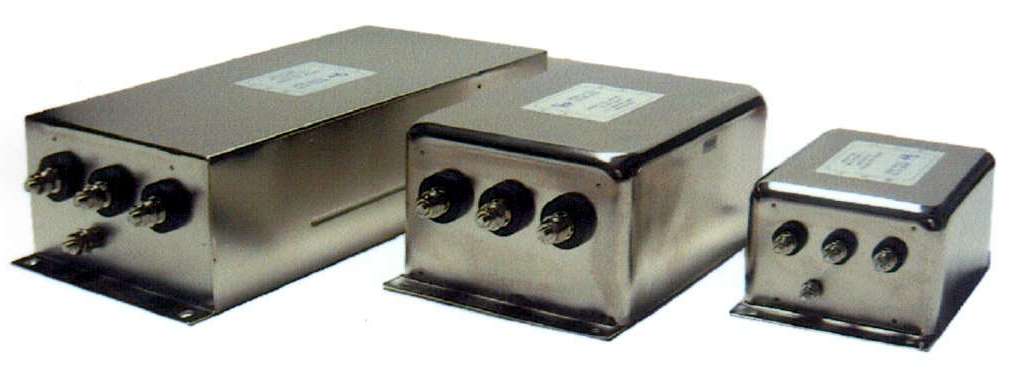

Mar 03, 2004 Single- and 3-phase EMI/EMC filters are epoxy filled and suitable for military COTS applications for shock and vibration environments. Rated from 1–400 A for use in standard and stringent EMI commercial, industrial, and military applications, 3-phase filters are offered in delta and wye configurations and can be customized for compliance with CE102 limits of MIL-STD-461. Products are available in 250 and 480 V rated voltages.

MGE UPS Systems    Costa Mesa, CA 92626

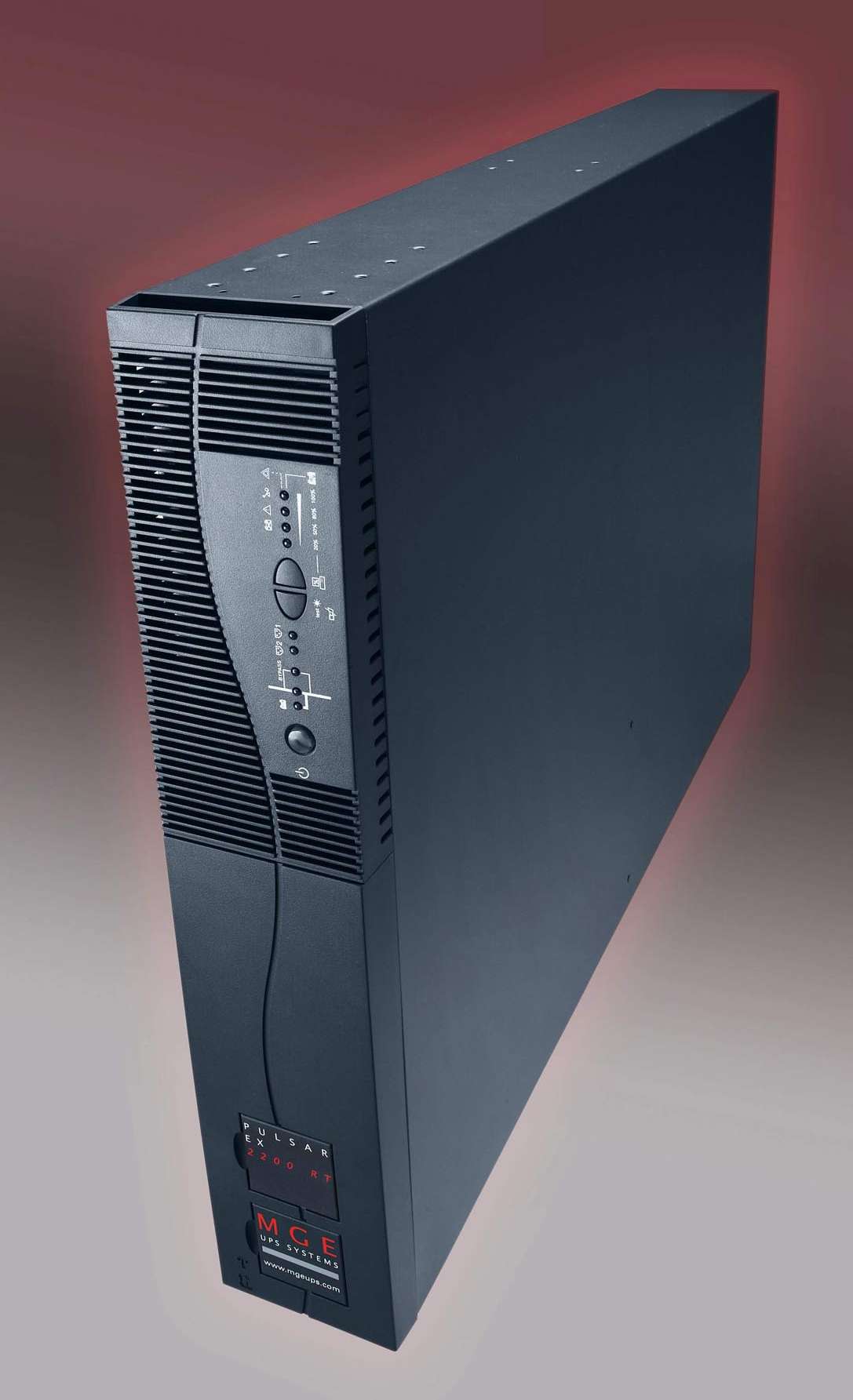

Mar 03, 2004 Offered in 2,200 and 3,200 VA power ranges, Pulsar EX RT models provide digital quality power protection. They incorporate true online, double-conversion UPS topology with built-in automatic bypass. Units include USB and serial ports for communications and power management. Powershare technology enables user to remotely reboot systems and turn off less critical equipment for load shedding. UPS devices are suited for application servers, VoIP, storage networks, and 800 mm racks.

Paslode, An Illinois Tool Works Co.    Vernon Hills, IL 60061

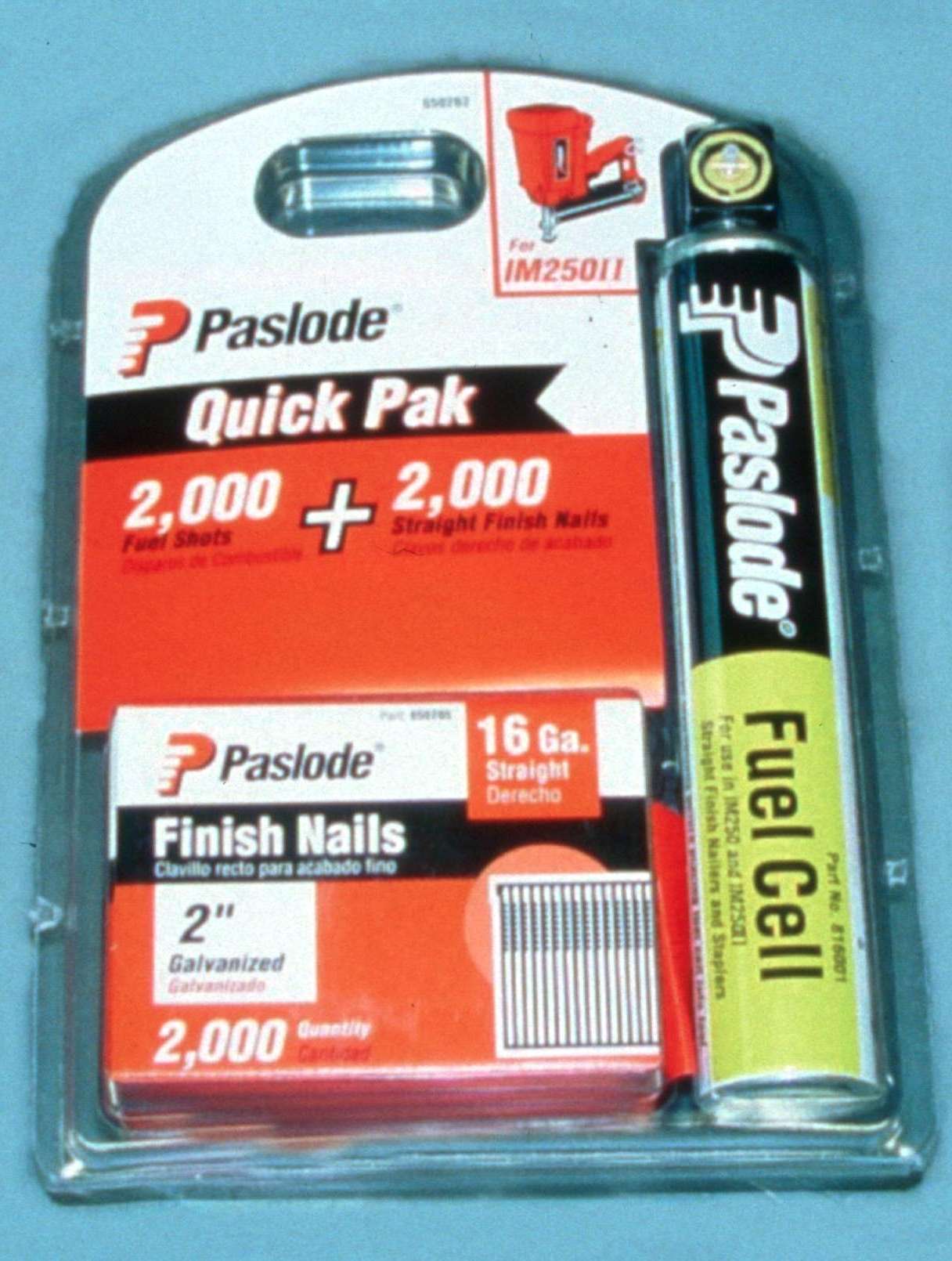

Mar 03, 2004 Quik Paks each contain 1,000 or 2,000 fasteners plus equivalent amount of 2-step fuel cells for cordless trim tools such as Straight 16 Gauge Finish Nailer, Angled 16 Gauge Finish Nailer, and 18 Gauge Finish Nailer. Paks provide various fastener sizes including 5/8, 1, 1¼, 1½, and 2 in. for 18 gauge tool and 1¼, 1½, 1¾, 2, and 2½ in. for angled 16 gauge and straight 16 gauge tools.

Scientific Technologies Inc.    Fremont, CA 94555
Mar 03, 2004 Model TL4024, with guard door locking, provides locking force of 337 lb and uses 4 contacts to monitor safety, door position, and lock status. When used with stainless steel actuator, it delivers minimum of 1 million actuations. NEMA 6 anodized die-cast metal housing allows switch to withstand washdown environments, and rotatable head provides 8 actuator entry points. Narrow profile facilitates mounting on 2 in. square tubing or in space-restricted applications.

Spectronics Corp.    Westbury, NY 11590

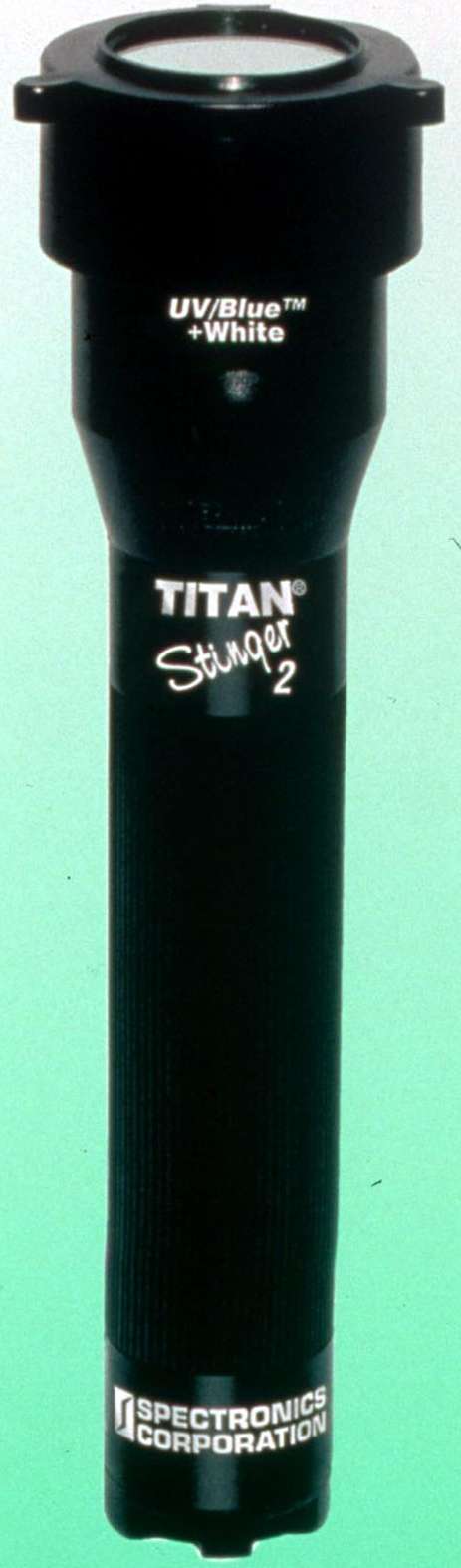

Mar 02, 2004 Cordless Spectroline® TITAN® Stinger®2 incorporates flip-up filter that pivots to side of lamp, changing it from UV/Blueâ„¢ inspection light to standard flashlight. Compact, portable flashlight pinpoints leaks in hard-to-reach areas of air-conditioning and refrigeration equipment. Xenon-filled bulb output is magnified by dichroic filter lens technology. Features includes instant-on bulb and adjustable-focus beam that permits spot and flood beams.

Fairchild Semiconductor Corp.    South Portland, ME 04106

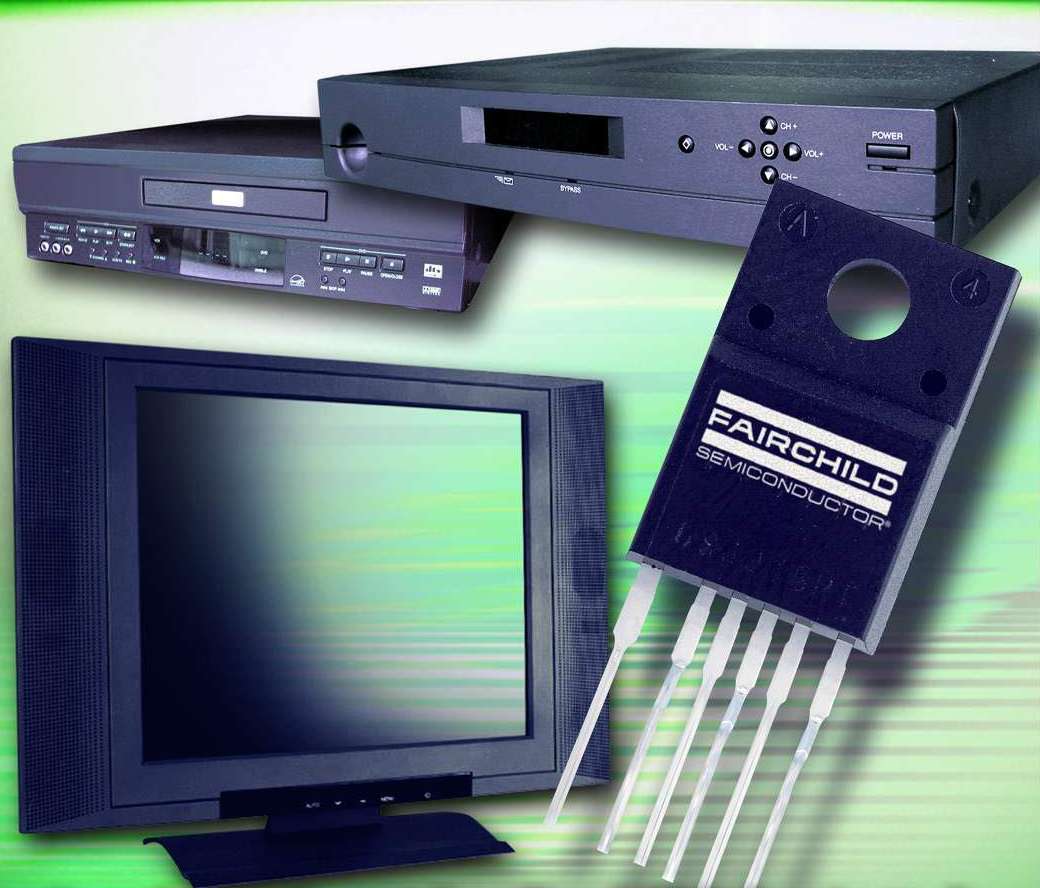

Mar 02, 2004 PowerSaver(TM) 30 W FSDM0565R, 60 W FSDM07652R, and 75 W FSDM0365RN switches achieve low standby power by using integrated high-voltage start-up regulator and burst-mode standby operation. They combine avalanche-rated SenseFET for current sensing with current-mode PWM IC. Fixed-frequency oscillator limits EMI. With pulse-by-pulse current limiting and internal soft start, switches are suited for set-top boxes, DVD players, and LCD monitors.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

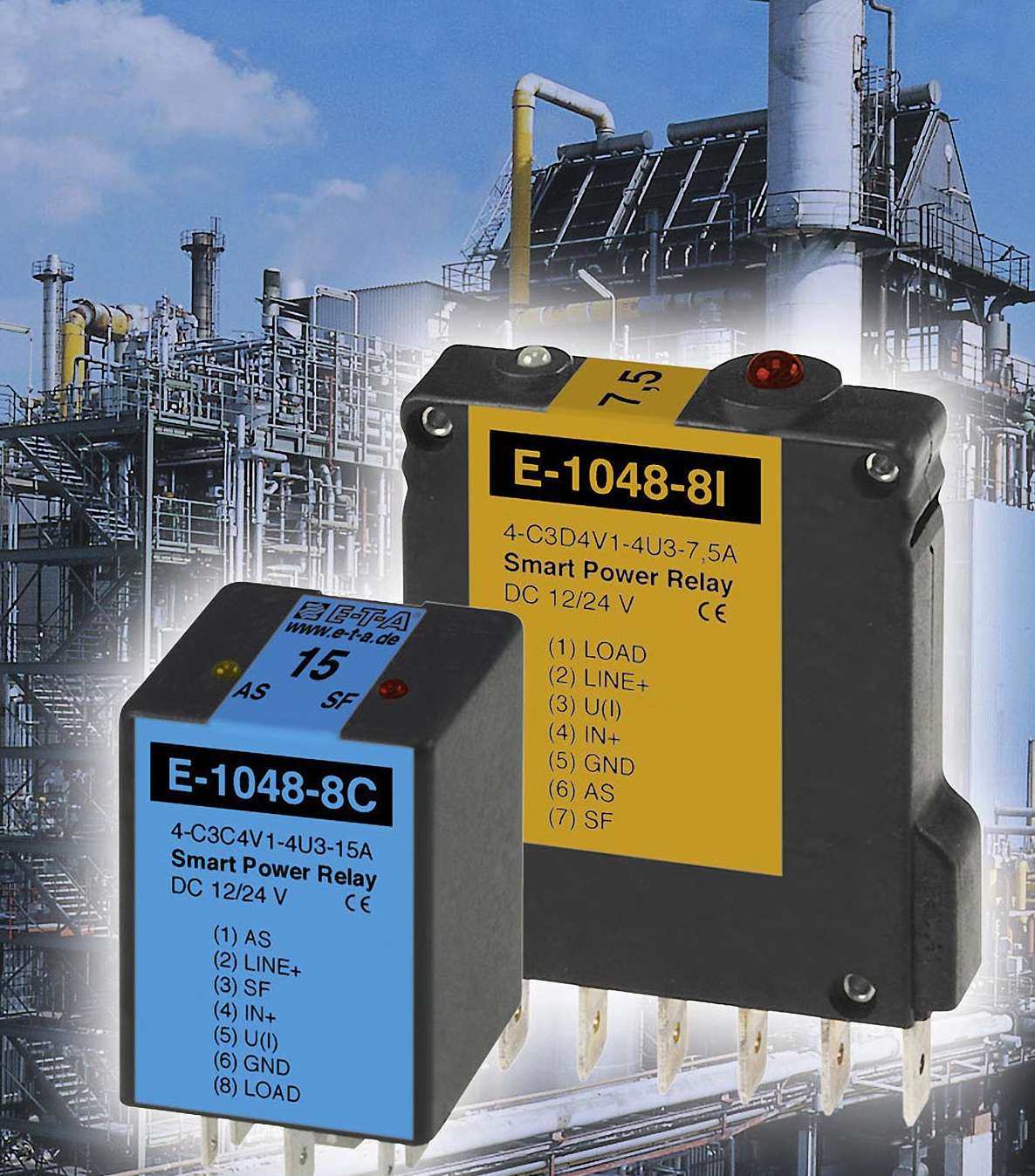

Mar 02, 2004 Series E-1048-800 Circuit Breaker combines solid-state switching, electronic circuit protection, analog signal output, and diagnostic functions. Analog output of 0-5 V proportional to current flowing through device can be connected to PLC or ASIC microcontroller. Programmable trip point can be programmed for current ratings from 0-20 A. Solid-state current limiting feature limits max short circuit current to 50 A. Unit also provides visual indication and transistor diagnostic signal.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 01, 2004 With average insertion losses of less than 0.05 dB, randomly mated, Ultra Low Loss Singlemode SC Cable Assemblies enable systems to accommodate multiple subscribers/connections, provide long distance interconnections without need of amplification, and increase stability.

VXI Technology Inc.    Irvine, CA 92614

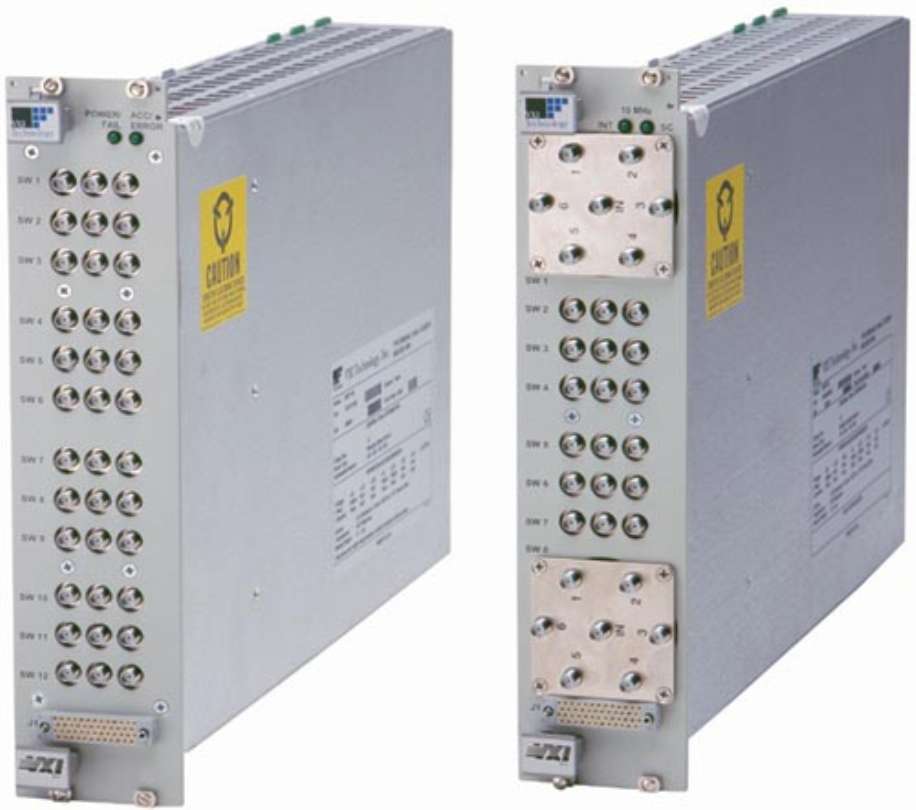

Mar 01, 2004 Suited for applications that require continuous signal during power cycles, SMPIPIIâ„¢ latching microwave relay modules are offered in 4 versions. Model SM7001L has 4 SP6T latching self-terminated 20 GHz relays. Models SM7012L, SM7013L, and SM7016L offer 12, 3, and 6 SPDT latching self-terminated 20 GHz relays respectively. Each relay includes isolated indicator circuitry, permitting relay status to be directly accessed, and 32 SPST relays to control other microwave components.

Spectronics Corp.    Westbury, NY 11590

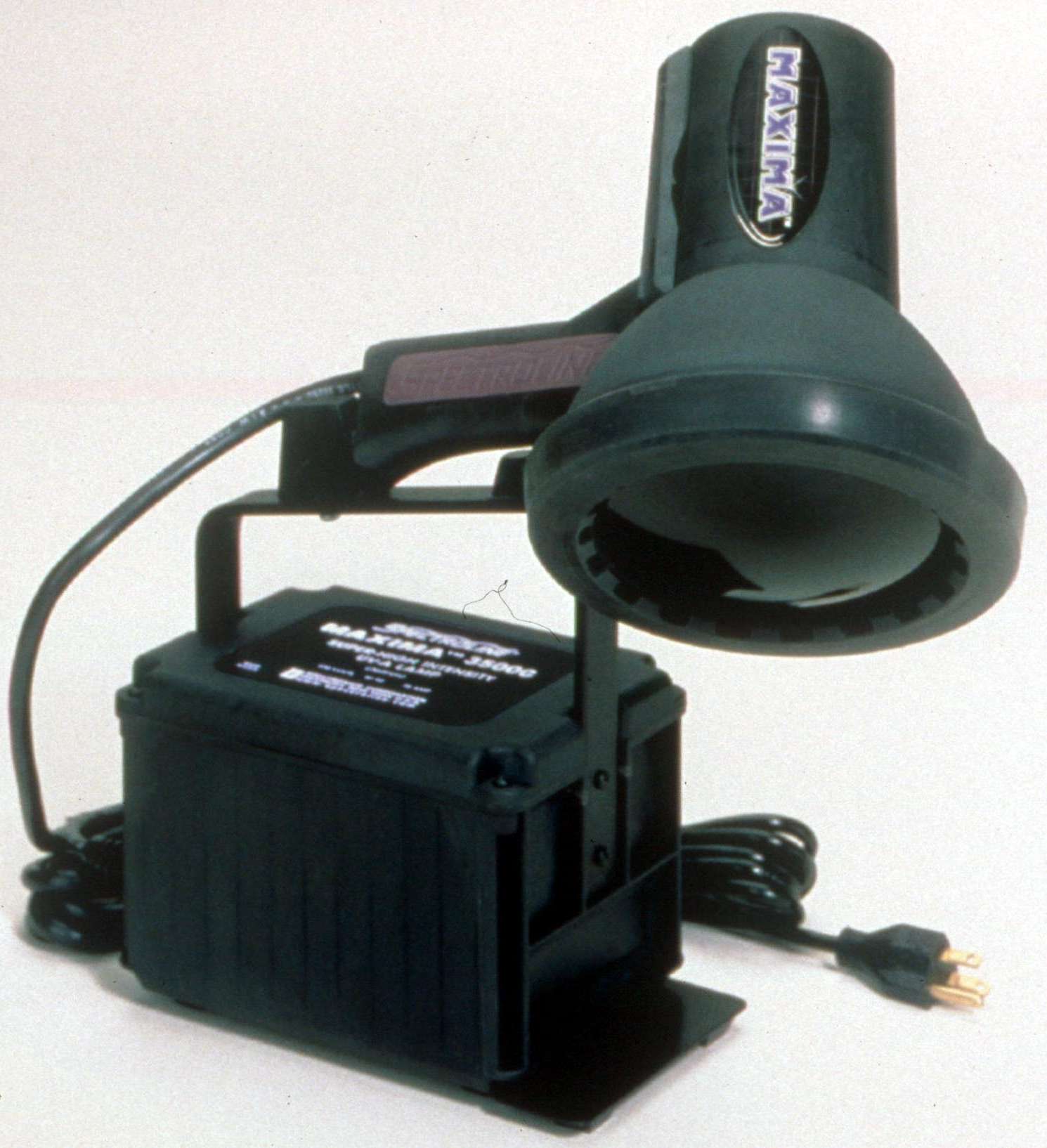

Feb 27, 2004 Designed with Micro Discharge Light technology, Spectroline® Maximaâ„¢ML-3500 black light lamp makes fluorescent dyes glow upon contact, enabling leak detection in air-conditioning and refrigeration systems in daylight. Product has an instant on/off/restrike, which eliminates lamp warm up, and is not affected by magnetic fields. Bulb is prefocused at factory, and unit is available in 120 and 230 Vac as well as 12 Vdc versions.

Spectronics Corp.    Westbury, NY 11590
Feb 27, 2004 Cordless OPTIMAXâ„¢ uses super-hi-flux LED technology to enable technicians to pinpoint all refrigerant leaks without catching or snagging on Air Conditioning and Refrigeration cords. It makes all fluorescent dyes glow and has inspection range of 20 ft. Powered by rechargeable NiMH battery, flashlight has power equal to that of 100 W lamps and holds its charge for 6+ hr.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Feb 27, 2004 Model STS2/PDU integrated static transfer switch and power distribution center is designed to reduce space requirements and simplify power system design and installation. Available with various distribution options, it features triple-redundant logic and redundant power supplies as well as color touch screen display. Single solution delivers switching, power isolation, distribution, monitoring, and computer-grade grounding in self-contained package.

Lumex Inc.    Carol Stream, IL 60188
Feb 25, 2004 Model MR-16 LED Lamp provides illumination levels comparable to halogen lamps but without dangerously high heat output nor high power consumption. Direct plug-in replacement utilizes 12 LEDs to generate light output of 10-12 lumens and draws only 720 mW. Lamp life in excess of 100,000 hr makes MR-16 virtually maintenance-free, allowing usage in locations where lamp replacement would be difficult. Colors include red, green, white, blue, and yellow.

Cooper Bussmann    Chicago, IL 60706-4792

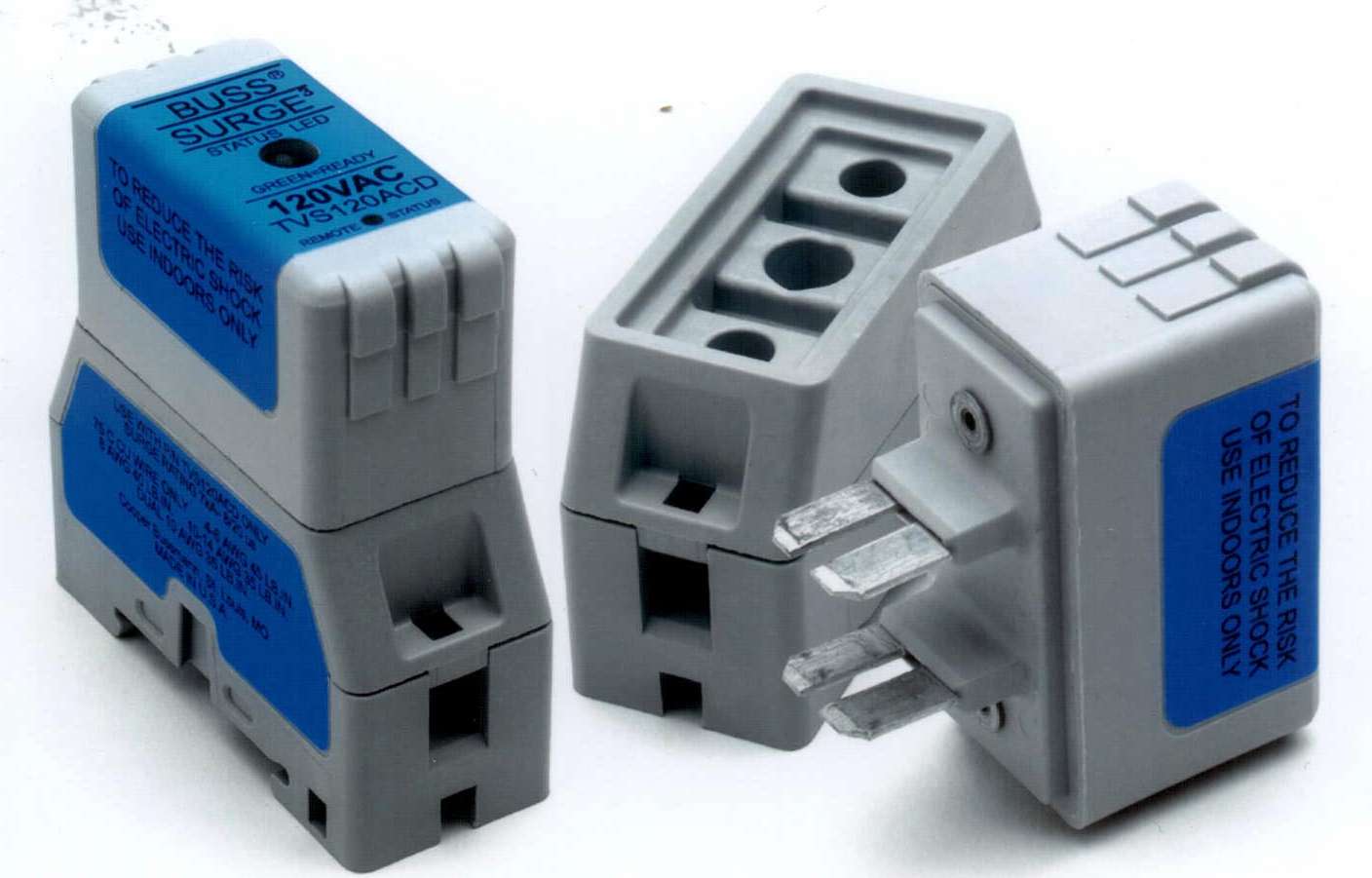

Feb 25, 2004 Surge³ SPD is available in MOV and Diode versions, both interchangeable with plug-in suppressor and common base mount. Color-coded for proper installation, 120 V system features current rating of 7 kA and voltage protection level of 292 V peak. Surge³ is UL recognized and suitable for protecting PLCs, HMI/VCP, PID controllers, industrial computers, variable speed drives, and vision systems.
