Cooper Wiring Devices Div., Cooper Industries    Long Island City, NY 11101

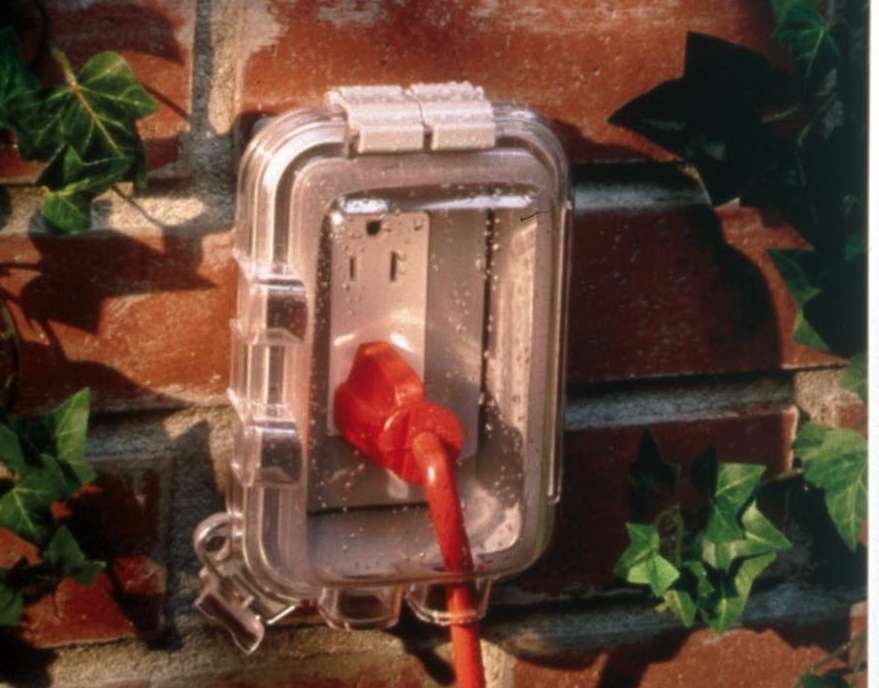

Mar 18, 2004 In-use Weather Protective Covers are available in single, 2-gang, and extra deep styles with gray or white back. They are made of rugged, UV-resistant polycarbonate material to protect devices from rain, sleet, and snow. Single-gang covers mount horizontally or vertically by using movable hinges. Clear cover is non-corrosive and non-conductive. Cord openings accept 12 gauge or lighter cords, and boxes feature pre-mounted gasketing and easily mountable inserts.

NOVA Lighting    Huntington Park, CA 90255

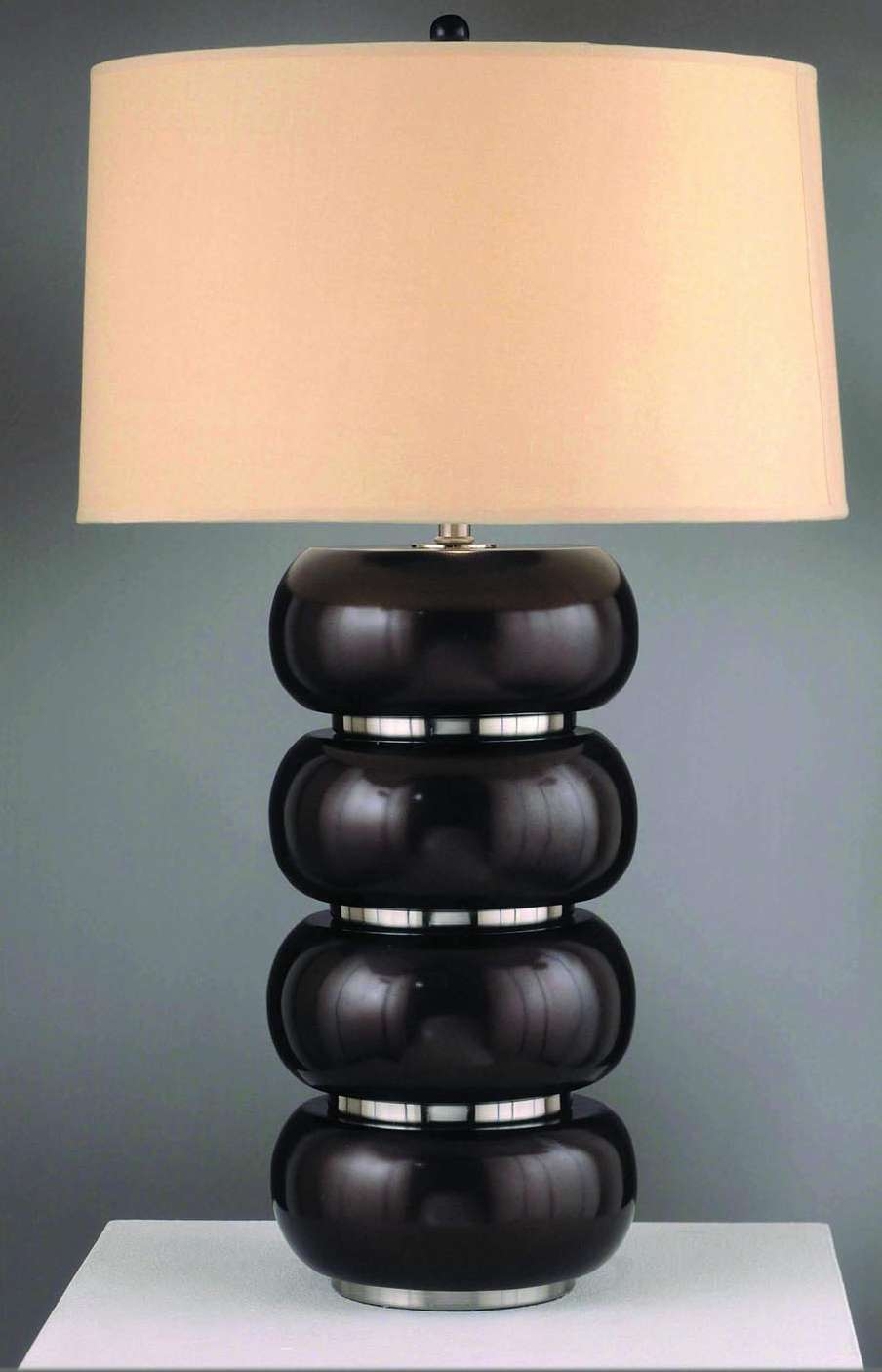

Mar 18, 2004 Michellen Table Lamp is designed with 4 dark brown-colored rings, inspired by automobile tires, around base crafted of Brushed Nickel. It stands 28 in. tall x 16 in. wide and has cream-colored fabric shade that measures 16 in. in diameter.

Gore, W. L., & Associates, Inc.    Newark, DE 19711

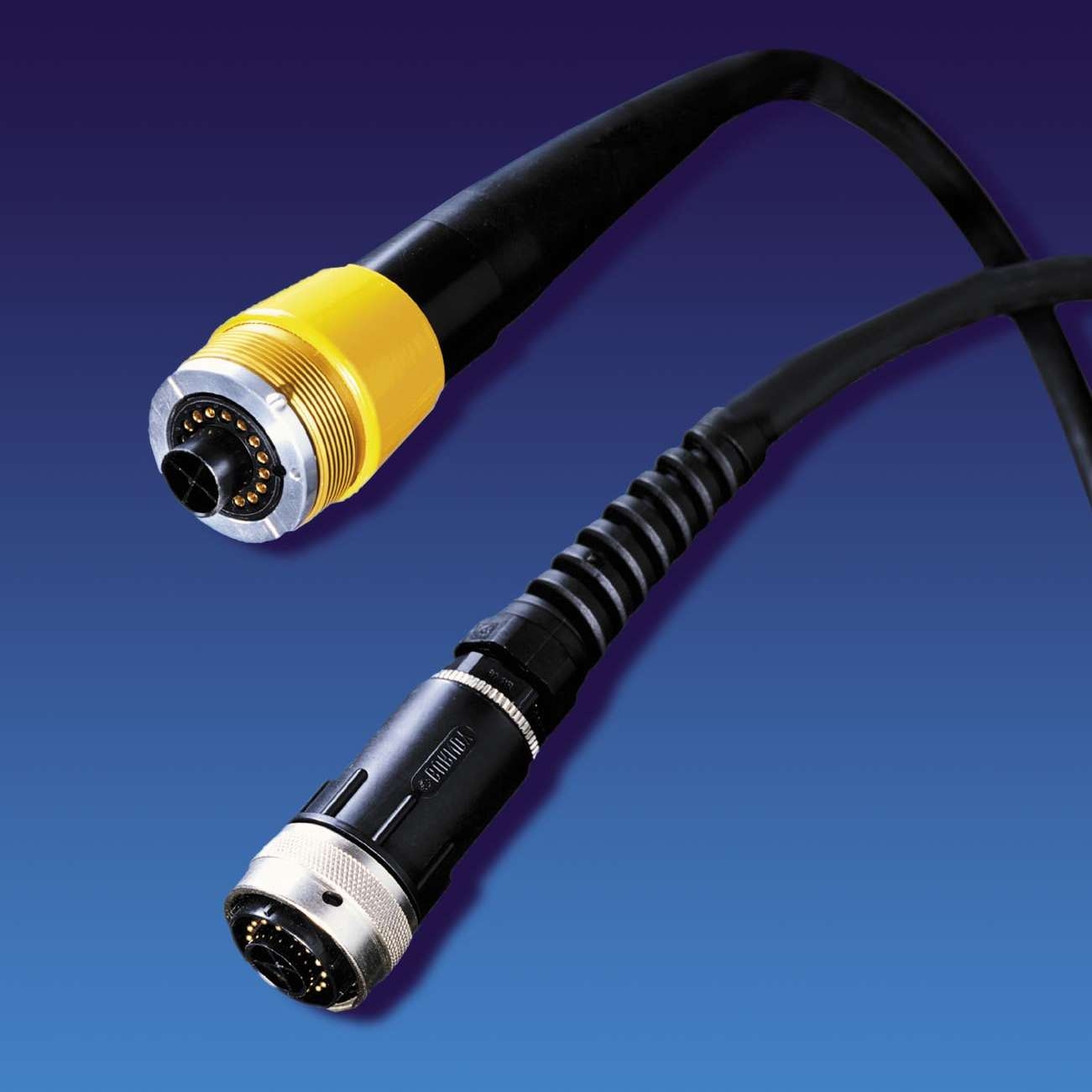

Mar 18, 2004 Offering direct replacement for Atlas Copco hand held devices, GOREâ„¢ DC Tool Replacement Assemblies survive random repetitive movemements. They withstand high tensile strength loads as well as torsional and tic-toc flexing within harsh environments.

Eurobex Mfg. Ltd.    Blainville, QC J7C 5E2  Canada
Mar 17, 2004 Hydro-Québec metering cabinets incorporate 3 types of pre-punched inner panels, and additional inner panels may be added to larger cabinets. Products feature grounding splitter block installed on left side. Sizes include: 30 x 30 x 10 in., 36 x 36 x 12 in., and 48 x 48 x 12 in.

Aved Electronics, Inc.    Lowell, MA 01851-2729
Mar 16, 2004 RF Cable Assemblies are custom-manufactured using fully automated cutting, stripping, and connectorizing equipment. Available with BNC, TNC, LC, SC, SMA, and N type connector, units can include 50–150 Ohm cables up to 1 in. OD in varying lengths. Each is 100% electrically and mechanically tested and UL/CSA approved. Suited for inside- or outside-the-box applications, assemblies feature PTFE or PVC jackets with various types of insulation and water-tight construction.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

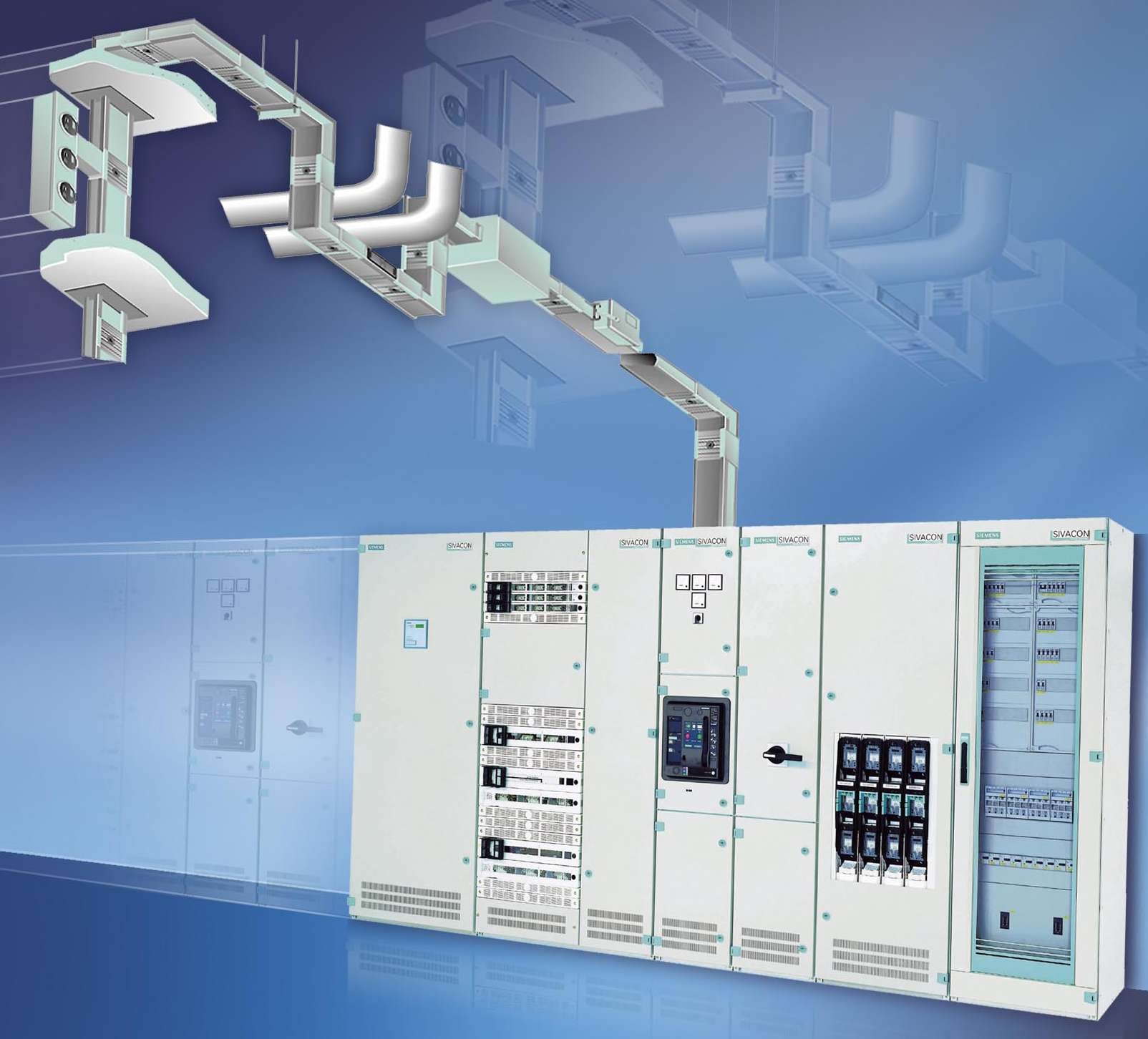

Mar 16, 2004 Sivacon 8PT switchgear is suited for applications in public institutions for which busways (busbar distribution systems) with type-tested distribution terminals are specified. Busways incorporate standardized components such as flange-type terminals. For fields of application such as on-board ship, mobile offshore units, or in earthquake zones, power distribution system has DNV certification (Det Norske Veritas) and includes all necessary test reports.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

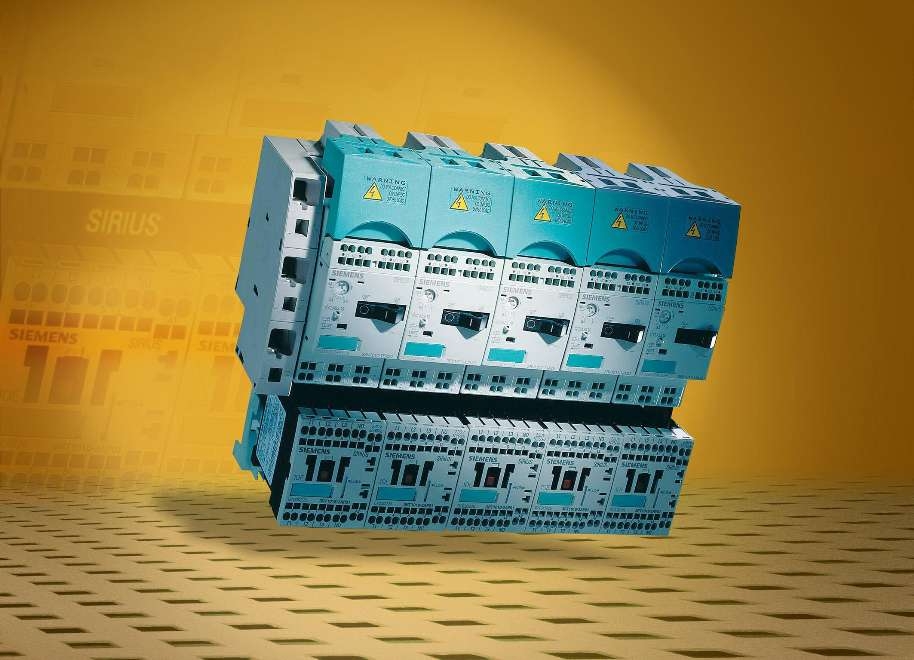

Mar 16, 2004 Sirius 3RV19 facilitates power supply and distribution for group of circuit-breakers or load feeders up to 5.5 kW. Modular construction enables expansion for loads up to 11 kW when combined with SO-sized circuit breakers with screw type terminals. Basic module comprises 2 slots for circuit breakers, one space-saving in-feed to left or right, and connections for expansion modules. Complete load feeders can be built up using contactor bases.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

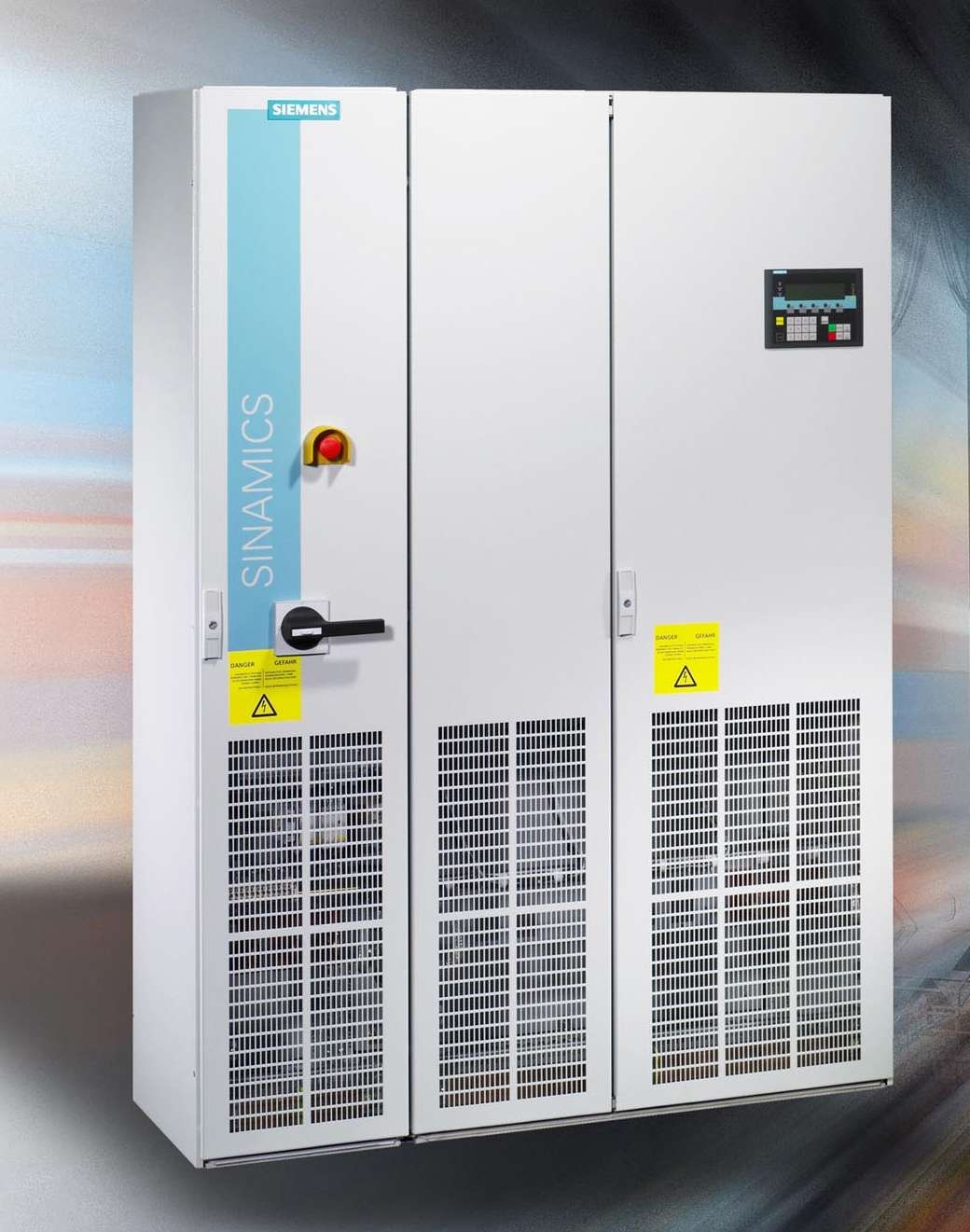

Mar 16, 2004 Sinamics S150 drive converter features regenerative feedback function with high-speed, closed-loop current control. Menu-driven, graphically supported, plain text display simplifies operation. Optimized inverter functionality supports speed and torque control with/without encoders. Converter is suited to applications in which drives are also used in generator mode, such as centrifuges, lift and crane systems, cross cutters, shears, and conveyor belts.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Mar 15, 2004 Able to provide power protection in space-constrained environments, HP UPS R5500 XR delivers 4,500 W and combines hot swap batteries and electronics. Electronic design uses digital signal processors and provides voltage regulation without using battery. Unit comes with HP Rack and Power Management Software, battery Extended Runtime Module, field flash-upgradeable firmware, automatic bypass mode, and 2 independently controlled load segments.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 15, 2004 Model SP26LV431 quad-channel, differential line driver and Model SP26LV432 quad-channel receiver are EIA/TIA-422-B compliant and provide footprint that is pin-out compatible with industry standard 26C31 and 26C32. Operating on 3.0–3.6 V, devices are suited for point-to-point or multi-drop transmission lines with up to 10 receivers/segment over links up to 4,000 ft. Receiver features open-receiver failsafe protection and 200 mV sensitivity over ±7.0 V common mode range.

Noraxon U.S.A. Inc.    Scottsdale, CA 85254

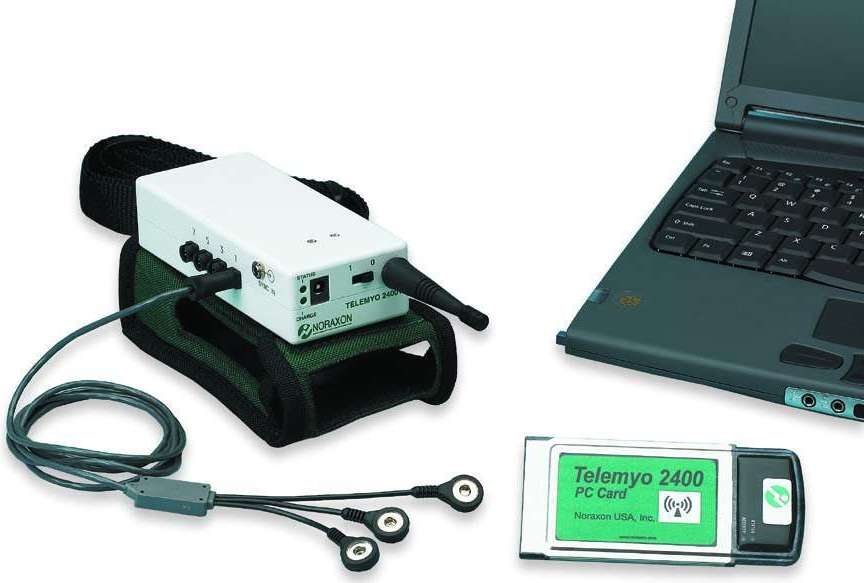

Mar 12, 2004 TeleMyo 2400T surface and fine-wire electromyography (EMG) transmitter unit sends real-time EMG and other analog signals via wireless transmission to computer or notebook. Flexible surface EMG system allows users the freedom of movement to acquire and analyze muscular performance of individuals during real-life and real-work settings. Use of product results in clean, reliable, and repeatable data for ergonomic research, product design, and workplace evaluations.

Phoenix Contact    Harrisburg, PA 17111 0100

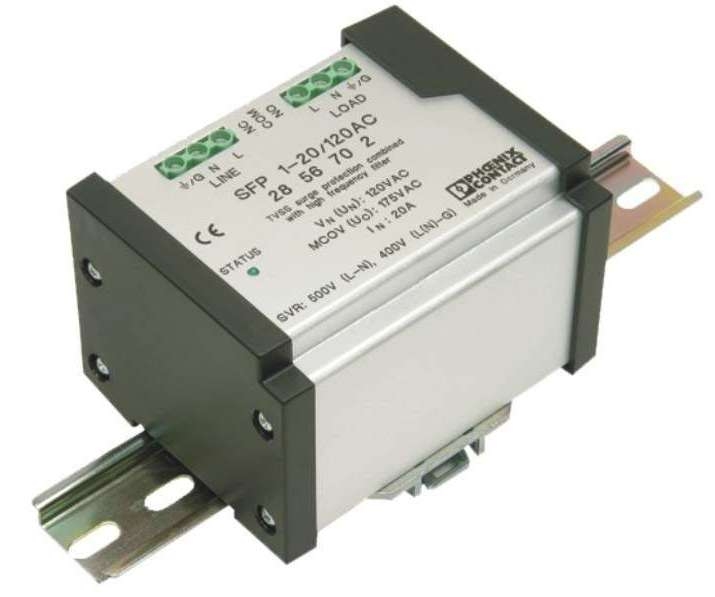

Mar 12, 2004 TRABTECH Surge Filter includes coordinated TVSS and EMI/RFI filter circuit to provide tight voltage clamping, electrical noise filtering, sine wave tracking, and high surge current handling capacity. Suited for protecting sensitive electronic equipment, device offers diagnostic monitoring of protection status with local and remote failure indication. It features metal DIN rail mount housing and 20 A nominal current rating.

EnerSys, Inc.    Reading, PA 19612-4145
Mar 12, 2004 DataSafe HX Series includes 5 models ranging from 204–506 W/cell. Suited for UPS applications, 12 V valve-regulated, lead-acid batteries use polypropylene compound that allows high-temperature performance. High rate discharge units feature recessed brass terminals, long-life terminal seals, and corrosion-resistant, lead-calcium-tin alloy positive and negative grids. Units are available in flame retardant or non-flame retardant material.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

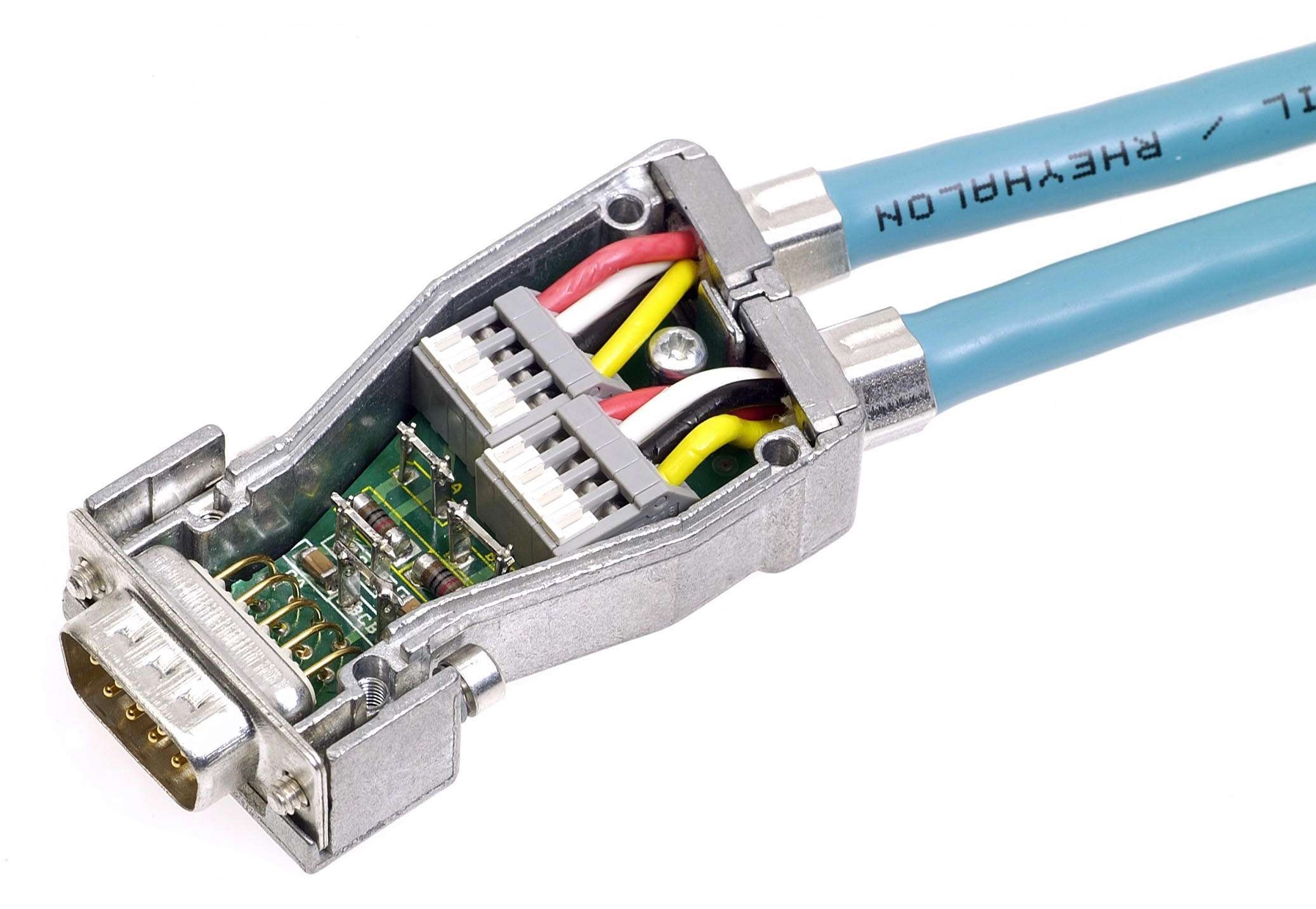

Mar 12, 2004 Backbone Interface Set connects Multi-Vehicle Bus devices to Train Communication Network Systems. With Interface Set, it is possible to build T-bus structure that allows disconnection to bus interface from device without any interruption of bus communication. Interface meets requirements of vibration protection as cables are connected with crimp flange technique to housing, and all wires inside interface are secured through cage clamp termination.

Ideal Industries, Inc.    Sycamore, IL 60178
Mar 12, 2004 Smart-Gripâ„¢ electrician's tools include 9¼ in. side-cutting linesman pliers with optional crimp, 8 in. diagonal pliers with optional angled head, 7¾ and 8½ in. needle-nose pliers, 9½ and 10 in. tongue-and-groove pliers, cable cutter, and multi-crimp tool. Pliers are rated for cutting screws, nails, hardened wire, and ACSR. All tools have textured, dual-durometer Santoprene® handle and feature dropforged carbon-steel construction and induction-hardened cutting edges.

RF Industries    San Diego, CA 92126 4202

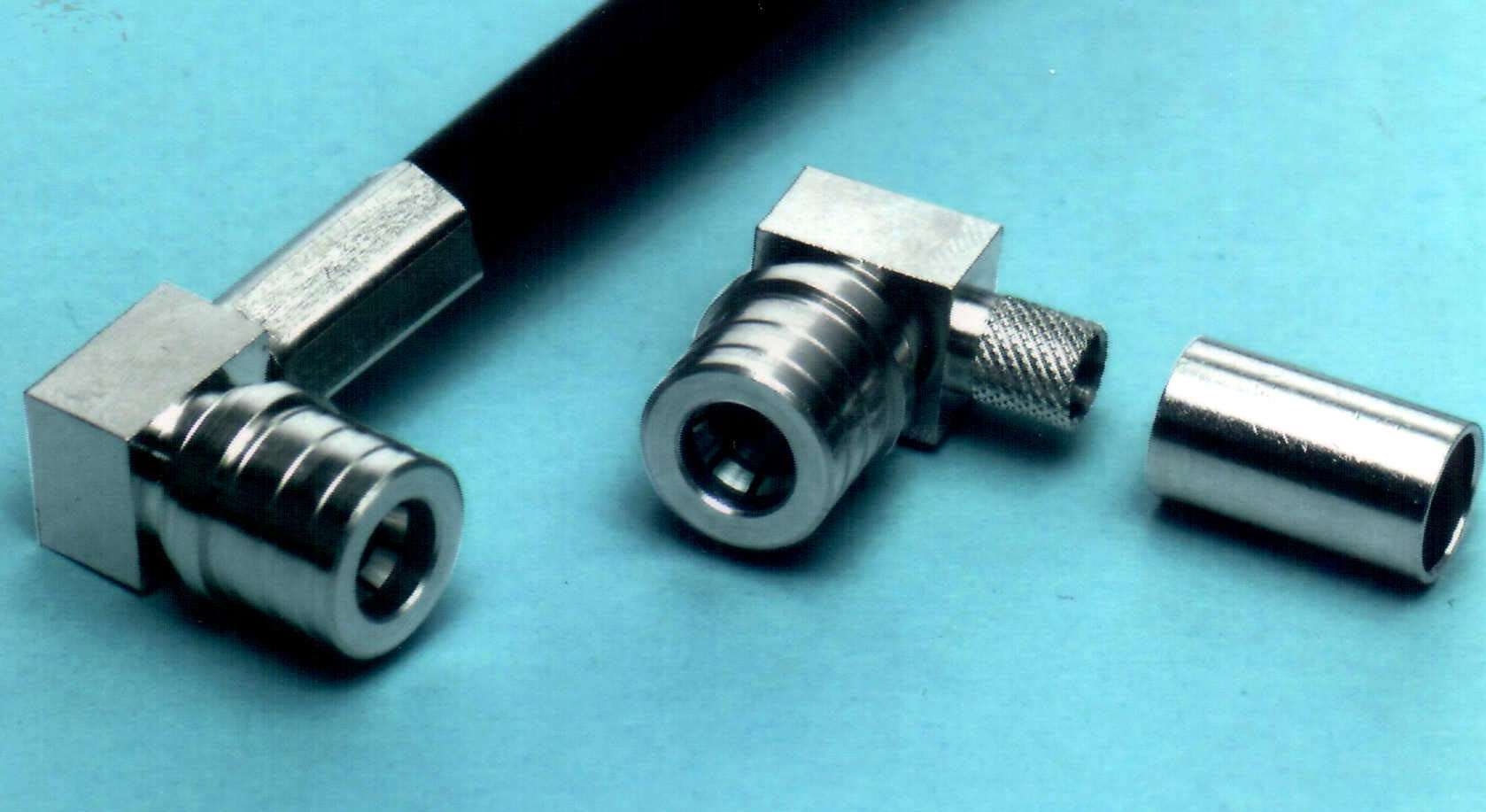

Mar 12, 2004 Quick Mate Series QMA needs no tooling for mating and unmating. Sliding snap-lock mechanism works by sliding shell back and releasing to lock both connectors in place. After mated, connectors can rotate 360°. Offering electrical performance up to 6 GHz, both RQA-5010-C, for RG-58/U and LMR-195 cable, and RQA-5010-X, for RG-8/X and LMR-240 cable, feature albaloy-plated brass bodies, Teflon insulation, spring copper alloy outer contacts, and gold plated pins.

KSR Kuebler Of America, Inc.    Raleigh, NC 27613

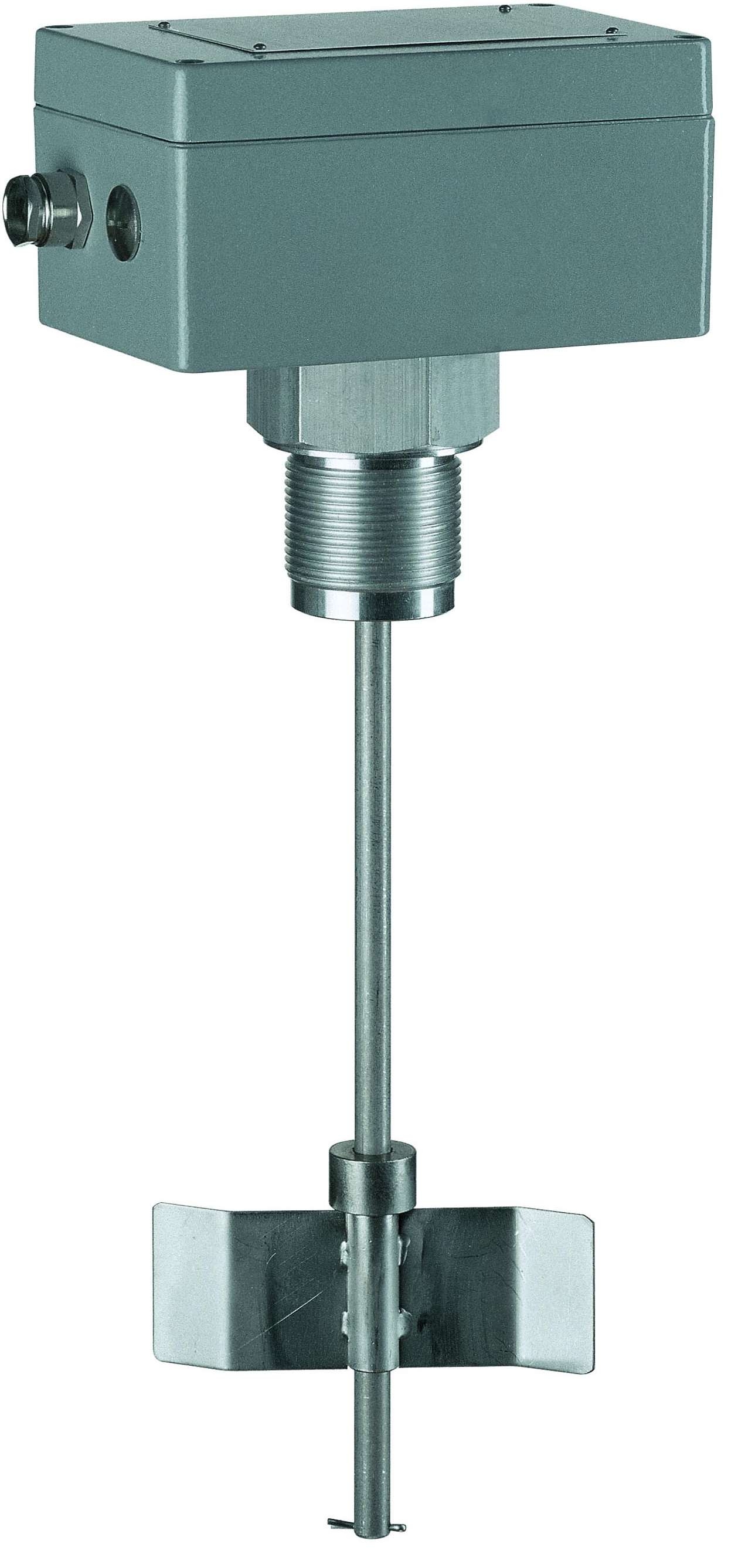

Mar 12, 2004 Series FW sense bulk materials, viscous liquids, and slurries in pressurized and non-pressurized silos and bins. Units accommodate shafts up to 20 ft in length and 4 different paddle types. They provide 10 rpm continuous operation and include heavy-duty gear train, 6/240 Vac A switch contacts, weatherproof electrical enclosure, and on-board fuse protection. Suited for operation outdoors, switches can be mounted vertically or horizontally.

HBControls, Inc.    Fall River, MA 02720

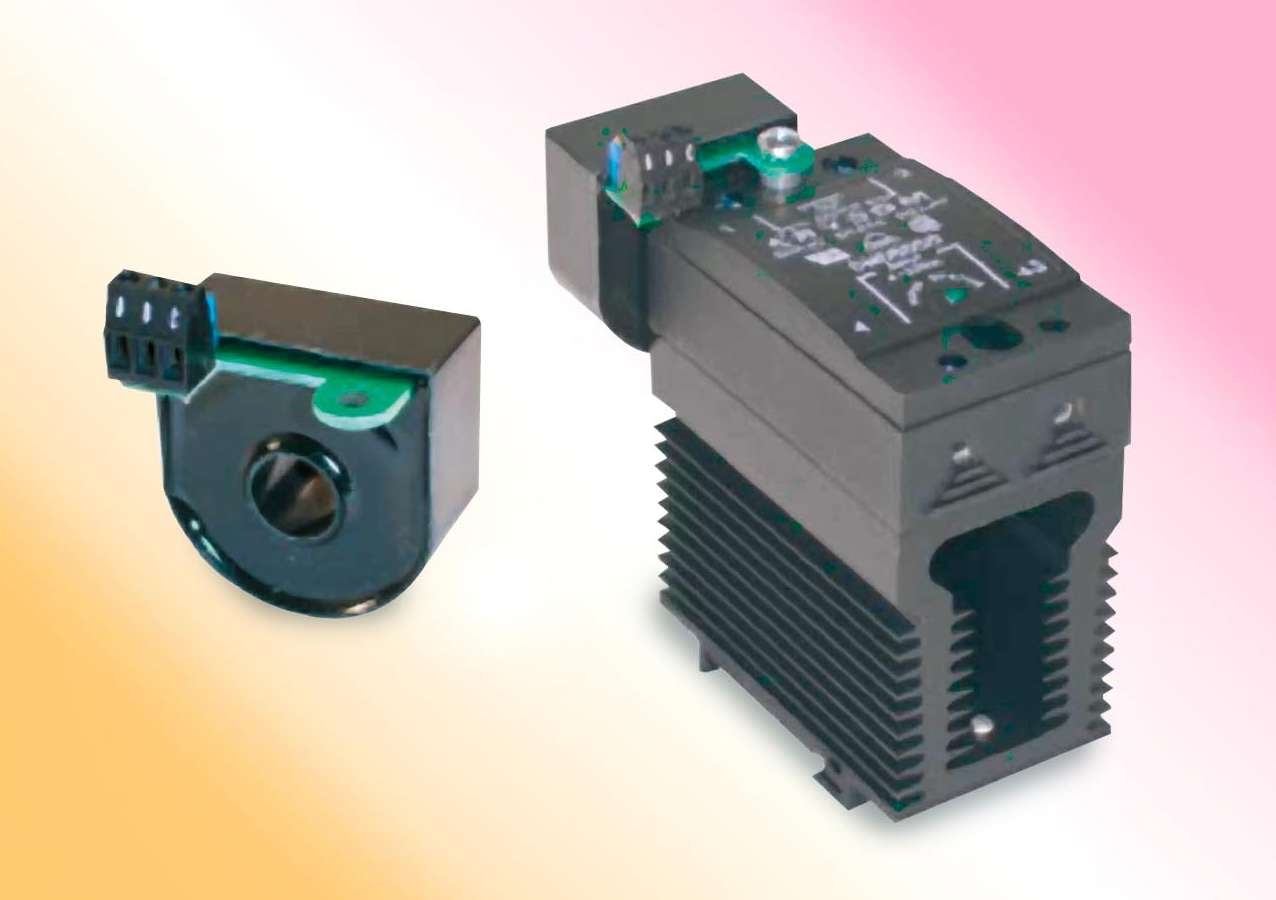

Mar 12, 2004 Series HBC-138A ac-to-dc transducers sense ac line currents from 5–100 A and produce proportional output voltage of 0–10 Vdc. Inputs can produce signal to analog or digital meter, or can be used by PC or PLC to provide closed-loop control. Factory-set models provide output voltage of 10 Vdc at full scale, while some models provide output voltages that are adjustable using onboard multi-turn potentiometer. All units provide over-voltage protection.

Advance Transformer Co.    Rosemont, IL 60018 5625
Mar 12, 2004 Microprocessor-controlled PureVOLTâ„¢ electronic ballast is designed to operate 800 mA High Output (HO) germicidal UV-C lamps, which aid in stopping spread of microorganisms, airborne contaminants, and pathogens. Single unit will operate one or two 35 or 60 W HO or one 95 W HO low-pressure mercury germicidal UV twin tube lamp. Product offers dual entry, color-coded connectors, end-of-lamp-life protection, and programmed starting capabilities.

Alden Products Co., Metal Fabrication    Brockton, MA 02301-3996
Mar 11, 2004 Pulse-Lok® PL-900 Medical Instrumentation Connectors feature push and click auto-latching mechanism, which provides tactile and visual confirmation that connector pair is securely engaged. Units come in .0009 diameter package in both disposable and reusable models. Termination options include multi-contact solder pads, as well as crimp and poke stamped contacts. Connectors are EtO, gamma, and steam sterilizable and are sealed to IP-67 standards.
