Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Jun 01, 2004 Software-driven, Axcess™ 675 provides output of 675 A/44 V at 100% duty cycle, making it suited for large welds requiring long cycle times. Voltage range in CV mode is 10–44 V with 80 Vdc max open circuit voltage. Auto-Line technology enables machine to accept any primary power from 190–630 V, single- or 3-phase, 50 or 60 Hz. Auto-Axcess 675 offers same features but communicates through internal digital-to-analog converter, gaining functions such as Auto-CAL™ and Auto-Thread™.

Technitron    Cincinnati, OH 45212

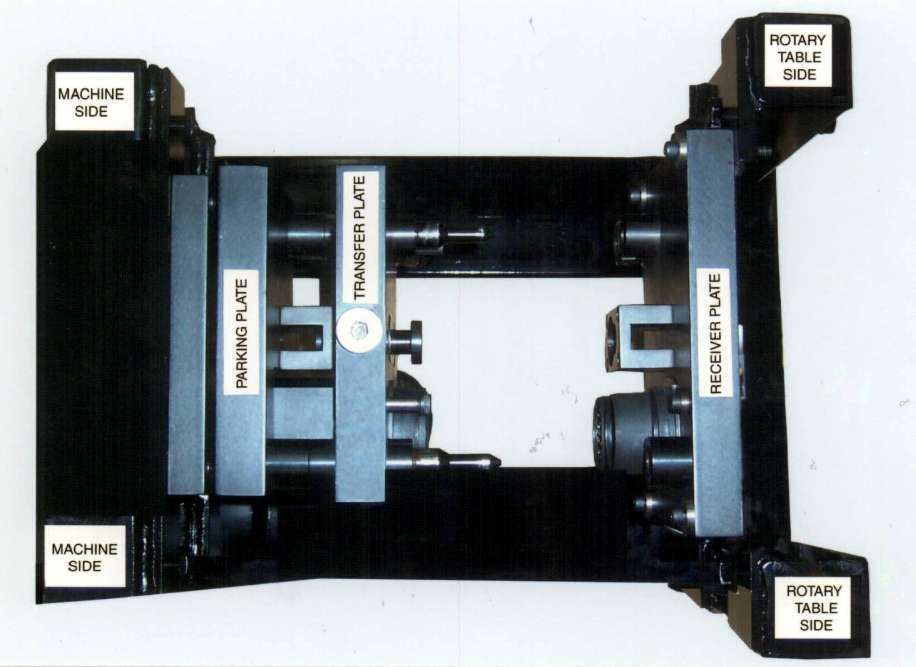

Jun 01, 2004 Autocoupler enables unmanned cable connection of rotary tables in pallet pools. Able to address 400 mm pallet applications and larger, unit fits most HMCs. First side is fixed to center post of HMC, on pallet shuttle door, and other side of coupler is mounted to back side of rotary table. Once machining is complete, PLC and cell controller communicate, Autocoupler disconnects, and pallet moves out into pool.

Love Controls    Michigan City, IN 46361
Jun 01, 2004 Mounted on heat sinks, LTP series are available with ac or dc triggers in single- and 3-phase configurations for loads from 25–60 A. Compact relays are available in zero-crossover firing and phase angle firing configurations with working voltages from 120–660 Vac. Series mounts directly onto 35 mm DIN rail.

Linear Technology Corp.    Milpitas, CA 95035
May 28, 2004 Single-IC, autonomous power manager and battery charger, Model LTC4055 provides power to USB peripheral device and charges peripheral's single-cell Li-Ion battery from USB VBUS or wall adapter power supply. Unit automatically reduces battery charge current as system load current increases. Once power source is removed, current flows from battery to load through internal low loss diode. Float voltage is preset at 4.2 V with guaranteed 0.8% accuracy from 0-85°C.

Optronic Laboratories, Inc.    Orlando, FL 32811 6590

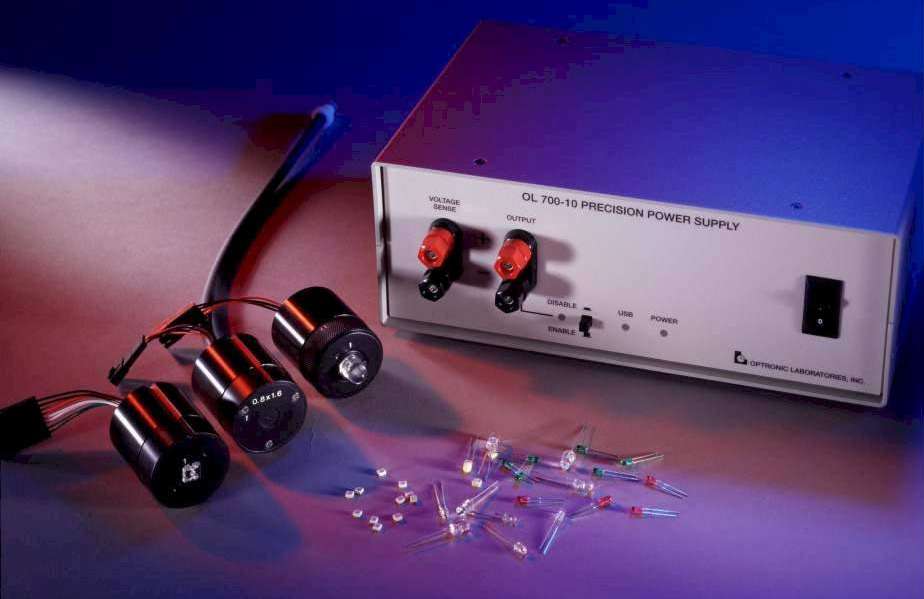

May 28, 2004 Designed to work in conjunction with OL 770 High-speed LED Test and Measurement System, OL 700-10 controls LED and small incandescent source drive currents of 50 mA, 200 mA, and 2 A with 0.02% accuracy. It comes with all necessary software controls for USB interface as well as ActiveXâ„¢ controls for custom programming.

Electro Standards Laboratories    Cranston, RI 02921 3403
May 27, 2004 Model 7223 DB15 A/B Switch, with 10BASE-T LAN Access, allows multiple alternate-path switching to increase network survivability and reliability in event of disaster. It can be controlled via front-panel pushbutton or from remote locations via LAN connection to unit's 10BASE-T rear panel port. Using remote control method, Web browser pointed at IP address to unit launches GUI, allowing users to control switch, view current position status, and lockout front-panel pushbutton.

NKK Switches    Scottsdale, AZ 85260-3420

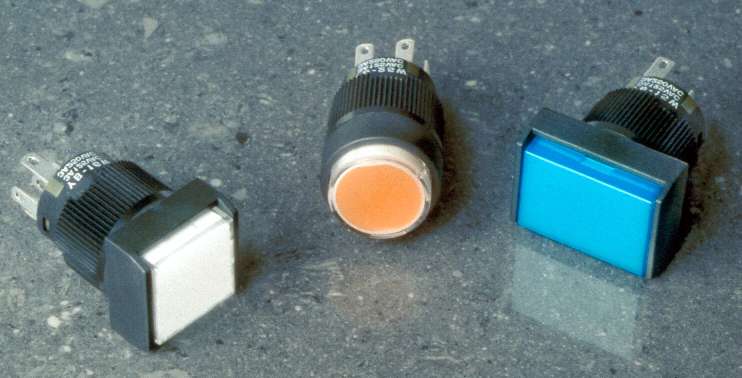

May 26, 2004 Series YB illuminated and non-illuminated, panel-sealed switches are power or logic level rated. Power models are rated 3 A at 125 Vac, 3 A at 250 Vac, or 3 A at 30 Vdc. Logic level version is rated 0.4 A maximum at 28 Vac/dc. Available in SPDT/DPDT, mometary, or alternate action, switches feature thermoplastic elastomer seal on interior of caps to protect internal mechanisms. They come with solder lug/.110 in. quick connect or straight PC terminals.

Tracewell Systems, Inc.    Westerville, OH 43081-8846

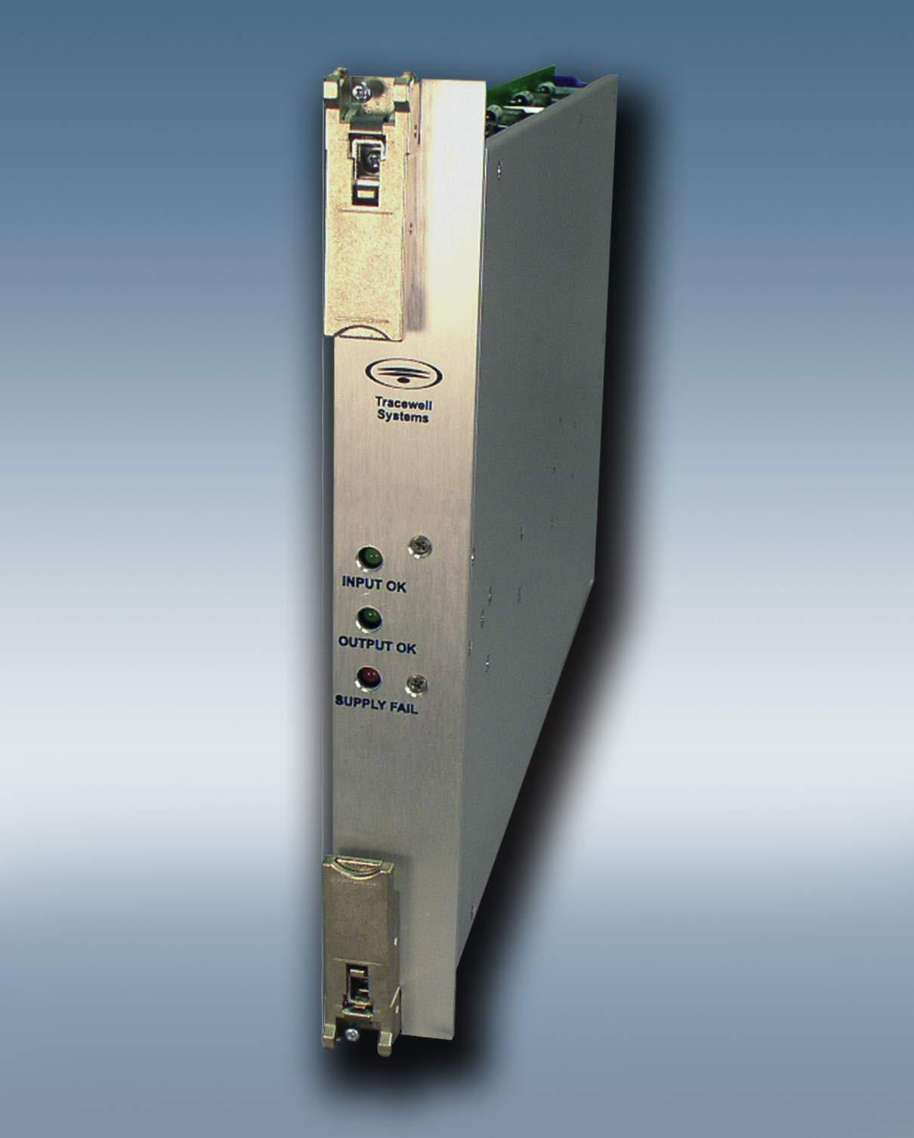

May 26, 2004 Model DH-242 features 8 independently regulated outputs that deliver full-rated current. Max output is 1488 W at 45°C with 400 LFM of air, and typical efficiency is 90%. Output of 12 Vdc operates system fans. Each output is independently thermally protected and multiple supplies can be combined with full load sharing. Power supply operates from 48 Vdc system bus, which suits portable or battery powered applications. RS-485 communications allow power supply to be remotely monitored.

Carling Technologies, Inc.    Plainville, CT 06062
May 26, 2004 Miniature and Sub-Miniature Switch Series includes rocker, toggle, pushbutton, and slide units. Many are available surface mount and sealed to IP67. Switches are certified to UL/CUL under file number E7560 and to CSA under file number LRA9280.

Love Controls    Michigan City, IN 46361
May 26, 2004 Series LTTJ provides proportional signal without need for external power. Suited for high- and low-impedance circuits, transformer can be adjusted to provide 0–10 Vdc proportional signal over currents from 0–10 A to 0–100 A. Features include NPN transistor output and LED display.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
May 25, 2004 Electroswitch Series 24 and 31 Tagging Relays feature orange warning hot-line tags to ensure personnel safety in compliance with utility requirements. Available with serial communications for network control, they allow remote reclosure cutoff and facilitate expansion of remote-control SCADA systems. Available with 2 or 3 positions and multiple decks, relays allow bi-directional operation and have 2 NO and 2 NC contacts per deck.

FCI/Burndy Products    Manchester, NH 03108
May 25, 2004 PATRIOTâ„¢ PAT600-18V incorporates high-speed pump, transmission, and piston design. Latch style head provides 180° rotation and allows interference free closure on tap connections, while audible pop-off valve signals completion of crimp. Coupled with variable speed trigger, unit holds position when trigger is released. Tool provides 6 ton crimping force, has crimp speed of less than 4 sec, and performs 160–200+ crimps per charge.

Murrelektronik, Inc.    Duluth, GA 30096

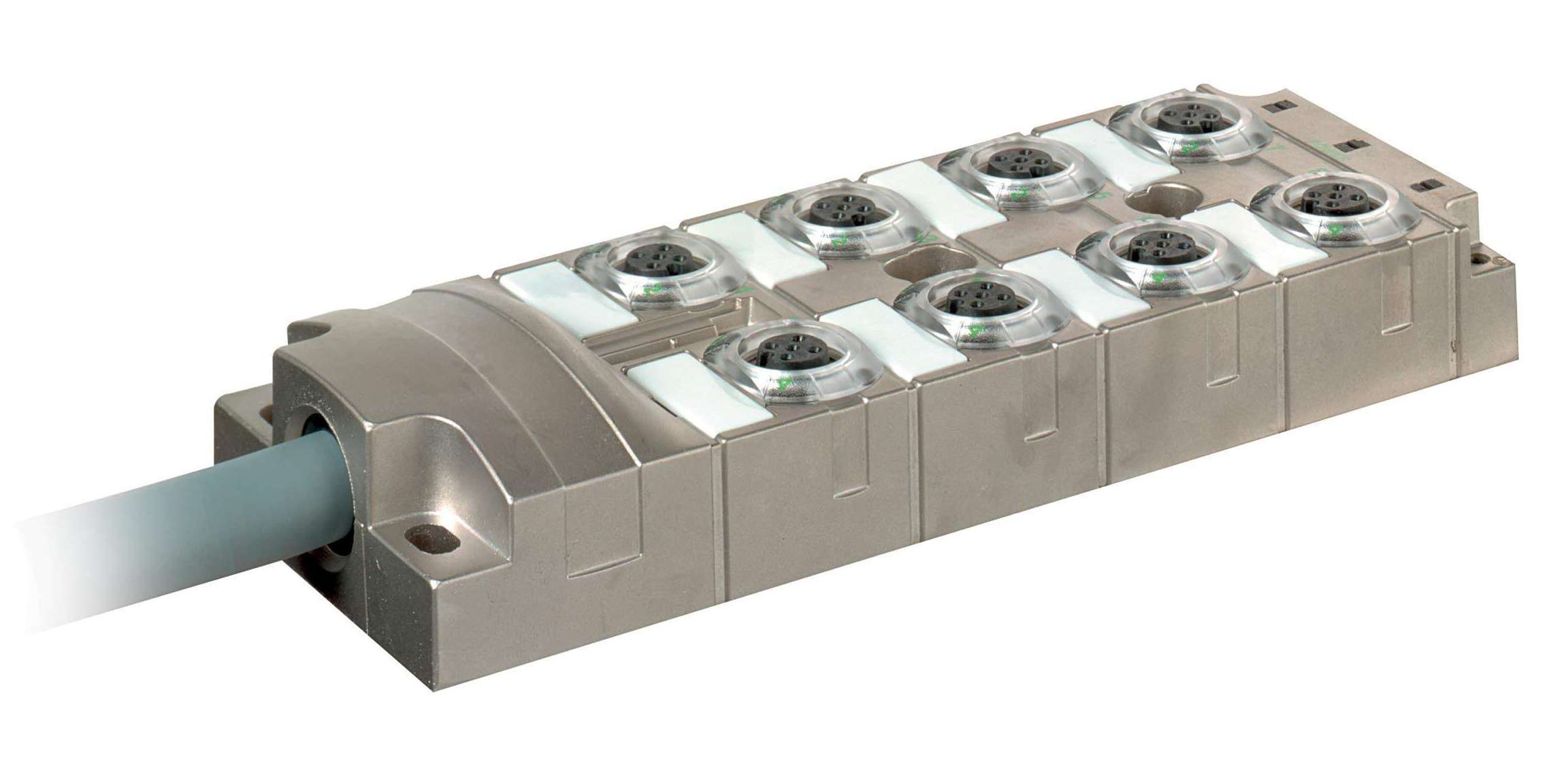

May 25, 2004 Metal Series MVP12 provides connections for up to 16 different sensor signals. Boxes are fully encapsulated and sealed to IP65 and IP67 standards, giving them resistance to vibration, condensation, moisture, oils, coolants, chemicals, and cleaning agents. Available in shielded or unshielded versions, they come with 4 or 8 standard M12, 5-pole sockets, each capable of handling 2 sensor signals. Series is rated for 125 Vac and/or 24 Vdc; 12 A.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

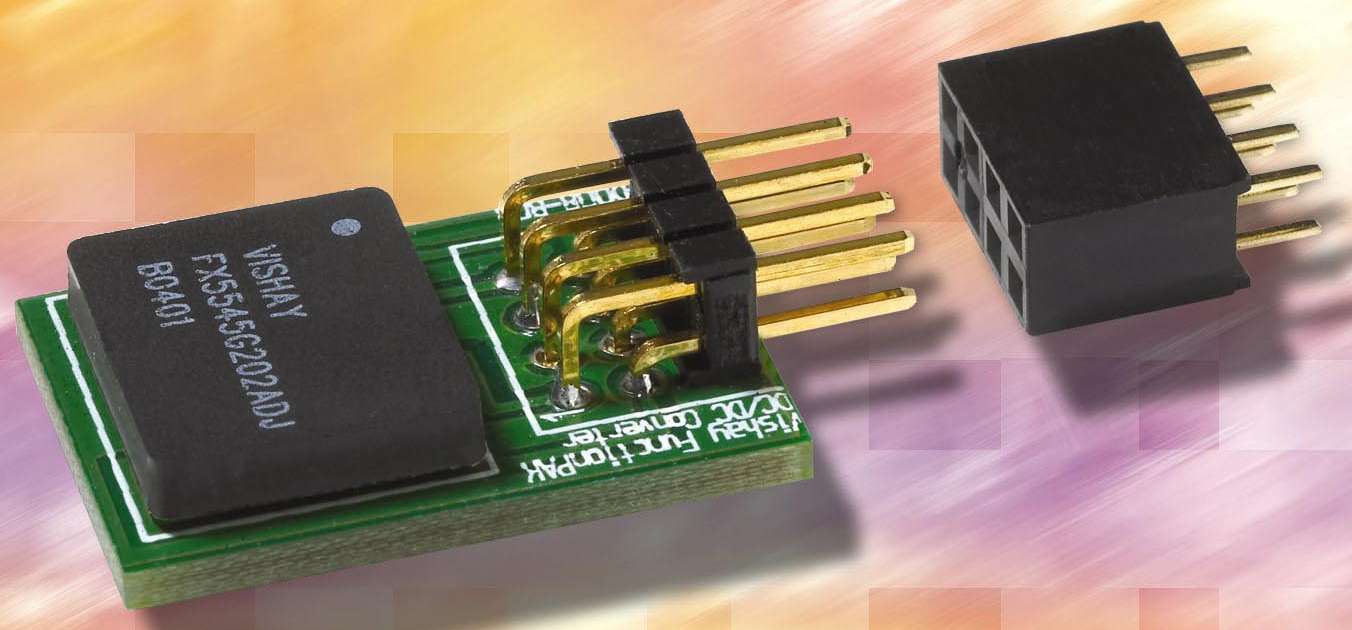

May 24, 2004 FunctionPAK® integrated programmable-topology, synchronized buck or boost converters plug into bread board for prototyping and testing within circuitry. They allow designers to power loads such as FPGAs, power amplifiers, microcontrollers, or baseband logic ICs. Products are capable of converting range of 2.5–6 V inputs to 0.8–6 V output voltages and feature primary and secondary power MOSFETs, controller IC, and up to 18 passive components in single package.

TE Connectivity Ltd.    Berwyn, PA 19312

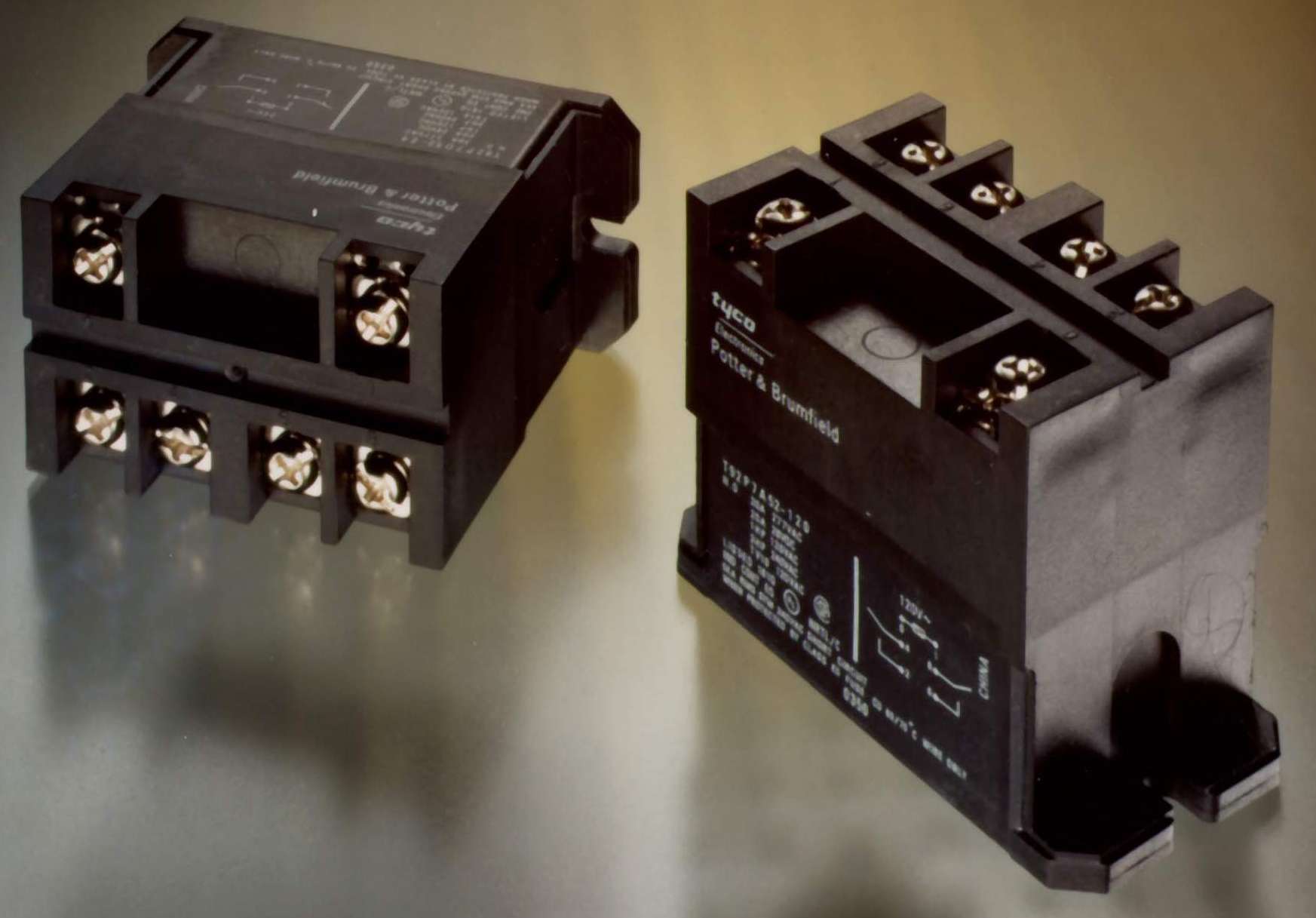

May 24, 2004 Included in POTTER and BRUMFIELD product line, general purpose Series T92 is offered in flange-mount, screw-terminal version; M4 screws with captive pressure plates are provided for coil and load connections. Product provides 2 Form A, DPST-NO, silver-cadmium oxide contacts for load switching. Utilizing UL Class F construction, enclosed relay meets UL94V-0 flammability standards. Contacts are rated for max loads of 30 A, resistive, @ 120/277 Vac or 20 A @ 28 Vdc.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
May 21, 2004 Packaged in 3-phase industrial housing, RZ3A Series electronically switches 3 poles up to 75 A (RMS) and can be driven by input currents from PLCs and temperature controllers. It uses zero-switching technology, regulated DC or AC control inputs, and direct copper bonding technology. Built-in over-temperature protection switches off load during abnormal operating conditions. Features include touch safe cover, LED indication, and self lifting saddle clamps.

Unilux, Inc.    Saddle Brook, NJ 07663
May 21, 2004 Beacon stroboscopic spotlight illuminates 18 in. target area at 800 LUX from distance of 15 ft, making it capable of looking across the wire on papermaking machines. It can be synchronized to cameras through discreet signal triggers to record images and is designed to pinpoint specific areas on rolls and rotating machine parts for diagnostics. Unit runs up to 14 min at full power on rechargeable battery at trigger rates to 18,000 flashes/min.

Vorne Industries, Inc.    Itasca, IL 60143 1849
May 21, 2004 Using red AlGaAs LEDs, 87 Series production displays generate 4, 6, 8, or 12 in. high digits readable at distances to 400 ft. Yellow and green LEDs are available, as well as a tri-color display option. Functions include rate, count, elapsed time, tact time, and efficiency, and combinations can be displayed or reported to host computer. Unit is equipped with programmable RS-232 communication port and has optional RS-422 communication card.

V-Infinity    Beaverton, OR 97005
May 21, 2004 Rated 30 W, VMPS-30 series open-frame medical power supplies carry UL, cUL, TUV, CE, and CB approvals. Measuring 4.01 x 2.60 x 0.90 in., all models accept universal input and feature short circuit, over voltage, over load, and over temperature protection. Voltage output ranges from 5.0–48.0 Vdc on 6 different single-output models, and leakage current totals less than 0.3 mA @ 240 Vac. Users include manufacturers with demanding medical safety needs.

V-Infinity    Beaverton, OR 97005
May 21, 2004 Measuring 7.95 x 4.00 x 1.50 in., VUSP-225 series 1U, PFC power supplies use 18 cfm cooling fan and offer 4.7 W/in.³ power density in u-frame package. They carry UL, cUL, TUV, CE, and CB approvals and are designed for telecom and industrial applications. All models have universal input, and voltage outputs range from 3.3–48.0 Vdc on 7 different single-output models. Features include short circuit, over voltage, over load, and over temperature protection.
