Eraser Company, Inc., The    Syracuse, NY 13221
Jul 26, 2004 Custom Design Service addresses material processing requirements specifically tailored to individual needs of various applications. Service includes custom wire, cable, and tubing cutters; wire and cable strippers; and wire twisters. It also provides custom wire brush wheels, dereelers, infrared heating equipment, measuring tools, and fybRglass erasers.

Bud Industries, Inc.    Willoughby, OH 44094
Jul 26, 2004 NEMA 4X-rated, Series AN provides EMC protection and can be mounted on wall or panel without removing gasketed cover and exposing internal components. Permanently-fastened mounting bracket is 0.09 in. thick and accepts up to No. 10 mounting screws. Available in natural aluminum or black powder coat finish, boxes range in size from 1.95 x 1.77 x 1.12 in. up to 8.75 x 5.75 x 3.25 in. Cover mounting holes are roll threaded and screws are captive and recessed.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jul 26, 2004 Rackmounted system facilitates passing connection of voice and data lines from designated equipment to existing building network. It can also disconnect same set of lines from building network, isolating all equipment in designated room or area. System includes Secure/NonSecure Indicator Unit and Fiber Optic SC, 16-Channel Ethernet, 16-Channel Telco, and 6-Channel ISDN Data Pass/Off-Line Switches. All systems are switched via front panel keylock actuator.

NKK Switches    Scottsdale, AZ 85260-3420

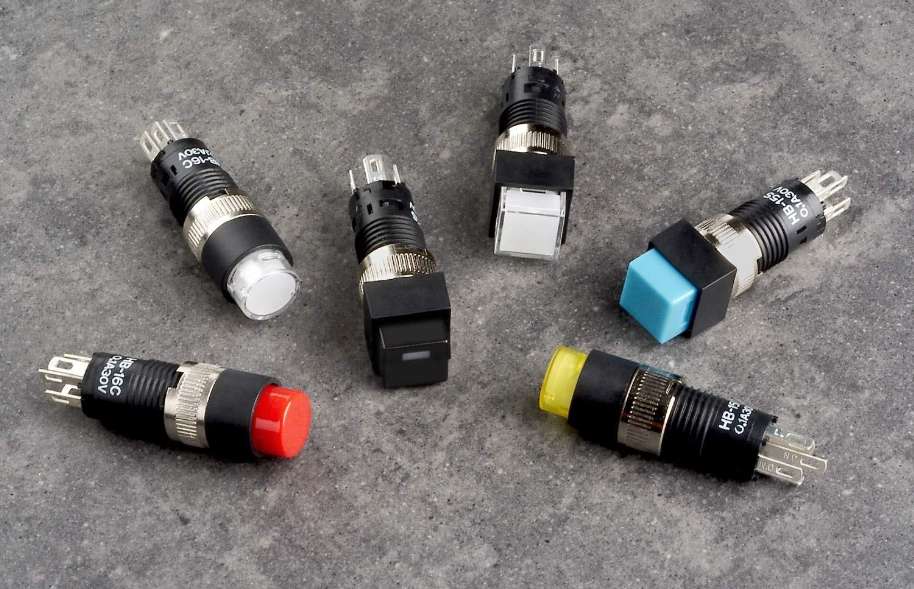

Jul 23, 2004 Series HB subminiature pushbuttons feature compact front panel with black built-in bezels available in 0.354 in. square or round options. Behind panel depth is less than 1 in. Rated at 0.1 A maximum @ 30 Vac/dc, pushbuttons have solder-lug terminals, spaced 0.100 x 0.200 in., and dual, sliding contacts. Illuminated models offer range of LED choices. Non-illuminated models are available with solid caps in different colors. Matching LED indicators are available.

Applied Strobe Technology Co.    Niagara Falls, ON L2E 6X8  Canada
Jul 23, 2004 With 2,000,000 peak candlepower flash, Model AST-4K is used for emergency visual signaling in atmospheres classified by UL or CSA as Class I-Division 1 and 2, Group C, D; Class II-Division 1 and 2, Groups E, F, G; Class III-Encl 3, Temp Code T6. It is available in 12–30 Vdc, 90–130 Vdc, 120 Vac, and 220 Vac with lens colors in red, green, amber, clear, and blue. Unit can be pendant, ceiling, wall, or stanchion mounted.

Advanced Power Conversion PLC    Farnborough, Hants GU14 0NR  United Kingdom
Jul 23, 2004 With single-in-line footprint, APC-PD6NG and APC-PD10NG series isolated type dc-dc converters features continuous auto restart short-circuit protection, 1,000 Vdc I/O isolation, and 80% typ efficiency. They provide regulated 1 and 2 W output power in SIP8 package that measures 0.86 x 0.36 x 0.44 in., and can be supplied in 4 input voltage ranges of 4.5–9 V, 9–18 V, 18–36 V, and 36–72 V. Standard output voltage options are 3.3, 5, 9, 12, 15, and 24 Vdc.

W.A.C. Lighting Company    Port Washington, NY 11050
Jul 22, 2004 Series G912 QuickConnect Pendants feature blown glass in amethyst, clear, cobalt blue, gold, and turquoise. Pendants are supported by 6 ft fine-braided cable, plated die-cast brass fittings, and metal cord sets in 3 metal finishes: platinum, chrome, and satin brass. Cable can be custom cut and sized in field to meet exact specifications. Pendants use 12/24 V MR16 lamp with max wattage of 50 W. They can be suspended from ceiling individually as monopoint or in group as multipoint.

Yamaha Motor Corp. USA    Cypress, CA 90630
Jul 22, 2004 Able to run continuously for 11 hr, YG4000D employs 4-stroke OHV, 251 cc engine that produces 8.5 hp for max output of 4,000 W. It weighs 132 lb, occupies 6.0 ft³, and operates at noise level of 69 dB. Features include cast-iron cylinder liner, brushless alternator, and Oil Watch warning system. Auto decompression system and transistor controlled ignition ensure reliable operation. Fitted with extra large fuel tank, product features economy idle.

Astrodyne Corp.    Mansfield, MA 02048
Jul 22, 2004 Open-frame Series LPS75 accepts universal input from 85-265 Vac, and 6 models provide single outputs from 3.3-48 Vdc. Units feature output adjustment potentiometer and operate over ambient temperature range of -20 to +50°C without forced cooling or output power derating. All contain over-voltage and short-circuit protection circuitry, remote on/off control function, and internal input EN61000-compliant EMI filter.

Telco Sensors Inc.    Charlotte, NC 28217
Jul 22, 2004 Housed in plastic enclosure, SGC 1 is intended for use in conjunction with SG 1 self-contained light curtain series in installations where dc supply voltage is not available and where electromechanical relay output is required. It is available with 230 or 115 Vac supply voltage, and supplies fixed output voltage of 24 Vdc, which can be NPN or PNP. Test pushbutton temporarily disables transmitter power for test purposes.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317

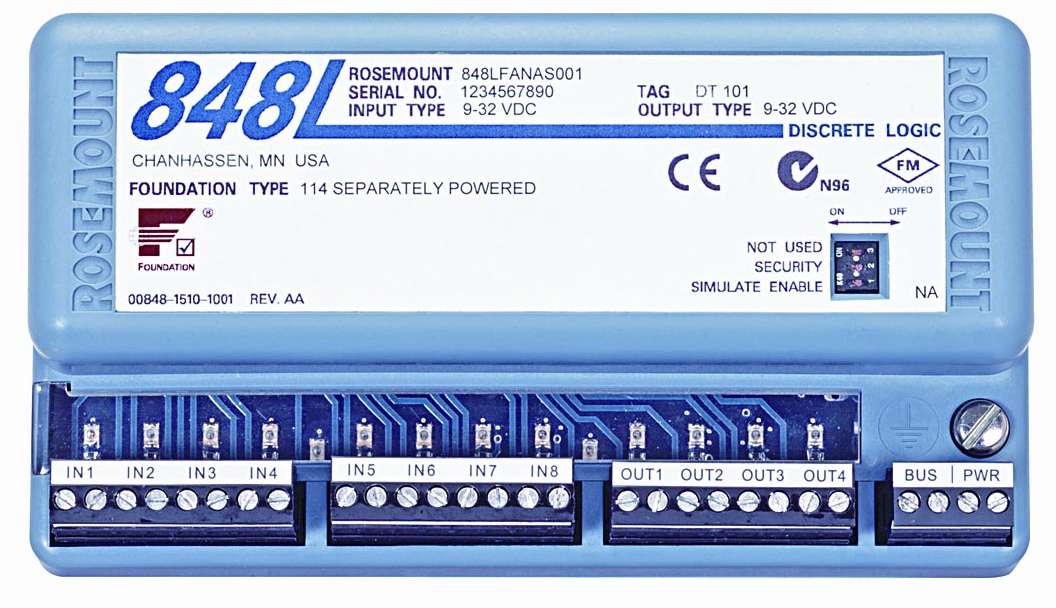

Jul 22, 2004 Without requiring separate discrete I/O bus, Rosemount 848L Logic Transmitter integrates logic and discrete I/O capability on Foundation fieldbus H1 segment. It accepts up to 8 direct-wired discrete inputs, in addition to inputs sent over Foundation fieldbus, and offers 4 discrete outputs. Use of 20 logic equations enables interactions to be processed independently of fieldbus and central controller. Product aids in asset optimization and process automation.

Phoenix Contact    Harrisburg, PA 17111 0100
Jul 22, 2004 Formed from 14 gauge, Type 316L stainless steel, J-BOX SST junction box assemblies simplify industrial wiring projects. Terminal block rail assemblies are mounted and labeled in enclosure, requiring users to mount junction box and terminate conductors. With NEMA 4X rating, products are available in 4 different sizes with terminal block rail assemblies ranging from feed-through to thermocouple blocks.

My-tronic GmbH    Morbach 54497  Germany

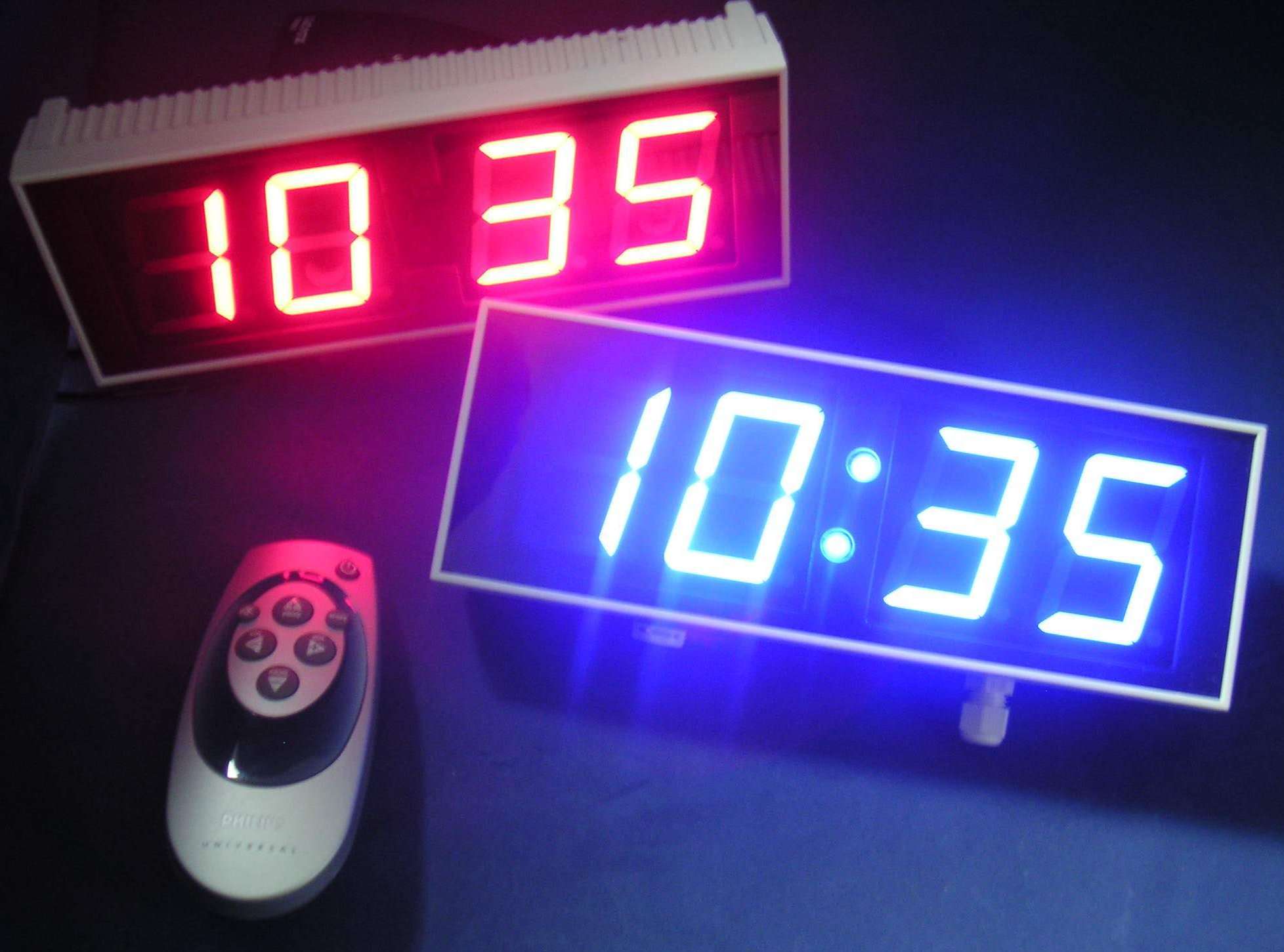

Jul 21, 2004 Suited for environments where time, humidity, and temperature need to be measured under special environmental conditions, my-display-406 consists of water-resistant, 60 mm wall clock with DCF77 radio-controlled clock and temperature and humidity sensors. It can show time in 24 or 12 hr format, display temperatures in °C or °F, and control brightness of display. Device switches between temperature, humidity, and time in adjustable intervals from 1–99 sec.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891

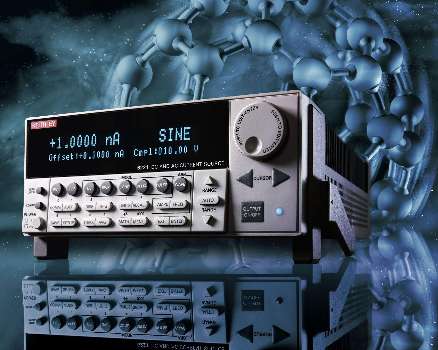

Jul 21, 2004 AC and DC Current Source, Model 6221 supports I-V measurements and can be programmed for pulse widths as short as 5 µs. Both DC Current Source, Model 6220 and Model 6221 can source DC currents from 100 fA to 100 mA and feature current noise as low as 80 fA rms. Supporting linear, logarithmic, and custom sweeps, units offer tools for defining current ramps and stepping through predefined sequences up to 64,000 output values using trigger or timer.

Linear Technology Corp.    Milpitas, CA 95035
Jul 20, 2004 Model LT1935 is a 2 A, 40 V step-up converter in ThinSOT(TM) package. Input voltage of 2.3-16 V enables unit to operate from single-cell, Li-Ion batteries up to fixed 15 V input rails, delivering outputs up to 38 V. NPN switch achieves VCESAT of 180 mV at 2 A, independent of supply voltage. Constant 1.2 MHz switching frequency allows designers to keep switching noise out of noise-sensitive circuitry and enables use of tiny capacitors and inductors.

V-Infinity    Beaverton, OR 97005
Jul 20, 2004 Available in 5, 10, and 15 A version, Series VSNS point-of-load converters offer efficiencies up to 94%, while operating within temperature range of -40 to 85°C. Non-isolated units accept input of 5 or 12 V with output voltages ranging from 1.0–5.0 V. Trimmable output voltage is available via external resistor. Low profile, SIP converters include remote on/off, output over-current protection, and over-temperature protection. Surface-mount versions are available.

V-Infinity    Beaverton, OR 97005
Jul 20, 2004 With 3 kV isolation, VAD series converters measure 1.25 x 0.8 x 0.4 in. and feature 24 pin dip pinout. They operate with efficiencies up to 82% and are available in single- and dual-output versions with 2:1 or 4:1 input ranges. Rated 3–7.5 W in 3.3–15 V single output models and ±5 to ±15 V dual-output models, all products offer trimmable output voltage via external resistor. Features include remote on/off control and short circuit protection.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997
Jul 20, 2004 Shelf Worksâ„¢ Expandable Wire Trayâ„¢ includes extra height dividers, multiple pusher capability, and push height extensions. Units mount to standard and wire shelving, and are freezer capable, supporting oversize items. Minimal-silhouette, open-wire design sheds dust and dirt and promotes air circulation. Powder-coated, galvanized wire and Celcon plastic adaptor blocks withstand harsh environments.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 20, 2004 With 16-Byte FIFO, TL16C550D single-channel universal asynchronous receiver/transmitter (UART) supports voltages from 5–2.5 V and data transfer rates from 1.0–1.5 Mbps. Product, housed in 32-pin QFN package, features programmable baud rate generator and auto flow control feature, which is comprised of auto-RTS and auto-CTS. Models TL16C550D and TL16C550DI accommodate up to 1.5 Mbps serial rate (24 MHz input clock), allowing for bit time of 667 ns.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Jul 20, 2004 Model HP T500 enables continued work during sudden brief power outages. During extended outages, it can automatically save data, close applications, and perform systematic shutdown. Rated at 500 VA/300 W, unit provides up to 30 min of battery backup and includes serial and USB interface for power monitoring. Line-interactive voltage regulation corrects brownouts as low as 83 V back to 120 V nominal values. Web-based software continuously monitors quality of utility-supplied power.
