Belden CDT    Fort Mill, SC 29715

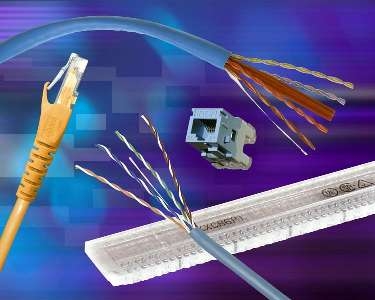

Sep 07, 2004 Exceeding TIA/EIA Cat 5e Standards, Belden IBDN System 1200 supports 1.2 Gb/s network applications and provides clear bandwidth up to 160 MHz. System 2400 exceeds TIA/EIA Cat 6 standards, supports 2.4 Gb/s, and delivers 250 MHz bandwidth. Providing 300 MHz, System 4800LX performs beyond Cat 6 and supports demanding, ultra-high speed and multi-Gigabit protocols. All include UTP cables, hardware, patch panels, patch cords, outlets, modules, faceplates, and adapters.

Molex Inc.    Lisle, IL 60532-1682

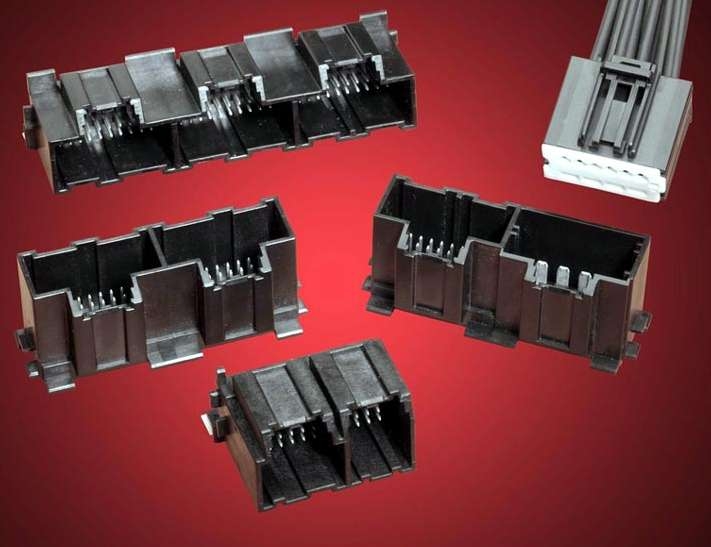

Sep 07, 2004 Suited for automotive and commercial control module manufacturers, MX64 2- and 3-pocket unsealed headers meet USCAR-approved footprints and testing requirements for .025 in. square blade systems. Products, available in vertical and right angle configurations, offer 3 polarization options for individual pockets to prevent mismating. They also offer 3 hybrid pocket options that utilize .059 or .110 in. blades, allowing power up to 25 A and signal blades to be in same header.

Acromag, Inc.    Wixom, MI 48393 7037

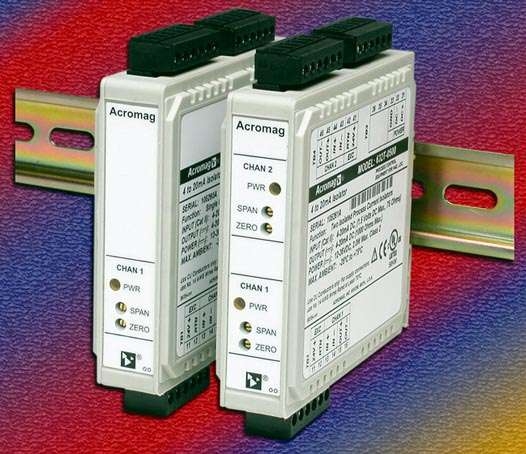

Sep 07, 2004 AC/DC-powered 630T Series isolators and signal splitters feature internal excitation supply to drive up to two 2-wire transmitters or other input loop devices. Multi-channel isolators provide space-efficient solution to eliminate ground loops, filter signal noise, and block high voltage surges. Measuring 1 in. wide, single/dual-channel isolators receive 4–20 mA inputs and provide fully isolated 4–20 mA output signals.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Sep 07, 2004 Constant current, parallel LED driver, Model FAN5607 provides analog and/or PWM brightness control for LCD backlighting in ultra-portable applications. It features 3-mode charge pump and internal auto-sense circuitry, which maintains efficiency and ensures tight current matching over full range of LED's current. Offered in 4 x 4 mm molded leadless package, unit includes over-voltage protection, shut-down mode, soft-start, and short-circuit protection.

Cherokee International, Inc.    Tustin, CA 92780

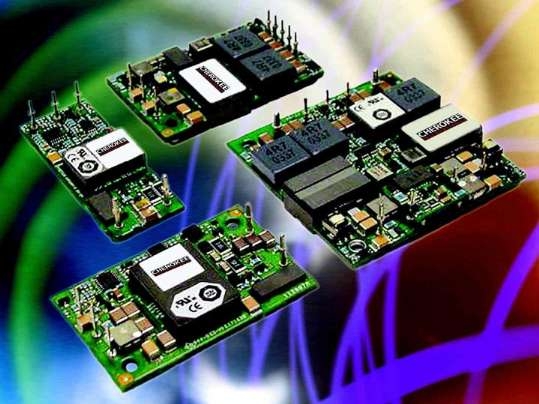

Sep 07, 2004 Quarter-brick Model QB1448 and half-brick Model HB2048 are 12 V, fully regulated, bus converters that operate under input range of 36–75 V. Model QB1448 provides 14 Adc at 90% efficiency and is suited for datacom and DPA applications. Model HB2048 provides 20 A at 91% efficiency and includes active current sharing capability, which provides stress balancing. It is suited for ATE, RF amplifiers, and wireless applications.

Artesyn Technologies    Framingham, MA 01701
Sep 07, 2004 Non-isolated, point-of-load, Series VRM10 meets core power requirements of high-end processors. Converters offer dynamic voltage programming and continuous current outputs up to 85 A. They use 4-phase buck conversion topology with interleaving to achieve switching frequency of 2.2 MHz, yielding conversion efficiencies up to 86% when delivering 85 A at 1.4 V. Complying with Intel's VRM10.0 and 10.1 specifications, units operate from 12 Vdc input and generate 0.8375-1.6 Vdc.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Sep 07, 2004 Suited for lighting control panels, transformers automatically reset after experiencing overload situation. Various UL and C-UL listed models are available, each with 40 VA continuous and 75 VA intermittent capacity ratings for 50/60 Hz service. Input voltages include 115, 220, 240, 277, 347, and 115/277 or 115/240/277 V, all with 24 V output. Each size/model includes UL Recognized Class 130 (B) insulation.

Igus, Inc.    East Providence, RI 02914 0349

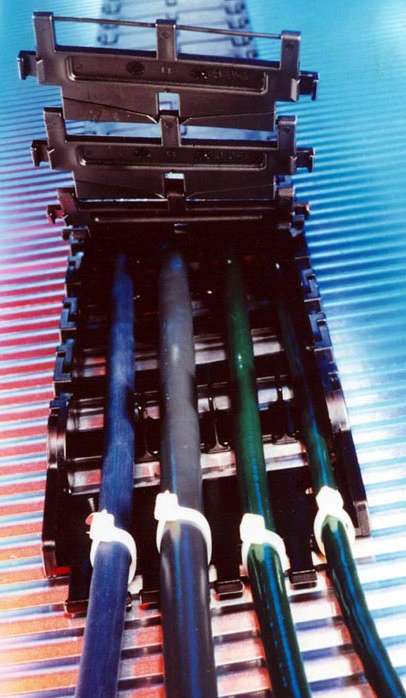

Sep 07, 2004 Available with inner heights from .35-1.26 in. and inner widths from .24-3.94 in., zipper Energy Chain Systems® are built with interconnected lids which can be pulled back in zipper fashion. If application requires long travel, cables do not have to be snaked through, but can be laid out along cable carrier in their compartment. Interior separators can be used with Series 15 and Series 17 zipper chains for multiple cable configurations.

MGE UPS Systems    Costa Mesa, CA 92626
Sep 03, 2004 Intended for Pulsar UPS systems with power ratings from 500–3,200 Va, Pulsar PDUs are available with range of NEMA 120 Vac input plugs and receptacles ranging from 15–30 A. Maintenance Bypass Switch model enables users to eliminate downtime by maintaining power continuity during UPS maintenance while serving dual purpose as PDU. With 3.5 in. form factor, PDUs are suited for mounting in 19 in. equipment racks, telecom racks, or any wall-mount space.

LEDtronics, Inc.    Torrance, CA 90505

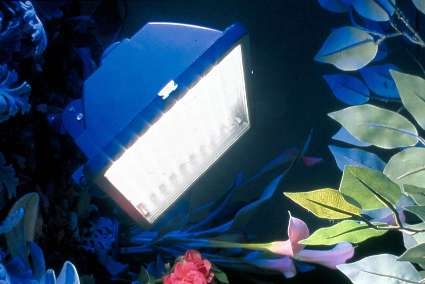

Sep 03, 2004 GardenLED(TM) Series GDL002 FloodLED(TM) features 198 warm white 5 mm discrete LEDs mounted on PCB. Unit provides ample light without generating light pollution, radiating excessive heat, or consuming large amounts of energy. Solid-state design renders LEDs impervious to electrical and mechanical shocks, vibrations, frequent switching, and environmental extremes. Requiring 12 Vdc, unit is suited for lighting walkways, small signs, landscaping, and building exits.

ITECH ELECTRONIC CO.,LTD    Nanjing City 210012  China
Sep 03, 2004 Able to be used in series or parallel mode, IT6800 series power supplies incorporate VFD display, leaning numeric keypad, and intellective fan cooling. It features over-current and over-temperature protection in addition to limit voltage protection. With storage for 16 operating states, product provides constant voltage and constant current outputs as well as output on/off control. Software for calibration and control are included.

Sharp Electronics Corporation / Computer Products Division    Mahwah, NJ 07430
Sep 03, 2004 Intended for CDMA2000® and WCDMA 3G cellular phones, Model LR38869 ensures high-speed and mass data transfer of 400 Mbps between LCD panel and MSM chipset. Number of signals of hinge part is reduced from conventional 21 to 4, and development of sophisticated designs, such as rotation type display, is promoted. Device can control QVGA size main display as well as sub display to max QVGA size. Load of Baseband IC is mitigated by built-in graphic processing function.

Belden CDT    Fort Mill, SC 29715
Sep 03, 2004 Belden IBDN FiberExpress optical fiber systems support centralized and fiber-to-the-desk topologies as well as backbone and campus configurations. Used to support Gigabit and multi-Gigabit communications protocols and networked applications, end-to-end cabling solutions utilize modular and pre-terminated components. Components include multimode and singlemode cables, modular FiberExpress Manager, and wall and rack mount patch panels with adapter strips.

V-Infinity    Beaverton, OR 97005
Sep 03, 2004 Encapsulated PCB-mount Series FSK-S30 is available in 3.3, 5, 12, 15, and 24 Vdc output models capable of operating in -10 to 60°C range while offering 500 Vdc I/O isolation. Measuring 94 x 53 x 21.5 mm, units are suited for industrial and consumer applications where space is a consideration. They include natural air convection cooling and output short circuit protection. All accept universal input; carry UL, cUL, CB, and CE approvals; and meet FCC class B standards.

Cooper Bussmann    Chicago, IL 60706-4792
Sep 02, 2004 Series 15300 Rear Terminal Mini-Fuse and Relay features uniform component terminal spacing, which accepts standard 2.8 mm wide terminal blades for all component connections. Connector points are arranged to accept standard components, including mini fuses, mini circuit breakers, diodes, flashers, and mini or micro relays. Offering component density up to 20 devices, sealed and weather tight unit can be panel- or surface-mounted.

Ortronics, Inc.    New London, CT 06320

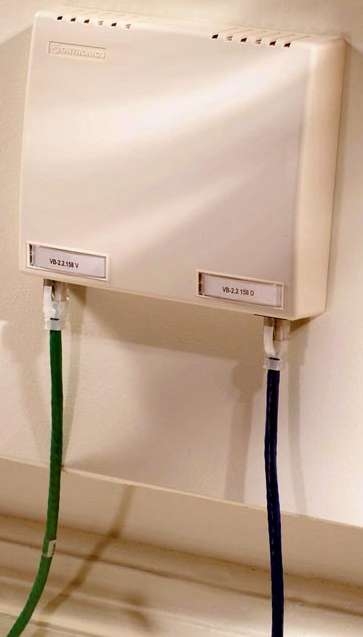

Sep 02, 2004 Wi-Jackâ„¢ integrates enterprise WLAN technology directly into office network wall outlet, enabling formation of high-capacity wireless environments. Structured wireless networking integrates AP functions into centralized control system that coordinates operation and optimization of entire wireless environment. Each unit comes with single radio that provides 802.11a or 802.11 b/g service. Product can also simultaneously function as air monitor.

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007

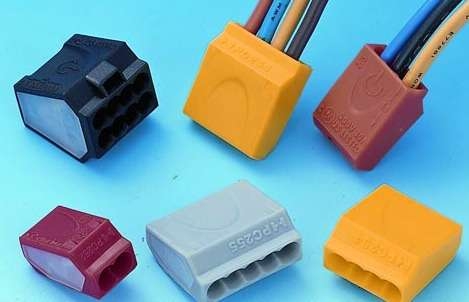

Sep 02, 2004 Heavy Power connectors, designed for wire-to-wire electrical connections, require users to strip off insulation and push wires into block housing to make connection; no screwdriver, electrical tape, or twisting is required. All configurations have recessed port to facilitate circuit testing. BlockMaster Heavy Power PC25x series is offered in single or dual row versions. Former is available in 2–5 poles, while latter provides 2 rows of 4 poles each.

Staco Energy Products Co.    Dayton, OH 45403 1314
Sep 02, 2004 Providing 90 min of backup power, TreStar 924 online, 3-phase UPS incorporates immediate power switching, battery management system, automatic diagnostics, and remote monitoring capabilities. Product has recharge time that meets UL 924 standard for emergency lighting and power equipment and also meets requirements of ANSI/NFPA 101 Life Safety Code and Article 700 of ANSI/NFPA 70 National Electrical Code.

C & D Technologies    Mansfield, MA 02048-1151

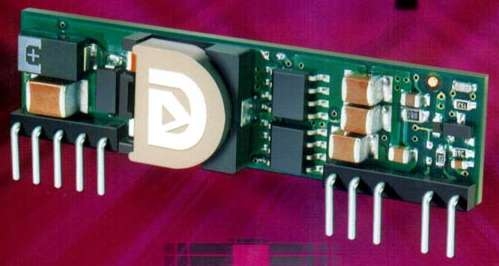

Sep 01, 2004 Offered in vertical or horizontal orientations, LSN-16A Series enables true point-of-use (point-of-load) power processing. Non-isolated power converters accept 3.3/5 V inputs for W3 models and 12 V inputs for D12 models and deliver 0.75/1/1.2/1.5/1.8/2/2.5/3.3/5 V outputs, fully rated at 16 A. Fixed-frequency, 220/300 kHz, synchronous buck topologies deliver conversion efficiencies to 96% with output noise as low as 30 mVp-p. They come in 2 x 0.5 x 0.36 in. single-in-line package.

C & D Technologies    Mansfield, MA 02048-1151

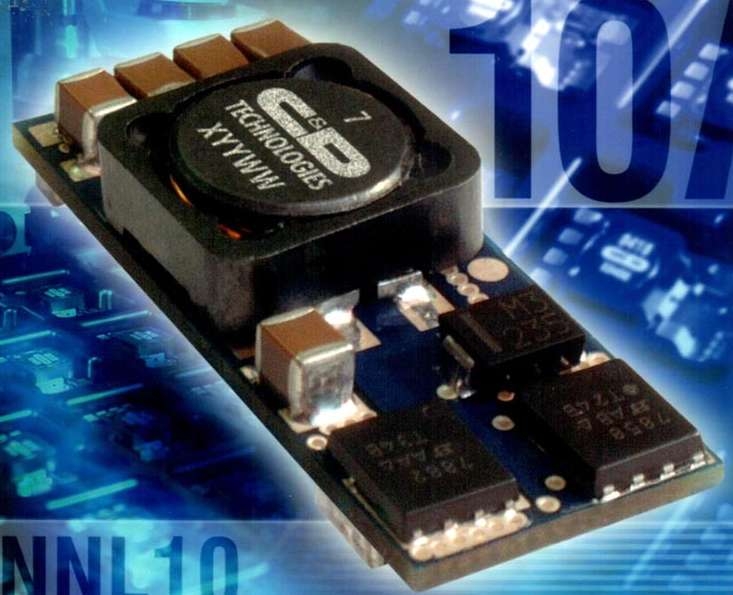

Sep 01, 2004 Available in 16 models, NNL10 series point of load (PoL) DC/DC converters address voltage and current requirements of high-performance FPGAs, ASICs, DSPs, and microprocessors. SMD devices operate with voltage input from 3.0-5.5 V and are available with output voltages of 0.9, 1.0, 1.2, 1.5, 1.8, 2.0, 2.5, and 3.3 V. Each unit offers continuous short circuit protection, under voltage lockout, and overtemperature protection.
