Greenwich Electronics    East Greenwich, RI 02818

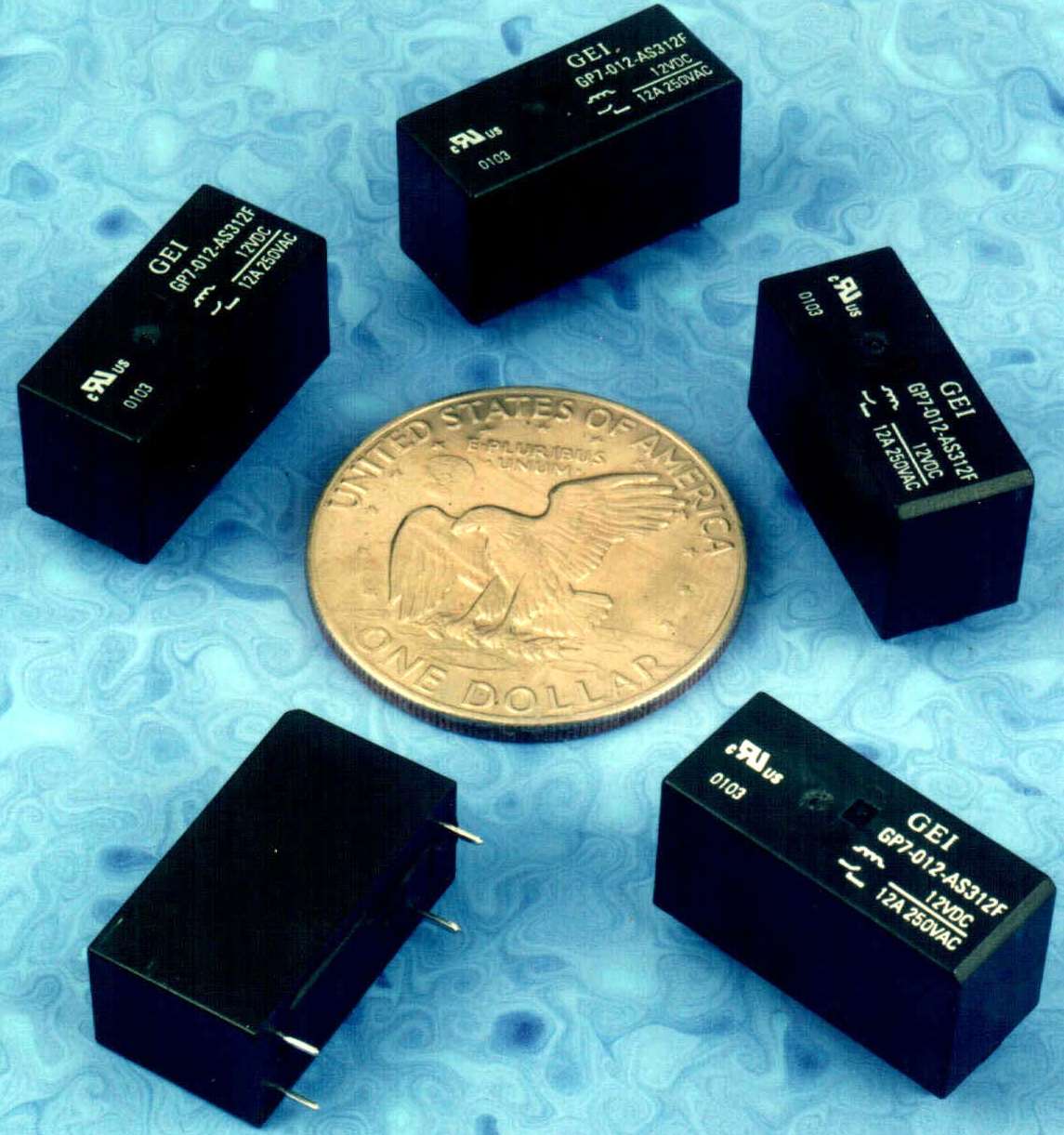

Apr 08, 2003 General purpose GEI GP7 Series relays are offered in 5–110 Vdc coil voltages and SPDT and DPDT contact configurations with 5 kV dielectric strength and 0.39 in. creepage distance. Constructed with low profile package that measures 0.62 in. high, UL approved units have a 16 A contact rating in single-pole versions and 8 A in double-pole versions. Products are suited for use in industrial controls, HVAC, and related applications.

Thomas & Betts Corp., Construction Products    Memphis, TN 38125

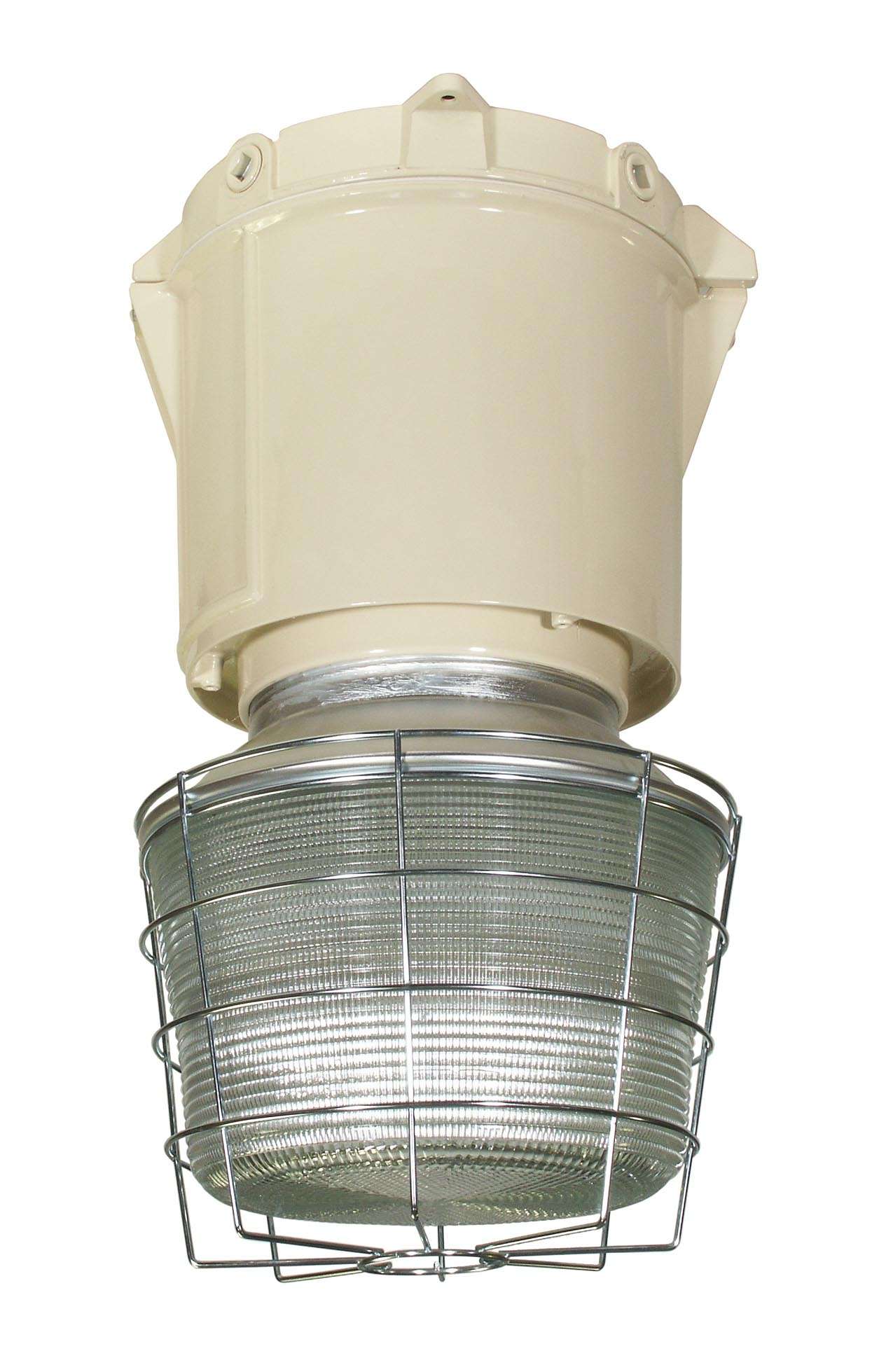

Apr 08, 2003 Hazlux® 3 165 W Induction Luminaire provides lumen output comparable to 175 W metal-halide lamp and lasts over 6 times as long. Instant-on feature eliminates need for instant restrike or quartz auxiliary lamps. Luminaire is UL and CSA listed for Class I, Division 2, Groups A, B, C, D; Class II, Division 1& 2, Groups E, F, G; Class III, NEMA 4X, and UL1598. It is suitable for petrochemical, pharmaceutical, manufacturing, wastewater treatment, power generation, and food processing industries.

Stanley Co., Inc.    Irvine, CA 92606-5029
Apr 08, 2003 Equipped with surface-mount 1608 (0603) package, PG1112C offers viewing angle of up to 150°. It provides luminous intensity of up to 7.6 mcd with milky-white type lens, and is suited for backlighting applications. Designed to handle various environments, LED withstands operating temperatures from –40 to +85°C and offers 70 mW power dissipation, 25 mA forward current, 60 mA peak forward current, and 4 V reverse voltage. It comes in tape-and-reel packaging.

Astrodyne Corp.    Mansfield, MA 02048

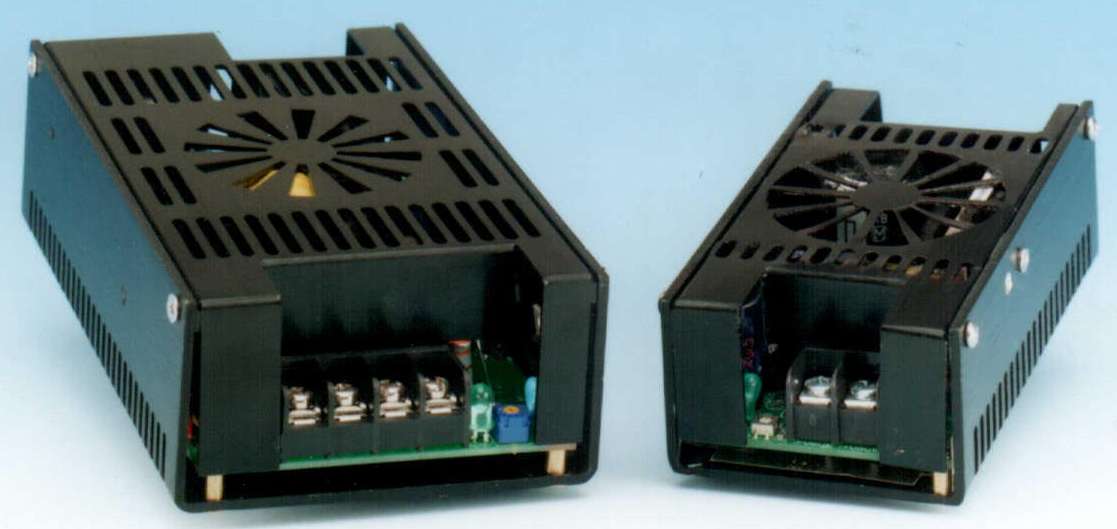

Apr 08, 2003 MK-Series enclosed, ac/dc power supplies provide output power over 40-300 W power range. All models accept universal input from 85-265 Vac, and 16 models provide single outputs from 5-24 Vdc. Utilizing SMT construction, products offer power densities to 6 W/in³. Features include integral power-good LED indicators, output adjustment potentiometers, over-voltage and short-circuit protection, 3,000 Vac I/O Isolation, and integral input line filtering.

ITT Industries, Cannon    Santa Ana, CA 92705
Apr 07, 2003 Fitting 19.2 x 12.9 mm mounting hole, DA miniature, panel-mount rocker switches include 2-tone and illuminated rocker styles. Switch functionality includes single- and double-pole, momentary, and maintained. Single-pole versions, rated 16 A @ 125 Vac, 1/3 hp, offer electrical life of 10,000 cycles. Options include wall guard and recessed actuator guard with frame that fits flush to front panel.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838

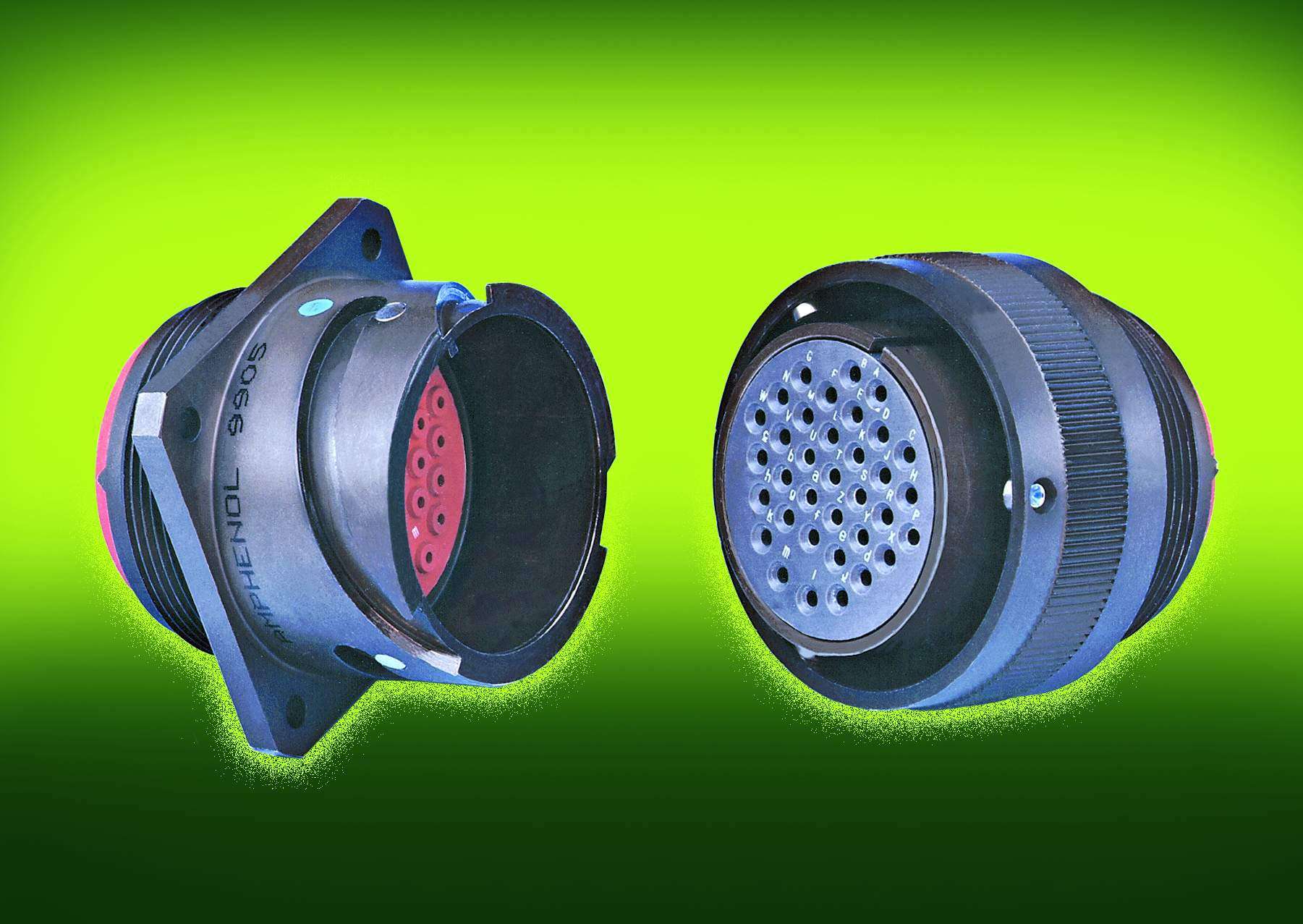

Apr 07, 2003 Model GTC-M reverse bayonet-style connectors incorporate hard dielectric inserts, rear insertion/rear release contacts, and silicone grommets and interfacial seals. Metal clips provide positive contact retention to levels equal to MIL-C-5015. Forward movement of contacts is prohibited by solid positive stop in cavity of connector. Captivated coupling nut assembly allows un-mating without rear accessories attached. Contact sizes include 0, 4, 8, 12, 16, and 16S.

Active Power Inc.    Austin, TX 78758
Apr 07, 2003 CleanSource® 65–130 kVA battery-free UPS units incorprate flywheel motor-generator that stores kinetic energy in constantly spinning, low-friction steel disc. Stored energy is converted to electricity that powers critical load during short power fluctuations. During prolonged power outages, UPS transfers to stand-by generator for continuous power. Electronics shield transmitter tubes against faulty power and handle crowbar events.

EHM Technology, Inc.    Bolingbrook, IL 60440
Apr 07, 2003 Model ER34615-H Lithium Thionyl Chloride battery is an IEC D size cell, suited for replacement applications in water meters and remote reading applications. At 3.6 V, battery offers continuous current rating of 230 mA and pulse-current rate of 500 mA. With shelf life of 10 years, product is useful for applications requiring long service life.

Tripp-Lite    Chicago, IL 60609
Apr 07, 2003 UL-listed PowerVerter® EMS1012UL Inverter/Charger has integrated charging system to provide automatic, uninterruptible DC-to-AC power for critical emergency medical equipment. Unit has surge suppression, over/under voltage protection, 2 GFCI AC outlets, hospital-grade plug, battery temperature monitoring, battery conservation control and daisy-chainable remote control. Unit supplies up to 1000 W of continuous 120 Vac power from 12 V battery.

Tripp-Lite    Chicago, IL 60609
Apr 07, 2003 Model SU1500RTXL2U provides clean, reliable power to sensitive IT and telecom equipment by combining online, double conversion technology, expandable battery runtimes, remote manageability, and installation flexibility. Unit features load management receptacles, RS232 communication port for networking, powerAlert software for unattended shutdown of UPS Systems, 6 UPS receptacles, and provides 1500 VA of battery backup power.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239

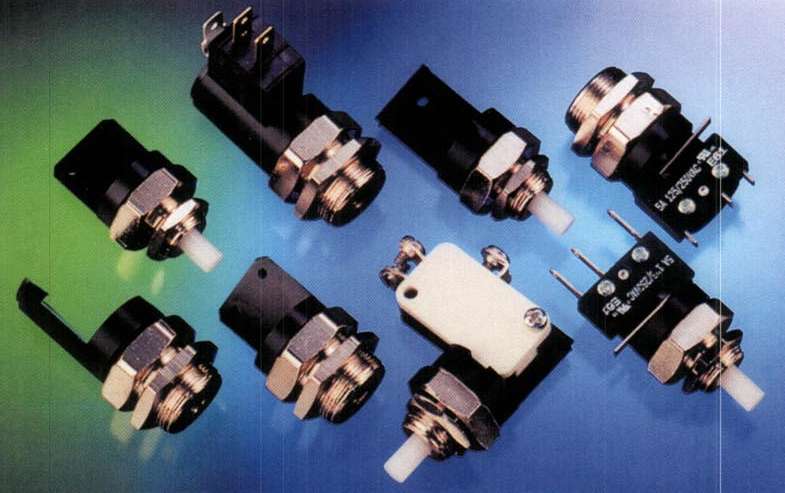

Apr 04, 2003 Pneumatically Actuated Switches enable use of pneumatics to remotely pilot electrical switches. Pressure actuator has spring biased piston with U-cup seal that requires pressure as low as 5 psig to actuate either sub-miniature or miniature electrical switch. Approximate actuation pressures of 5, 20, 40, or 80 psig ± 10% can be supplied. Switches have 5/8-32 external thread for mounting. Range of current ratings and terminal styles are available.

Keystone Electronics Corp.    Astoria, NY 11105
Apr 03, 2003 Vertically or horizontally mountable metric-type PC Screw Terminals are available with anti-rotation, non-rocking design that is suited for high-density packaging. Products have four snap-in legs and are rated at 15 A. Tin plated .81 mm brass manufacture is featured along with one combination drive, M3 x 6.35 mm brass, nickel-plated binding head machine screw installed and captivated, or unassembled.

Pilz Automation Safety L.P.    Canton, MI 48187
Apr 03, 2003 PNOZmulti is made up of PNOZm1p basic device and range of modules to provide coverage of 4-14 safety functions. Using PNOZmulti Configurator software, safety functions such as E-STOP switches, safety doors, light curtains, and switch mats can be configured. PNOZmulti has no wearing parts and is shockproof and impervious to frequent use and very low current.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 03, 2003 Adjustable Series MVS protects against false actuation from shock and vibration. Each unit has 10 million-cycle life expectancy and operating temperature range of 40 to 150°F. Series, with polycarbonate housing and polyurethane diaphragm, offers several models with set points from 3-330 in. wc. Switch has electrical connections composed of silver with brass terminals, for use with quick disconnects, and barbed pressure connections for 1/8 in. ID tubing.

PCD Inc.    Peabody, MA 01960

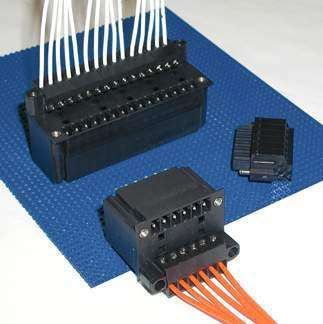

Apr 02, 2003 ELVA two-tier 0.150 in. spacing, high density, pluggable headers accept two plugs in vertical or horizontal configurations. With top and bottom rows stacked directly above each other in same vertical plane, SMT compatible glass-filled polyamide products withstand temperatures to 260ºC for 3 min. Suited for industrial controls and I/O applications, headers are offered in 2–20 double row positions in black or green molded polyamide and UL94V-0.

ETCO Incorporated    Warwick, RI 02888 1501

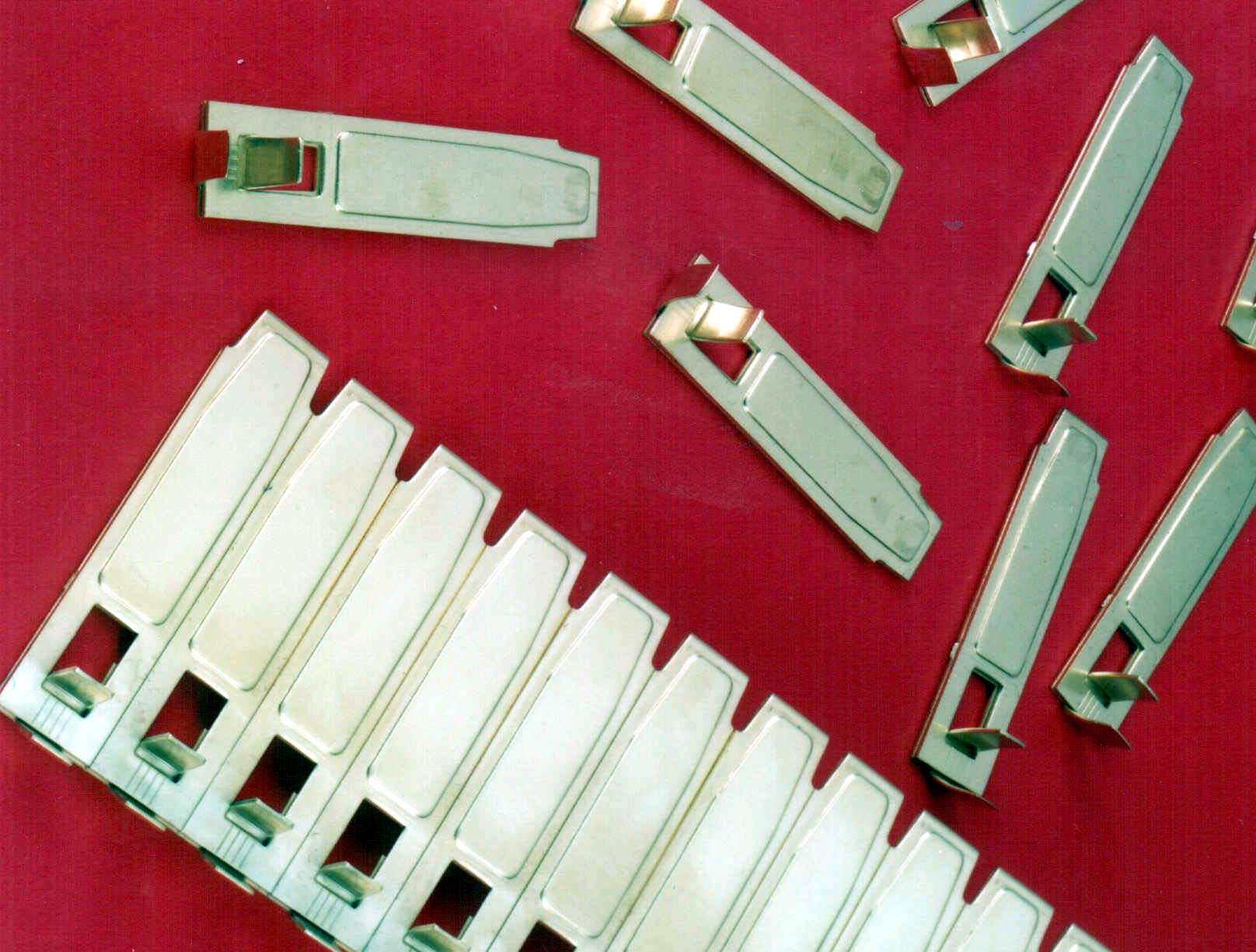

Apr 02, 2003 Padded Range Blades meet UL 817 requirements for variety of NEMA configurations including 10-30, 10-50, 14-30, and 14-50. Providing crimp ears to accept wire sizes from 6–10 AWG, lightweight 220 V blades are approved for both 30 and 50 A plugs. They are available loose and in reel feed strip form for automated wire attachment.

Hoffman Products    Holbrook, NY 11741

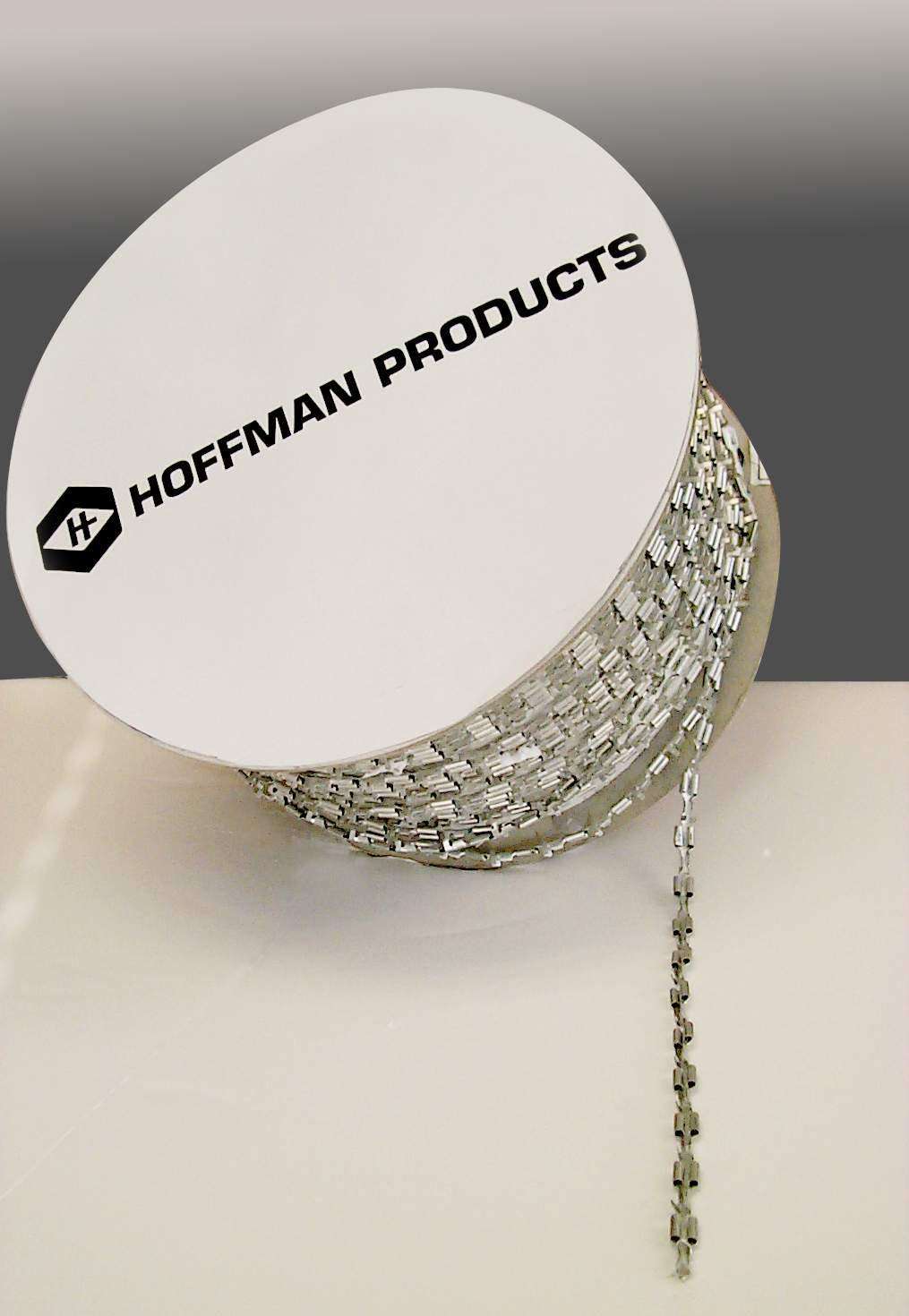

Apr 02, 2003 Line of Metal Strip Terminals includes rings, spades, male and female disconnects, bullet connectors, pin and sockets with housings and fully insulated female flag disconnects. Terminals are made of brass and are available in either unplated or tin plated.

Mono-Systems, Inc.    Rye Brook, NY 10573

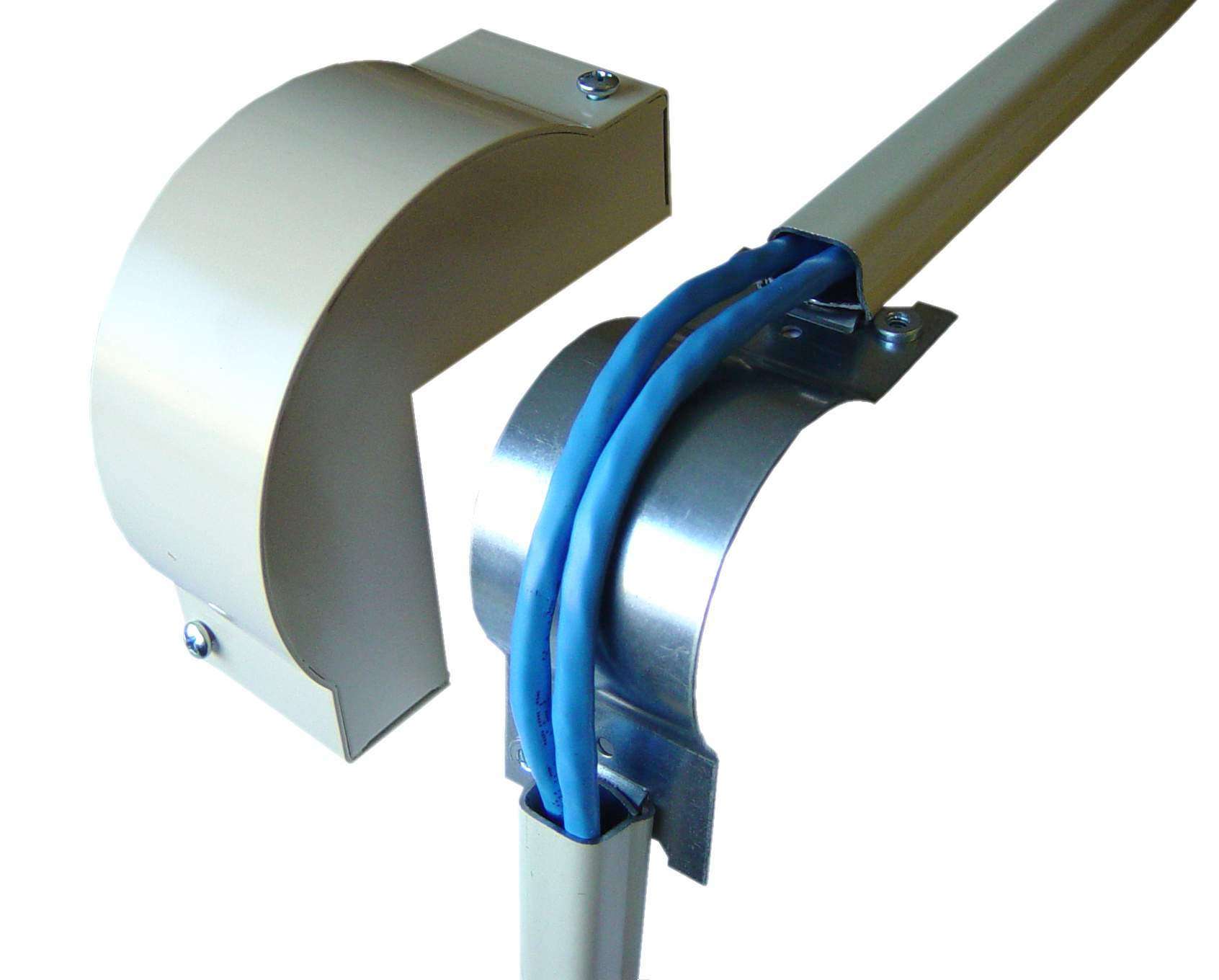

Apr 02, 2003 SnapMarkâ„¢ SMS500 and SMS700 raceways feature inside, outside, and flat radius elbows. Steel fittings keep wires and cables from bending too sharply and kinking, which can cause transmission slow-downs or failures along delicate voice and data communications pathways. Suitable for CAT5e, CAT6, fiber, and coaxial cables, 1 in. radius elbows meet standard radius requirements and snap onto most new or existing raceways.

EMS CONTROLS INC.    Punta Gorda, FL 33950

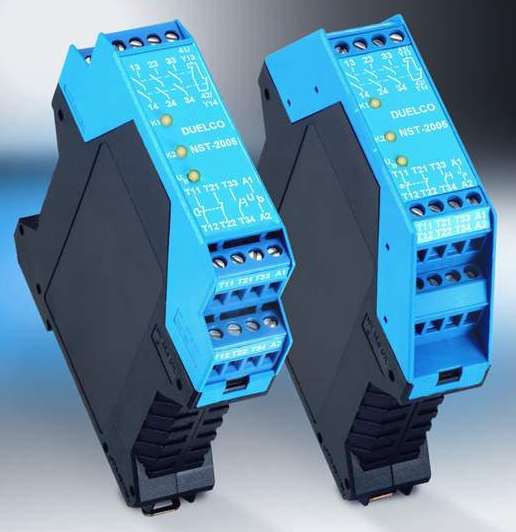

Apr 01, 2003 Equipped with three N/O safety contacts and one auxiliary output for direct connection to a PLC, 22.5 mm NST2005 Category 4 Safety Relay is suited for various manufacturing applications. Two channel inputs suit E.Stop, Door Monitoring, Light Guards, and Safety Mats, while reset circuit may be configured for automatic or manual operation. LEDs for supply and output status are standard. Relay is available in 24 Vac/dc or 48–250 Vac versions.

Dwyer Instruments, Inc.    Michigan City, IN 46361

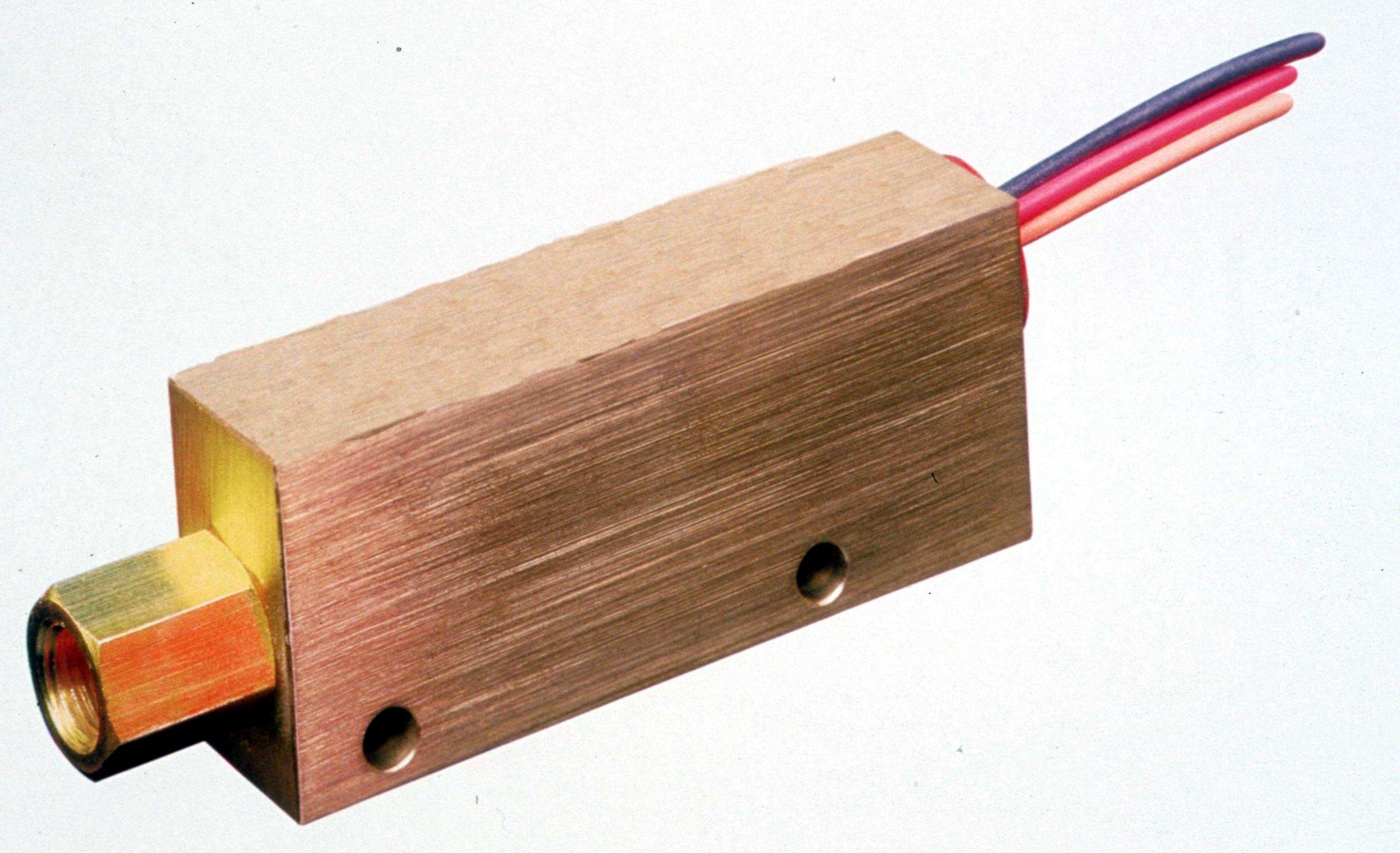

Apr 01, 2003 Series P1 detects excessive or insufficient flow rates. Piston magnetically actuates hermetically sealed, SPDT 20 VA reed switch. Preset actuation points range from 0.10-1.5 gpm for liquid flow. Each unit is composed of brass housing, polysulfone piston, 316 SS spring, and Viton® O-ring. Switches feature temperature range of -20 to 225°F, pressure limit of 1,000 psig, repeatability of ±1%, and accuracy of ±10% of set point.
