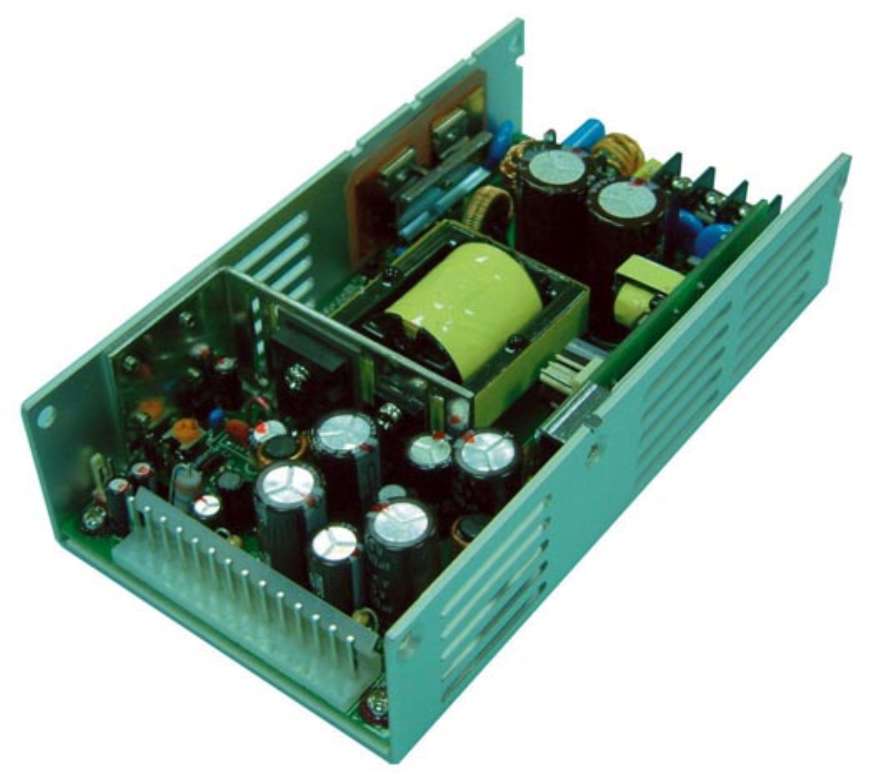

DC/DC Converter operates from 30-120 Vdc.
Magic Power Technology Inc.
Sunnyvale, CA 94085
Oct 06, 2004
Model MPD-810H-V can generate 85 W under conventional cooling and 120 W with 18 cfm forced air. It is fully protected against output overload and short circuits, and automatically recovers upon overload condition. MTBF value is greater than 135,000 hr. Suited for both railroad and telecommunication applications, unit utilizes thermally efficient U channel chassis and offers ATX output options.
Power Transformers have UL 1585 Class 2, 3 approvals.
Zettler Magnetics, Inc.
Aliso Viejo, CA 92656
Oct 06, 2004 AHI series transformers offer dual bobbin non-concentric design that reduces inter-winding capacitance and eliminates need for electrostatic shield. Shroud and bobbin meet UL 94V-0 flammability requirements. Other features include specially designed bobbin wall slots that eliminate wire crossovers, and insulating shroud that provides 4,200 Vrms hi-pot dielectric strength. Units are available in 2.5 VA, 5 VA, and 10 VA output configurations.
Subminiature Power Relay is rated at 10 A.
American Zettler, Inc.
Aliso Viejo, CA 92656 4115
Oct 05, 2004 Suited for engineers designing HVAC, alarm systems, and consumer products for global marketplace, AZ6962 series features 10 kV surge, 5 kV isolation, SPST, SPDT, and DPDT arrangements. Coil sensitivity reduces need for larger power supply, while 10 A contacts make product suited for various applications. Relay is epoxy-sealed, making it suited for high-volume automatic processing.
Open PCB Switching Power Supplies output power to 50 W.
Mansfield, MA 02048
Oct 04, 2004
With strip-style, open frame construction, LPS50 Series PCB switching power supplies accept universal input from 85-265 Vac, and 6 models provide single outputs from 3.3-48 Vdc. Series features output adjustment potentiometer and operates over ambient temperature range of 0 to +50°C without forced cooling or output power derating. All models have over voltage and short circuit protection circuitry as well as internal input EN61000 compliant EMI filter.
LED Luminaires have operating life of 100,000 hours.
L.J. Star, Inc.
Twinsburg, OH 44087

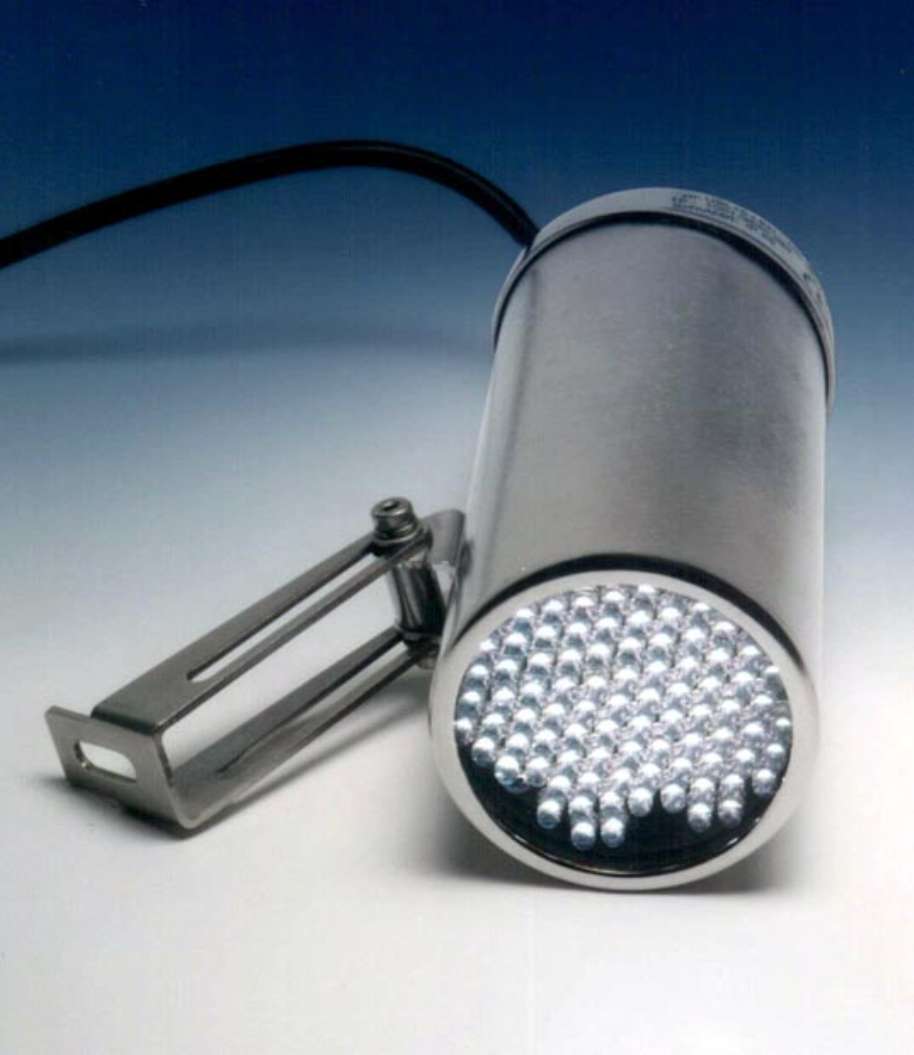

Oct 01, 2004 Lumiglas miniature LED luminaires are offered in 2 models,
one with 96-diode array rated at 93 ftc and one with 7 high-capacity diodes rated at 121 ftc. Mounting is 316 SS, NEMA 4X and IP65, with barrel length of 6.1 in. and diameter of 2.75 in. Pushbutton actuated, they mount on sightport flange with SS bracket, or directly onto sanitary fitting for sterile applications. For food applications, plastic lens is provided.

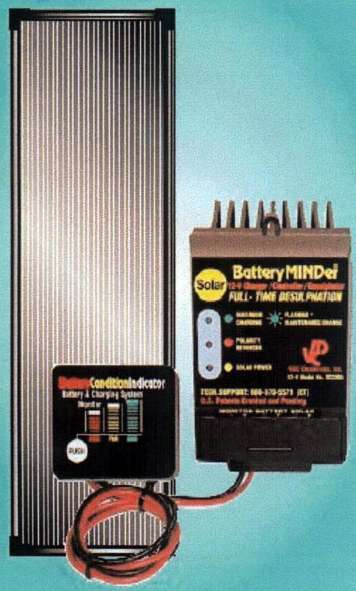

Solar Charging System will not over/undercharge batteries.
Huntington, NY 11743
Oct 01, 2004 BatteryMINDer® Model SCC015 ensures batteries are not overcharged and automatically desulphates all lead-acid-based 12 V batteries in addition to series-connected 6 V types. System includes 15 W amorphous silicon solar panel, temperature compensated controller-charger-desulphator, Qwik connect-disconnect battery harness, and battery condition indicator. It is maintains up to 6 parallel-connected batteries or up to 4 group 31 batteries.
Decorative LED Lamps are suited for everyday use.
American Bright Optoelectronics Corp.
Chino, CA 91710
Oct 01, 2004 Available to fit E27, GU10, and MR16 bases, Lamp Replacement Series delivers red, blue, green, yellow, and white LED light. Lamps feature 100,000+ hr lifespan and tolerate shock, vibration, frequent switching, and extreme temperatures. Screw base E27, rated 120 Vac, has 16 LEDs, while GU10 has same number and rating with 30° viewing angle and up to 342 cd. Base MR16, rated 12 or 24 Vac, uses 15 LEDs with 30° viewing angle and up to 342 cd.
Water Jet Foot Control is suited for various applications.
Wixom, MI 48393 2824
Oct 01, 2004 Usable at any pressure from 10,000â€“24,000 psi and flows to 35 gpm, FC24-286 is made of non-corrosive materials and weighs 31 lb. Product comes with quick-change cartridge valve that can be replaced in field within 60 sec. Pedal design lets operator dump pressure immediately, and dual dump ports maintain valve stability during use. Control is suited for use with convertible water jet pump units.

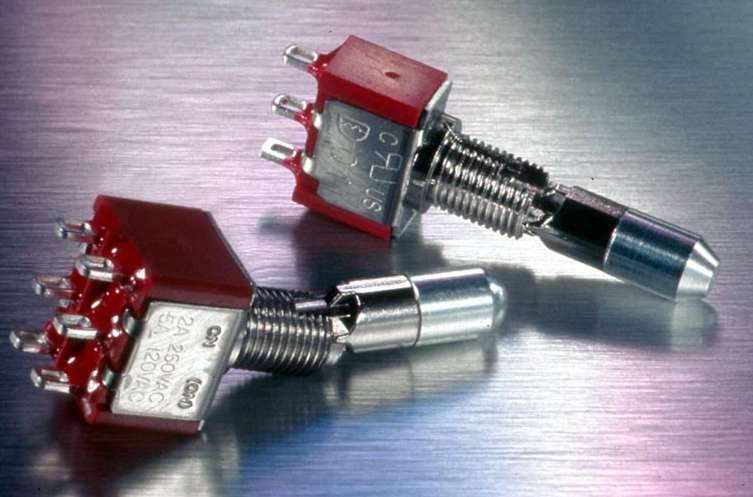

Locking Lever Switch prevents unintentional actuation.
Brooklyn Park, MN 55428 1514
Oct 01, 2004
Panel-mounted 100 series K allows toggle to be locked in any of 3 positions. Available in SP, DP, 3P, or 4P, switch offers functional options of ON-NONE-ON, ON-OFF-ON, and ON-ON-ON. It features plated brass and stainless steel construction, and is suited for instrumentation, test circuits, and industrial control equipment. Silver contacts are rated 5 A at 120 Vac or 28 Vdc; or 2 A at 250 Vdc, while gold contacts are rated 0.4 VA at 20 Vac/dc.
Connection System is compatible with M12 connectors.
Harrisburg, PA 17111 0100
Sep 30, 2004 Quick Locking SPEEDCON Connection System requires only ˝ turn to make secure, watertight, and vibration-proof connection between cordsets and devices. Connectors fulfill same requirements for electrical and mechanical properties as classic M12 plug connector systems. Product range includes IP65 and IP67 cordsets, sensor-actuated boxes, and field wireable, panel-mount connectors. SPEEDCON technology is also integrated in Fieldline modular I/O system.
Battery Charger requires no microcontroller or firmware.
Linear Technology Corp.
Milpitas, CA 95035
Sep 30, 2004
Offering programmable charge current from 0.4-2 A with ±5% accuracy, autonomous Model LTC4060 charges 1-4 cell NiMH and NiCd batteries. Available in 16-lead TSSOP or 5 x 3 mm DFN package with operating voltage from 4.5-10 V, unit uses external PNP transistor to supply current to battery or battery pack. Charger offers 3 options for terminating charge cycle: negative deltaV, max voltage, or max time. Battery drain current is less than 1 µA during sleep mode.
EMI Shielding Sleeve protects flat cables.
Holland Shielding Syst. BV
Sep 30, 2004 EMI shielding sleeve allows cable routing during assembly. Material is conductive Amucor film that offers full protection against radiation. Optional terminating earthing connections improve shielding performance. For moving/bending flat cables, self-adhesive flexible solution, with conductive textile, combines mechanical and screening properties. Sleeve is also available for round cables with diameter up to 45 mm on 100 m rolls.
Float Switch provides low level switching.
Innovative Solutions, LLC
Naugatuck, CT 06770-2224
Sep 30, 2004 FDA-compliant polypropylene Model L001 is actuated at levels as low as 3/8 in. water, is rated for 150 psig, and withstands temperatures to 200°F. Unit is top-mounted with standard 1/8 in. NPT or 3/8 in. thread, or base-mounted at bottom of tank using adhesive-backed mounting surface. Switch can be supplied with Buna-N floats for oils, gasoline, and lower density fluids. It is suited for condensate pans, steam tables, warming trays, and sumps.

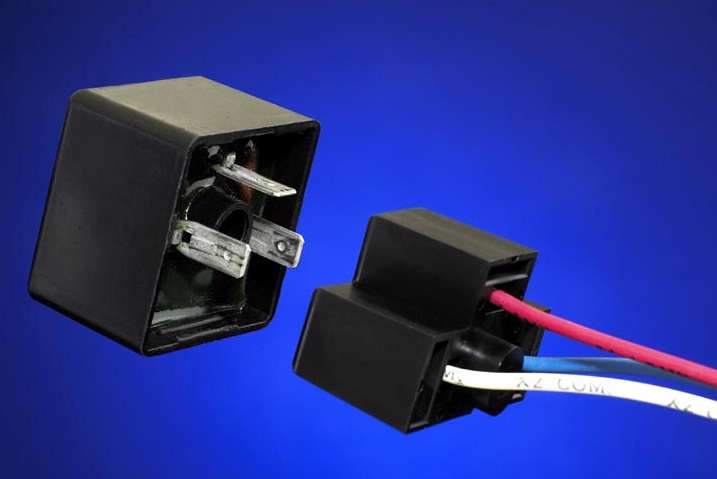

Ignitor Assemblies suit magnetic HID fixtures.
Advance Transformer Co.
Rosemont, IL 60018 5625
Sep 29, 2004 Square Plug-In Ignitor Assemblies are electrically identical to company's standard ignitors for metal halide and high pressure sodium ballasts, but are housed in mechanical enclosure with 3 tab terminals. Models LI551-SQR and LI501-SQR are for 35â€“150 W and 150â€“400 W HPS lamps, respectively, while Model LI533-SQR works with 50â€“400 W MH lamps.
DC/DC Buck Regulator operates at frequency of 900 kHz.
Miliptas, CA 95035-1701
Sep 29, 2004 By integrating low resistance switches, 3 A PowerBloxâ„˘ SP7651 delivers efficiencies up to 92% over output voltage of 0.8â€“20 V. Featuring input voltage of 2.5â€“20 V, step-down regulator includes programmable soft start, over-temperature protection, dual under-voltage lock-out, and short circuit protection. It comes in 7 x 4 mm DFN package with 3 independent heat sinks and operating temperature -40 to +85°C. Unit is suited for cable modems, set top boxes, and LCD monitors.
Step-Down DC/DC Converter has 100 µA quiescent current.
Linear Technology Corp.
Milpitas, CA 95035
Sep 28, 2004
Model LT1977, with constant 500 kHz switching frequency, features Burst Mode® operation. It utilizes 60 V, 1.5 A, 0.2 ohm switch with associated control and logic circuitry integrated into single die. Converter operates within VIN range of 3.3-60 V, making it compatible with load dump or cold-crank conditions in automotive applications. Features include power-good flag with programmable threshold and time-out, as well as soft-start capability and thermal shutdown.
Undercabinet Lighting Fixtures use xenon light bars.
W.A.C. Lighting Company
Port Washington, NY 11050
Sep 27, 2004
Interconnect Undercabinet Low Voltage Xenon Lighting System uses 18 W, 264 lumen output Xenon Light Bars crafted of extruded aluminum. Designed for end-to-end connection, fixtures facilitate wiring via poke-home connectors, and can provide continuous run throughout space. They use soft-start technology and have electronic transformers with auto-reset. Bars are offered in 1-, 2-, 3-, 4-, and 6-light fixtures with outputs to 1,584 lumen.

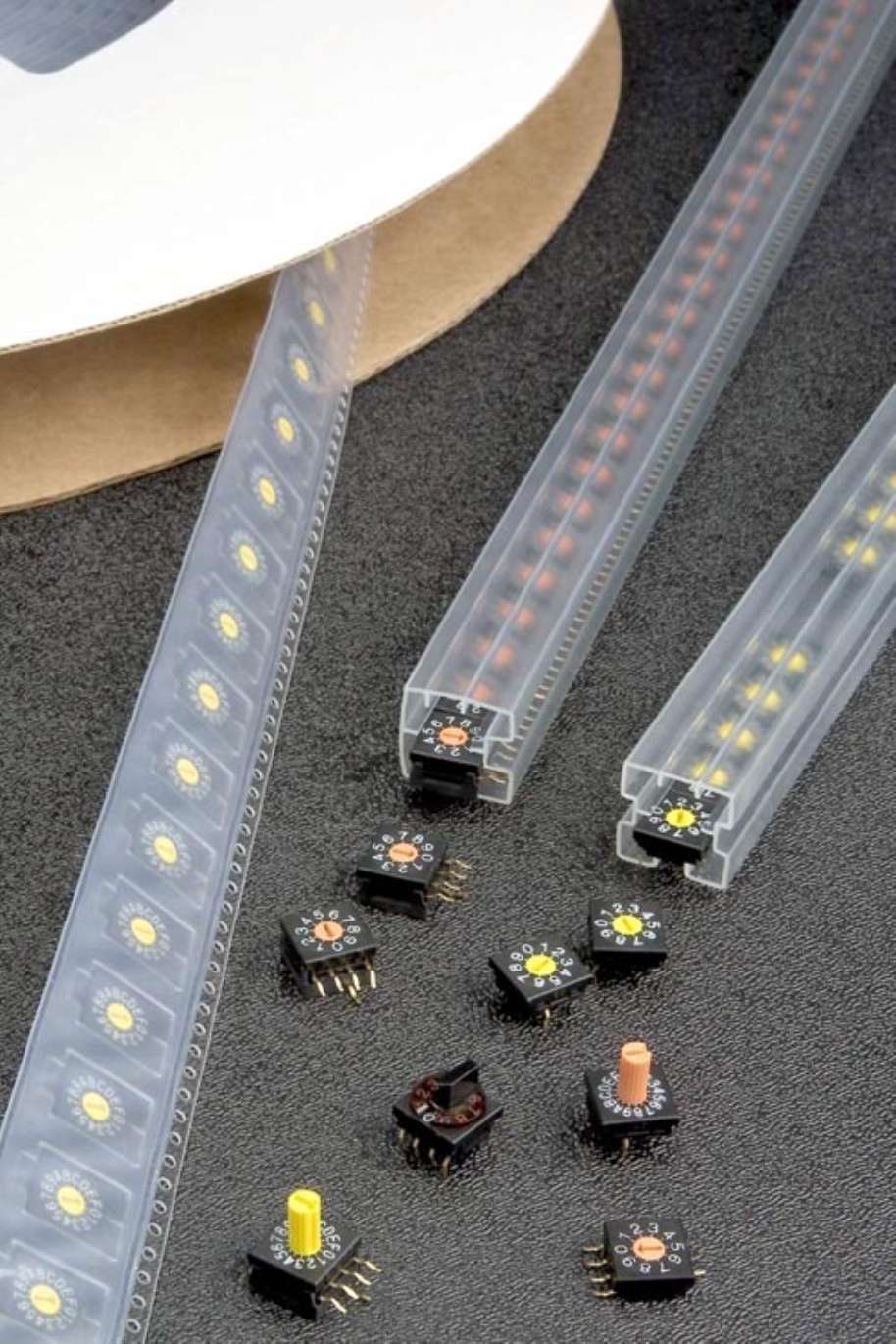

DIP Rotary Switches meet RoHS directive.
Scottsdale, AZ 85260-3420
Sep 24, 2004
Series FR 10 mm, ultra-thin switches measure 3.8 mm in height and are constructed of heat-resistant, UL94V-0 resin material. They are suited for lead-free solder processing applications, including vapor phase and infrared convection reflow soldering. Electrical capacity switching rating is 100 mA @ 5 Vdc, and non-switching rating is 100 mA @ 50 Vdc. Cam-activated movable contact and gold contacts ensure contact reliability and continuity.
LED Lighting provides alternative for neon lighting.
Mule Lighting Co., Inc.
Providence, RI 02905
Sep 24, 2004 LED-FLEX lights are durable UV protected tubes lined with LED lamps for illumination. Flexible enough to bend up to 180°, they require 1.92 W/ft. of energy, contain no harmful gases, and can be custom cut and shaped on-site. Completely sealed and impervious to shock or vibration, lights are suitable for outdoor use and last up to 100,000 hr. They are available in red, green, blue, and yellow, in 30 and 150 ft. lengths.
Power Supply delivers up to 7.5 kW at 150-400 kHz.
Scottsville, NY 14546
Sep 23, 2004 HOTSHOTâ„˘ models produce 3.5, 5, or 7.5 kW of precision induction heating from 150â€“400 kHz for manufacturing processes requiring quick, clean sources of heat. Portable unit measures 17 x 21 x 5Ľ in. and weighs 35 lb. Applications include heating electrically conductive metals in automotive, aerospace, fastener, fiber optic, and medical industries in applications such as: annealing, melting, hermetic sealing, epoxy curing, and brazing.
