Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Aug 11, 2005 Suited for use in rail/mass transit, heavy equipment, and process control applications, harsh environment Amphe-ARC (Anti-Vibration Ratcheted Coupling) provides in-line or cable-to-box, water-resistant, multiple conductor electrical connection. Multiple key/keyways facilitate connector alignment and eliminate mismating. Available with various contact insert arrangements, product is designed for large quantities of size 12 and size 16 contacts.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Aug 11, 2005 Made of die-cast zinc, WHIPPER-SNAPâ„¢ Connectors feature hardened spring steel locking ring that eliminates need for locknut and installs in seconds. Double locking tabs hold connector tight in box, while additional tension tabs provide continuity and clear wire path. Push-through design eliminates snags and wire damage. WHIPPER-SNAPâ„¢ connectors are UL listed for grounding when installed in accordance with NEC, and are suitable for health care facilities.

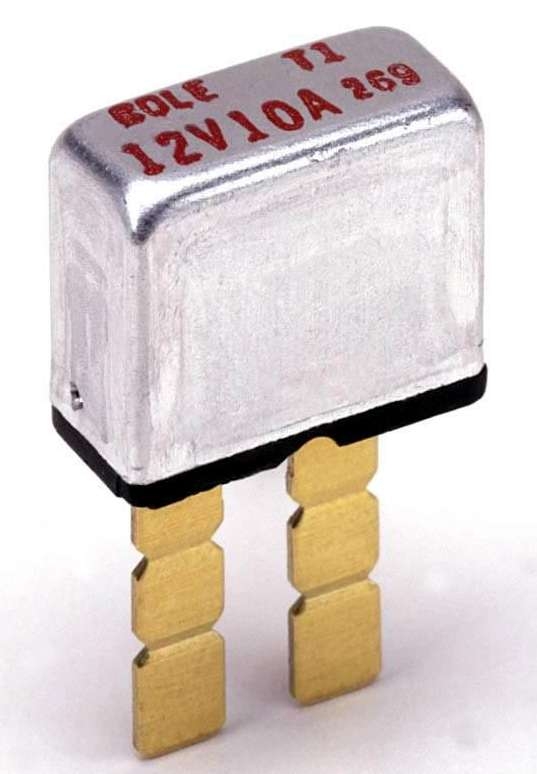

Cole Hersee Co.    Boston, MA 02127 2467
Aug 10, 2005 Available in stud or plug-in designs, SAE Type II and Type III Circuit Breakers minimize risk of fire due to overload. They provide reusable choice to wiring protection, offering heavy-duty replacement for ATC, ATO, and mini fuses. Units are suited for trucking, construction, and agricultural vehicles, as well as RVs and marine systems.

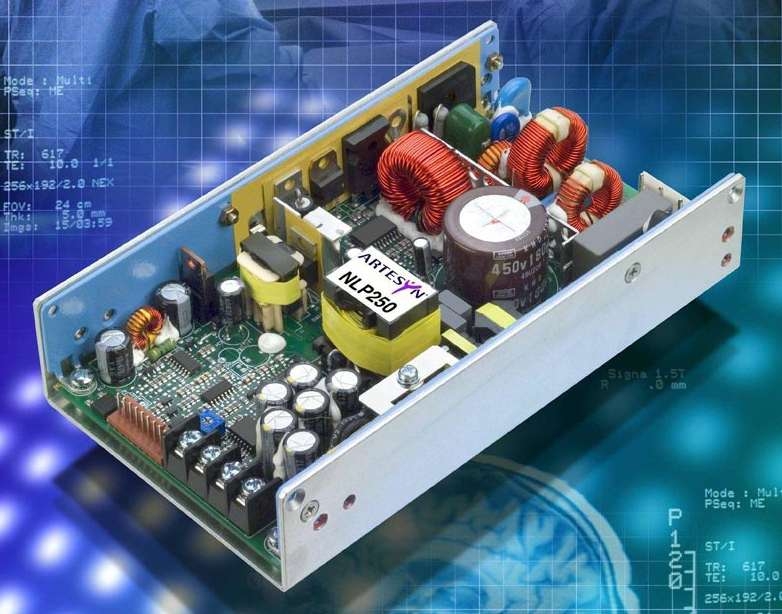

Artesyn Technologies    Framingham, MA 01701
Aug 10, 2005 Housed in 4 x 7 x 1.5 in. package for 1U-high rack installation, Series NLP250 provides 12, 24, or 48 V outputs, as well as auxiliary, always-on 5 Vdc output. Employing switch-mode technology, units feature power density of 6.0 W per cu-in. Main output channel can deliver 175 W continuously under free air convection conditions, rising to 250 W with 200 lfm forced air cooling. All models have universal input that accepts 85-264 Vac at frequencies from 47-63 Hz.

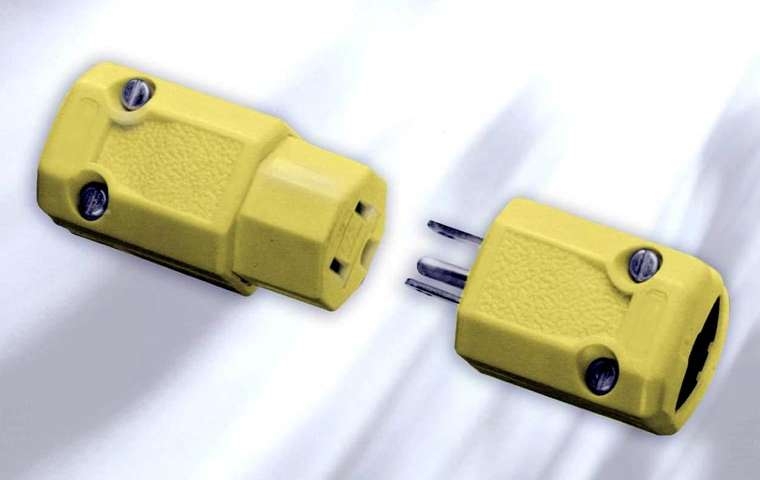

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018
Aug 10, 2005 Made of impact- and chemical-resistant nylon, Safety Grip 15 A Plugs and Connectors withstand punishing commercial settings. High-visibility yellow color promotes safety on job site, while slightly recessed cord-grip screws minimize screwdriver slippage. Heavy-duty plug blades and connector contacts resist heat and provide conductivity. Two-pole, 3-wire plugs and connectors are UL listed and meet OSHA, NEMA, and ANSI requirements.

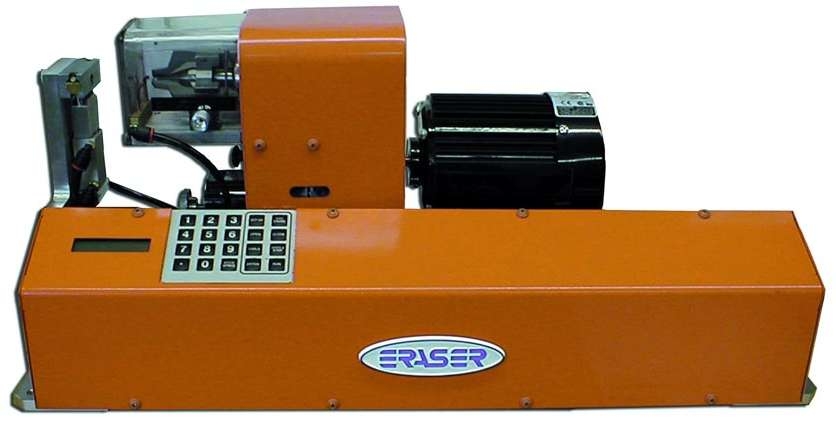

Eraser Company, Inc., The    Syracuse, NY 13221
Aug 10, 2005 Model IK10 removes film type insulation from round magnet wires used in manufacture of coils, bobbins, chokes, resistors, and spring winders. Able to handle round wires from 11–28 AWG, product strips max of 4 in. long windows. Fully programmable unit, used in conjunction with coil winding and spring winding machines, pre-strips or window strips wires as coils are wound. It incorporates 115 V, 60 Hz reversible motor and requires 90 psi air supply.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 10, 2005 Featuring stability verified in accordance with UL 248-14 and IEC 60127-4, MFU 0603/0805/1206 provide secondary overcurrent protection for devices in 0.45 or 0.55 mm high packages. Terminations are pure tin on nickel plating. MFU 0603 and 0805 are rated for 0.5–4 A current range and have rated voltage of 32 V, while MFU 1206 has rated current value up to 5.0 A and voltage rating of 63 V. At rated voltages, all devices provide breaking capacity of 50 A.

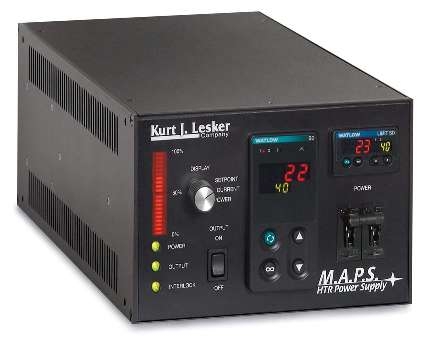

Lesker, Kurt J., Co.    Clairton, PA 15025
Aug 10, 2005 Modular M.A.P.S. Power Supplies are available with computer-driven as well as manual switching networks that enable single supply to drive several sources. Model HTR is suited for process heating applications, while Model EVP is used for basic thermal evaporation applications. Model HTE is for high temperature evaporation, typically used with furnace style source, and Model LTE suits low temperature evaporation applications.

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069
Aug 10, 2005 Providing input voltage range of 36–72 Vdc, modular AAD-130DC features choice of 4 available outputs with current ratings from 1.5–16 A. Convection-cooled version provides 80 W of output power, but optional 15 CFM cooling fan is also available, enabling device to provide 130 W of output power. Measuring 5.0 x 3.14 x 1.25 in., DC/DC unit complies with EMI filtering and surge withstand requirements and has current sharing feature for parallel/redundant applications.

Methode Electronics Inc. / dataMate Products    Chicago, IL 60706
Aug 10, 2005 Dual Port SFP EMI Cage is designed for copper and optical SFP transceivers in Fibre Channel, Gigabit Ethernet, and Infiniband applications. Two-piece hybrid design incorporates strength of die cast body with spring feature of single stamped piece, which includes bottom, locking tabs, spring tabs, and press-fit pins. Press-fit pins allow cage to be securely mounted to PCB without solder. Lightpipes can be added to display LED indicators from host board to chassis bezel.

Wiremold/Legrand    West Hartford, CT 06110
Aug 10, 2005 Designer Series 4000 steel raceway incorporates crossover feature that enables receptacles and data activations to be positioned in same channel or on downward facing surface. Featuring obstacle avoidance fittings and in-base integral channel divider, unit maintains integrity of data channel separation when cables cross over power channel. Adjust-to-fit raceway couplings allow up to 4 in. of lateral movement so base can be stretched or compressed to fit given space.

LEVITON    Melville, NY 11747
Aug 09, 2005 Ergonomic external backwire clamp on single-pole and 3-way switches facilitates installation by eliminating internal backwiring holes. Terminal screws accommodate 12-14 AWG wire, with feed through wiring permitted. Design also facilitates side wiring and visual confirmation. Along with silver-cadmium oxide contacts and thermoplastic toggles and housings, switches feature blue, red, and green body covers that denote respective amperages of 15, 20, and 30 A.

SOR Inc.    Lenexa, KS 66215 2003
Aug 09, 2005 Pressure-Operated Electric Switches are for use with sprinkler equipment and water spray systems as means of initiating electrical alarms upon flow of water in equipment, or for actuation of other auxiliary equipment. Standard hermetically sealed design is able to meet VOXZ listing by adding redundant wire that leads to micro-switch terminals. Besides switches detecting pressure loss, added security is achieved with back-up circuit wire.

Advance: division of Philips Electronics North America    Rosemont, IL 60018-5603
Aug 09, 2005 Offered in 150 W model (IZT-MH-150-CLF), e-Vision® Electronic HID Ballast features 0–10 V dimming interface with dimming to 60% lamp power. Unit incorporates IntelliVolt® technology, which enables operation at any input from 120–277 V, 50/60Hz. Ballast also features lamp wattage regulation and electronic circuitry. Safety features include automatic lamp power control/monitoring, power control fault monitoring, and auto-reset thermal protection.

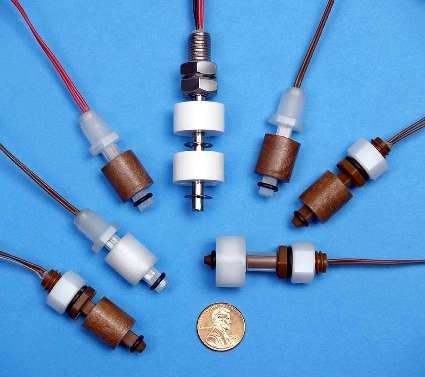

Madison Company    Branford, CT 06405
Aug 08, 2005 Available in full range of vertical and horizontal mounting configurations, Subminiature Liquid Level Switches have polypropylene floats and either polypropylene or 316 SS stems. Standard models are available as combination sensors that provide point level indication and temperature sensing in one unit. Single-point and multi-level designs are available. Switches can also be custom designed to meet specific application requirements.

Advanced Power Technology - Europe    Merignac 33700  France
Aug 05, 2005 Manufactured in isolated packages, Field Stop Trench Gate IGBT standard power modules include 600, 1,200, and 1,700 V devices in SP4 and SP6 packages with min VCE(sat) saturation voltage of 1.5, 1.7, and 2 V. Modules are offered in 10 configurations, including buck, boost, dual common source, full bridge, triple phase leg, and triple dual common source. Optimal switching frequency is 20, 10–20, and up to 10 kHz for 600, 1,200, and 1,700 V units, respectively.

Aviel Electronics    Las Vegas, NV 89118
Aug 05, 2005 Designed for cables with jacket OD from 0.73–½ in., LC and LT Connectors can also be adapted to smaller diameter cables. Units are rated to 5,000 V standard, and up to 10,000 V with specific cable preparations. Operational range is DC to 1 GHz. Specified to MIL-PRF-39012 or MIL-C-3650 standards, both connectors maintain 50 ohm impedance, but are not interchangeable.

Datatronics    Romoland, CA 92585 8916
Aug 05, 2005 Compliant to RoHS standards, Sealed Line Matching Transformer, Model LM302-1L is compatible with modem circuitry that meets V.32, V.32 bis, and V.34 industry requirements. It provides isolation between sensitive electronics and offers dielectric strength to 6,500 Vdc. Circuit specifications include 600 Ω impedance, 1:1 turns ratio, and 1.5 db max insertion loss at 2 kHz. Through-hole unit comes in 0.706 in. square package with seated height of 0.422 in.

FCI Electronics    Etters, PA 17319 9769
Aug 05, 2005 High-definition multimedia interface (HDMI) utilizes connector designed to carry up to 5 Gbps of uncompressed video and audio in one cable. It contains metal shields for EMI protection and provides minimal impedance mismatch. Rated for 10,000 mating cycles, RoHS compliant, 19-position, SMT terminated receptacle uses gold plating in contact area and comes with panel-mount flange option. Uses include digital televisions, DVD players, and set-top boxes.

Weidmuller, Inc.    Richmond, VA 23236
Aug 04, 2005 Designed for preparing wire ends, stripax® plus 2.5 works with wire cross sections from 20–14 AWG. Complying with DIN 46228 P4 requirements, crimping ferrules are stored in tool and inserted automatically in strips of 50. Crimping cylinder can be positioned using adjusting wheel, which audibly snaps into place, preventing errors in positioning and protecting tool from damage. Tensioning clamp features closed lug to prevent spring from becoming detached.
