Emerson Electric Co.    St. Louis, MO 63136 8506
Jul 19, 2005 With power density up to 108 W/in³, Astec AIF-300Vin Series can deliver up to 600 W of output power from input range of 250-420 Vdc. Series includes 6 models with single-output DC voltages of 1.8, 3.3, 5, 12, 15, 24, and 48 V. Operating at baseplate temperature range from -40 to 100°C, converters reach up to 90% efficiency at 5 V output. They provide monitoring, protection, and adjustment capabilities, as well as communication bus that stores end-user information.

Rockwell Automation    Milwaukee, WI 53204

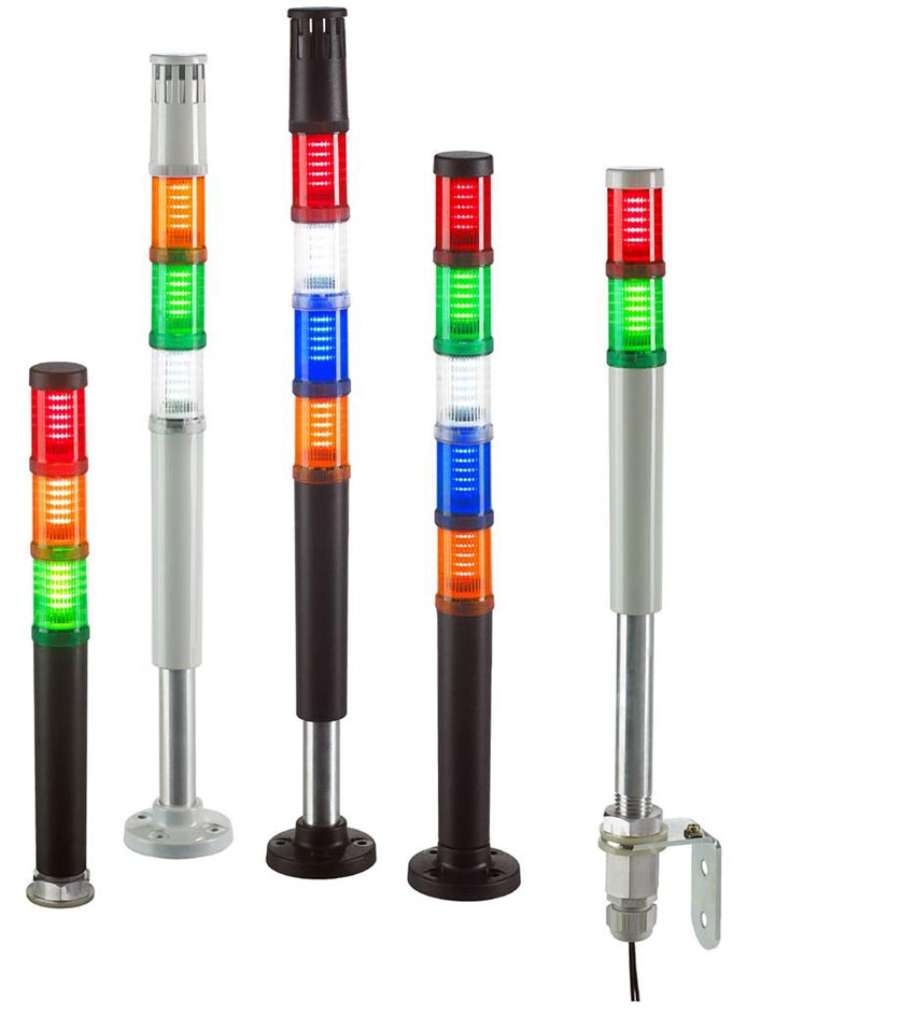

Jul 18, 2005 Measuring 30 mm in diameter and available in 6 colors, Model 855D Control Tower Stack Light uses LEDs for resistance to shock, vibration, and heat. It features UL approved wiring and meets UL Type 4/4X/13, IP65 ingress ratings. Various mounting options with pre-wired bases can be applied to any customized stack light without additional modification. Three bases can convert voltage from 24 Vac/dc, 120 Vac, or 240 Vac to power 24 Vdc LED light and sound modules.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 15, 2005 Offering efficiencies up to 80%, SiP12401 boost controller and SiP12501 boost converter provide uniform, controlled brightness in backlighting applications. Model SiP12401 drives LEDs connected in series and has 1.8–5.0 V input voltage range. Designed to drive LEDs connected in parallel, SiP12501 accepts input voltages from 0.65–3.3 V and regulates output current up to 60 mA from 0.9 V input. Both have voltage-mode PWM design with internal frequency compensation.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460

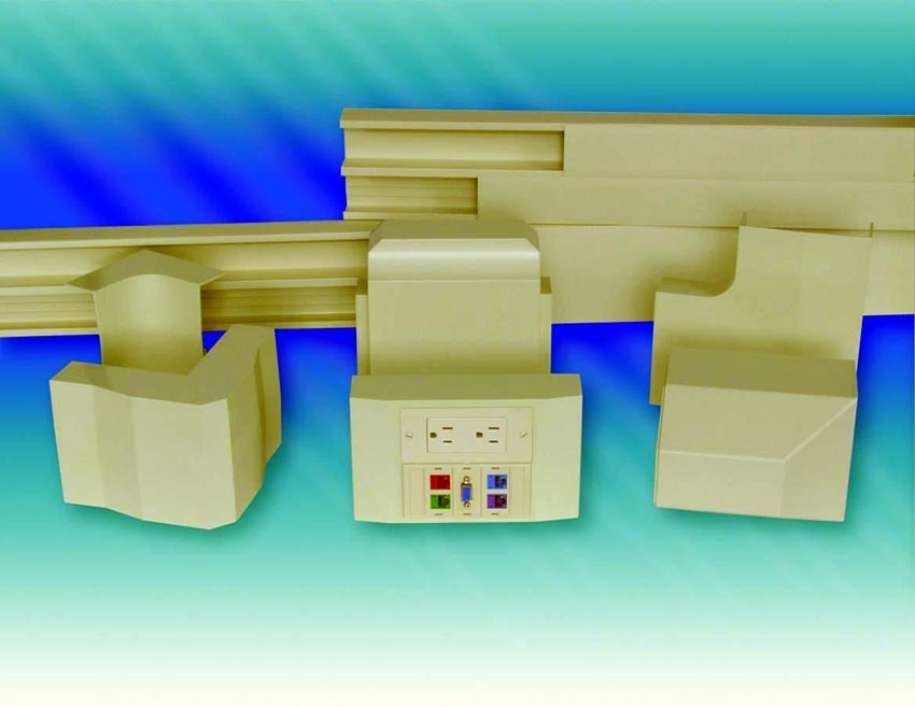

Jul 15, 2005 BaseTrak® 2-and 3-channel non-metallic raceway systems feature data- or power-only accessibility and T-568 compliant bend radius. For application specific flexibility, offerings include 2-channel BaseTrak and snap-on 2-gang flush box, 3-channel BaseTrak full capacity 1-, 2-, and 3-gang boxes, and 3-channel BaseTrak 1- and 2-gang flush boxes. Impact-resistant, non-conducive design eliminates raceway cutting, and split-cover option is also available.

TRACO Electronic AG    Zurich CH - 8002  Switzerland
Jul 15, 2005 With immunity to vibrations and electrical disturbances, DIN Rail Mount Series TSP complies with EMC standards. Models are available with 12 or 24 Vdc outputs and 70–600 W output power with Power Good and Remote On/Off control functions. Units include dual-color LED status indicators, hot-swap/redundant operation, battery back-up, and voltage dip/brownout protection, as well as infinite short circuit, over-voltage, and over-temperature protection.

Phihong USA    Fremont, CA 94539
Jul 14, 2005 Suited for switch and PBX applications, 275 W Model PSM275-909 provides 12 Vdc output for switch, 50 Vdc per port in PoE, and can implement 8-24 ports in PoE system, making it suited for 10/100 BaseT Ethernet switches, security systems, VoIP systems, and blade servers. Powered from 90-265 Vac or 44-57 Vdc input, unit can be operated in redundant ac or dc configuration with external isolation diode. It includes programmable port control, power limiting, and port prioritization.

Para Light Corp.    Walnut, CA 91789
Jul 14, 2005 Manufactured with UV-free polycarbonate plastic casing, LLVM-000xx series employs red/green/blue (RGB) enhanced-power LEDs for indoor and outdoor applications. Tubes measure 3.15 in. in dia and come in 39.37 or 19.69 in. lengths, with 20 and 10 LEDs, offering total flux of 80 and 40 lumens, respectively. Products come with pre-programmed color changing sequence that can also be programmed to meet individual requirements.

W.A.C. Lighting Company    Port Washington, NY 11050
Jul 14, 2005 Crafted of specification-grade, die-cast aluminum, Precision Spots feature concealed wiring and abrasion-resistant powder coat paint finish. They provide horizontal aiming and vertical locking capabilities. Designed for both low and line voltage track systems, units are available in white, black, and 2-tone black/platinum. They accommodate variety of lamps including Halogen MR16, AR11, PAR20, PAR30, and PAR38.

V-Infinity    Beaverton, OR 97005
Jul 14, 2005 With input of 6.0–14.0 Vdc, point-of-load Series VPOLXXX-12W is available in 10, 16, and 20 A models with output voltage from 0.75–5.0 V, which is trimmable via external resistor. Converters include remote on/off and output voltage sequencing, as well as protection against continuous short circuit, output over-current, and over-temperature. Operating from -40 to +85°C, units are suited for distributed power architecture applications such as mobile communications and computing.

Carmanah Technologies, Inc.    Victoria, BC V9A3S2  Canada
Jul 14, 2005 Edge-Lit LED Stop Sign is compliant with US Federal Highways Administration Manual of Uniform Traffic Control Devices. Light from high-flux, ultra-bright LEDs concealed in sign frame shines vertically through clear acrylic sheet and refracts outwards through sign legend for uniform illumination of sign face. Six foot sign requires less than 15 W, compared to 192 W for fluorescent sign. Retro-reflective construction ensures visibility in event of power failure.

Baldor Electric Company    Fort Smith, AR 72901
Jul 14, 2005 Powered by 6,000 W generator, Pow'R Lite Mobile Light Towers utilize 30 ft zinc-plated mast and provide light for over 7 acres. With water-cooled diesel engines from Kubota and Lombardini, both models feature 30 gallon fuel tank, 60 hour running time, and metal-halide lamps in elliptical lamp fixture.

APEM Components    Haverhill, MA 01835
Jul 14, 2005 With butt action contacts, 1200 Series momentary pushbutton switches operate from -20 to +55°C and handle resistive loads for 10,000 cycles. NO and NC models handle 8 A at 125 Vac and 4 A at 250 Vac or 24 Vdc, and have total travel of .177 and .137 in., respectively. Bushing mounted in .480 in. hole, switches feature .315 in. dia black, white, green or red dome-topped actuator and are suited for industrial, transportation, agriculture, and security applications.

French Technology Press Office, Inc.    Chicago, IL 60601
Jul 13, 2005 Domino LEDs change color, draw motifs, scroll written texts, and display information. Suited for illuminating letters, Domino Cob has 3-6 COB diodes welded onto electronic board. Domino Logo features garland of 5 mm diodes encapsulated at back and fastened onto metal plate. Domino Clip is made up of programmable modules comprising eight 5 mm diodes. Suited for pharmacy shop crosses, Domino Kit features 10 LED modules, power supply box, and remote control. Domino PLV lights up plexiglass by edge.

LEDtronics, Inc.    Torrance, CA 90505
Jul 13, 2005 SML5050RBG1K-TR low profile, surface mount full-spectrum Red, Green, and Blue LEDs feature water clear lens that protects diode array from electrical and mechanical shock, vibration, frequent switching, and environmental extremes. At 5.5 x 5.5 mm and with variable wavelengths, red (620-630 nm), green (520-535 nm), and blue (460-475 nm) diodes offer viewing angle of 120°. Luminous intensities range from 150-500 mcd at 20 mA current and LEDs have average life span of 100,000+ hr.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Jul 13, 2005 SURVIVOR CT, featuring short circuit as well as over-temperature and overload protection, withstands direct short circuit for over 15 days. With center-tap to secondary winding, product is suited for use with 12 V halogen lamps. Users can operate lamps up to 75 W while remaining within UL Class 2 requirements. All units have UL-Recognized Class 130 (B) insulation and standard capacity of 75 VA. Primary voltages are 115, 115/230, 200/230, and 460 V with 24 VCT output.

C & D Technologies    Mansfield, MA 02048-1151
Jul 12, 2005 Combining isolation voltage of 500 Vdc and primary current rating of 10 A, 5600 range of current sensing transformers are available in 50, 100, 200, and 300 turn variants. Center tapped versions are available, reducing component count in full wave analysis configuration. Products have operating frequency range of 20-200 kHz, and, when used in switched mode power supplies, act as feedback elements between output and pulse control circuitry.

TransEra Electronics Inc.    Waterloo, ON N2V 1Y9  Canada
Jul 12, 2005 Fully encapsulated in epoxy to resist shock, vibration, and moisture, modular power supplies are available with DC outputs of 12 or 24 V and offer current capacities from 350-2,000 mA. Some versions are built with flanges for DIN rail mounting and come with 1 m long connecting cables. Products are suited for use in appliances, portable electrical equipment, HVAC systems, or situations where self-contained power supplies are needed.

Mersen    Newburyport, MA 01950
Jul 12, 2005 Surge-Trap® TVSS features thermally protected metal oxide varistor that does not require use of additional overcurrent protection. Suitable for system voltages from 120-480 V and MCOV rated 150-550 V, unit offers 100 kA Interrupting Rating and 40 kA 8/20 µs surge capacity or rating per mode. Surge-Trap mounts on DIN rail, safeguarding critical electrical system components and sensitive integrated electronics from deleterious effects of transient overvoltages.

Igus, Inc.    East Providence, RI 02914 0349
Jul 12, 2005 Tie-wrap plates and cable tie wraps work together to fix position of cables at specific points along carrier, providing strain relief for Energy Chain® cable management systems. Plates can be bolted onto KMA bracket, fixed onto mounting bracket with snap-in connection, clipped on without bolts, or clipped onto the opening of the crossbars. Tie wraps, used to attach cable to plate, can provide breaking force of 830 N when 2 ties are used instead of 1.

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069
Jul 12, 2005 Compact, single-board KLS-150A drives dual cold-cathode fluorescent lamps (CCFL) in LCD back-lighting applications for medical and industrial equipment. Designed for 32–140°F operating environments, convection-cooled product provides brightness and on/off control features. Input range is 10.8–13.2 V, and PWM brightness control frequency is 204 Hz typ. Measuring 4.72 x 1.57 x 0.39 in., unit has power output at max luminance of 6.5 W per lamp.
