Union Process, Inc.    Akron, OH 44313
May 11, 2012 Using disc/rod design for optimal grinding efficiency, DMQX(TM) can produce materials in single micron and even nanometer range using circulation grinding. Benefits include ability to continuously monitor slurry, add ingredients to premix tank at any time during grinding cycle, and precisely control temperature. Operating in circulation or continuous mode, mill features cartridge-type double mechanical seal, adjustable product discharge openings, and heavy-duty media separator.

Alstom Power Inc., Air Preheater Co., Raymond Operations    Lisle, IL 60532
Mar 14, 2012 Used for production of powders used in fillers, coatings, and pigments, Raymond® Ultra Fine Mill offers flexibility to deliver powders as fine as 50% passing 2 microns or as coarse as 50% passing 10 microns. Shaft rotates convex rolls inside concave grinding rings to reduce materials in multi-stage process, and air flowing within mill carries ground material through classification process to achieve desired fineness. Grinding elements can be adapted to meet product size specifications.

Maguire Products, Inc.    Aston, PA 19014

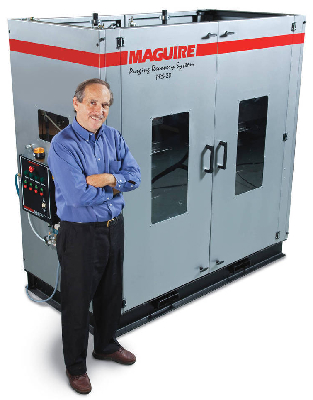

Jan 09, 2012 Featuring 2-stage operation, Purging Recovery System(TM) first slices or planes rock-like purgings into small pieces, then reduces pieces to uniform regrind. System is applicable to flexible vinyl, which stretches when worked by cutting blades and can jam conventional granulators. In addition, system can process shear-sensitive polymers like polystyrene, which can melt as frictional heat builds up in standard equipment.

Munson Machinery Co., Inc.    Utica, NY 13503
Dec 26, 2011 With infinitely variable rotor speed from several hundred rpm to 5,400 rpm, 34 in. sanitary stainless steel model CIM-34-SS performs coarse to fine grinding (down to 400 mesh) of friable powders, flakes, and granules into controlled particle sizes. Desired particle size distribution is obtained by controlling rotor speed, and vertically orientated mill housing minimizes footprint while fostering access to all product contact surfaces for cleaning/inspection.

Munson Machinery Co., Inc.    Utica, NY 13503
May 17, 2011 Model SCC-15-B has rotor design consisting of cutter heads attached to helical array of staggered holders that shear oversize materials against twin, stationary bed knives. Cutter tips, available in stainless steel, tool steel, and tungsten carbide, slide onto blade holders and are secured with one retaining socket-head screw. Perforations of bed screen range from 1/32 to 1½ in. in dia and up to 3 in. square, enabling reduction of materials into uniform particle sizes down to 20-30 mesh.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Mar 08, 2011 Available in carbon steel or 304 stainless steel construction with one-piece body, DELUMPER® 1065N features 6 5/8 x 11 in. inlet opening and hardened alloy one-piece cutting drum fitted with over 200 tapered teeth. Outboard bearings are protected by shaft seals to keep powders within cutting chamber. Supplied with direct gear drive or belt drive as required, crusher handles compressed products, silver and other agglomerates, minerals, and plastics.

Munson Machinery Co., Inc.    Utica, NY 13503
Nov 08, 2010 Model RDC1515-SS reduces agglomerates and friable materials discharged from process equipment, storage vessels, and shipping containers. Machine features 15 in. square inlet for material entry, and dual rotors with 3-point breaking heads, while on-size material exits through apertures in 1/32-2½ in. dia twin bedscreens. Measuring 11 in. high, unit is powered by 3 hp motor with gear reducer and serpentine timing drive. Product's synchronized shafts rotate at 100 rpm to avoid heating.

Munson Machinery Co., Inc.    Utica, NY 13503
Nov 02, 2010 Model RDC1515-SS Sanitary Lump Breaker reduces agglomerates and friable materials discharged from process equipment, storage vessels, and shipping containers. Unit has 15 in. square inlet for material entry, and dual rotors with 3-point, stainless steel breaking heads inside curved, perforated bedscreen. Material exits through apertures in 1/32-2½ in. dia twin bedscreens. Measuring 11 in. high, system is powered by 3 hp motor and is constructed of #304 stainless steel.

Modern Process Equipment, Inc.    Chicago, IL 60623
Sep 02, 2010 Achieving 80-95% yields on wide range of target sizes, including 20 x 50, 30 x 80, and 80 x 325, Activated Carbon Gran-U-Lizer(TM) produces narrow particle size distribution with minimal fines. Unit adjusts configurations in seconds with touch of button. Offering capacities from 500-5,000 lb/hr, system is suited for coconut, coal, and wood-based carbon products.

Modern Process Equipment, Inc.    Chicago, IL 60623
Aug 31, 2010 Delivering uniform grind in 20 x 100 US Mesh size with minimal dust or by-product, Model 1052 SAP Gran-U-Lizer(TM) includes BAVA Balance and Vibration Analysis, which senses when product moisture levels elevate beyond tolerable range. When this occurs, product becomes elastic and does not grind efficiently. BAVA senses material elasticity change and notifies plant personnel. BAVA can also predict bearing failures before they occur, further optimizing operating efficiencies.

Schutte Buffalo Hammermill    Buffalo, NY 14240
Aug 19, 2010 Constructed from heavy-duty carbon steel with infeed widths from 6-60 in., Munitions Crusher processes brass and aluminum shell casings, weaponry ignition components, and ejection projectiles in accordance with U.S. military standards. Material fed into grinding chamber is pulverized by continuous high speed hammer blows until it is reduced to particle size that will pass through discharge screen. Processed munitions are thoroughly deformed and unable to be reconstituted.

Cumberland Engineering Corp.    South Attleboro, MA 02703
Jul 20, 2010 Offered in 20 x 28, 20 x 36, and 20 x 48 in. sizes, CT500 Series is suitable for recycling of large containers and blow molded objects. Series includes 3- and 5-knife rotor models with 20 in. cutting circle for optimized part ingestion. Rotational end discs provide clean, dust-free granulation without angel hair or smearing. Safety interlocked, rear access hopper facilitates cleanout and inspection, while front hopper access door completely opens up for maintenance.

Maguire Products, Inc.    Aston, PA 19014
Oct 09, 2009 Purging Recovery System(TM) enables purgings - rock-like lumps of plastic that are byproducts of job and color changes - to be reclaimed as valuable raw material. Dual-stage system slices or planes hard lumps of plastic into small pieces and then reduces pieces to uniform, high-quality regrind. Shock-resistant in operation, system features heavy-duty construction with machine base and sound enclosure that minimize noise. Design also facilitates access for loading

Multiquip Inc.    Carson, CA 90746
Aug 06, 2009 Easily attached to skid steer loader or forklift, EZ Grout Hog Crusher can recycle most job site materials such as brick, block, stone, rock, asphalt, and non-reinforced concrete. Machine has 1½ yd hopper capacity, can process 10 tons of material per hr, and features replaceable carbide bits, hardened breaker, cleaner and cheek plates. features

AMCAST    Bohemia, NY 11716
Jul 16, 2009 Accommodating material ranging from 4-35 mm, Rocky operates on 110 kW and outputs sand that is 97% usable material with minimal or no need for screening/re-circulating. With double impactor rotor design, machine eliminates need to adjust aprons. Rocky can take misshapen sand produced from cones and crush them again into more uniform shape and size suitable for jobs with strict quality control regulations. All internal parts are cast FX25 alloy, which resists wear and abrasion.

Prab Conveyors    Kalamazoo, MI 49003
May 20, 2009 Model HAC Horizontal Axis Crusher is designed to be fed with standard chip conveyors directly from CNC machines. It is engineered for continuous low-volume applications and is self-feeding. Minimizing scrap handling down time, it is suited for use with steel, aluminum, brass, copper, and alloys.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada
Apr 15, 2009 Quadro® ComilSift allows processors to go from milling applications up to 15,000 lb/hr to security screening and delumping applications up to 99,000 lb/hr. Milling mode efficiency is optimized due to infeed diameter size, while positive 360º discharge of security screening mode segregates and retains impurities and other foreign materials to accelerate sifting times. Construction facilitates integration into process streams, possibly eliminating need for feeding equipment.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Mar 09, 2009 With conical punch that delivers 12,000 lb of hydraulic force, Model 0101 Sledgehammer Hard Drive Crusher helps destroy all computer hard drives regardless of their size, format, or type, including 3.5 and 2.5 in. technology. Vibration free unit measures 22 x 10 x 19 in., weighs 105 lb, and requires 120 V for operation. Safety interlock prevents unit from functioning while door is open, and emergency stop button halts operation.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Oct 29, 2008 Provided with inlet openings from 28-50 in. long, DC2840 Twin-LP high-capacity crusher features 1-piece stainless steel body with no cracks or crevices for material accumulation. It includes 2 shafts with individual high-profile cutting teeth that rotate through heavy bar grating to crush material while self-clearing with each rotation. Also included are shaft seals, heavy-duty roller bearings, and direct drive with choice of motors.

Modern Process Equipment, Inc.    Chicago, IL 60623
Oct 15, 2008 LPP 6.5 roller-style Gran-U-Lizer(TM) grinds material to narrow particle size distribution, with few unwanted fines, while minimizing impact and heat generation during process. Suitable for achieving results on lab and pilot plant scale, precision particle reduction solution offers independent control over roll gap, with accuracy to 0.0005 in.; roll shear ratio, with independent drive control for each roll; and roll corrugations, with sizes and shapes tailored for application.
