Coating Thickness Testers

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Gauge uses magnetic and eddy current principles.

September 26, 2014

Comprising 3 configurations, rugged 6000GP Series measures paint and coating thickness from 0–60 mils (0–1500 µm) on ferrous and non-ferrous metals with resolution of 0.05 or 0.1 mil (1 or 2 µm). Accuracy ranges from 0.05 mils + 1% for 0–2 mils to 2 µm + 1 for >50 µm. Along with audible and visual Hi/Lo alarm, features include impact-resistant and backlit Lexan® display, temperature compensation, Average Zero feature, user-selectable mil or µm units, and high resolution mode. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Multipurpose Gauge accepts interchangeable probes.

June 15, 2012

By accepting fully interchangeable coating thickness, environmental, surface profile, and ultrasonic wall thickness probes that retain their calibration information, PosiTector gauge body facilitates conversion from coating thickness gauge to surface profile gauge, dew point meter, or ultrasonic wall thickness gauge. Standard and Advanced models feature built-in memory, onscreen statistics, and USB mass storage. Users can also upload stored measurements and generate customizable reports. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Tester offers automatic substrate recognition.

April 12, 2012

Equipped with USB interface and software, CG204 uses magnetic induction for ferrous substrates and eddy current measurement for non-ferrous substrates. Available measuring modes include Single and Continuous, while working modes include Direct and Group. Able to store 80 Direct and 320 Group readings in memory, tester provides Min/Max/Average functions, single- or 2-point calibration, and user-programmable high/low alarms. Menu system facilitates operation. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Gauges measure non-magnetic, insulating coatings.

June 3, 2010

MiniTest Models 70 F and 70 FN both measure non-magnetic coatings from 0-3,000 µm thick applied on steel. Additionaly, Model 70 FN measures 0-2,500 µm thick insulating coatings on non-ferrous metals, and automatically identifies substrate maerial and switches to suitable measuring principle upon surface contact. Both gauges offer 4-button operation and run on AA battery. They display number of readings taken; minimum, maximum, and mean values; and standard deviation. Read More

Test & Measuring Instruments, Materials & Material Processing

Coulometric Titrator performs multi-sample analyses.

December 14, 2009

Equipped with ultra-trace moisture measurement mode with accuracy of 10 µg H20, AQ-2200 Series AQUACOUNTER® Karl Fischer Coulometric Titrator allows 2 titration stations to run parallel with various coulometric/volumetric combinations. Several electrolytic cells are available including small volume and 1-compartment versions. It features 7.5 in. color touch screen, stores results in USB memory stick, and allows user to review results using PC LAN software. Read More

Test & Measuring Instruments, Optics & Photonics

Microspectrophotometer measures thin films.

July 20, 2009

Combining advanced microspectroscopy with sophisticated software, QDI 2010 Film(TM) non-destructively measures thickness of thin films of photovoltaic cells by either transmission or reflectance. With sampling areas ranging from over 100 microns across to less than 1 micron, instrument can analyze many materials on both transparent and opaque substrates. Features such as contamination analysis and transmissivity testing can be added to instrument. Read More

Test & Measuring Instruments, Laboratory and Research Supplies & Equipment

Metrology System offers copper process control solution.

May 27, 2009

Measuring 60-80 product wafers/hr, MetaPULSE®-G thin film measurement tool is optimized specifically for copper damascene processes at 45 through 22 nm technology nodes and copper via fill in 3D IC applications. Tool uses green wavelength laser for measurement repeatability better than 0.3%. System's 10 x 10 µm spot size is small enough to measure wafers in 30 x 30 µm or smaller test sites. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Portable Touchscreen Instrument measures coating thickness.

November 3, 2008

Combining 2 physical measurement methods, DUALSCOPE® FMP100 calculates thickness for non-magnetic coatings on ferrous substrate materials and electrically non-conducting coatings on NF-metals. Configuration options promote clear presentation of results, and user can create application-specific interfaces and printform templates. While USB port enables connection to external keyboard, printer, or PC, software is provided for managing measurement application and configuring instrument. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Probe measures coating thickness on small parts.

March 18, 2008

MI Fe 500 µm Coating Thickness Measuring Instrument is pen-shaped probe for measurements of thin coatings on both normal and small parts like screws, small machine parts, rings, braces, nails, beams, or studs. Operating with Magnetic Inductive principle, it measures non-ferromagnetic coatings as well as lacquer, enamel, or plastic coatings on steel substrate. It is also available with coating thickness gauge stand. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

X-Ray Fluorescence Analyzer measures coating thickness.

February 7, 2008

Combining X-ray tube and large LN2 free detector, X-Strata980 measures small areas of complex samples and delivers limits of detection in single digit ppms. It performs analysis and characterization of multi-layer coatings, SAC alloys, µPPF, and solar panels. With high resolution detector, product can identify, quantify, and differentiate neighboring elements. Unit can measure features as small as 150 microns in size. Users can choose empirical/fundamental parameter calibration. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Gauge utilizes wireless probe.

November 16, 2007

QNix®8500 supports bi-directional wireless communication with PC via support for QNix® SAT thumb-sized wireless radio probe. It accommodates interchangeable probes with 200 mil max measuring range and offers multiple calibration options. Available with and without memory, system does not require calibration but allows for customized measurements. Software is available for transfer to and evaluation of data in Excel as well as gauge configuration. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Gauge can be read from any position.

April 18, 2007

In addition to built-in wrist strap for secure use, PosiTest® DFT features FLIP Display that enables right-side-up viewing in any position. Unit is available in Ferrous model for steel or Combo model for all metals. Both versions of this inspection instrument offer repeatable measurements and do not require calibration for most applications. Product is suited for use by paint applicators and inspectors. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Handheld Tester measures coating thickness.

September 7, 2006

Suited for wood, concrete, plastic, and other non-metal substrates, PosiTector 200 is available with Standard or Advanced features and choice of 2 measuring ranges. Unit incorporates graphing capabilities and features impact-resistant, Lexan® display; IP5X ingress protection; and protective rubber holster. Able to take up to 40 readings/min, it is design for measuring total thickness of coating system or up to 3 individual layer thicknesses in multi-layer system. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Coating Thickness Gage is built for durability.

June 23, 2006

Designed for measuring coatings on all metals, PosiTector® 6000 features impact-resistant Lexan® display, IP5X ingress protection, and protective rubber holster. Resilience of its probes and housing make hand-held unit suited for powder coaters and inspectors. Range of probes are available for variety of applications. Read More

Test & Measuring Instruments

Thin Film Research Tool measures thickness and composition.

May 24, 2005

Utilizing parallel angle, resolved X-ray photoelectron spectroscopy technique, Theta 300 manages transition of new gate dielectrics and other thin structures from development into production. Fully automated unit features twin load ports and full host integration and pattern recognition. It provides 200 and 300 mm wafer mapping of thickness, elemental and chemical uniformity, coupled with non-destructive depth profiling to determine interface chemistry. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

XRF Analyzer measures coating thickness.

December 2, 2004

Utilizing 100 W X-ray tube, X-Strata960 provides composition analysis and coating thickness measurement. Small collimator analyzes micro-features, while large chamber and XY table handle large parts. Featuring integrated PC and monitor, analyzer provides distance-independent measurement for complex sample geometry, and includes Auto Range Finder, which eliminates operator error. It is suited for metal finishing, electronics, and precious metals industries. Read More

Test & Measuring Instruments

Thin Film Analyzers perform on-line composition analysis.

April 23, 2004

Non-contact, solid-state AOTF-NIR Thin Film Analyzers measure physical and chemical properties on various substrates and coatings. Able to be placed within production lines, instruments perform on-line specification verification and chemical composition analysis/evaluation of adhesives, coatings thickness, and organic lacquers or lubricants. Sensors provide full spectrum scanning and can be interfaced with main plant PLCs or DCS. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Portable Holiday Detectors are self-contained.

August 19, 2003

Offered in 3 models, detectors inspect pipe coatings on 2-60 in. pipe. SPY® Model 715 provides infinite voltage settings over 1,000-5,000 V range, while Model 725 inspects various coatings with its 1,000-15,000 V range. With its 15,000-35,000 V range, Model 735 is suited for use with extra thick and somastic coatings. All detectors feature infinite voltage settings to allow specific sensitivity adjustments on the fly. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Analyzer measures coatings of small to mid-sized parts.

February 5, 2003

Equipped with laser for rapid sample positioning, CoatMaster 350 XRF coating thickness measurement machine is offered with choice of collimators of various sizes and Z motorized stage. Software is included for coating thickness measurements, compositional analysis, report generation, element identification, and/or bath analysis measurement. Unit may also be used for jewelry analysis to provide precious metals determination. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

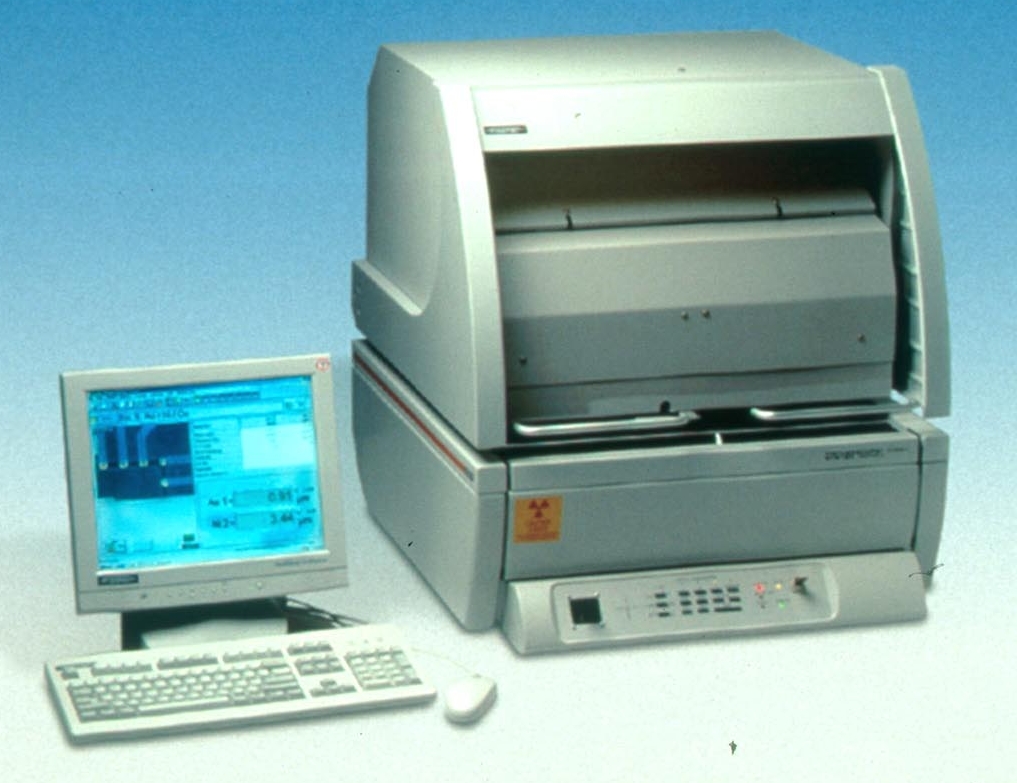

Machine measures coating thickness of large parts.

January 24, 2003

CoatMaster 550, with 23.6 x 13.8 in. chamber, incorporates X-Y motorized stage and supports movement in Z direction via moveable head. Offered with choice of EZ-Load stage that automatically moves in/out of chamber or non EZ-Load heavy-duty stage that accommodates up to 44 lbs, unit has automated multi-collimator changer that holds up to 4 collimators of various sizes. Software is provided for coating thickness determination, element ID, and compositional analysis. Read More
