Vaisala, Inc.    Woburn, MA 01801 1008
Nov 01, 2007 Allowing users to monitor measurement trends, BAROCAP® Digital Barometer PTB330 provides wide range of high-end atmospheric pressure measurements. Incorporating 1, 2, or 3 BAROCAP® sensors, it continuously compares readings of pressure sensors against one another when 2 or 3 sensors are used and provides information on whether these are within set of internal difference criteria. Unit can calculate and output QNH and QFE pressures used in aviation.

ICSDataCom    Pleasanton, CA 94588
Nov 01, 2007 Including Models ME8200A, ME8200B, ME8200AC, and ME8200BC, Series ME8200 cards provide 16 isolated outputs, 16 isolated inputs, and 16 general purpose TTL lines. Isolated outputs can drive 3-45 V loads and source up to 700 mA per channel, while 16 isolated inputs accept inputs from 3.3-45 V and incorporate transient protection. General purpose TTL lines are 2 bidirectional 8-bit ports, and can be independently used as latched outputs or as gated inputs.

Mitek Systems, Inc.    San Diego, CA 92131
Nov 01, 2007 ImageNet Signatures(TM) software developers toolkit enables applications to detect fraudulent signatures on checks, voter ballots, account applications, and other documents which legally require signatures. Image analytics encode various characteristics of each signature and system accommodates natural variations in signatures by encoding multiple sample signatures. Target signature can be captured from digital pad, PDA, tablet PCs, or scanned paper document.

Advantest America Corp.    Santa Clara, CA 95054
Nov 01, 2007 Designed for OPENSTAR® T2000 test platform, 12 GHz Wideband Signal Generator/Analyzer features 32 RF signal I/O ports per module. It offers 16-device simultaneous testing of RF devices consisting of 4-8 ports, and supports 4-device parallel testing or 16-port multi-band RF devices. By using module in combination with existing 800 Mbps digital, 500 mA DPS, and base-band waveform digitizer generator modules, all RF SoC device signal tests can be conducted on single test system.

Packaging Technologies & Inspection - PTI, LLC    Tuckahoe, NY 10707
Nov 01, 2007 Designed for package integrity testing of filled and sealed food pouches, retort pouches, and pharmaceutical and medical pouches, VeriPac 225 Leak Tester comes with flexible bladder that eliminates any stress on pouch seal during testing cycle. Different size pouches can be placed into testing drawer simultaneously and tested in one test cycle. Unit utilizes ASTM approved vacuum decay leak test method (F2338-05) recognized by FDA as consensus standard for package integrity testing.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 31, 2007 Housed in USB-powered box, PC-based PoScope combines 2-channel, 100 Hz to 200 kHz oscilloscope; 2-channel spectrum analyzer; 2-channel chart recorder that displays signals from 0.01 Hz to 200 kHz; 8- or 16-channel logic analyzer with 1 kHz to 8 MHz recording; 5-channel square wave and PWM generator; and 8-channel, 1 kHz to 1 MHz pattern generator. With USB interface, users can record, output, and print all waveforms or update firmware as new features become available.

OEM Data Delivery    Shelton, CT 06484
Oct 31, 2007 Installed and concealed in lube/fuel truck, low boy truck, mechanics' truck, or supervisor's vehicle, GoPOD provides wireless, hands-free way to capture individual machine locations, plus work time, idle time, and service alerts. Information is collected passively, via drive-by, within range of 300 ft line of site, and transmitted via secure radio link. It is then formatted, downloaded into web report each night, and made available on password-protected website.

Cincinnati Test Systems Inc.    Village Of Cleves, OH 45002

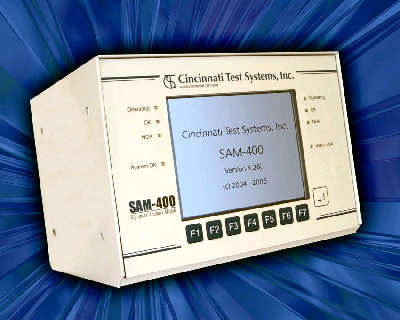

Oct 31, 2007 Designed for any press force monitoring operation, multi-station SAM 400 Press Force Signature Analysis Module can handle up to 2 independent press station operations, with each station programmable to 32 parts and 8 tolerance windows. Unit provides forward and backward measurement capability, 2 channels of force measurement, and 2 channels of distance measurement. Communications are provided via Ethernet, Serial, Parallel, Profibus, and optional Fieldbus.

Emerson Process Management    Austin, TX 78754
Oct 31, 2007 Always ready for immediate use in field, 375 Field Communicator v2.0 features capabilities for configuring and troubleshooting HART® and FOUNDATION fieldbus devices. It delivers in-depth diagnostics for FOUNDATION fieldbus devices and fieldbus UI, presenting information in trend charts, gauges, and process images using EDDL. Intrinsically safe communicator supports every HART and FOUNDATION fieldbus device from all suppliers and also interfaces to AMS(TM) Suite.

AMETEK Solartron Metrology    Gastonia, NC 19301
Oct 30, 2007 Available in 23.5 and 27.5 mm models, DZ Series Probes provide 1 and 2 mm measuring range, respectively. Transducers are sealed using Viton® boot to exclude dust and moisture and meet IP65 requirements. Tips with M2 thread are available for various applications and can be replaced in field without returning them to factory. Offered in digital versions only, probes facilitate setup since neither electrical zero nor sensitivity are needed.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
Oct 30, 2007 Wireless equipment for QuickView pipeline zoom camera consists of compact transmitter that is part of QuickView operator vest and receiver that connects to remote viewing or recording device. Video can be transmitted in real-time up to 1,000 ft line-of-sight and 300 ft otherwise using one of 8 user-selectable channels in 5.725-5.875 GHz range. System includes transmitter holster that also attaches to vest.

Ametek Chatillon, Test & Calibration Instruments Div.    Largo, FL 33773

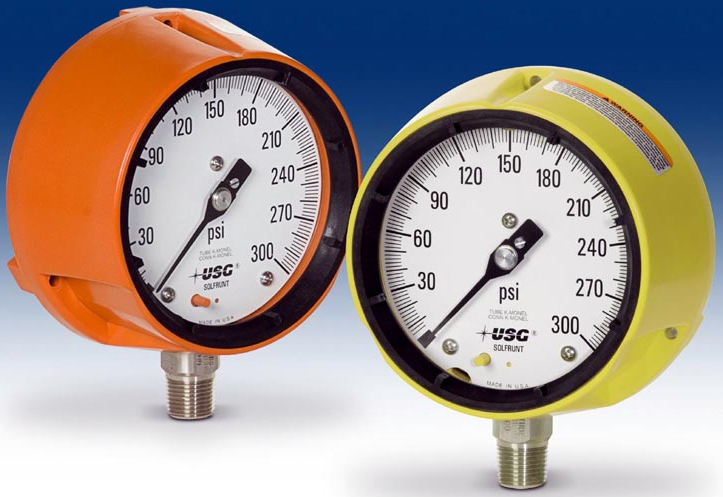

Oct 30, 2007 Suited for corrosive applications, XR-Series features back plates that vent instead of blowing out and solid front design that prevents internal components from becoming projectiles in case of rupture. All-welded gauge-to-seal design and seamless Bourdon tubes minimize leak paths while promoting burst or rupture pressure performance. Two models are available, XR--81 and XR-86, respectively built with USG Model 1981 and 1986 gauges featuring 316L stainless steel and MONEL® internals.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495
Oct 30, 2007 Suited for monitoring unbalance and misalignment on motors, pump sets, and other rotating equipment, Model 682A08 Vibration Transmitter is ICP® accelerometer signal conditioner that retransmits acceleration or velocity signal as 4-20 mA signal for trending and simple interface with PLC, DCS, and SCADA systems. DIN rail mounted and 24 Vdc powered unit comes with selectable low pass filters at 1 or 10 kHz and high pass filters at 3 or 10 Hz.

HBM, Inc.    Marlborough, MA 01752 3014
Oct 30, 2007 Featuring integrated Advanced Plug & Measure (APM) technology, QuantumX comes with 8 connectors each of which independently recognizes and supports all transducer technologies. Up to 128 CAN signals can be acquired on one connector. Transducers fitted with TEDS technology are automatically recognized as soon as they are connected to instrument, while transducers without TEDS are configured using expandable sensor database.

ADLINK Technology Inc.    Irvine, CA 92618
Oct 30, 2007 High Speed Link (HSL) U Series digital, distributed I/O slave modules have flat-bottom housing for tight spaces as well as connector options. With 16 discrete input and 16 discrete output channels, Model HSL-DI16DO16-UJ-N/P offers separate I/O connectors to allow debugging without affecting other I/O channels, while Model HSL-DI16DO16-US-N/P offers shrouded connectors with latch-lock. Model HSL-DI16-UL features 16 discrete input channels and pulse stretcher function.

Gems Sensors Inc.    Plainville, CT 06062
Oct 30, 2007 Featuring stainless-steel design, less than 1 in. dia, and weighing 32 g, 3100/3200 Series transducers offer various outputs and pressure ports. They deliver output signal for temperature and pressure, providing full scale accuracy of 0.25%, and long term drift limited to 0.1% over full scale per year. Offered in voltage, current, or ratiometric output versions, transducers can withstand high levels of shock, vibration, and electromagnetic discharges.

Sensicast Systems    Needham, MA 02494
Oct 30, 2007 SensiNet® Green Solutions include battery-powered Smart Sensors for temperature and humidity monitoring and sensors to measure voltage and electrical power consumption. Through SensiNet's application connectivity, they can be integrated into energy demand response and energy management systems in place to provide energy audits and energy modeling, commissioning, retro-commissioning, measurement and verification, operations and maintenance, and design feedback data.

Safeline Metal Detection, Inc.    Tampa, FL 33634 3009
Oct 30, 2007 Featuring coil technology, PowerPhasePLUS RB has wide aperture that is suited for inspecting bulk bags and any dry, wet, loose, or packed bulk product. Available in single and dual frequencies with choice of sealing standards and finishes, it can detect non-magnetic stainless steel and fine wire contaminants. Unit's design allows for integration into bulk processing and packaging lines, and user interface includes menu-driven membrane key panel that facilitates operation.

TURCK, Inc.    Plymouth, MN 55441
Oct 29, 2007 Featuring fiberglass-reinforced nylon housing and full epoxy encapsulated electronics, Analog Input Station supports 4 analog inputs on DeviceNet(TM) network. Inputs may be configured for either analog current from 0-20 mA or 4-20 mA, or analog voltage from 0-10 V or -10 to 10 V. Capable of on-machine installation in harsh environmental conditions, station uses rotary switch or DeviceNet software for configuration.

Fluke Corp.    Everett, WA 98203

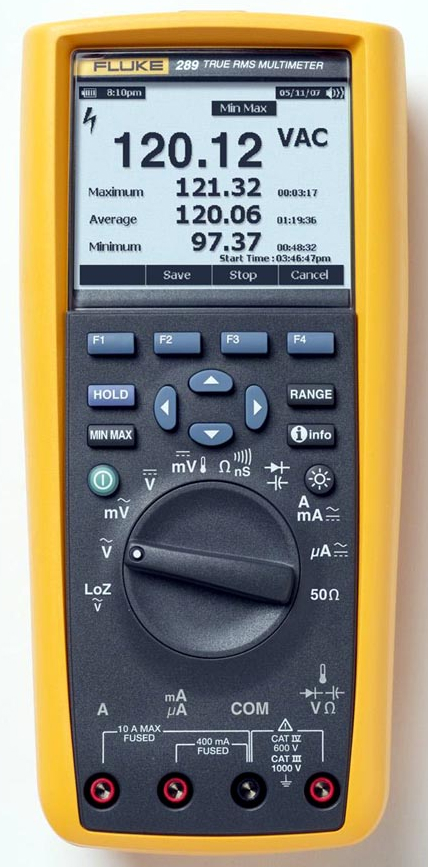

Oct 26, 2007 Along with logging function capable of storing up to 10,000 readings for unattended monitoring of signals over time, Fluke 289 features functionality for diagnosing problems in electronics, plant automation, power distribution, and electromechanical equipment. Users can save multiple logging sessions and review logged readings in graphical format directly on meter's display using on-board TrendCapture capability. Automatic time stamping aids recall of measurements made in field.
