TandD US, LLC    Saratoga Springs, NY 12866
Sep 09, 2010 Operating on 1 AA battery, 4-channel Model RTR-574 measures luminosity from 0-130 k lx, UV from 0-30 mW/cm², relative humidity from 10-99%, and temperature from 0-55°C. Wireless unit can store up to 8,000 readings x 4 channels for total of 32,000 readings in one-time or endless recording mode. Measuring 2 x 3 in., logger supports automatic downloading of logged data, real-time monitoring, and warning notifications by email or text to cell phone.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 09, 2010 Without requiring any electricity, manual Series DTV provides uninterrupted liquid level indication for 30 or 55 gal storage tanks/vessels. Stem and mounting feature all-PVC construction, and only float and stem make contact with liquid to ensure indication tape remains clean and readable. Recommended for use in calm liquids and ambient temperature and pressure levels, product comes in lengths from 6 in. to 6 ft and is accurate to 1/16 in.

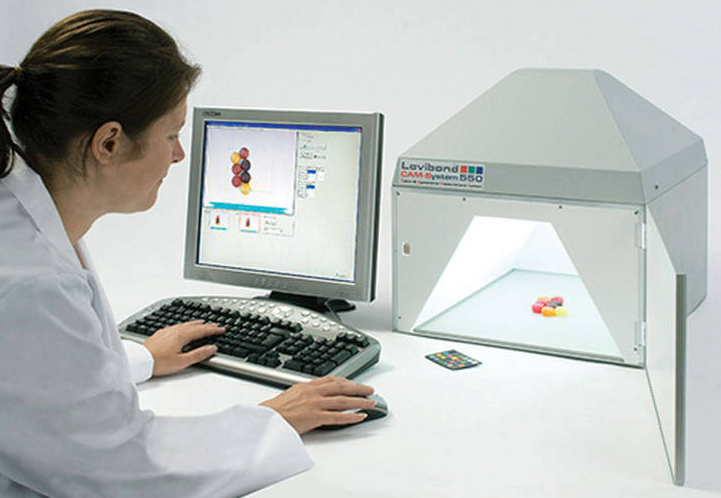

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Sep 09, 2010 Based on digital imaging technology, Lovibond® CAM-System 550 lets user decide whether product meets acceptable color and appearance criteria or if it has undesirable defects. System uses acceptable samples to generate quantitative reference profile for product, including min/max limits subsequently used for pass-fail assessment of product samples. Able to process entire image or simultaneously measure multiple colors and regions of interest, system offers up to 240 mm measurement area.

2BM Ltd    Nottingham NG9 6DZ  United Kingdom
Sep 09, 2010 Able to be installed into live environments for uninterrupted operation, 2bm iMeter features intelliAmp sensor, which monitors current draw of racks via 16 and 32 A cables. System provides insight into energy requirements of servers, SANs, switches, and attendant supporting equipment, enabling controlled reduction of data center's PUE rating. In addition to continuous voltage and current monitoring, system offers True-RMS current metering, user-configurable alarm thresholds, and Web interface.

Mahr Federal Inc.    Providence, RI 02905
Sep 09, 2010 Available with IP67 rating for protection against dust, water, coolant, and lubricants, MarCal Digital Calipers include Reference System, which retains zero setting so that units are ready to measure whenever they are turned on. Calipers also feature lapped guideway surfaces for smooth operation, thumb support, and large LCD with 8.5 mm digits. Offering direct connection to PC, USB-ready devices enable users to transfer measured values into MS Excel or other applications.

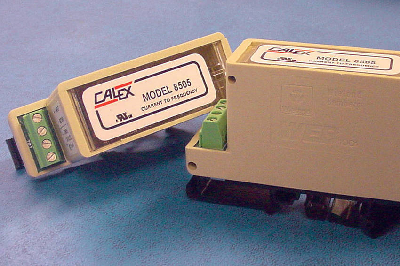

Calex Mfg. Co., Inc.    Concord, CA 94520
Sep 08, 2010 Offering solution for multiple channel PLC I/O systems, Model 8505 is designed to operate into common 24 V, 7 mA PLC discrete counter input. Converter provides 1-5 kHz output frequency for 4 µA per Hz resolution. Output is linear to 0.01% with accuracy of better than 0.1%. Housed in 3.78 x 1.06 x 1.65 in. plastic case with built-in DIN rail-mounting foot, device features isolated floating optocoupler that provides DC isolation from input and DC power.

Meriam Process Technologies    Cleveland, OH 44102
Sep 08, 2010 Operating in temperatures from -4 to +122ºF, M200 Smart Manometers are available with 0-10.000 in. H₂O range, 4 gauge pressure ranges up to 3,000 psig, and 2 absolute pressure ranges up to 1,000 psia. Products are also available in 8 compound pressure ranges to measure ±15 through -15 to +3,000 psig. They include backlight, alkaline battery power, and NIST traceable certificate of calibration with data, timed leak test, record mode, damping, and minimum/maximum value capture.

Ideal Industries, Inc.    Sycamore, IL 60178
Sep 08, 2010 TightSight(TM) Clamp Meter has High Frequency Rejection to assure accuracy when measuring in noisy electrical environments or with complex waveforms. Unit includes TightSight bottom display that enables reading from any angle, slim tapered jaws and hook tip that reach into crowded cable bundles, and low battery indicator. Featuring True RMS, CAT IV, or CAT III safety ratings, it is available in 660 and 1,000 A models, both with or without DC current measurements.

Trident Microsystems, Inc.    Santa Clara, CA 95051
Sep 08, 2010 Integrating LVDS interfaces and memory controller for external SDRAM, FRC-V converts 50 and 60 Hz material directly to 200/240 Hz systems to enable higher refresh rates needed for 3D display. Single-chip frame rate converter (FRC) also includes motion estimation and motion compensation (MEMC) technology, which eliminates movie judder, motion blur, and halos to optimize picture sharpness and clarity. Product is optimized to meet needs of HD broadcast content and blu-ray players.

Intersil Corporation    Milpitas, CA 95035
Sep 08, 2010 Single-phase controller of ISL6265C powers Northbridge portion of CPU, while 2 remaining controller channels can be configured for 2-phase or individual single-phase outputs. For uniplane CPU applications, product is configured as 2-phase buck converter. It can also act as single-phase controllers, powering VDD0 and VDD1, for dual-plane processors. Along with embedded gate drivers, features include R3 Technology(TM) modulator, Serial VID Interface, and unity-gain differential amplifier.

ENM Company    Chicago, IL 60646 6135
Sep 08, 2010 Featuring 7-segment LCD that displays six 7 mm digits, decimal point, and flashing hourglass icon, Series T44 offers powerless, nonvolatile data backup via CMOS EEPROM technology to store accumulated hours. Epoxy encapsulated product, which incorporates solid state electronics, retains data for over 25 years. Available versions include T44D65A, rated 4.5-60 Vdc/Vac, 50/60 Hz, and T44D69A, rated 115-275 Vdc/Vac, 50/60 Hz.

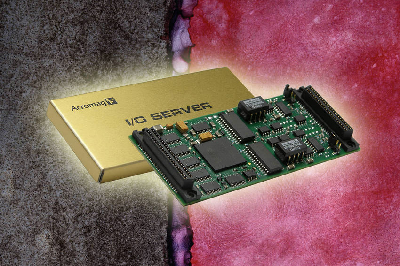

Acromag, Inc.    Wixom, MI 48393 7037
Sep 07, 2010 Supporting CAN 2.0B protocol, Model IP560 consists of Industry Pack ANSI/VITA-4 card that plugs into VME, CompactPCI, and PCI bus mezzanine carrier cards or single-board computers in embedded systems. Model IOS-560 operates within I/O Server industrial PC, which services mobile computing, machine control, and test applications. Both modules include 2 channels, each featuring NXP SJA1000 CAN controller with TJA1041 transceiver. Extended temperature models support -40 to 85°C operation.

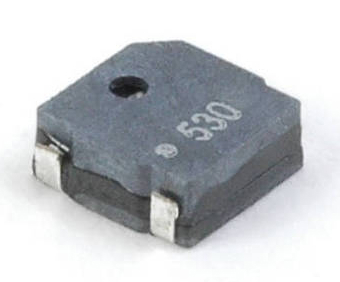

CUI, Inc.    Tualatin, OR 97062
Sep 07, 2010 Supplied in 5 x 5 mm SMT package, CSS-05 series uses magnetic technology and has rated voltage of 3 V and rated frequency of 4,000 Hz. Sound pressure level options range from 75-78 dB, operating temperature range is -30 to +70°C, and three configurations are available. Models CSS-0575A, CSS-0575B, and CSS-0578 suit mobile equipment applications where board space is of concern, such as handheld scanners, glucose monitors, and GPS devices.

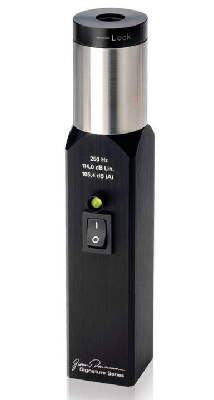

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Sep 07, 2010 Compatible with 1/8, ¼, and ½ in. measurement microphones, battery-operated Endevco® Model EM42AA serves as stable sound source for accurate calibrations. Unit offers sound pressure calibration level of 114 dB re. 20 µPa at frequency of 250 Hz ±0.5%. Dual-color LED above ON/OFF switch indicates both battery condition and operational stability. Factory calibrated with accuracy of ±0.08 dB re. 20 µPa, pistonphone is supplied with calibration certificate.

Radiometrix Ltd.    Watford Hertfordsh WD19 5EZ  United Kingdom
Sep 07, 2010 Offered with basic antenna included, Model KDEC uses 32-bit encrypted hop-code, which is encrypted using 64-bit manufacturer code and 28-bit serial number for security. Decoder has standard frequency of 433.92 MHz and is optimized for use with KFX2 key-fob transmitters or KTX2 transmitter modules. Powered by 9-16 Vdc supply, receiver is suitable for security/alarm systems, status reporting/monitoring secure systems, industrial controls, HVAC controls, and wireless door entry systems.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195-2011
Sep 06, 2010 Models 2206 and 2207 solid flanged reaction torquemeters are stationary instruments that measure static and dynamic torque of rotating and non-rotating drivelines. Available torque ranges are from 300,000-750,000 lbf-in., with either ±2 mV/V or ±10 V output, and all units are calibrated CW and CCW to rated load. They are suited for industrial torque measurement and control applications including valve actuators, servo valves, hydraulic motors, and stepper motors.

TURCK, Inc.    Plymouth, MN 55441
Sep 06, 2010 TURCK 2430 shaft and 2440 hollow-shaft miniature encoders assign unique output for each position and retain specific position data, even if equipment power is turned off. Non-contact, rugged units have maximum speed rating of 12,000 rpm, with temperature range of -20 to +85ºC to suit diverse plant environments. Radial and axial cable outlet options are available.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Sep 03, 2010 Offered as modular system, FlexStream(TM) uses Trace Source(TM) permeation tubes, which add precisely known concentrations of sulfur compounds to nitrogen, ethylene, or propylene matrix. It is configured with 2 permeation ovens and secondary dilution module for producing mixtures containing H2S, COS, and range of higher boiling sulfur compounds. Concentration can also be varied for multi-point calibration, and microprocessor system sets dilution flows and selects proper operating mode.

Process Measurement & Controls, Inc.    Danbury, CT 06810
Sep 03, 2010 Contained within rugged housing measuring less than 1.1 in. diameter, Model SF52 features dew-point temperature range of -40 to +140. Communication is via 4-20 mA or voltage signal for either dew-point or absolute humidity with less than 3.6°F accuracy and less than 1.8°F annual stability. Transmitter's ½ in. NPT port contains flush filter disc to minimize flow disturbance.

Magtrol SA      Switzerland
Sep 03, 2010 Constructed of high quality steel, HDL sensor is designed for geo-technic, underground, and road engineering applications to monitor forces involved on all concrete constructions. It features long term temperature stability, operating temperature range of -25 to +70°C, and size/capacity ratio with nominal range from 600-2,700 kN. Suited for use in harsh environments, sensor is also available in customized models.
